Product Overview
Description
Product Description

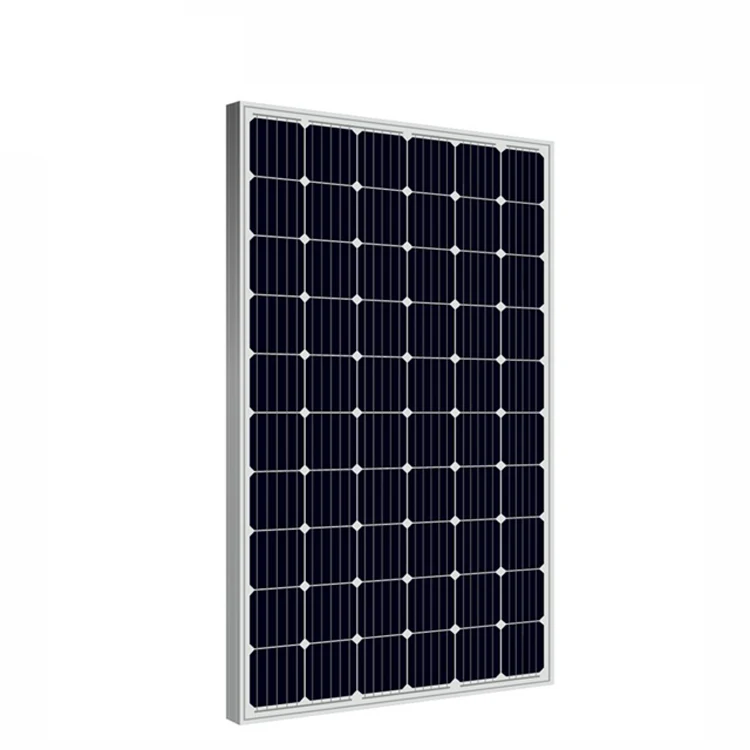

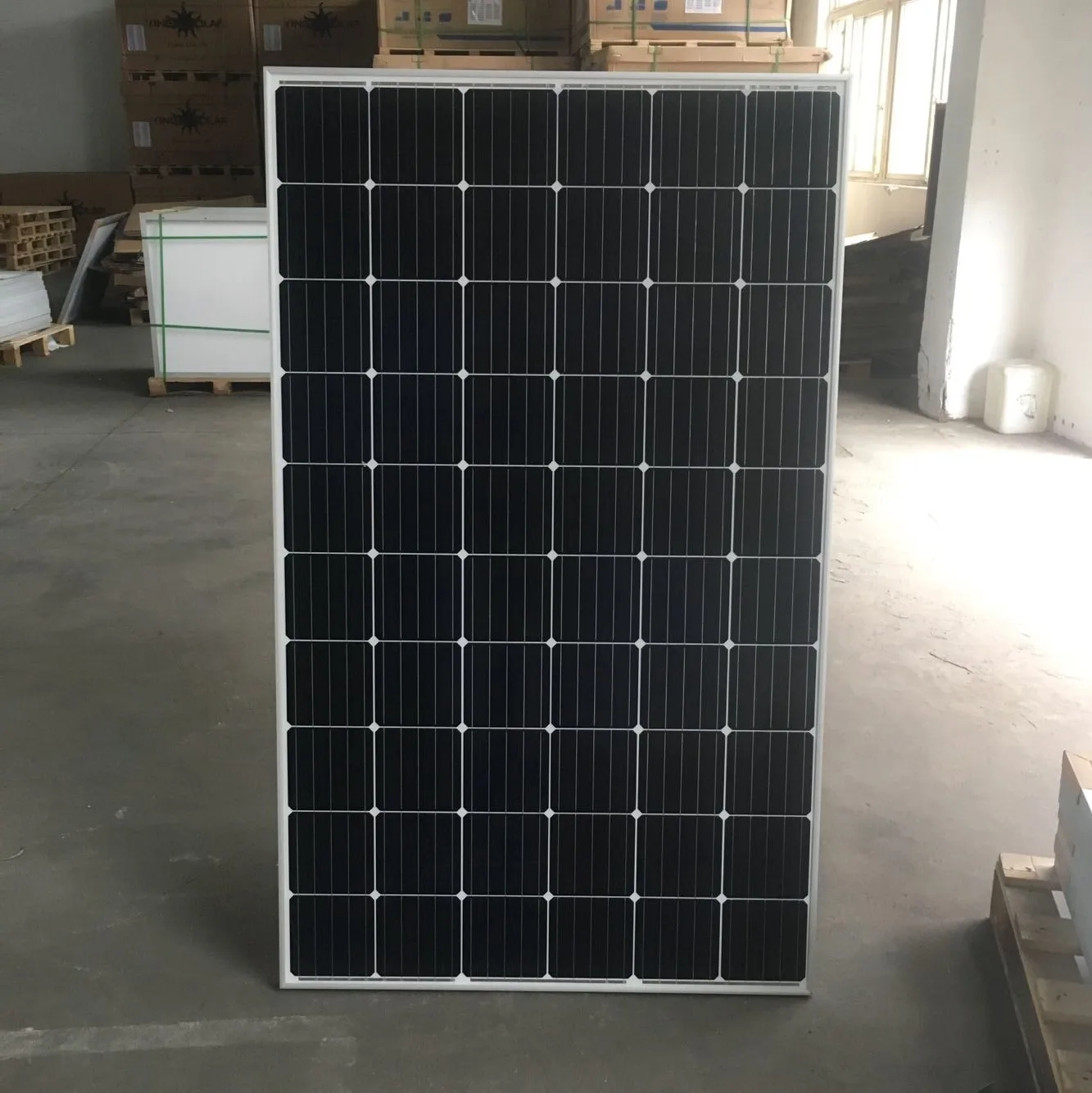

HDM60
290W-310W
Monocrystalline PV module

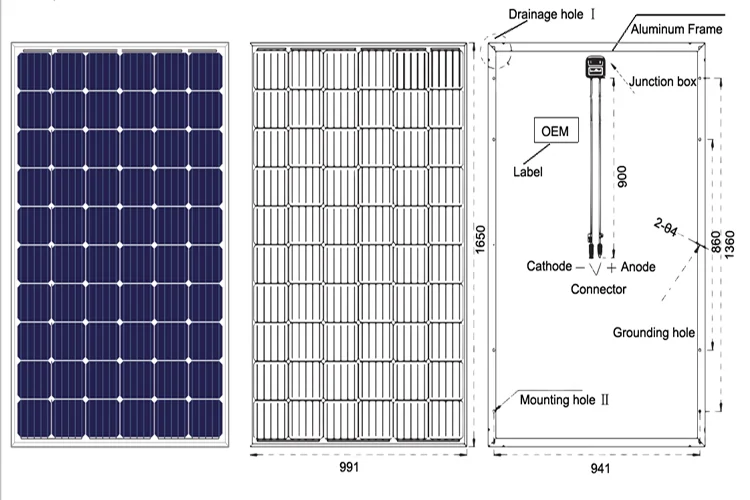

Mechanical Specification | ||
Cells Type | Mono156.75×156.75mm | |
Weight | 18.6kg | |
Dimension(L×W×T) | 1650×991×35mm | |
Output Cables | TUV，Length900mm，4.0mm² | |
No.of Cells | 60（6×10） | |
Front Glass | 3.2mm High Transmission,Low Iron Tempered Glass | |
Frame | Anodised Aluminium | |
Junction box | IP67，3 Bypass Diodes | |
Packing Configuration | ||||||
Container | 20GP | 40GP | 40HC | |||
PCS per pallet | 30 | 30 | 30 | |||
PLT per container | 14 | 28 | 28 | |||
PCS per container | 400 | 840 | 924 | |||
Operating Parameters | ||
Maximum system voltage | DC1000V | |
Operating Temperature(℃) | -40 ~+85℃ | |
Maximum series fuse rating | 15A | |
Snow load,frontside | 5400Pa | |
Wind load，backside | 2400Pa | |
Nominal operating cell temperature (NOCT) | 45℃±2℃ | |
Application level | Class A | |
Electrical Characteristics (Standard Test Conditions) | ||||||||||
Module Type | HDM60-290 | HDM60-295 | HDM60-300 | HDM60-305 | HDM60-310 | |||||
Maximum Power(Pmax) | 290W | 295W | 300W | 305W | 310W | |||||
Open-circuit Voltage（Voc） | 38.9V | 39.6V | 39.8V | 40.0V | 40.2V | |||||
Maximum Power Voltage（Vmp） | 32.2V | 32.5V | 32.6V | 32.9V | 33.1V | |||||
Short-circuit Current（Isc） | 9.66A | 9.68A | 9.77A | 9.85A | 9.94A | |||||
Maximum Power Current(Imp) | 9.01A | 9.08A | 9.19A | 9.28A | 9.37A | |||||
Module Efficiency(%) | 17.7% | 18% | 18.3% | 18.6% | 18.9% | |||||
PowerTolerance | 0～+3% | |||||||||
Standard Test Environment | Irradiance 1000w/m², Cell temperature 25℃, Spectrum AM1.5 | |||||||||
Details Images

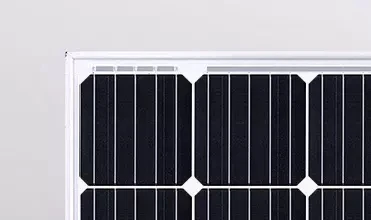

Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

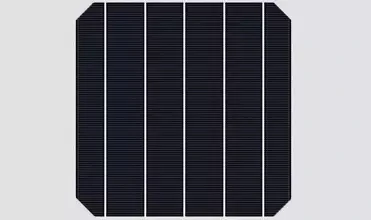

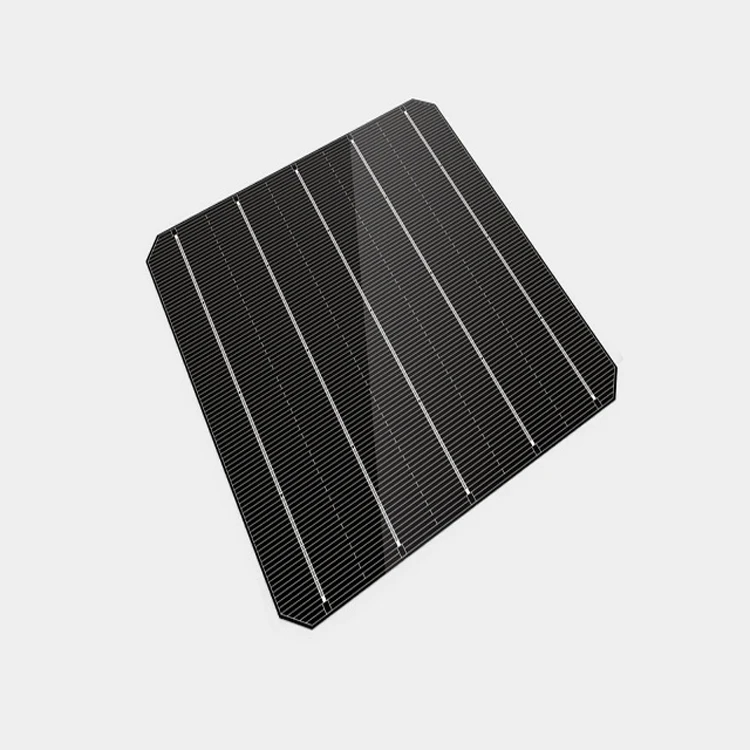

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

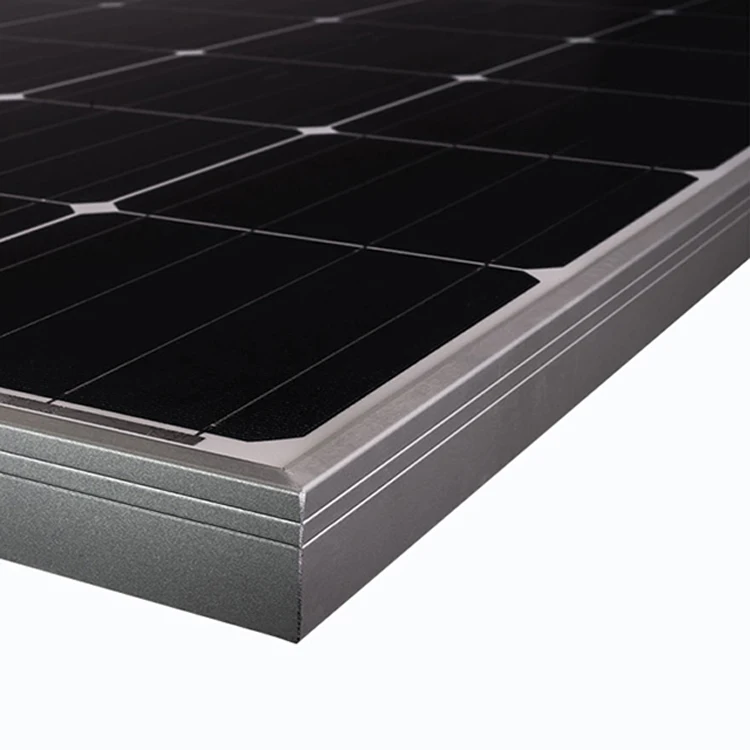

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

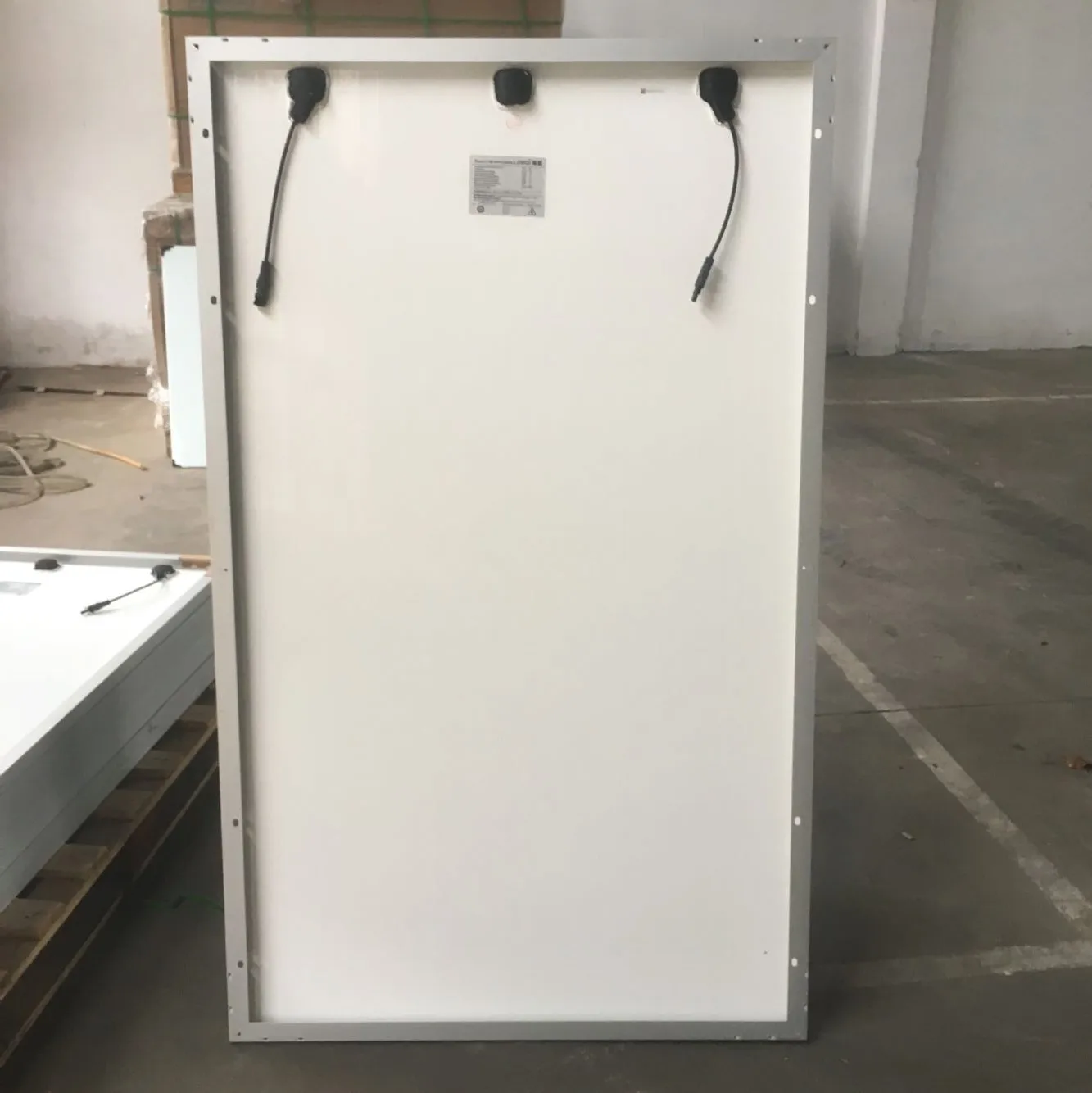

Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Packing & Delivery
By sea | Delivery from Shanghai or Ningbo seaport |
By air | Departure from Shanghai Pudong Airport |
By express | By TNT/DHL |
（60 cells panels)Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 30 | 30 | 30 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 400 | 840 | 924 |
Related Products
Company Profile

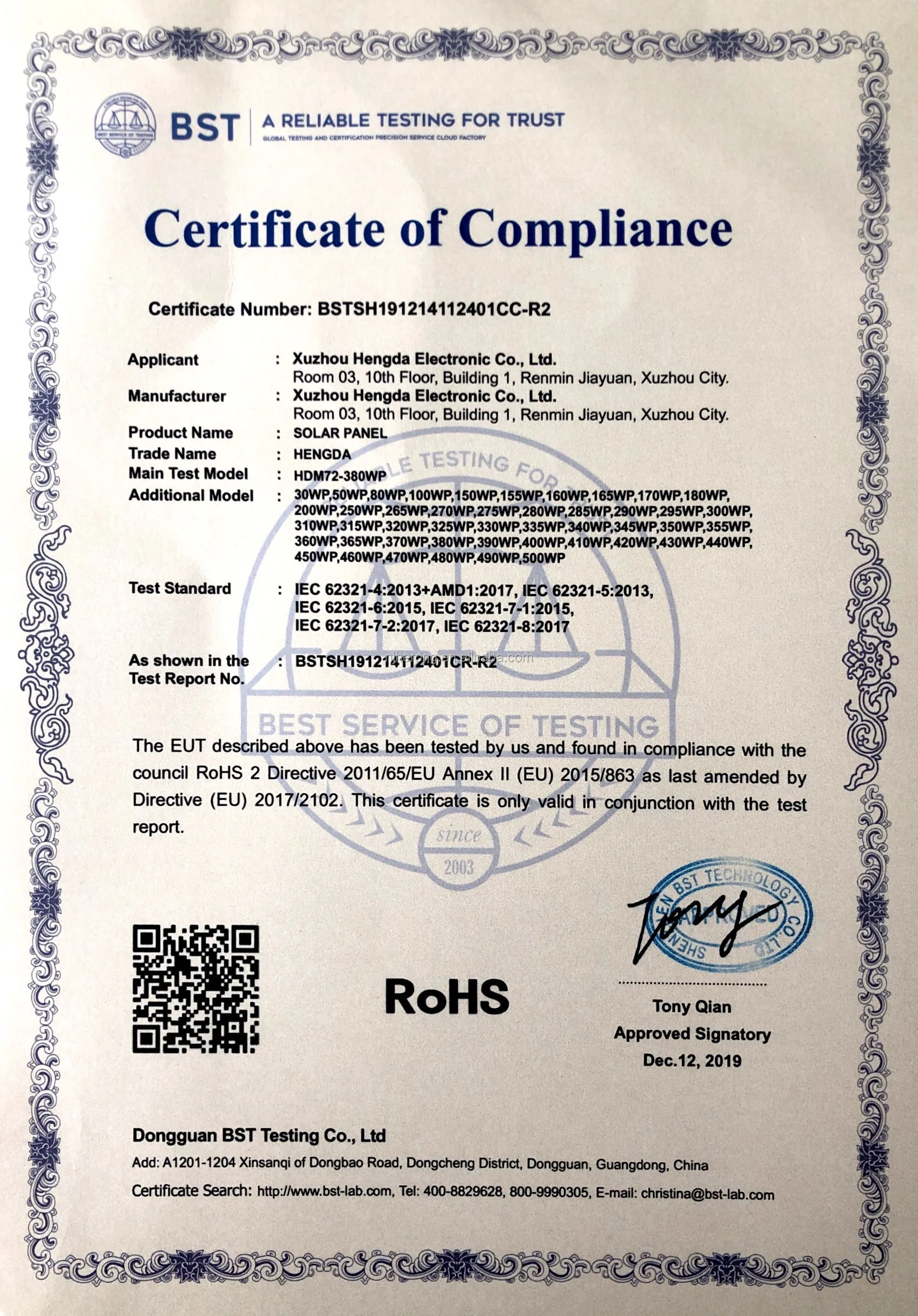

Certifications
