CCTV источник питания металлическая коробка 12В 10А DC 9 портов распределительный импульсный источник питания
- Category: Switching Power Supply >>>
- Supplier: Guangdong Province Sompom Industrial Co. Ltd.
Share on (62321871026):
Product Overview
Description
Product Description

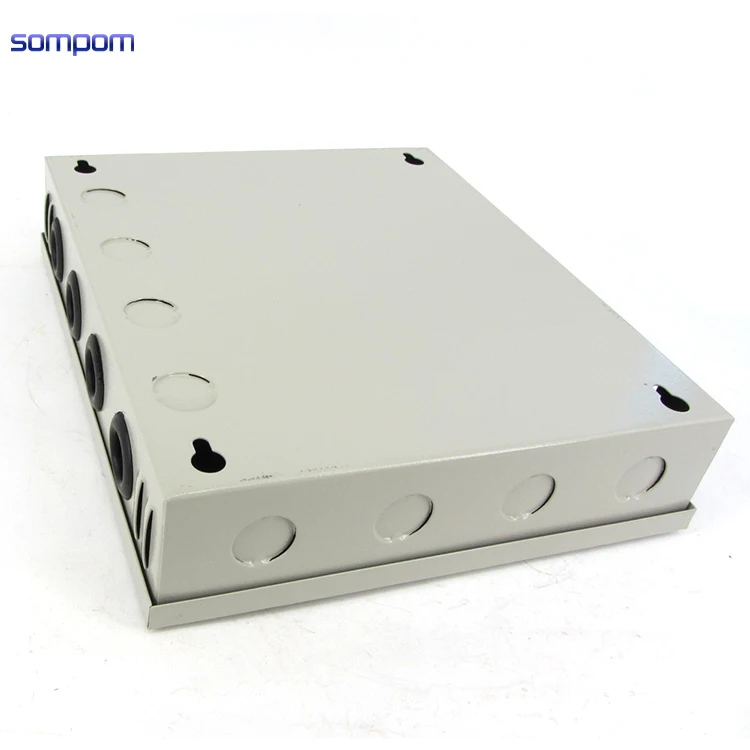

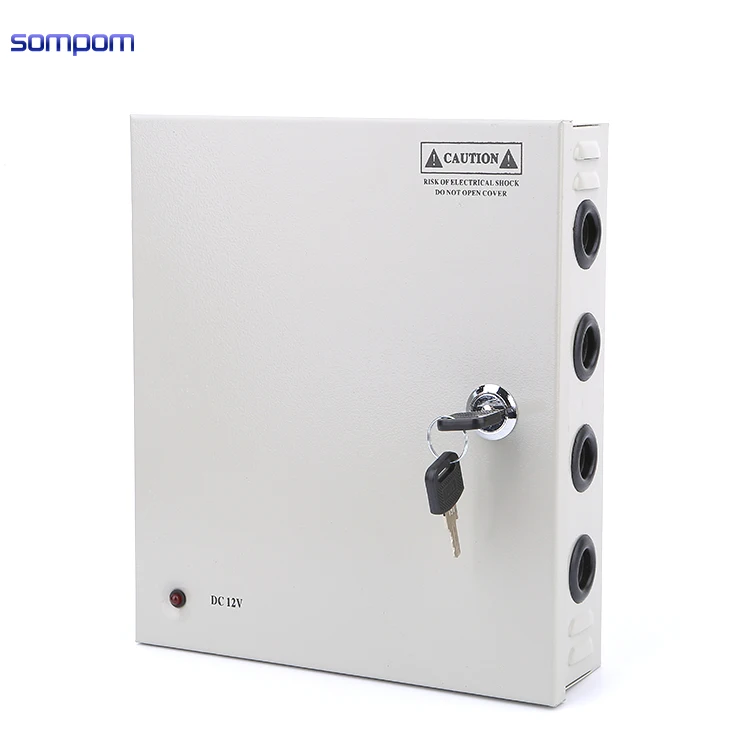

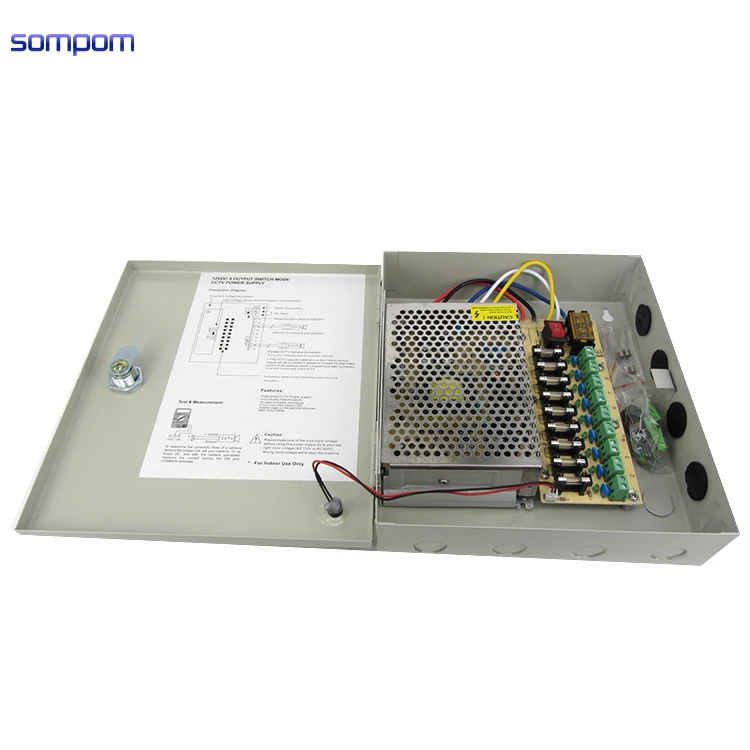

CCTV power supply metal box 12V 10A DC 9 Ports Distribution switching power supply
| DC Output | DC Voltage: 12V |
| DC Current : 10A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:>82% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
Related products
About us
SOMPOM is focusing on offering LED switch power, waterproof switch power, Rainproof
switch power, AC-DC power adapter and CCTV camera power.With the over load
protection, over voltage protection and high temperature protection, SOMPOM wins
customers' favor by its high efficiency, relibility and long life span. Each of the switch
power is extremely safe and stable after 5 times testing . AlI of our powers have the
IS09001 CE, FC, ROHS cerification. Our switch powers are widely used in industrial
automation field, indoor and outdoor LED lighting, LED lighting engineering.
Our factory
Our certificate
1,Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece
2,Q:How many year warranty of your Led driver?
A: Two years
3,Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.
4,Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan.
5,Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
6,Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.
