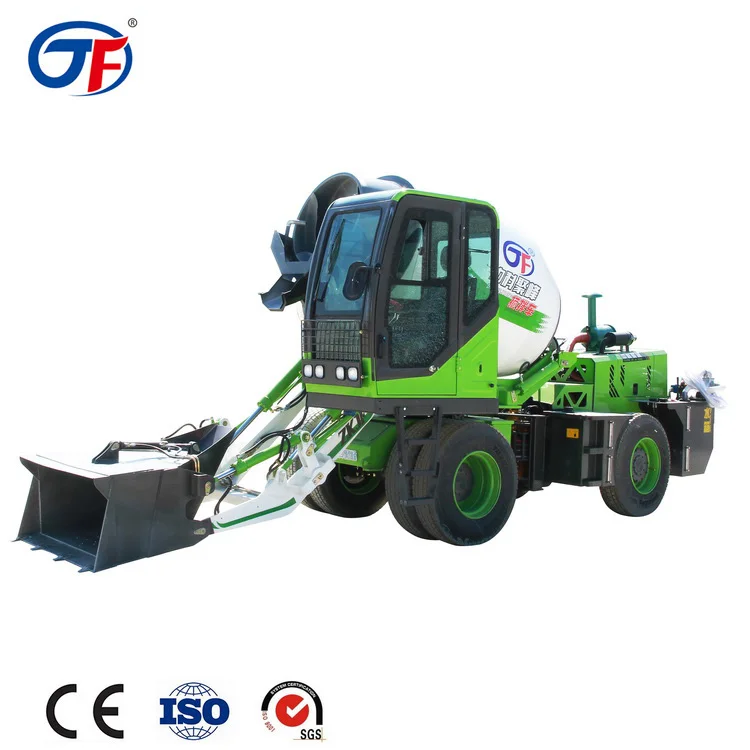

3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function
3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function

3.5 M3 Self Loading Concrete Mixer Machine With Four Wheels Steering Function

Share on (62321872859):


Price:$22,500.00 - $24,286.00

Quantity:


Product Overview

Description


Product Description

PRODUCT APPLICATION FOR CMT3500RW

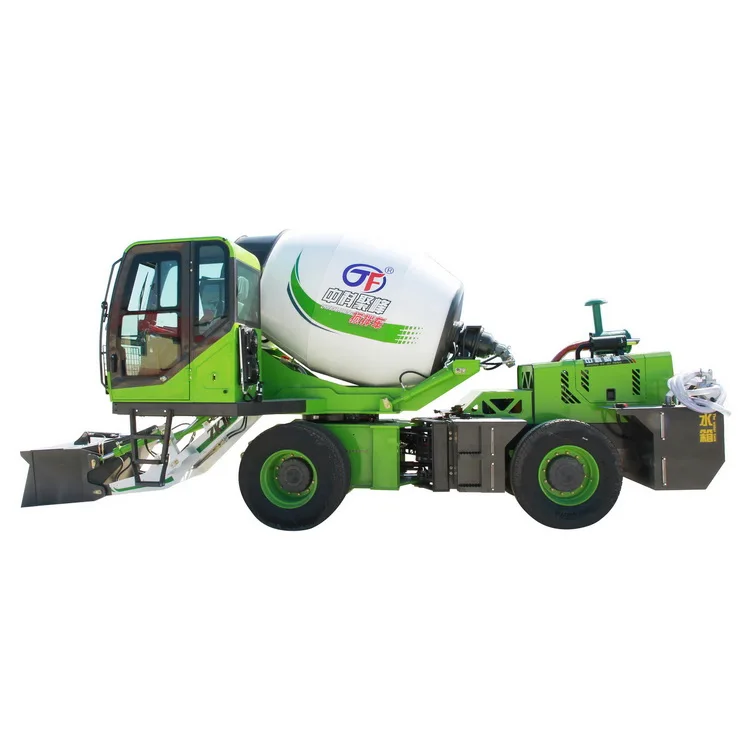

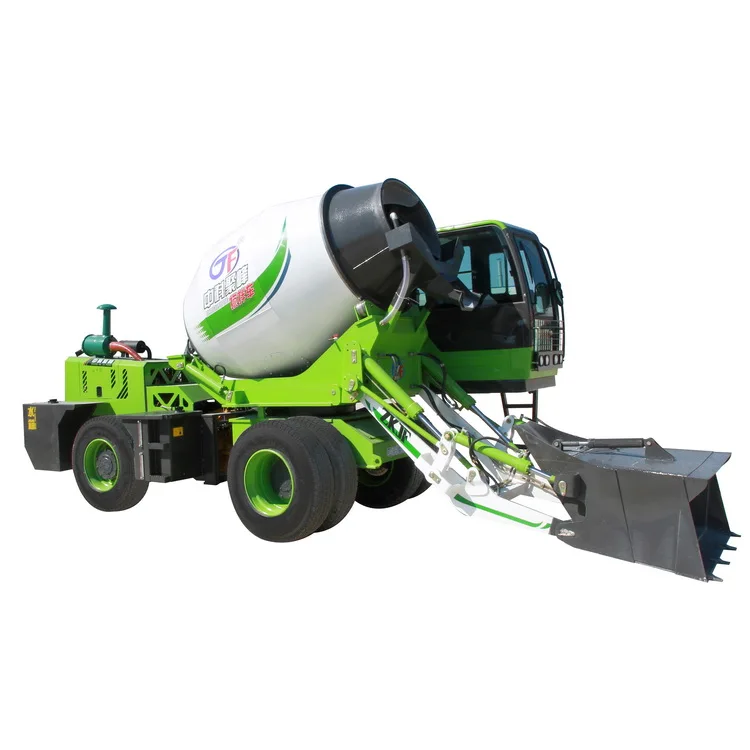

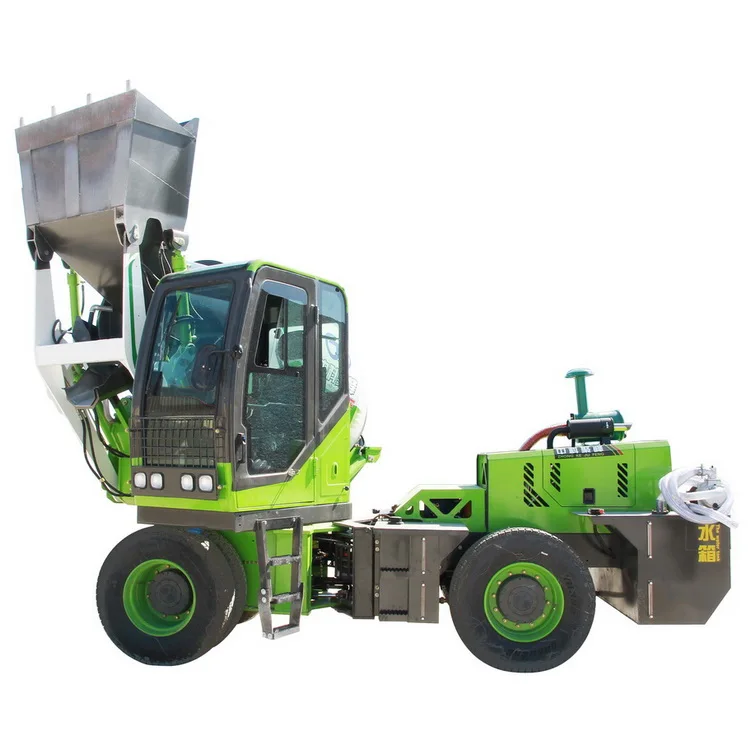

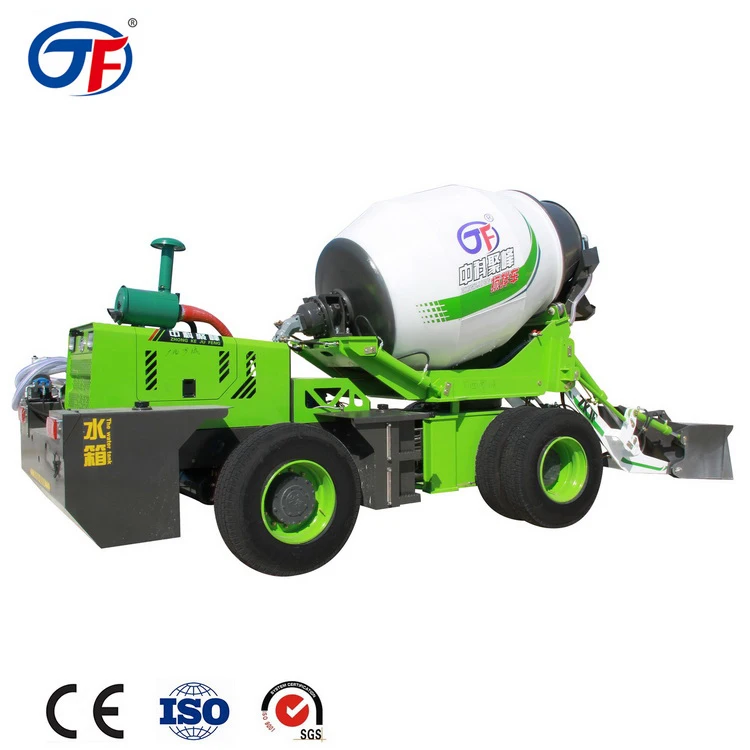

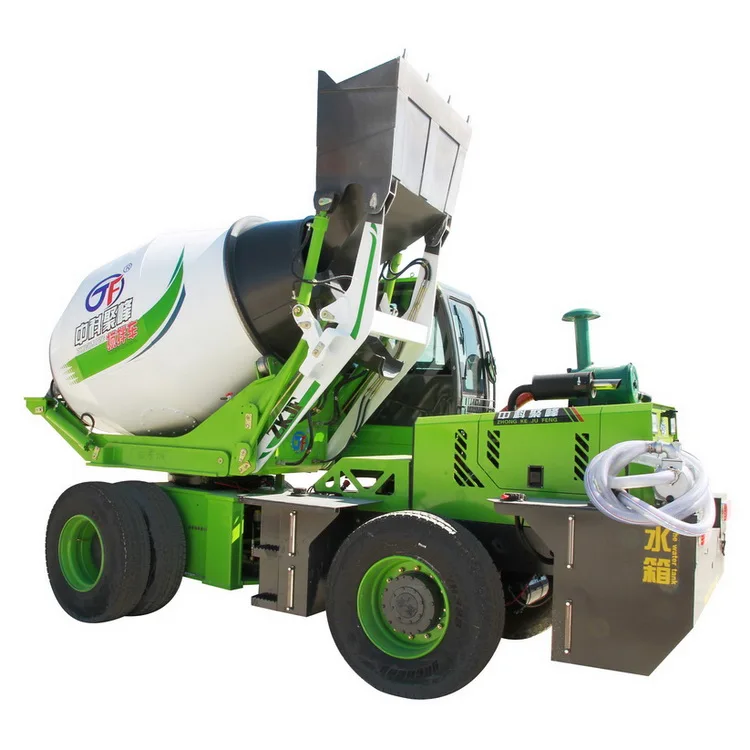

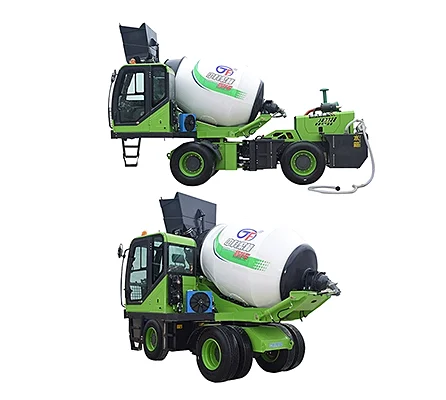

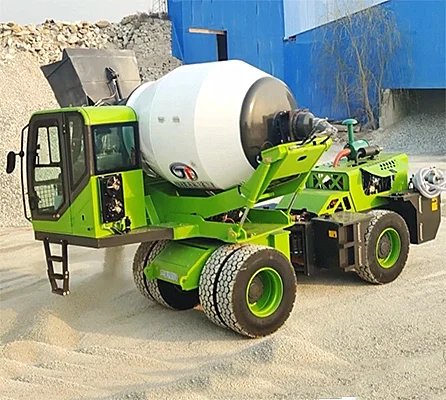

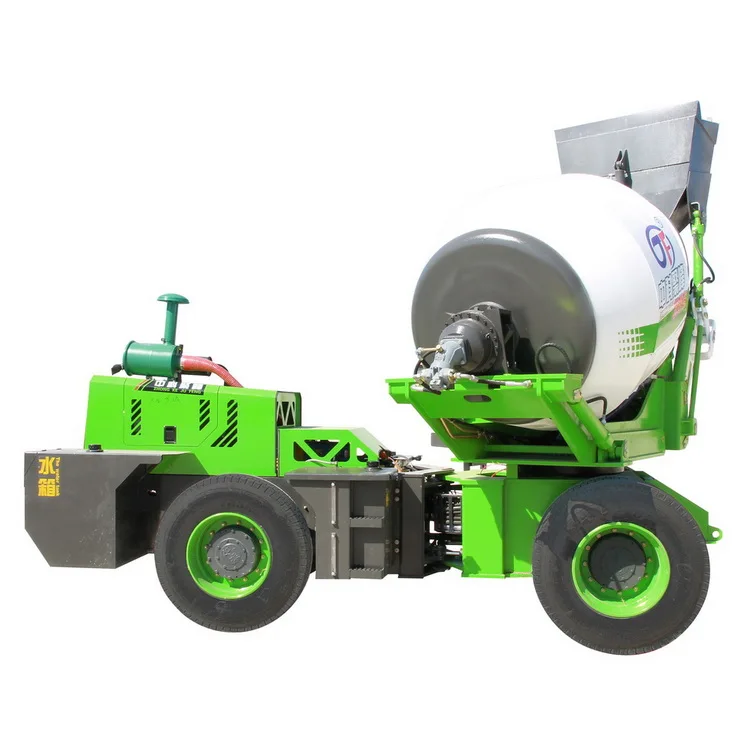

SELF LOADING CONCRETE MIXER TRUCK CMT3500RW Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI,85 kW Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin could slew together through 270° for high discharge over
2 m on the four sides of the vehicle.

The the Geometric Volume of Mixing Drum is 5.2m³. The concrete output is 3.5m3 per Batch, 14 m3 per Hour. The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 112m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.


Specifications for CMT3500RW self loading concrete mixer truck







Mixing Drum
Mixing Volume
3500 L
Geometric Volume
5200 L
Concrete Output
3500 L/ batch , 4 Batches/ hr
Inclination Angle
16°
Max. Slewing Angle
270°
Rotating Speed
20 rpm
Body /Bottom Thickness
5 mm/8 mm(Q345B)
Overall Size
Φ1700x3210 mm


Chute
Max. Slewing Angle
180°
Tilting Method
Mechanically
Length
450mm +1000 mm (2 Sections)







Engine

Brand
YUCHAI ( Cummins Optional)
Model
YCD4J22G
Rated Power/Speed
85 kW(116HP) /2400 rpm
Max.Torque/ Speed
390 N.m/1400-1600 rpm
Bore x Stroke
105 mm x125 mm
Displacement
4.33 L

Type
4-Cylinder,In-line,
Turbo Charged, Water-cooled
Emission Standard
Euro II


Hydraulic System
Reducer Model
HJ80-43
Hydraulic Pump Displacement
80/40 mL/r
Hydraulic Motor Displacement
56 cm3/rev

Water Supply System
Water Tank Volume
2 x310 L
Water Supply Mode
Self-contained, Hydraulic
Driven water pump









Chassis
Structure
Articulated Structure
Drive Type
4 X 4
Transmission
2 Forward +2 Reverse Shift
 (Low+ High Speed)
Torque converter
YJ315
Gearbox Mode
Counter Shaft, Power-shift
Wheelbase
2770 mm
Tread
1700 mm
Loading Shovel Capacity
800 L
Brake Type
Air Brake
Tyre Size
12R22.5







Vehicle
Drum and Shovel Control
By Joystick
Driver's Cab
Air-conditioner Inside
Max. Drive Speed
40 km/h
Grade Ability
40 %
Mini Turning Radius
5300 mm
Max. Payload
8,400 kg
Operating Weight
8,200 kg

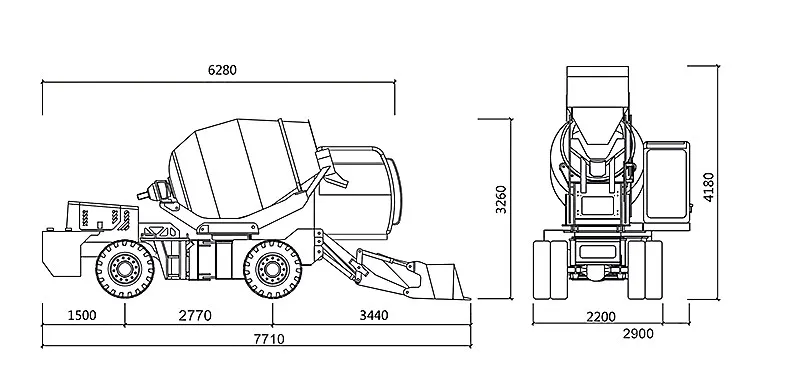

Overall Size
7710 x 2900 x 3260mm
MAIN FEATURES
1) China TOP Brand YUCHAI Diesel Engine as standard Power,
Cummins Engine is Optional
2) Two-way driving without turning seat
3) Bucket can overturn at high position
4) Removable Cabin Window
5) Full-load at 40% Gradeability
6) High Rotating Speed of Drum
7) Closed Circuit Hydraulic Rotation System
8) Spacious Driver's Cab with Deluxe Seat, A/C and Fire Extinguisher inside
Main Features

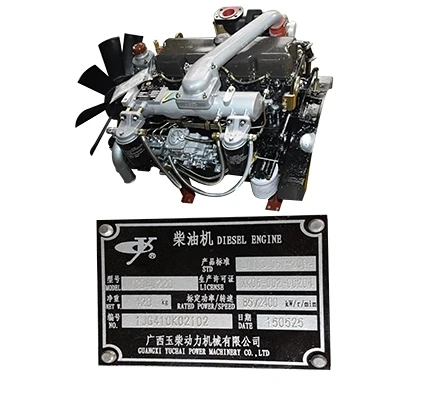

CHINA TOP BRAND YUCHAI DIESEL ENGINE AS STANDARD POWER, CUMMINS ENGINE IS OPTIONAL

This Self Loading Concrete Mixer is driven by YUCHAI ,85kW (116 HP), 4 Cylinder , Turbo-charged , Water-cooled Diesel Engine. This
WEICHAI Engine adpoted German Deutz Engine Technology , which is featured by High Reliablity and Low Fuel Comsumption. The CUMMINS
(125 HP) Engine is availabe upon request.


TWO-WAY DRIVING WITHOUT TURNING SEAT

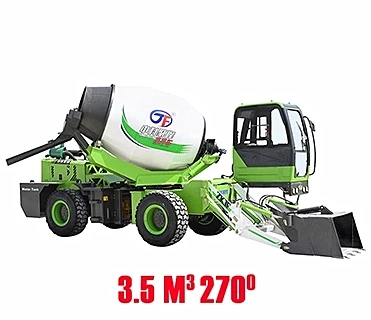

The Cabin and Drum of this mixer could slew together up to 270° for discharge of material over 2m on the four sides of vehicle. By
means of turning the drum and cab to 180°, it can achieve backward driving in the front direction of driver, making the reverse
driving process more easier and safer. It is the first mixer which achieves two-way driving without turning the seat in the cab.

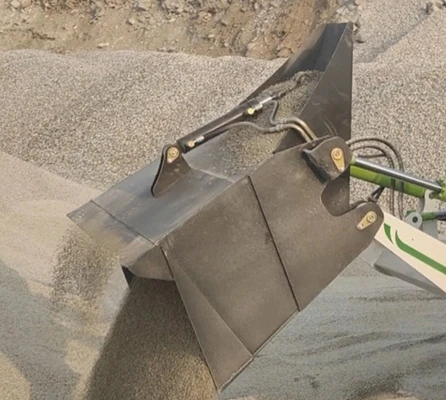

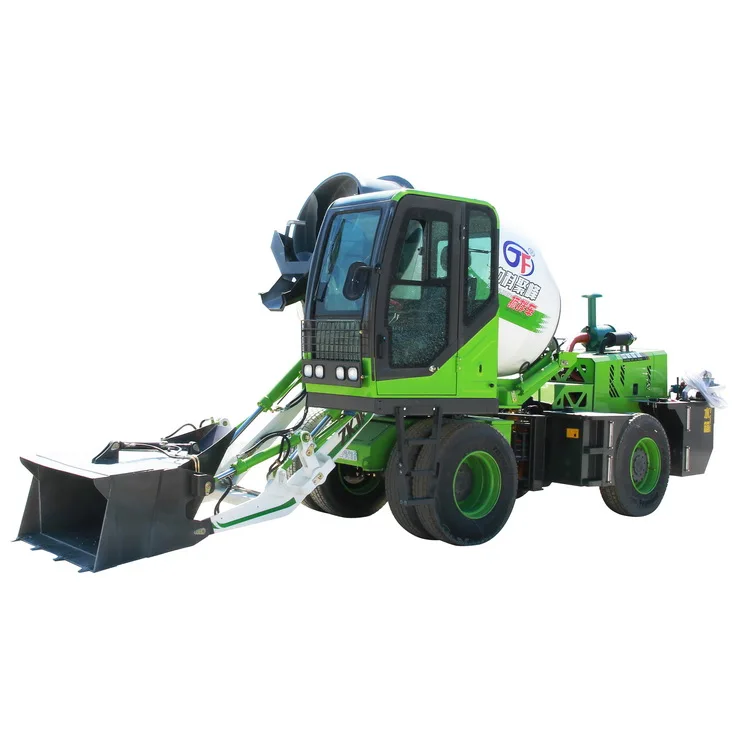

Bucket can overturn at high position
The bucket of this mixer could overturn when lifted to high position, loading and discharging material like wheel loader. It could
be a substitute for wheel loader to some extent, combining the function of wheel loader, concrete mixer and concrete mixer truck
together.

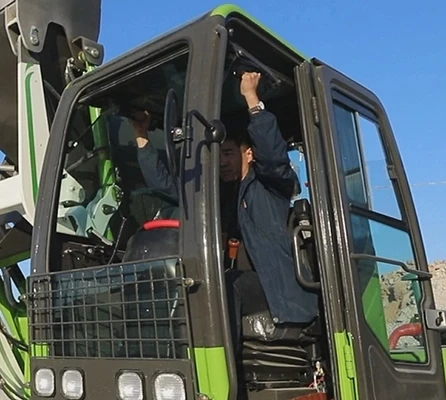

Detachable Cabin Window

The cabin's front window is equipped with sliding way and can be detached to upper position, which makes driver have broad and
clear view during operation.

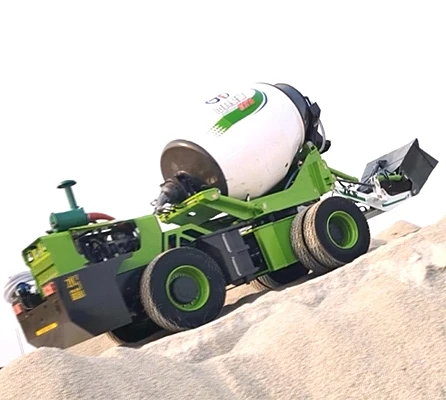

FULL-LOAD AT 40% GRADEABILITY
The mixer with full load could climb steep slope up to 40% gradient, which is very useful for the driving and operation process
in the maintaineous area.



HIGH ROTATING SPEED OF MIXING DRUM
The rotating speed of our mixing drum reached 20 rounds per minutes, which has improved working efficiency by 30% compared to our
competitors in the industry.

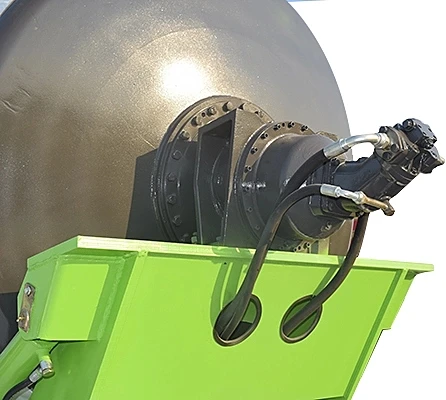

CLOSED CIRCUIT HYDRAULIC ROTATION SYSTEM

The Mixing Drum is rotated by means of planetary reducer and USA Brand Sunny hydraulic motor in closed circuit.

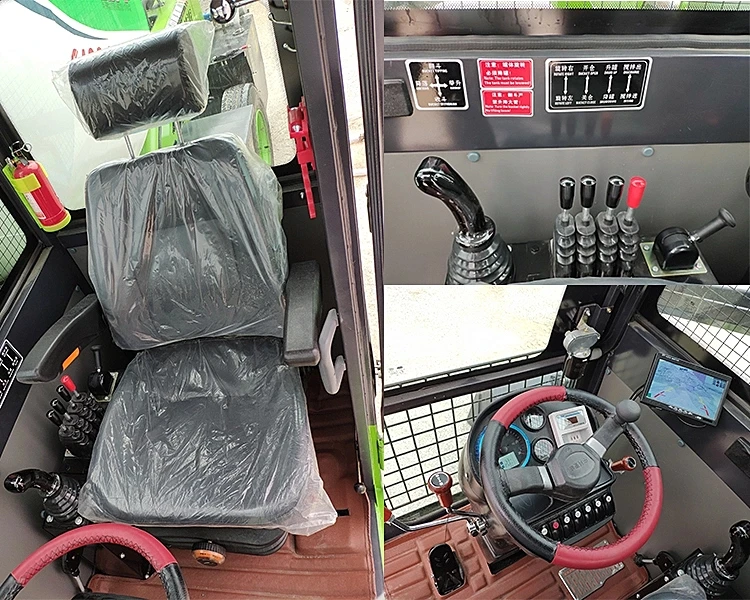

EXCAVATOR STYLE SPACIOUS DRIVER'S CAB
Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab. The anatomic seat is with
function of flexible suspension and height adjustment .One set of joystick control system is situated on the right side of
driver's seat. The panoramic color monitor is near the steering wheel. The operation situation from the four sides of machine
could be shown clearly on the Color Monitor, which increase the driving safety . Fire Extinguisher , Safety Hammer and Air
Conditioner are also equipped inside the cab.
Packing & Delivery
Packaging
Size
11x2.3 x2.5 mm
Weight
8200 kg

Packaging Details
Nude Packing. 1 Set Per 40 HQ. The mixing drum and driver's cabin have to be dismantled and put on the floor of container.
