Product Overview
Description
Product Description

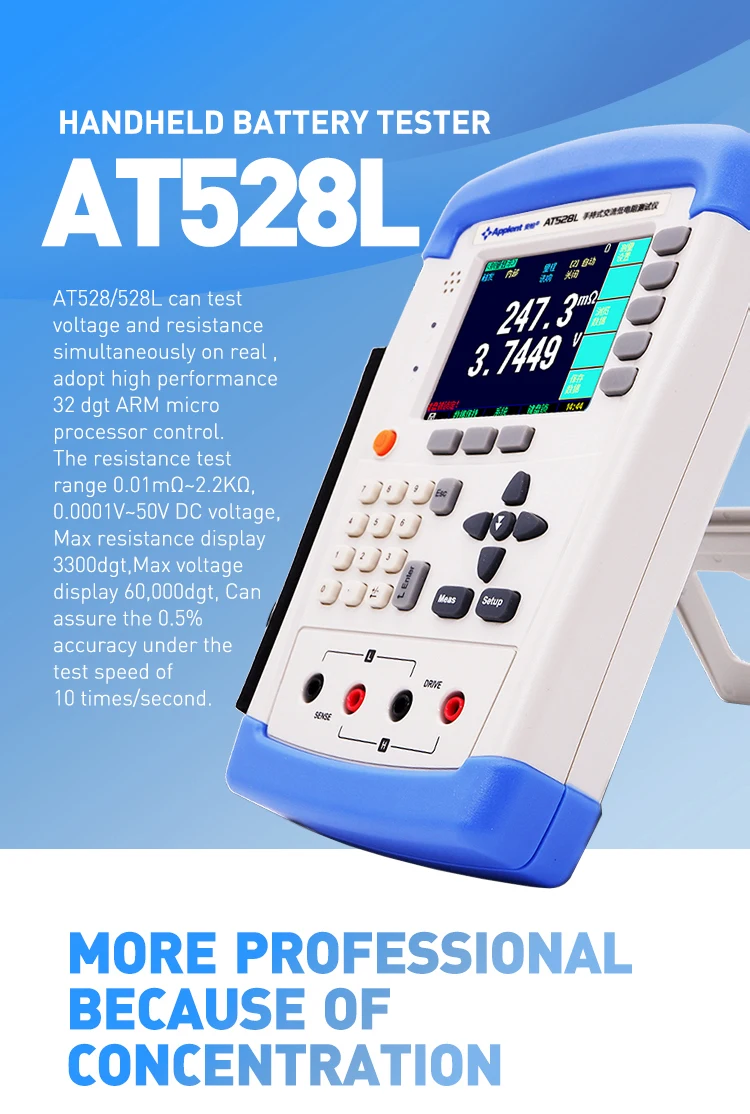

AT528/528L can test voltage and resistance simultaneously on real , adopt high performance 32 dgt ARM micro processor control.
The resistance test range 0.01mΩ~2.2KΩ, 0.0001V~50V DC voltage, Max resistance display 3300dgt,Max voltage display 60,000dgt, Can assure the 0.5% accuracy under the test speed of 10 times/second.
The resistance test range 0.01mΩ~2.2KΩ, 0.0001V~50V DC voltage, Max resistance display 3300dgt,Max voltage display 60,000dgt, Can assure the 0.5% accuracy under the test speed of 10 times/second.

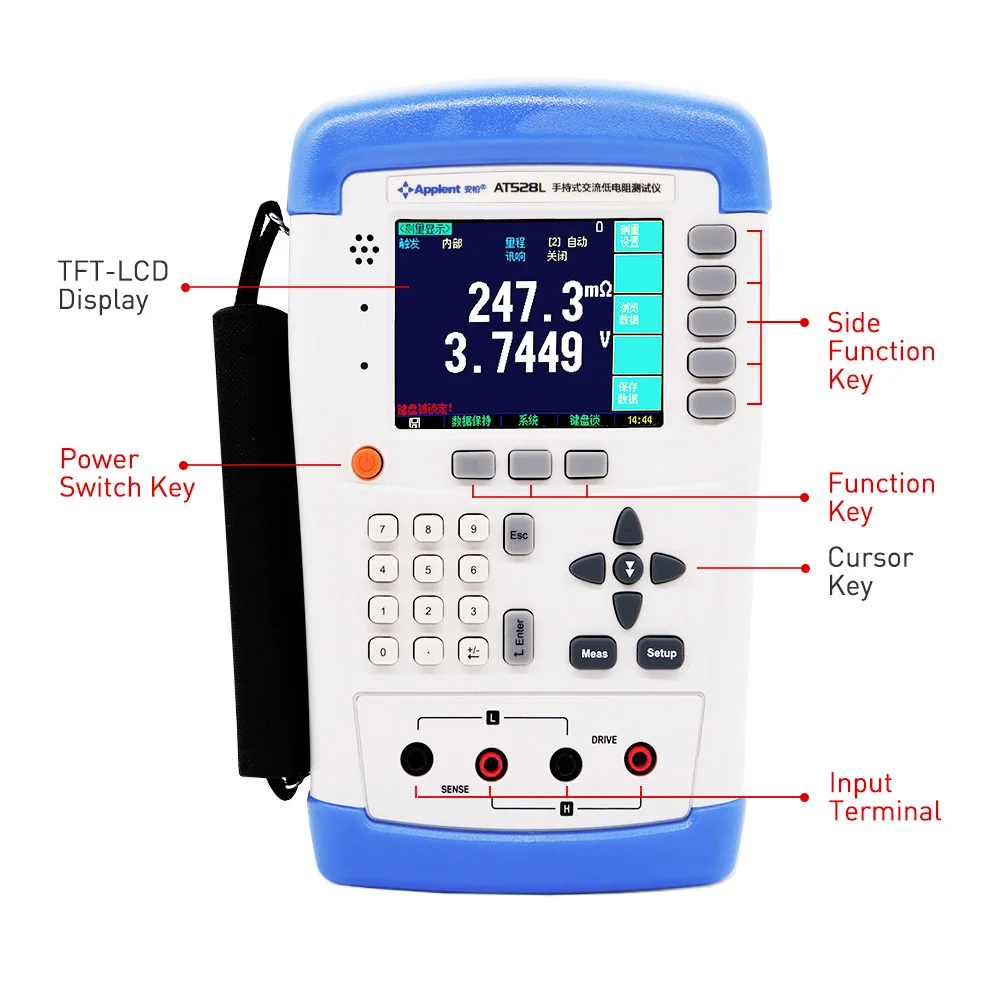

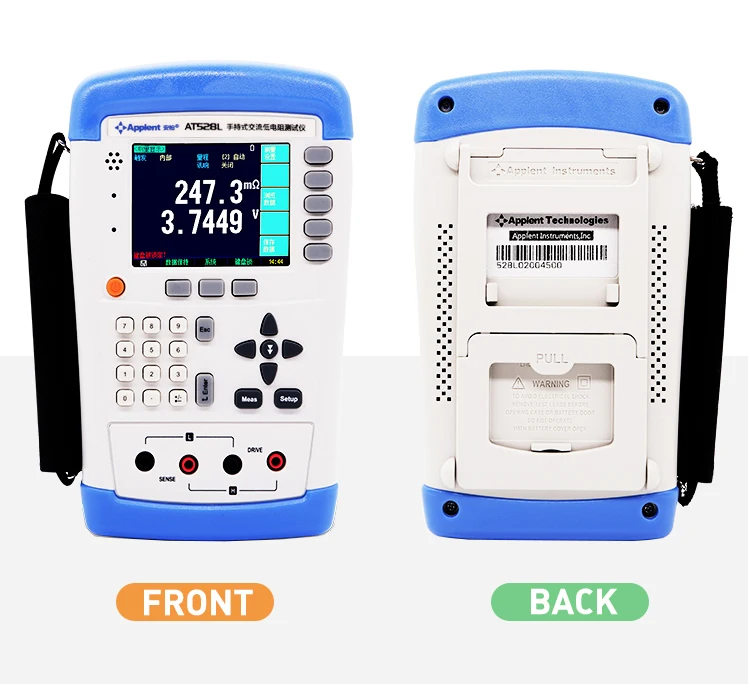

Product Effects
Product parameter

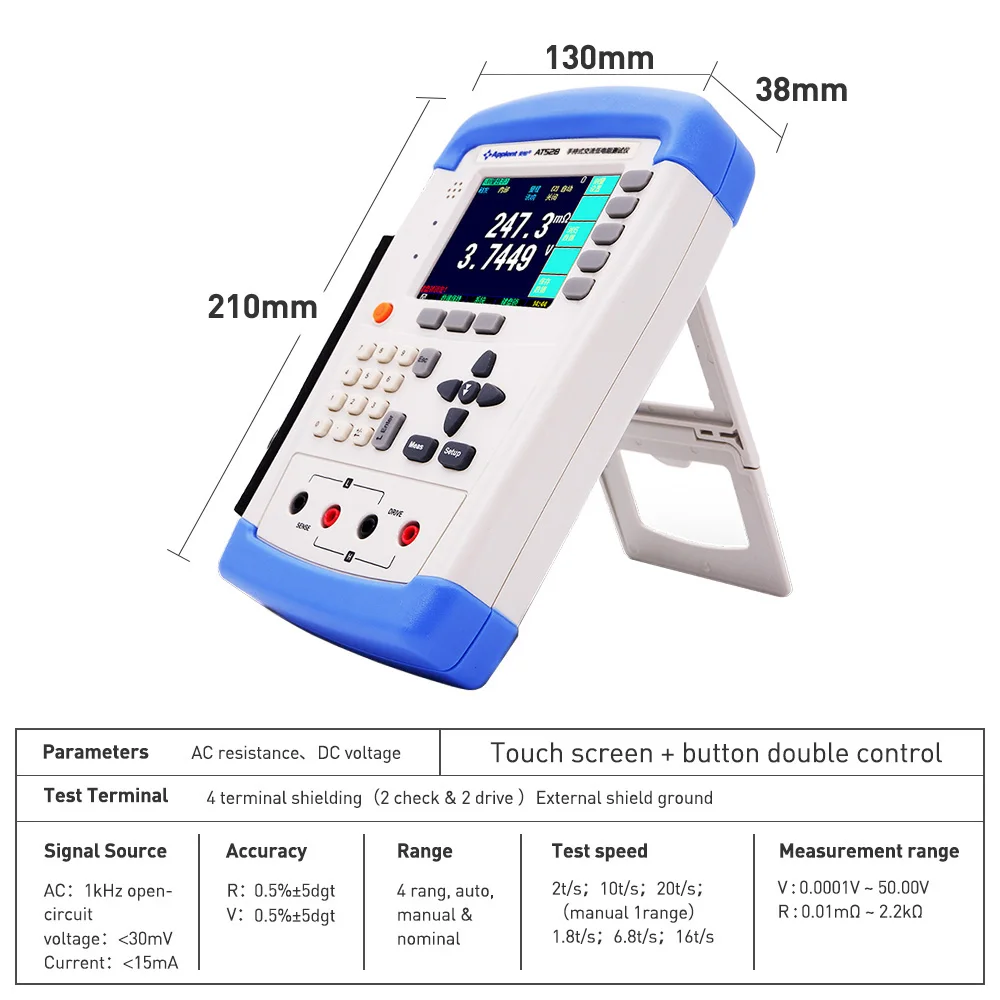

SPECIFICATIONS | ||
| AT528 Handheld Battery Tester | AT528L Handheld Battery Tester |
Parameter | AC resistance, DC voltage | |
Accuracy | AT528 R:0.5%±5dgt ;V:0.1%±5dgt; AT528L R:0.5%±5dgt ; V:0.5%±5dgt | |
Measure range | V:0.0001V ~ 50.00V R:0.01mΩ~2.2kΩ | V:0.001V ~ 50.00V R:0.1mΩ~200.0Ω |
Signal source | AC:1kHz open-circuit voltage:<30mV current:<15mA | |
Range | Auto 4 range, manual & nominal | |
Test speed | 2t /s;10t/s;20t/s;(manual 1range) 1.8t /s;6.8t/s;16t/s | |
Max display | R:3300 V:60,000 | |
Max resolution | R:0.1mΩ V:1mV | |
Adjustment | short-circuit correction for each range | |
Comparator | Individual voltage comparison Individual resistance comparison Voltage resistance combination comparison OK/NG sorting result display Beep | |
Trigger | Internal, Manual, Remote | |
Test Terminal | 4 terminal shielding(2 check & 2 driver) External shield ground | |

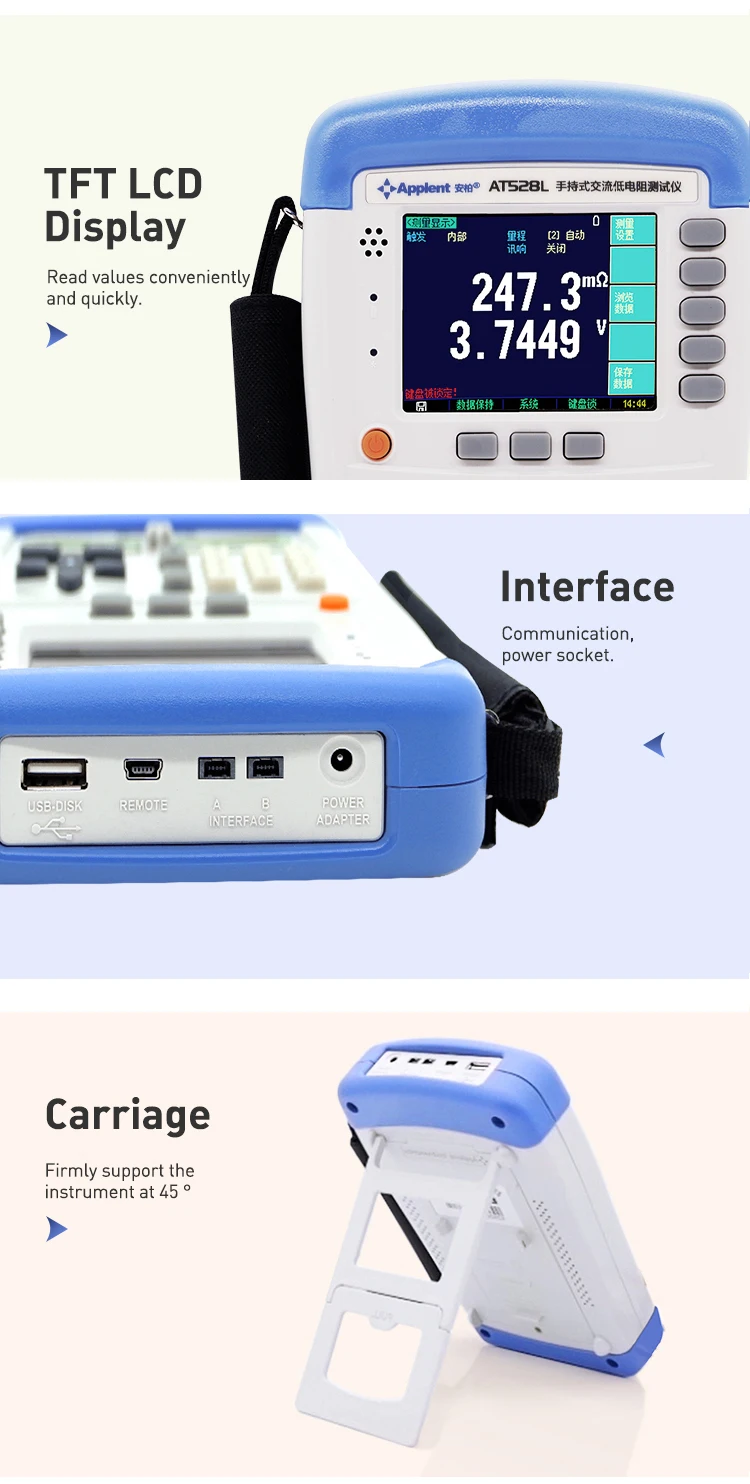

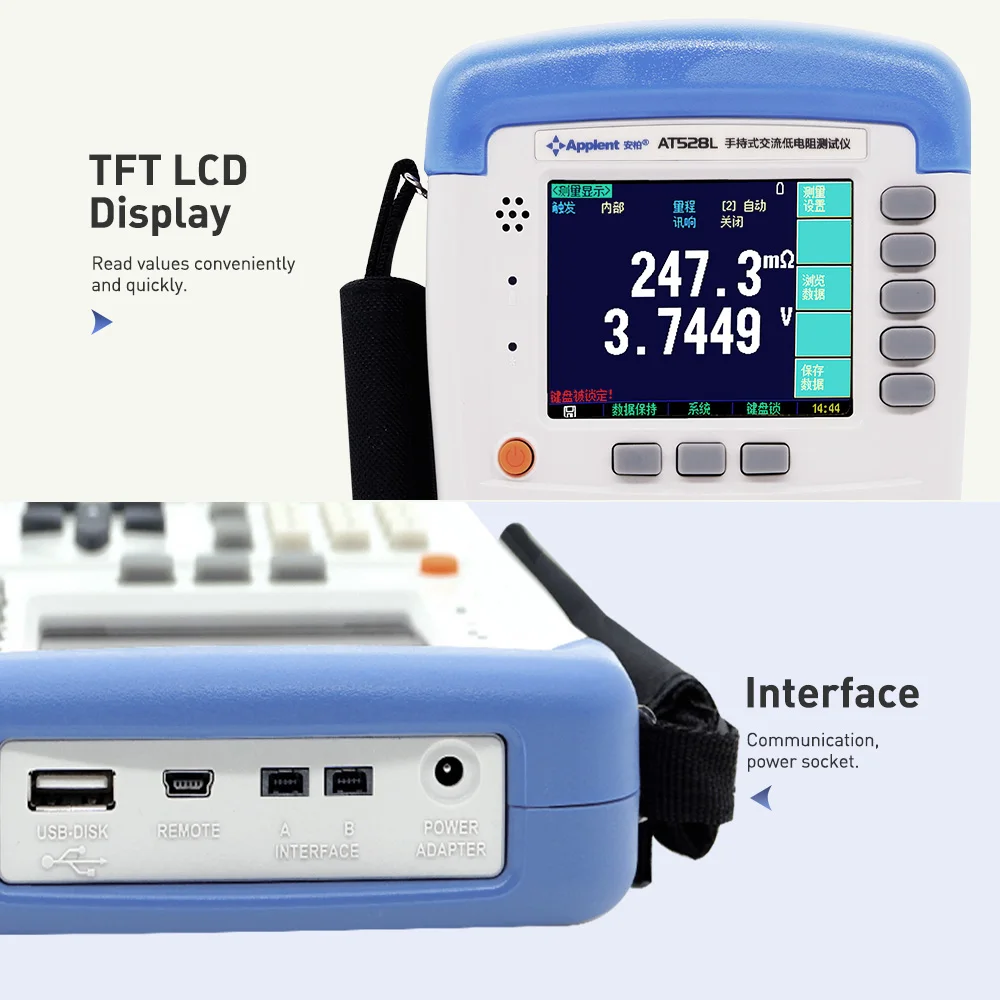

Interface | Build -in Mini-USB (virtual serial port) Charging interface; U disc interface | |

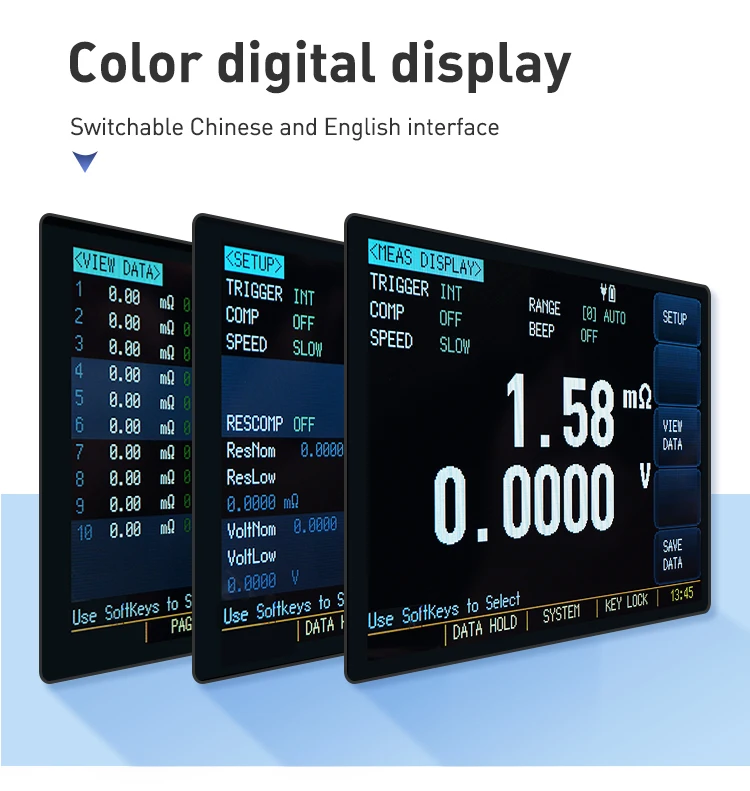

Others | 3.5 inch / color 6M/TFT-LCD display; Keypad lock,data hold function;compatible SCPI order set; English & Chinese switch; Adjustable background light; Auto power-off; 500 sets measured data save with one key | |
Power supply | input:100-240V~50/60Hz 0.35A output:9V 1A DC | |
Battery parameter | 8.4V, 2200mAh Li battery | |
Charging time | Max :300Min | |
Working time | ≥ 8H | |

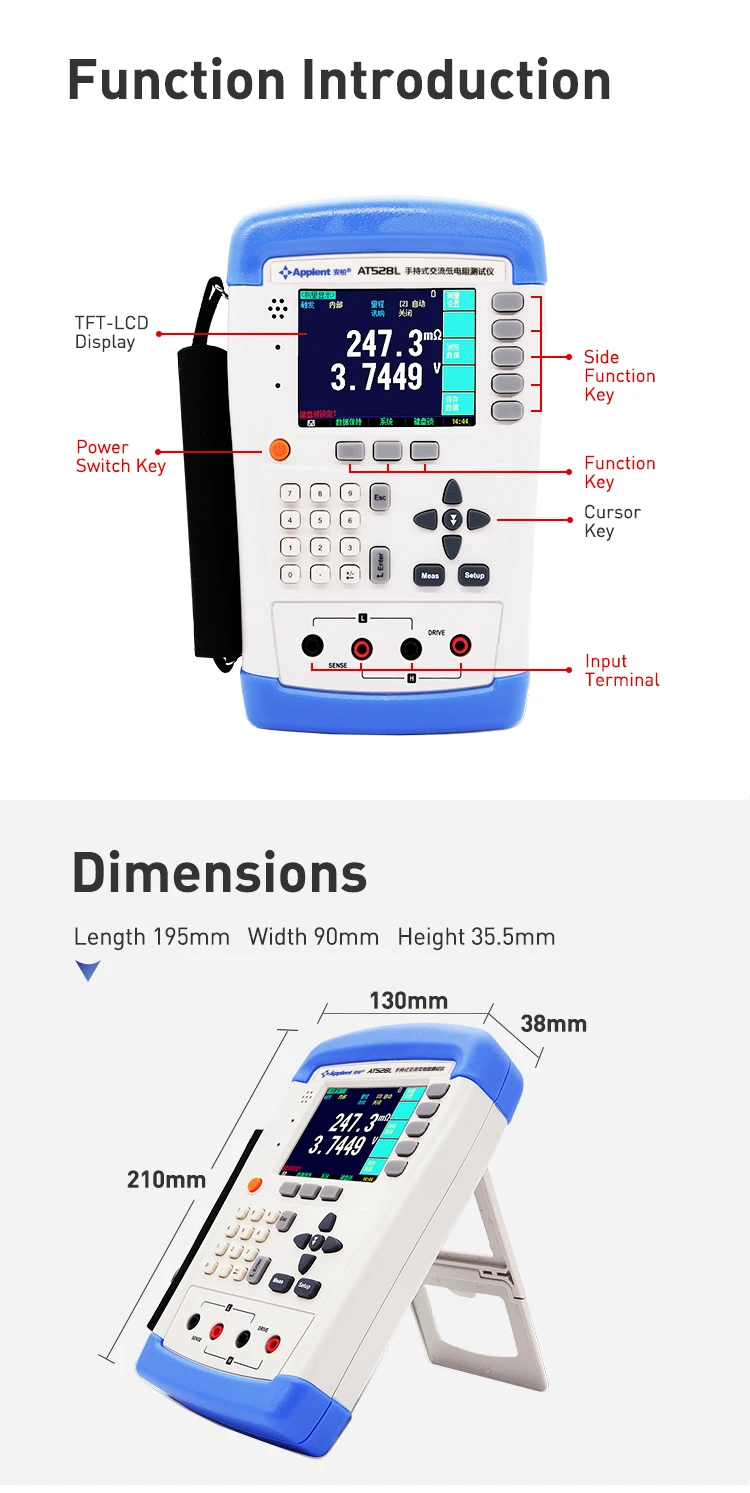

Sizes Weight | 130.23 x210.76 x37.88 mm 650g | |

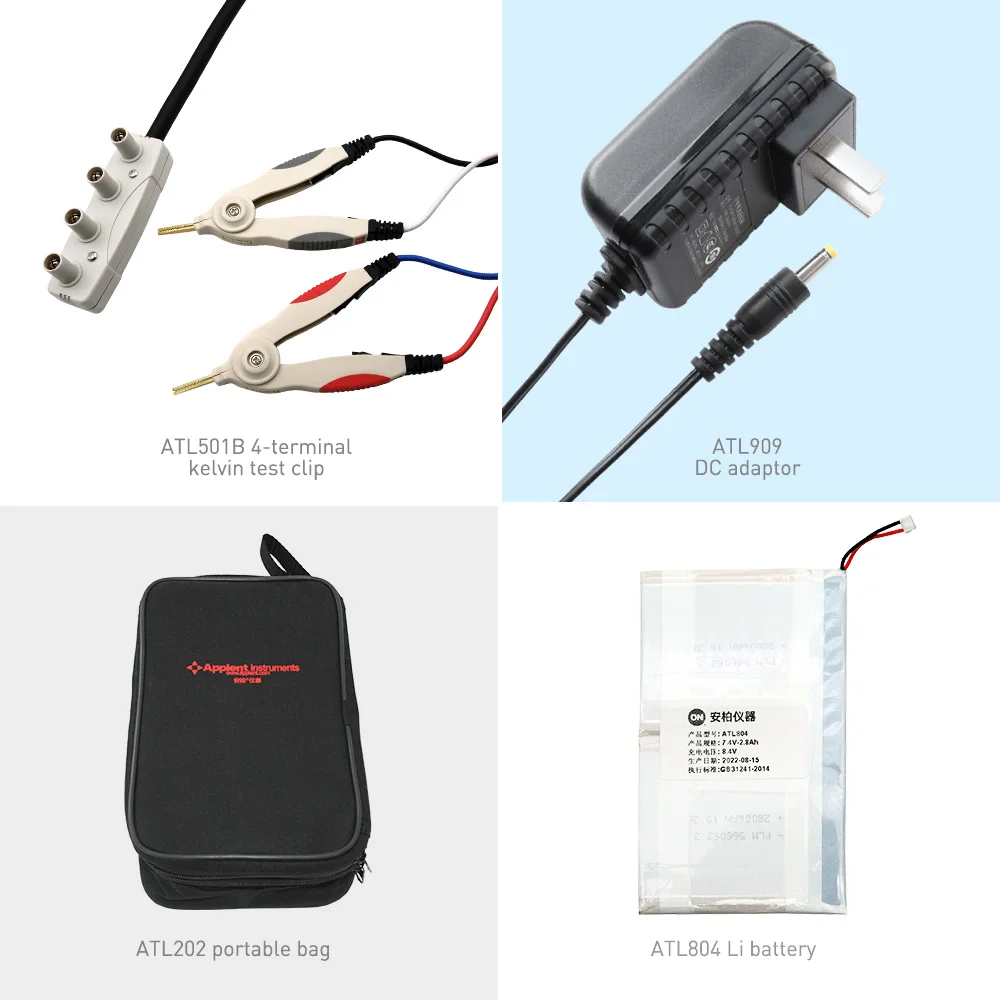

Accessories | ATL501B 4-terminal test probe; ATL909 DC adaptor;ATL202 portable bag; ATL804 Li battery;Data acquisition software # ATL506B 4-terminal test probe(AT528L optional) # ATL105Mini-USBcommunication cable | |

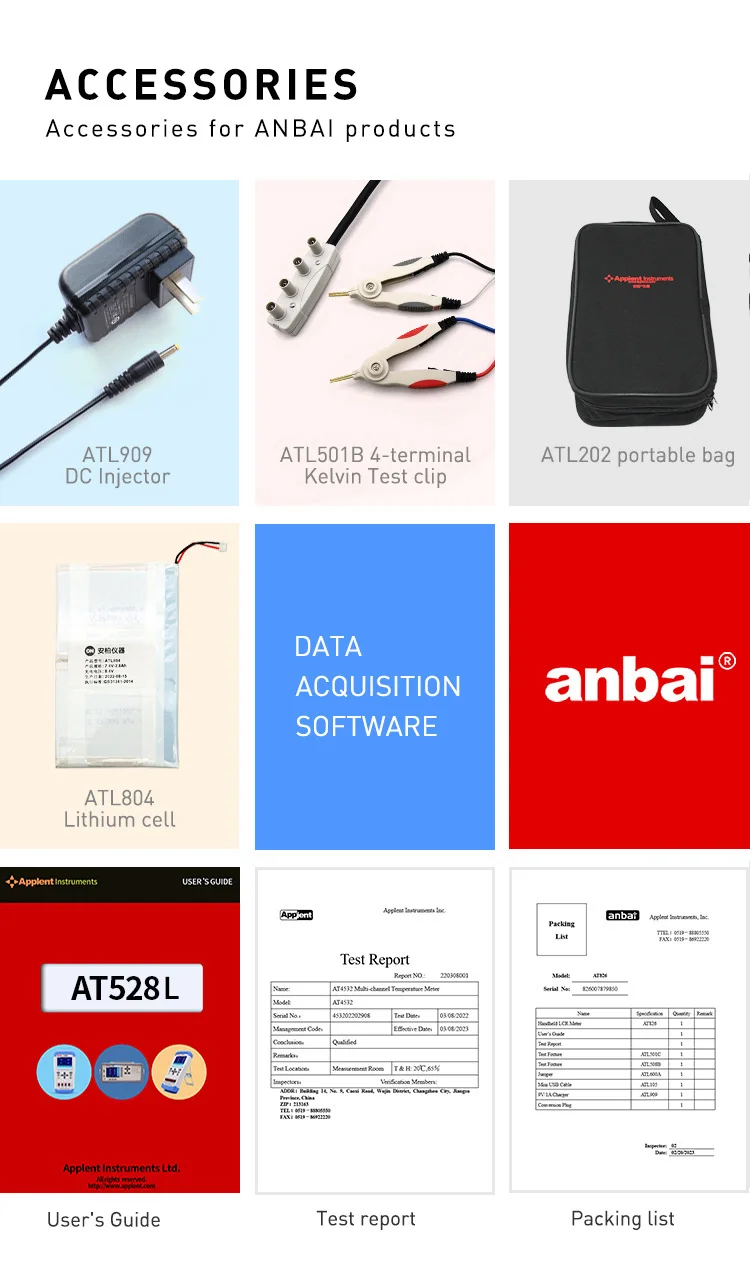

Accessories
Packaging & Shipping
Certifications
Trade Shows
Company Information
Our main advantages:
A. we have strong technical team and focus on designing,researching and developing
B. we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C. we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
