5.0SMDJ110CA 5.0SMDJ110A 5BHE 5PHE VR 110V VBR(min) 122V IR 2 uA Ipp 28.3A Vc 177V DO 214AB/SMC 5.0SMDJ H 5000W TVS SMD Diode

Product Overview

Description





      The 5.0SMDJ-H series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The 5.0SMDJ-H series is supplied in YINT Semiconductor’s exclusive, cost-effective, highly reliable and is ideally suited for use in communication systems, automotive, numerical controls , process controls, medical equipment, business machines, power supplies and many other industrial/consumer Applications.



5.0SMDJ11CA/5.0SMDJ11A/5.0SMDJ12CA/5.0SMDJ12A/5.0SMDJ13CA/5.0SMDJ13A/5.0SMDJ14CA/5.0SMDJ14A/5.0SMDJ15CA/5.0SMDJ15A/5.0SMDJ16CA/5.0SMDJ16A/5.0SMDJ17CA/5.0SMDJ17A/5.0SMDJ18CA/5.0SMDJ18A/5.0SMDJ20CA/5.0SMDJ20A/5.0SMDJ22CA/5.0SMDJ22A/5.0SMDJ24CA/5.0SMDJ24A/5.0SMDJ26CA/5.0SMDJ26A/5.0SMDJ28CA/5.0SMDJ28A/5.0SMDJ30CA/5.0SMDJ30A/5.0SMDJ33CA/5.0SMDJ33A/5.0SMDJ36CA/5.0SMDJ36A/5.0SMDJ40CA/5.0SMDJ40A/5.0SMDJ43CA/5.0SMDJ43A/5.0SMDJ70CA/5.0SMDJ70A/5.0SMDJ75CA/5.0SMDJ75A/5.0SMDJ78CA/5.0SMDJ78A/5.0SMDJ85CA/5.0SMDJ85A/5.0SMDJ90CA/5.0SMDJ90A/5.0SMDJ100CA/5.0SMDJ100A/5.0SMDJ110CA/5.0SMDJ110A/5.0SMDJ120CA/5.0SMDJ120A/5.0SMDJ130CA/5.0SMDJ130A/5.0SMDJ150CA/5.0SMDJ150A/5.0SMDJ160CA/5.0SMDJ160A/5.0SMDJ170CA/5.0SMDJ170A/

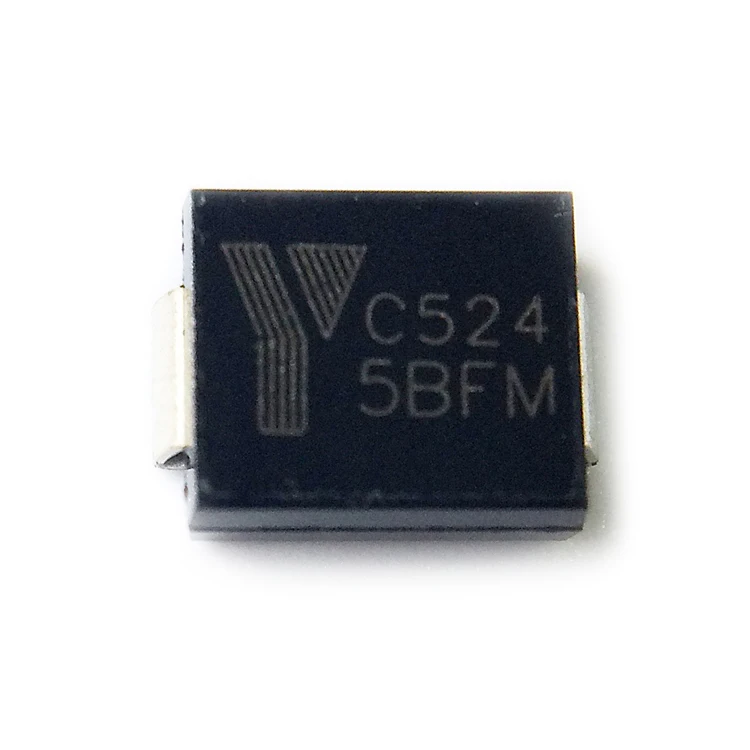

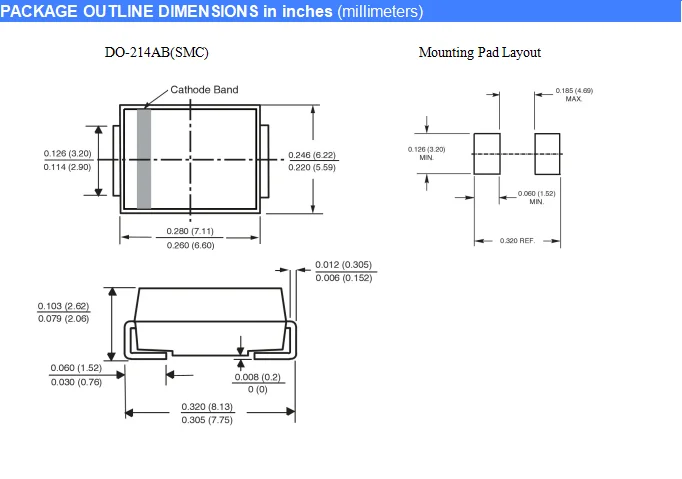

l Case: DO-214AB/SMC

l For surface mounted applications in order to optimize board space.

l Polarity: Color band denoted positive end (cathode) except Bidirectional.

l Typical failure mode is short from over-specified voltage or current

l High Temperature soldering:260°C/10 seconds at terminals.

l Terminal: Solder plated, solderable per MIL-STD-750,Method 2026.

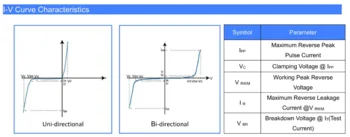

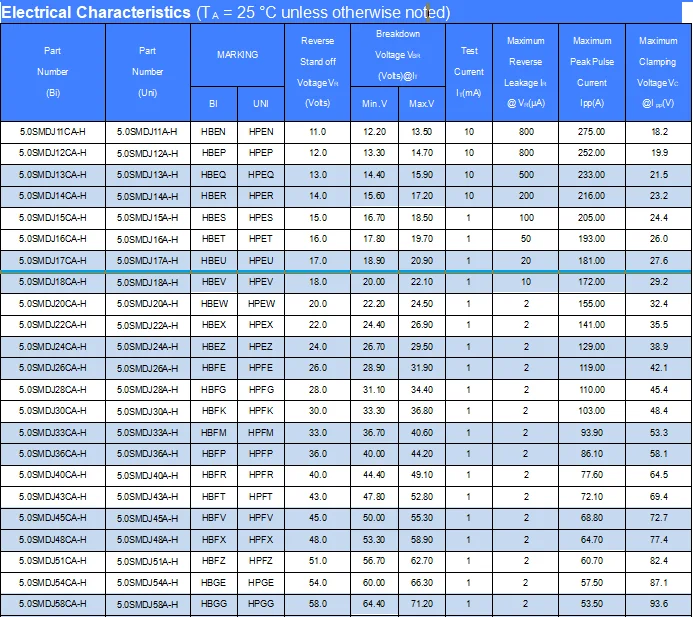

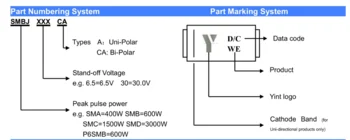

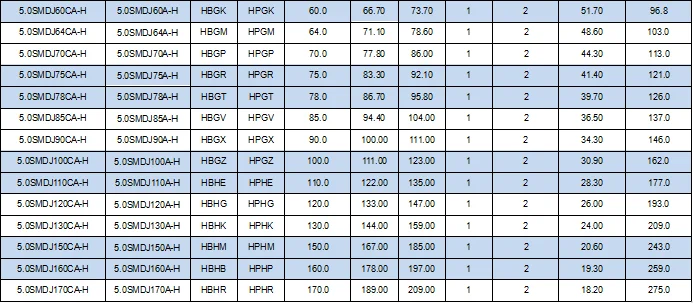

Electrical Characteristics (@ TA = 25°C Unless Otherwise Noted)



Parameter	Symbol	Value	Unit
Minimum Peak Pulse Power Dissipation (T  = 1 ms) (note 2)	PPK	5000	Watts
Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3)	IFSM	300	Amps
Steady State Power Dissipation @ TL = 50 °C	PM(AV)	6.5	Watts
Maximum Instantaneous Forward Voltage @ I PP = 50 A (For Unidirectional Units Only)	VF	5	Volts
Operating Temperature Range	TJ	-55 to +150	°C
Storage Temperature Range	TSTG	-55 to +150	°C

 1. Non-repetitive current pulse, per Pulse Waveform graph and derated above T_A = 25 °C per       Pulse Derating Curve.

 2. Thermal Resistance Junction to Lead.

 3. 8.3 ms Single Half-Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units   only).

 4. Single Phase, Half Wave, 60 Hz, resistive or inductive load. For capacitive load, derate current   by 20 %.
