XWST dc dc converter 12v to 24v voltage step up converters 12 volt to 24 volt 1a to 50amp dc power supply

Share on:


Price:RUB 248.69 - RUB 5,761.41
Price in USD:Details

Quantity:


Product Overview

Description

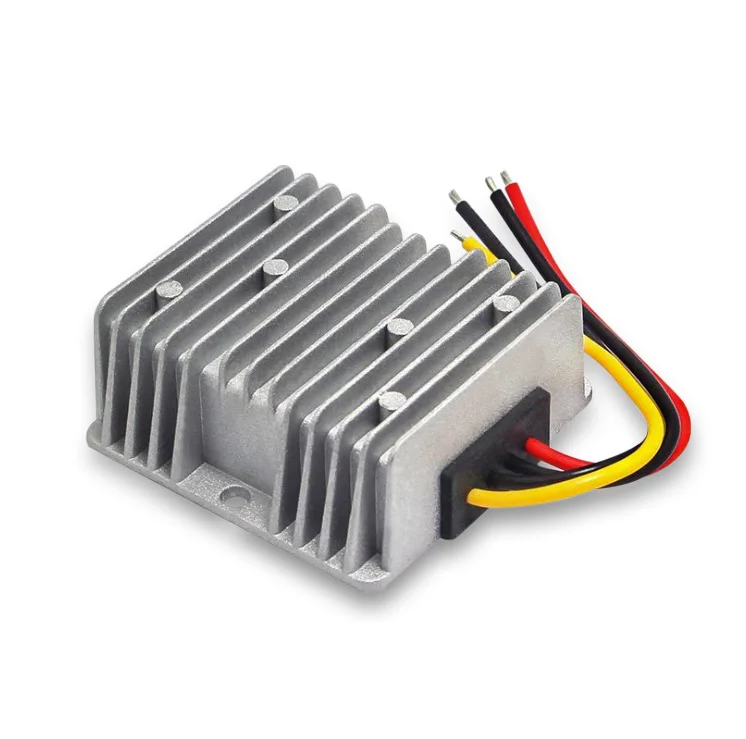

XWST dc dc converter 12v to 24v voltage step up converters 12 volt to 24 volt 1a to 50amp dc power supply

Product Description



Product Name DC to DC Boost Converter
Model No. XW-12-24-24W~1200W
Module Properties Non-isolated Module
Rectification Synchronous Rectification

Input Voltage   DC 12V
Input Voltage Range DC 9-23V
Output Voltage DC 24V
Output Current 1A / 2A /3A /5A /8A /10A /12A / 15A /
20A / 25A/ 30A / 40A / 50A
Output Power 19W / 38W / 57W/ 76W / 95W/ 114W/ 190W /
 380W/ 475W/ 532W
Conversion Efficiency >93%
Cable Length 13-14cm
Ripple (Full load test) (1-15A)40mV  ;   (15-50A)<170mV
No-load current (1-3A) 3.5mA;     (3-15A)25mA;      (15-50A)40mA
Working Temperature -40~80℃
( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Waterproof Rating IP67/IP68   ( Iron shell is not waterfroof)
Protection Over-current /Over-voltage/Over-heat/Short-circuit
Waterproof, Anti-shock , Anti-dust protection
Application Mobile phone, Car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,Water pumps, Industrial equipment ect
Size /Packing 1-3A     ABS Plastic 58*40.5*22mm, 95g, Anti-static Bag
3-15A     Aluminum  74*74*32mm, 260g, Anti-static Bag
15A/20A            Iron  118*87*40mm, 370g, Bubble Bag
15A/20A        Aluminum  100*80*39mm, 550g, White Box
25A/30A        Aluminum  150*127*63mm, 1.6kg, Carton Box
40A        Aluminum  220*127*63mm, 2.3kg, Carton Box
50A        Aluminum  300*127*63mm, 3.2kg, Carton Box
Warranty 12 months



Attention:



Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged



To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.



Packaging & Shipping




Features


Company Information


Huizhou Xinwei Technology, former as Shenzhen Xinwei Technology, is a professional leading manufacturer engaged in power conversion solutions more than 8 years. Our mian products include power supply DC-DC boost converters, DC-DC buck converters, Auto Buck and Boost DC-DC Converter ,Isolated DC-DC Converter and others . We have 600 square factory with 3 product line by advanced equipments and developing teams. XWST is international trademark. We look forward to cooperate with you in near future.

Certifications

.png

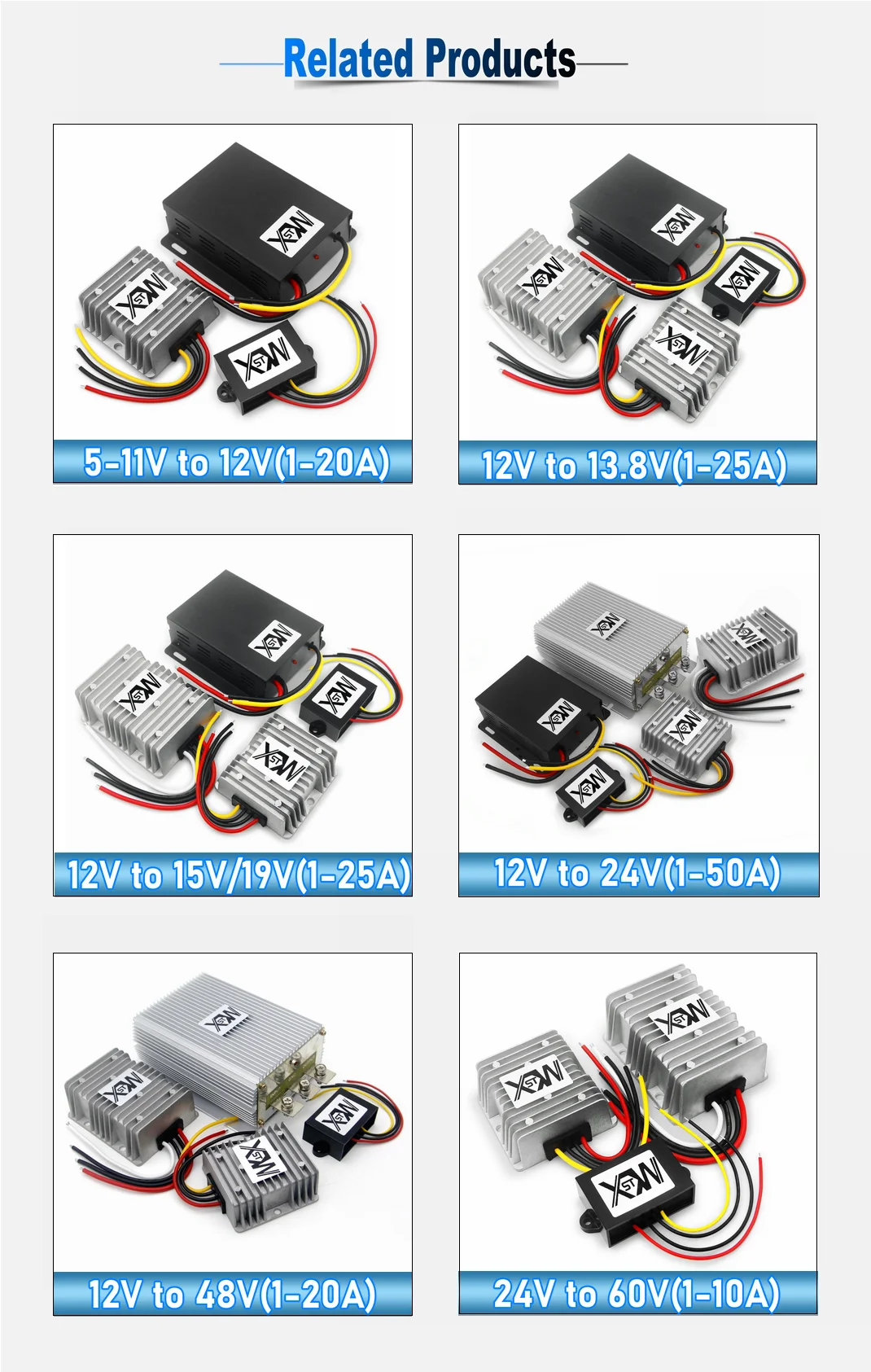

Related Products

related products_shengya1.png

Our Advantages
12 volt

10 years experience

With over 10 years of experience in this industry, Huizhou Xinwei Technology Co., Ltd.

OEM&ODM

According to customer requirements and products, ODM/OEM services to customers around the world.

Quality assurance

Product quality assurance, with a product license, to provide the perfect after-sales service.

service team

Professional service team and professional technical team.

FAQ

FAQs

How to place an order?

If you find the link of the product you need, you can place an order directly from link, chooce shipping way, after got payment we will ship out quickly. Or you can talk with sales team, we will make invoice accroding to your request before you do payment.

Do your products have any certification?

Now most products we have CE & RoHs certification, we can offer you the test report if need. Same time we are doing more certificate to improve standard.

What's your warranty time?

   For all product we have 12 months warranty when goods are running correctly. Wrong install or load can damage the converter permanent even your linked equipment.

Are you manufacturer?

Yes we have more than 600 square factory located at Huizhou, china. With advance equitment for power suppy boost & buck converters ,8 years experience.

What's your Payment iterms?

TT, Paypal, Western Union,  Money Gram, Escrow are acceptable

For small quantity, we ship goods after getting full payment.

For bulk order, we will arrange produce after getting 30% deposit.

How to get a sample?

If you want buy sample for test, you can order directly from link on alibaba.com

If you are not sure how does it work, don't worry we will recommand you the suitable one .

What's your delivery time?

For samples we can ship out in 2days.

Most of models we have certain stock.

If quantity is below 100pcs, we can ship out in 3 work days,

From 100-500 delivery time is about 5 work days. Above 500pcs usually will take 7-10 work days to delivery. When order is confirmed, we will tell what is delivery after discuss with all departmernt teams.

Do you offer OEM/ODM service?

Yes if your request is our related products.

We will comfirm with you all the product specification, feasibility and other request.  We have experienced technology department teams who can analyze the feasibility and market application , all the cost of module and offer you professional advice.
