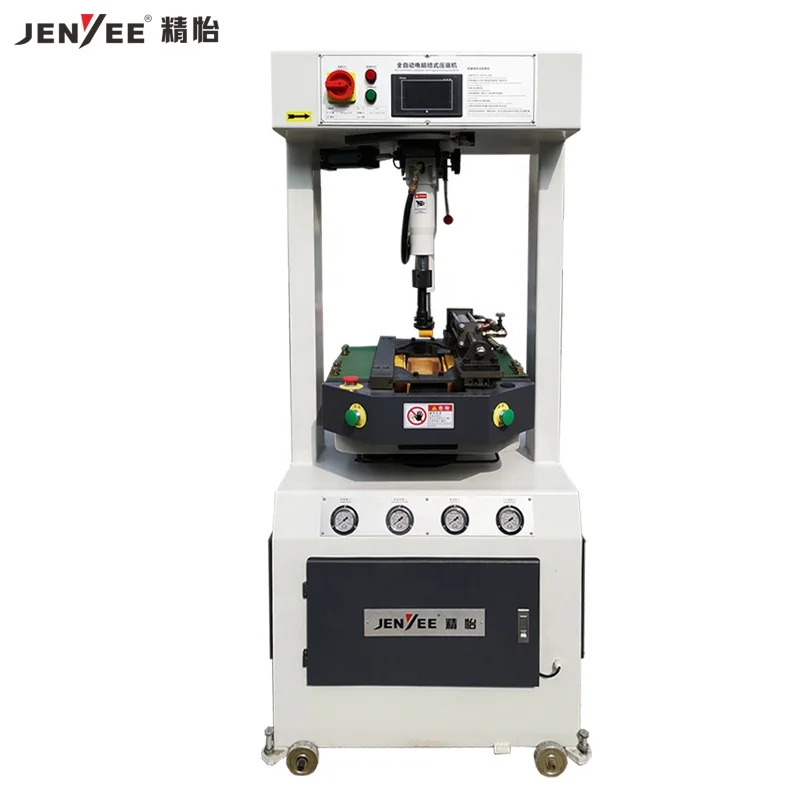

JY-989D one station Footwear making machine leather and sports shoes sole pressing machine
Quick Details
Brand Name:
JENYEE
Dimension(L*W*H):
1200*1280*1920mm
Power(W):
2KW
Voltage:
380V
Weight:
1500KG
Type:
Hydraulic system
Application:
Solo Attaching Machine
Applicable:
all kinds of shoes
Production Capacity:
2500pairs/8hr
Warranty:
1 Year
Product Application
This machine adopts full oil pressure system design, press bottom, pressure edge, front and rear fastening, can be completed at one time, or can be completed separately according to needs, high pressure, firm fit.
Product Description
Computer control center
Computer control center is the machine circuit control unit, operation of it is carried out through function buttons displayed on touching screen
Pressing head rod & Swing arm structure
There are pressing rods of front one and rear one, to fit for different shoe last the latter is installed with screw adjustment device, while the former has replaceable pressing head. Their height is self-adaptable for different shoe last.

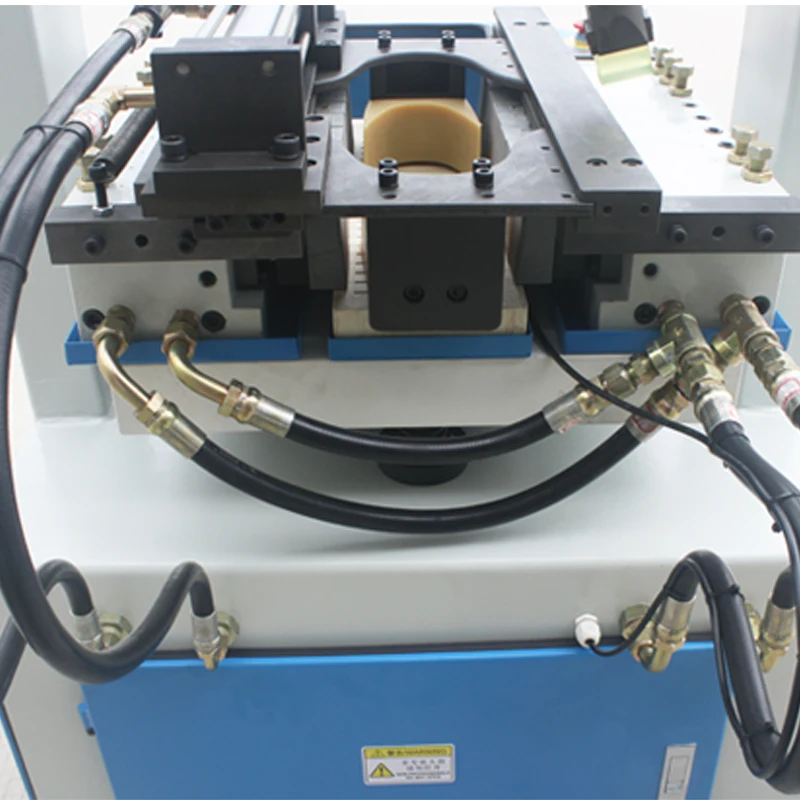

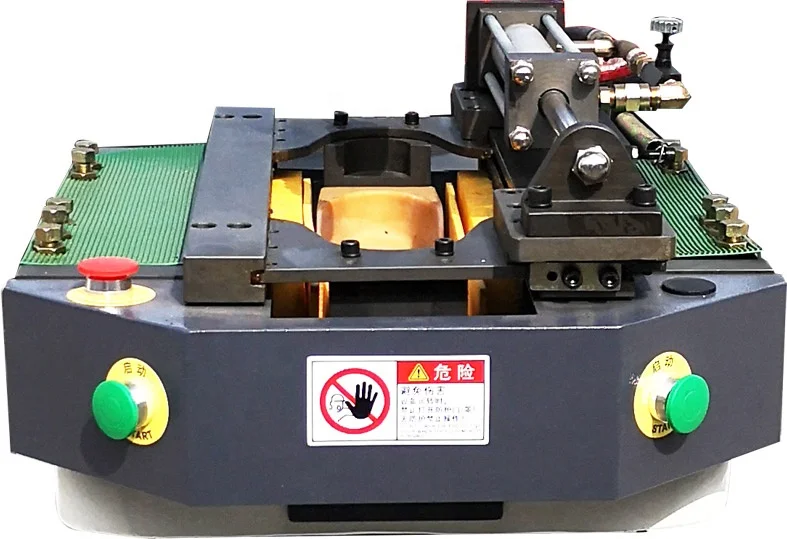

Large seat

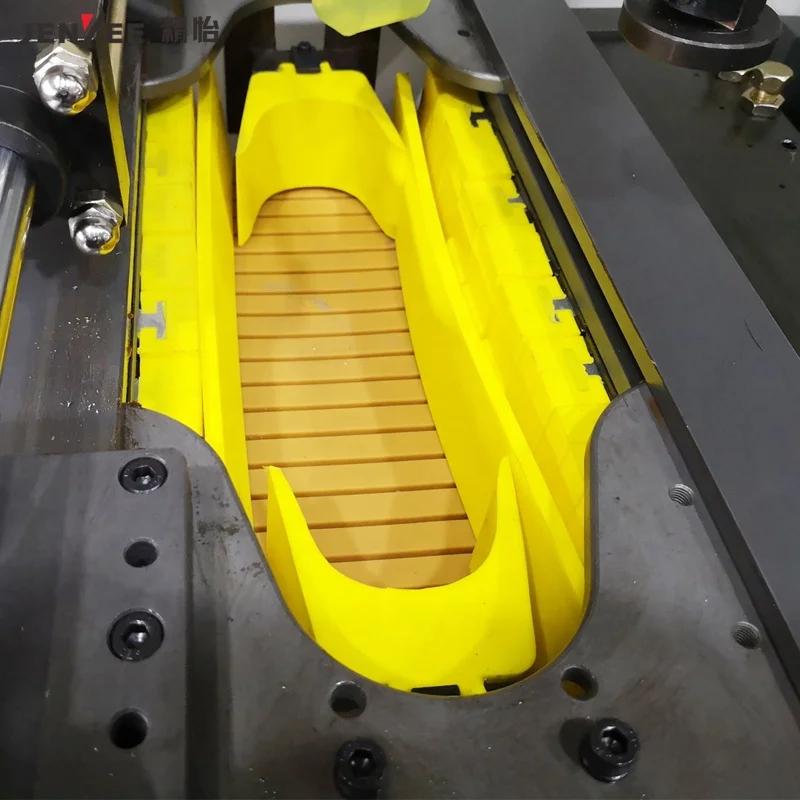

Large seat is a mechanical structure that carries out tightening operation of sole, side, front and back part of the shoe, it is composed of front and back pressing hydraulic cylinder, front and back pressing rubber,
Lengthwise tightening rubber ,Side pressing rubber,rubber pad

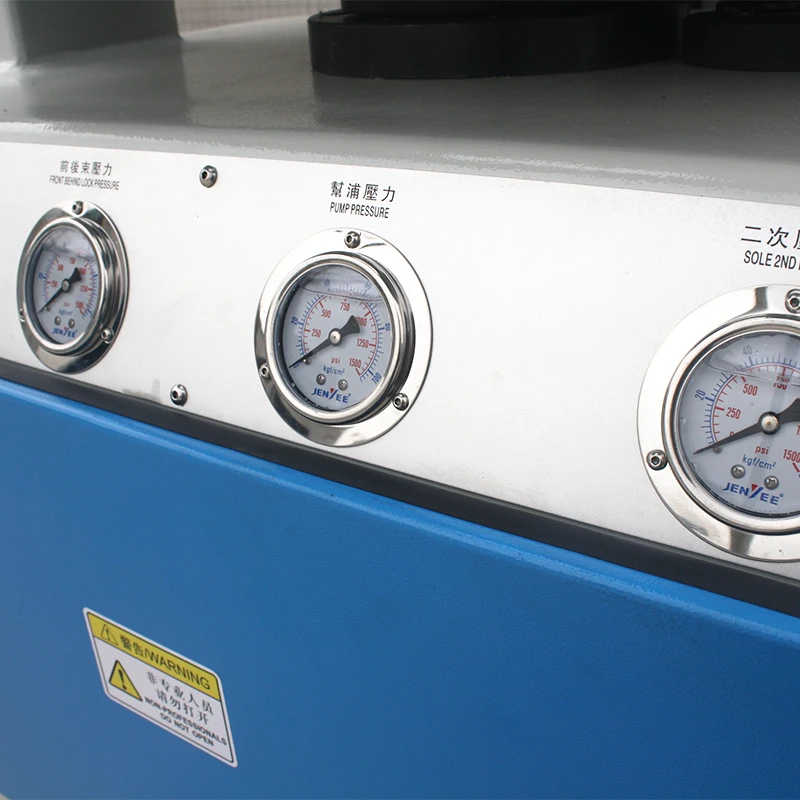

Oil meter & adjusting valve
High quality pressure oil meter are introduced, pressure system
Value is indicated clearly, which makes commissioning and repairing
simple,Adjustment lever can adjust pressure value
Oil system
Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise.
Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow.
Brief operating proc
1.Power cable should be connected on socket meet ECC standards with magnetic switch of 380v.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
