SMCJ30CA SMCJ30A BFK GFK VR 30V VBR(min) 33.3V IR 1 uA Ipp 31A Vc 48.4V SMC/DO 214AB SMCJ 1500W TVS SMD Diode

Product Overview

Description



      The SMCJ series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in YINT Semiconductor’s exclusive, cost-effective, highly reliable and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer Applications.

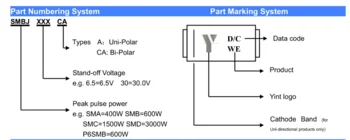

SMCJ Series 1500W

SMCJ5.0CA,SMCJ5.0A,SMCJ6.0CA,SMCJ6.0A,SMCJ6.5CA,SMCJ6.5A,SMCJ7.0CA,SMCJ7.0A,SMCJ7.5CA,SMCJ7.5A,SMCJ8.0CA,SMCJ8.0A,SMCJ8.5CA,SMCJ8.5A,SMCJ9.0CA,SMCJ9.0A,SMCJ10CA,SMCJ10A,SMCJ11CA,SMCJ11A,SMCJ12CA,SMCJ12A,SMCJ13CA,SMCJ13A,SMCJ14CA,SMCJ14A,SMCJ15CA,SMCJ15A,SMCJ16CA,SMCJ16A,SMCJ17CA,SMCJ17A,SMCJ18CA,SMCJ18A,SMCJ20CA,SMCJ20A,SMCJ22CA,SMCJ22A,SMCJ24CA,SMCJ24A,SMCJ26CA,SMCJ26A,SMCJ28CA,SMCJ28A,SMCJ30CA,SMCJ30A,SMCJ33CA,SMCJ33A,SMCJ36CA,SMCJ36A,SMCJ40CA,SMCJ40A,SMCJ48CA,SMCJ48A,SMCJ51CA,SMCJ51A,SMCJ54CA,SMCJ54A,SMCJ58CA,SMCJ58A,SMCJ60CA,SMCJ60A,SMCJ64CA,SMCJ64A,SMCJ70CA,SMCJ70A,SMCJ75CA,SMCJ75A,SMCJ78CA,SMCJ78A,SMCJ85CA,SMCJ85A,SMCJ90CA,SMCJ90A,SMCJ100CA,SMCJ100A,SMCJ110CA,SMCJ110A,SMCJ120CA,SMCJ120A,SMCJ130CA,SMCJ130A,SMCJ150CA,SMCJ150A,SMCJ160CA,SMCJ160A,SMCJ170CA,SMCJ170A,SMCJ180CA,SMCJ180A,SMCJ190CA,SMCJ190A,SMCJ200CA,SMCJ200A,SMCJ210CA,SMCJ210A,SMCJ220CA,SMCJ220A,SMCJ250CA,SMCJ250A,SMCJ300CA,SMCJ300A,SMCJ350CA,SMCJ350A,SMCJ400CA,SMCJ400A,SMCJ440CA,SMCJ440A





l Case: DO-214AB/SMC

l For surface mounted applications in order to optimize board space.

l Polarity: Color band denoted positive end (cathode) except Bidirectional.

l Typical failure mode is short from over-specified voltage or current

l High Temperature soldering:260°C/10 seconds at terminals.

l Terminal: Solder plated, solderable per MIL-STD-750, Method 2026.



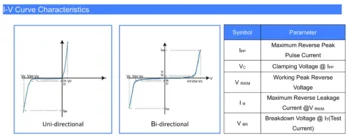

Electrical Characteristics (@ TA = 25°C Unless Otherwise Noted)





NOTES:

1. Non-repetitive current pulse, per Pulse Waveform graph and derated above T_A = 25 °C per Pulse Derating Curve.

2. Thermal Resistance Junction to Lead.

3. 8.3 ms Single Half-Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units only).

4. Single Phase, Half Wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20 %.

5. VF<3.5V for VBR< 200V and VF <5.0V for VBR> 201V.
