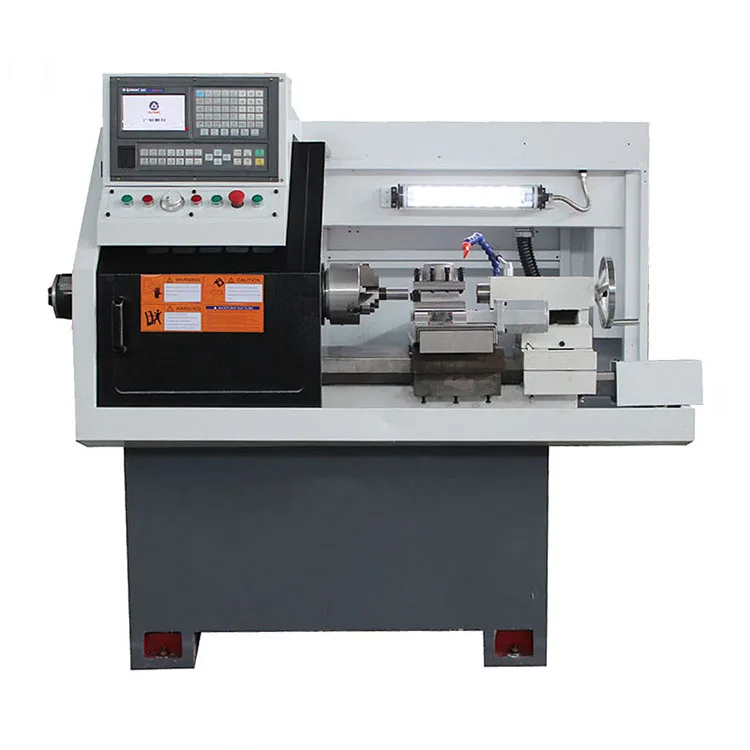

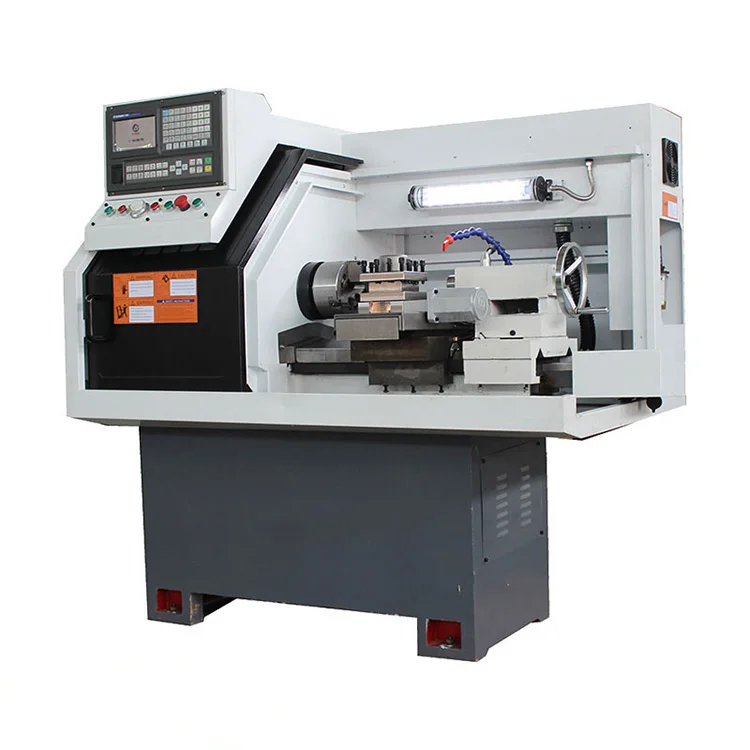

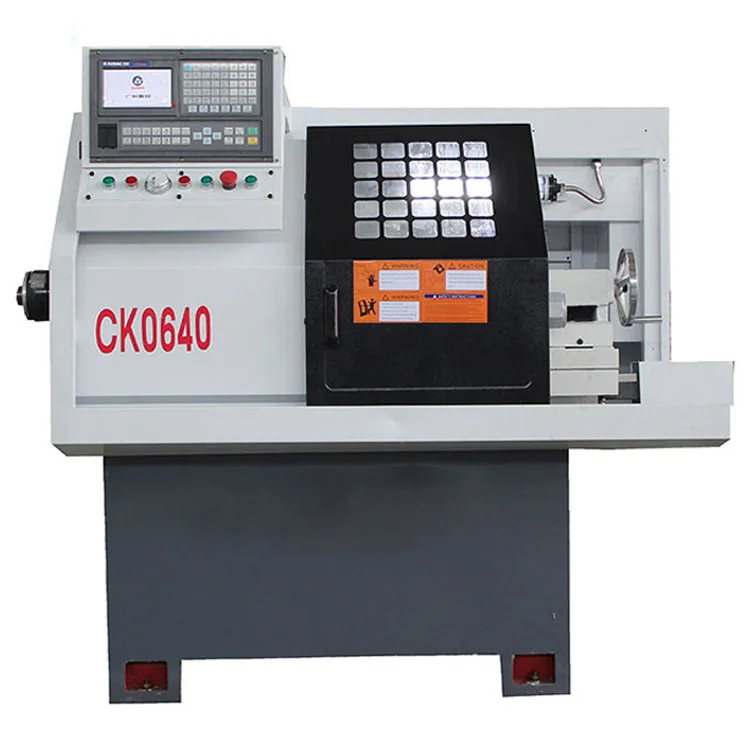

Export quality products low cost kirloskar horizontal cnc lathe
- Category: >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (62322845401):
Product Overview
Description
Product Description
Machine Features:
1-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.
3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4-The spindle system is high in rigidity and accuracy.
5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
| Item/Model | CK6132 | CK6432 | CK6136 | CK6140 | CK6150 |
| Max. swing dia. | 360mm | 360mm | 360mm | 400mm | 500mm |
| over bed | |||||
| Max. swing dia. over cross slide | 150mm | 150mm | 190mm | 225mm | 300mm |
| Max. workpiece | 450mm | 450/700mm | 750/1000mm | 750/1000mm | 750/1000/1500mm |
| length | |||||
| Spindle bore | 40mm | 60mm | 60mm | 60mm | 82mm |
| Spindle speed | 150-2500RPM | 150-2500RPM | 200~2500RPM | 200~2500RPM | 150-2000RPM |
| Spindle bore taper | MT5 | MT6 | MT6 | MT6 | 1:20/Φ90 |
| Tool post | 4-station | 4-station | 4-station | 4-station | 4-station |
| Tool bar section | 20X20 mm | 20X20 mm | 20X20mm | 25X25mm | 25X25mm |
| Main motor power | 4kw | 4kw | 5.5kw | 5.5kw | 7.5kw |
| X/Z axis torque | 4N.M/4N.M | 4N.M/4N.M | 4N.M/6N.M | 5/7.5N.M | 6/10N.M |
| X/Z axis travel | 310/450mm | X:260 Z:450/700mm | X:260 Z: 760/1020mm | X:260 Z:760 /1020mm | X:360 Z:750 /1000/1500mm |
| stroke | |||||
| X/Z axis fast | 6/8 M/MIN | 6/8 M/MIN | 6/8 m/min | 6/8 m/min | 8/10 M/MIN |
| feeding speed | |||||
| Tailstock | 100mm | 100mm | 120mm | 120mm | 150mm |
| sleeve travel | |||||
| Tailstock taper | MT3 | MT4 | MT4 | MT4 | MT5 |
| Dimension | 1820×1100 ×1550mm | 1660/1940× 1400×1700mm | 2120/2370× 1400×1700mm | 2320/2570 ×1400×1700mm | 2410/2660/ 3160*1560*1730mm |
| Net weight | 1200kg | 1250/1450kg | 1650/1750kg | 1800/1950kg | 2800/3200/3500kg |
Standard Configuration :
1- System:GSK928TD-L, servo motor and drive.

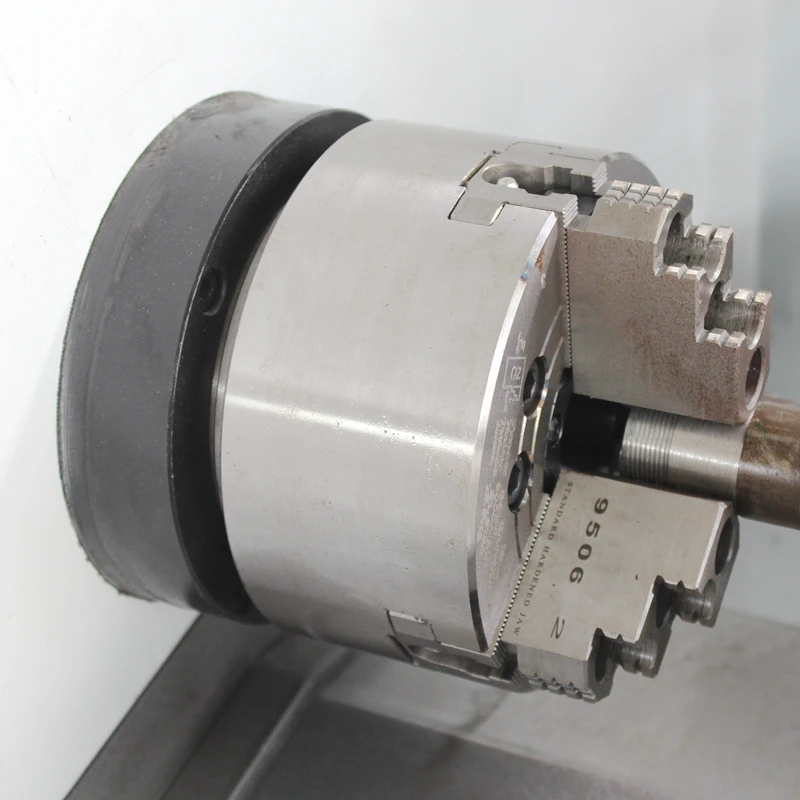

2- Manual 3-jaw chuck.

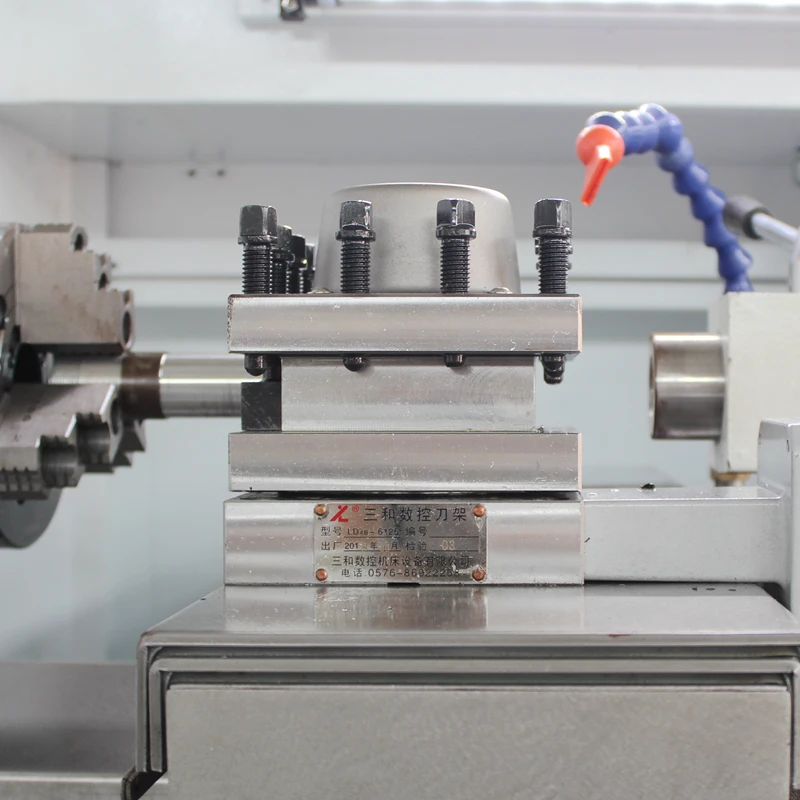

3- 4-station electric tool post.

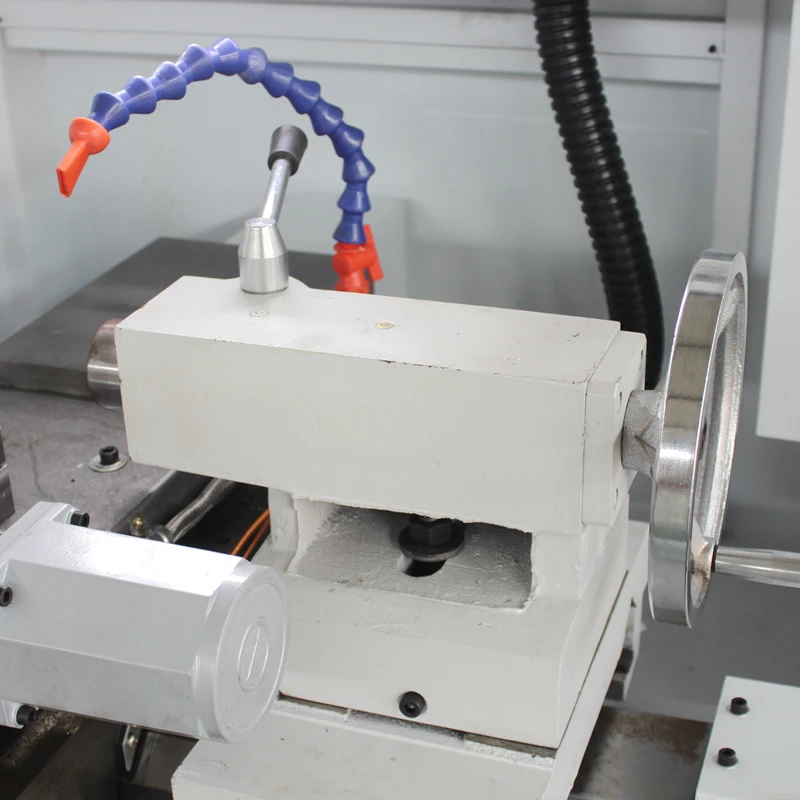

4- Manual tailstock
5- Cooling system.
6- Lighten system.
7- Automatic lubrication system.
Optional Configuration:
1- CNC system: Siemens, Fanuc, KND.
2- Hydraulic chuck/Pneumatic chuck.
3- Hydraulic tailstock/Pneumatic tailstock.
4- Horizontal 6-station turret/8-station turret.
5- Auto bar feeder
6- Chip conveyor
Company Information
FAQ
Q1. How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
