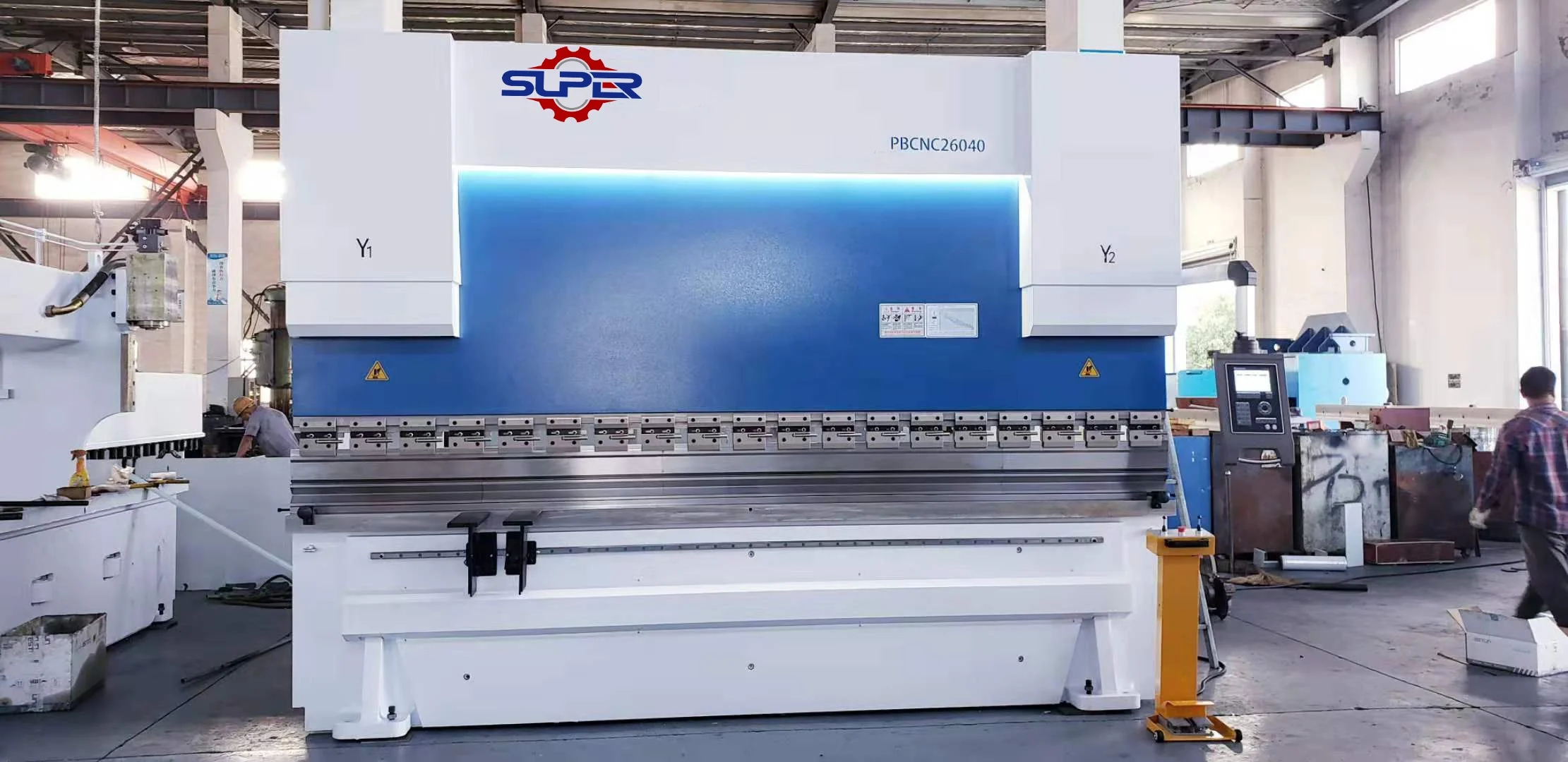

800T / 8000mm HEAVY DUTY CNC Electric Hydraulic Synchronized Press Brake
- Category: >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (62322855110):

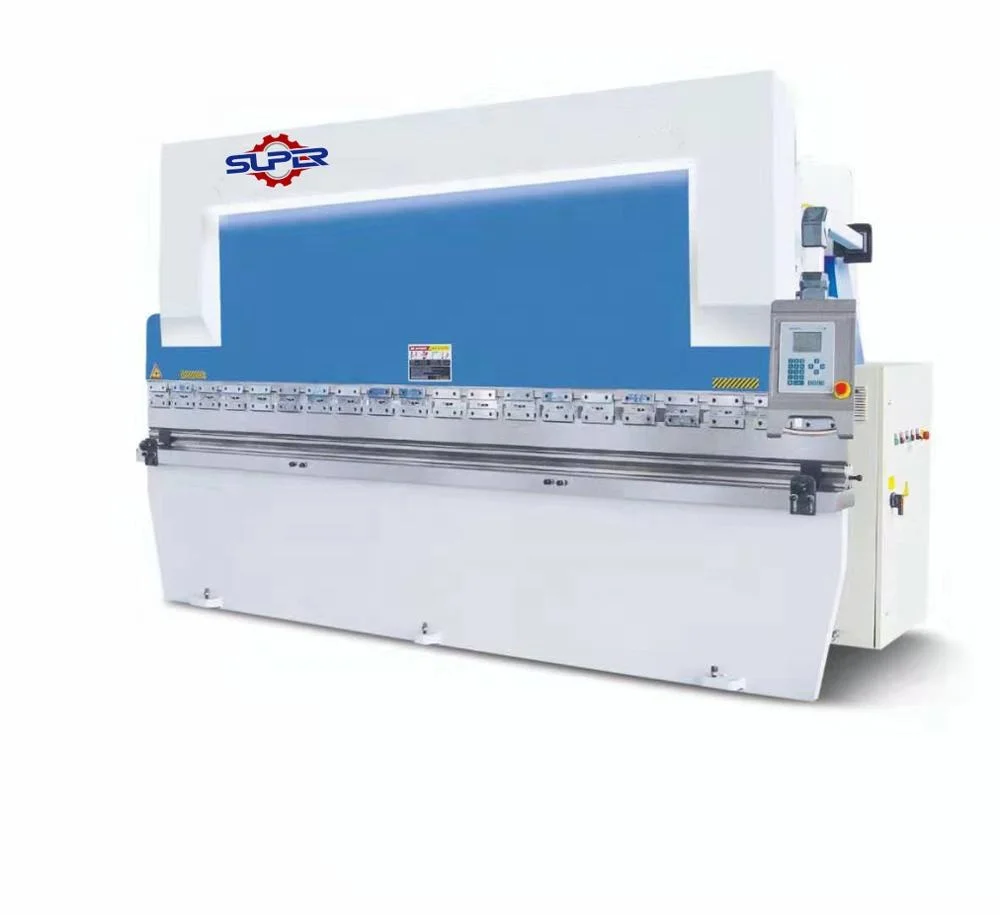

Product Overview
Description
Products Description
Main Configuration
1.Brand-new industry design integrated with modern aesthetic concept,high quality fabrication technology with simple and elegant appearance.
2.Heat treatment of the rack, rigidity optimization verification of entire machine.
3. Holland Delem CNC controller DA52S/DA53T/DA58T/DA66T/DA69T4.Grating ruler controls depth of Y1 and Y2 axis (y1 / y2-0.01mm)
5.Servo motor drive and control X axis (X-axis 0.05mm), Servo motor drive and control R axis up and down.
6.Motorized drive and control stopping finger Z1 and Z2 along with guide rail.
7.Maintain the accuracy of HIWIN ball screw and linear guide of 0.01mm
8.Front carrier position can be adjusted along the linear guide rail
9.Germany Rexroth closed-loop electro-hydraulic servo synchro control system
10.Siemens main motor and Schneider electric.
11. Hydraulic and electrical overload protection
12. Upper fast pinching dies with lower multi-V replaceable die
Axis Explanation

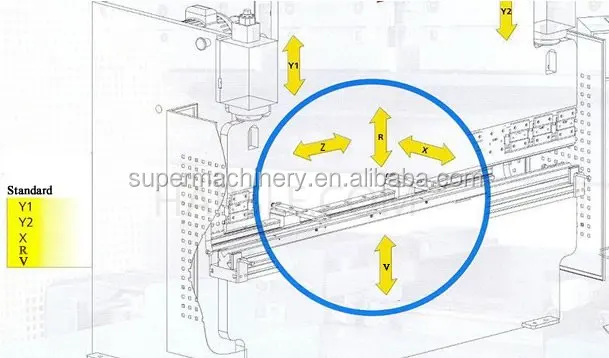

CNC Press Brake Axis Explanation
Y1:Left cylinder full closed-loop control axis
Y2:Right cylinder full closed-loop control axis
X1:Left stop finger back and forth moving axis
X2:Right stop finger back and forth moving axis
R1:Left stop finger up and down moving axis
R2:Right stop finger up and down moving axis
Z1:Left stop finger left and right moving axis
Z2:Right stop finger left and right moving axis
V:Crowning axis
Name | Description |
3+1 axis | Y1,Y2,X,+V |
4+1 axis | Y1,Y2,X,R,+V |
6+1 axis | Y1,Y2,X,R,Z1,Z2,+V |
8+1 axis | Y1,Y2,X1,X2,R1,R2,Z1,Z2,+V |
Stanard configuration
Delem DA66T(6+1 axis)
■ 2D graphical touch screen programming mode
■ 3D visualisation in simulation and
■ production
■ 17" high resolution colour TFT
■ Full Windows application suite
■ Delem Modusys compatibility (module scalability and adaptivity)
■ USB, peripheral interfacing
■ User specific application support within the controllers multitasking environment
■ Sensor bending & correction interface
■ 3D visualisation in simulation and
■ production
■ 17" high resolution colour TFT
■ Full Windows application suite
■ Delem Modusys compatibility (module scalability and adaptivity)
■ USB, peripheral interfacing
■ User specific application support within the controllers multitasking environment
■ Sensor bending & correction interface

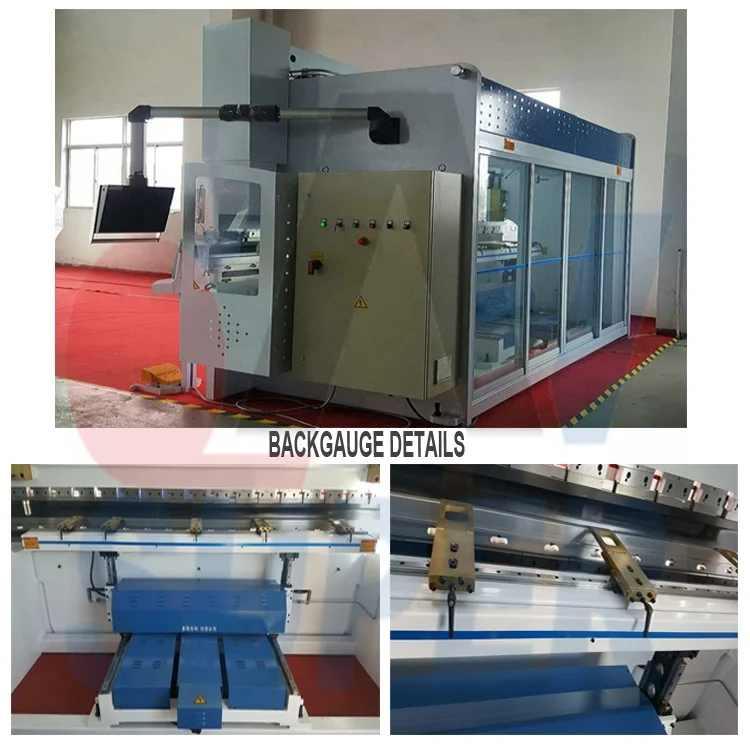

Undercovered Back Gauge
All colsed and undercovered for back gauge rails

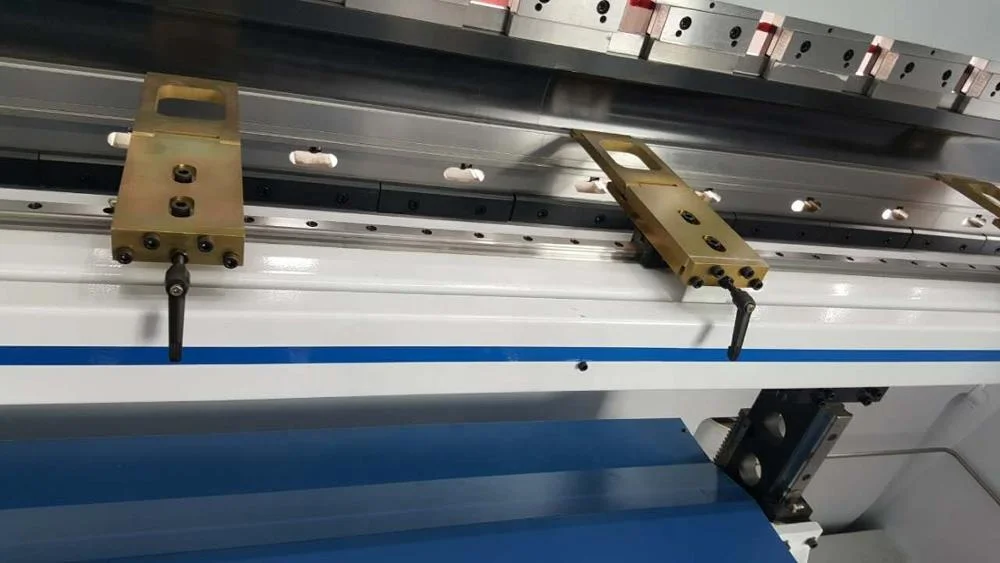

Motorized Stop Finger
Motorized stop finger ,control button on foot switch.
Quick Clamp
Accurate clamping, positioning and alignment
Foot Switch
moveable with emergency button

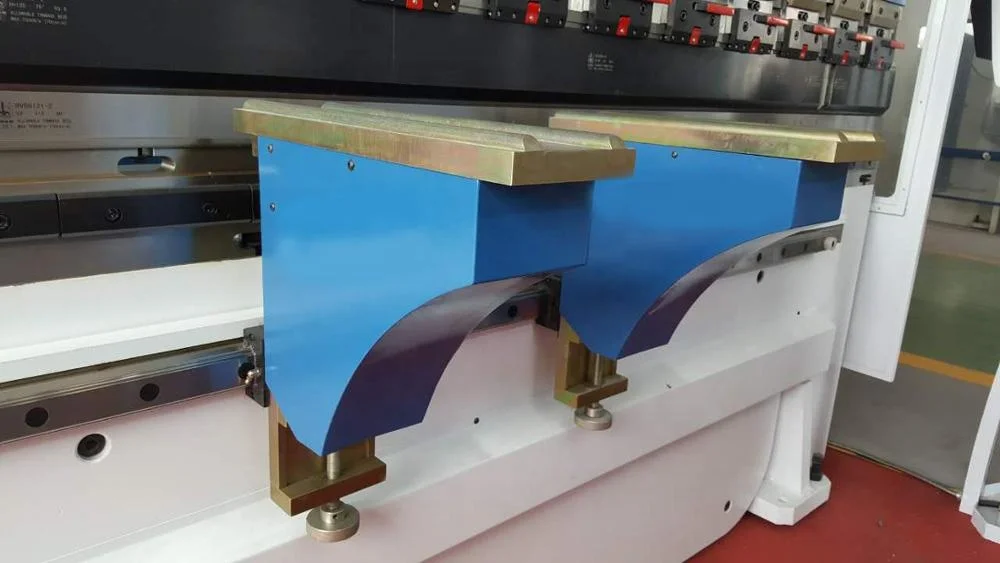

Front Arams
Movable in different directions
Segment Bending Tools
All different size segment bending die.
Linear Encoder
High performance Spanish FAGOR linear encoder
Proportional Valve
Germany Roxroth valve
light Curtain
protect user by using machine
linear guide and ball screw
Brand HIWIN from Taiwan
Hydraulic Pump
USA Sunny Hydraulic Pump
Schneider Electric Components
High quality electric parts can perform well
Optional Configuration
Mechanical Crowning
Hydraulic Crowning
Hydraulic Clamp
DSP Laser Protector
Product Paramenters
Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
Column Distance(mm) | 2490 | 2490 | 3000 | 2490 | 3000 | 2490 | 3000 |
Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
Bending Capability | 160/6000 | 200/3200 | 200/4000 | 200/6000 | 250/3200 | 250/4000 | 250/6000 |
Nominal Force(KN) | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 |
Worktable Length(mm) | 6000 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 |
Column Distance(mm) | 4100 | 2490 | 3000 | 4600 | 2500 | 3000 | 4600 |
Throat Depth(mm) | 320 | 320 | 320 | 320 | 350 | 350 | 350 |
Ram Stroke(mm) | 200 | 200 | 200 | 200 | 250 | 250 | 200 |
Main Motor Power(KW) | 11 | 11 | 11 | 15 | 15 | 15 | 15 |
Bending Capability | 300/3200 | 300/4000 | 300/6000 | 400/4000 | 400/5000 | 400/6000 | 500/4000 |
Nominal Force(KN) | 3000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 |
Worktable Length(mm) | 3200 | 4000 | 6000 | 4000 | 5000 | 6000 | 4000 |
Column Distance(mm) | 2500 | 3000 | 4600 | 3100 | 3600 | 4600 | 3100 |
Throat Depth(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Ram Stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Main Motor Power(KW) | 18.5 | 18.5 | 18.5 | 22 | 22 | 30 | 30 |
Bending Capability | 500/6000 | 500/8000 | 600/6000 | 600/8000 | 800/6000 | 800/8000 | 1000/6000 |
Nominal Force(KN) | 5000 | 5000 | 6000 | 6000 | 8000 | 8000 | 10000 |
Worktable Length(mm) | 6000 | 8000 | 6000 | 8000 | 6000 | 8000 | 6000 |
Column Distance(mm) | 4600 | 6100 | 4600 | 6100 | 4600 | 6100 | 4600 |
Throat Depth(mm) | 350 | 350 | 400 | 400 | 400 | 400 | 500 |
Ram Stroke(mm) | 250 | 300 | 300 | 300 | 300 | 300 | 400 |
Main Motor Power(KW) | 30 | 30 | 37 | 45 | 45 | 55 | 55 |
