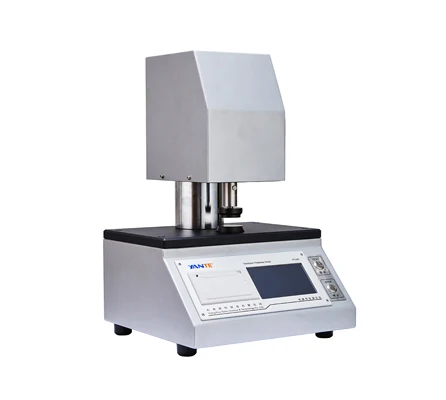

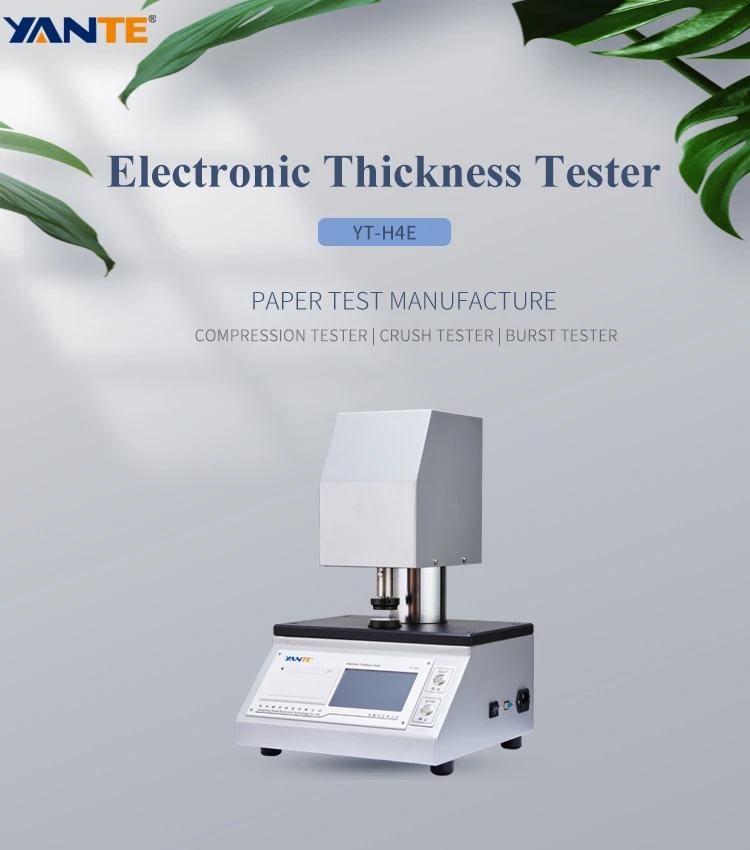

YT H4E device used for measuring micrometer for Non woven Fabric Thickness Tester
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62322950910):
Product Overview
Description
Product Overview
Non-woven Fabric Thickness Tester is a special instrument for measuring the thickness of Non-woven Fabric. It is widely used for measuring the thickness of Non-woven Fabric. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
Features At A Glance
One-click test, easy to understand.
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast.
The rising and falling speed of the probe can be adjusted.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results.
Communication with computer software (purchased separately)
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast.
The rising and falling speed of the probe can be adjusted.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results.
Communication with computer software (purchased separately)
Details Images
Application Range
Non-woven Fabric
Execute Standard
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 5 inch color touch screen |
4 | Measuring range | (0～10)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.003mm or ±0.5％ |
7 | Indication variability | ≤0.003mm or ≤0.5％ |
8 | Parallelism between measuring surfaces | ≤0.0004mm |
9 | Contact area | (1000±5) mm² |
10 | Contact pressure | （2±0.1)kPa |
11 | Probe descending speed | （0.5～10）mm/s Adjustable |
12 | Print | Built-in thermal printer |
13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 325×310×485 mm |
15 | Net Weight | 24kg around |
