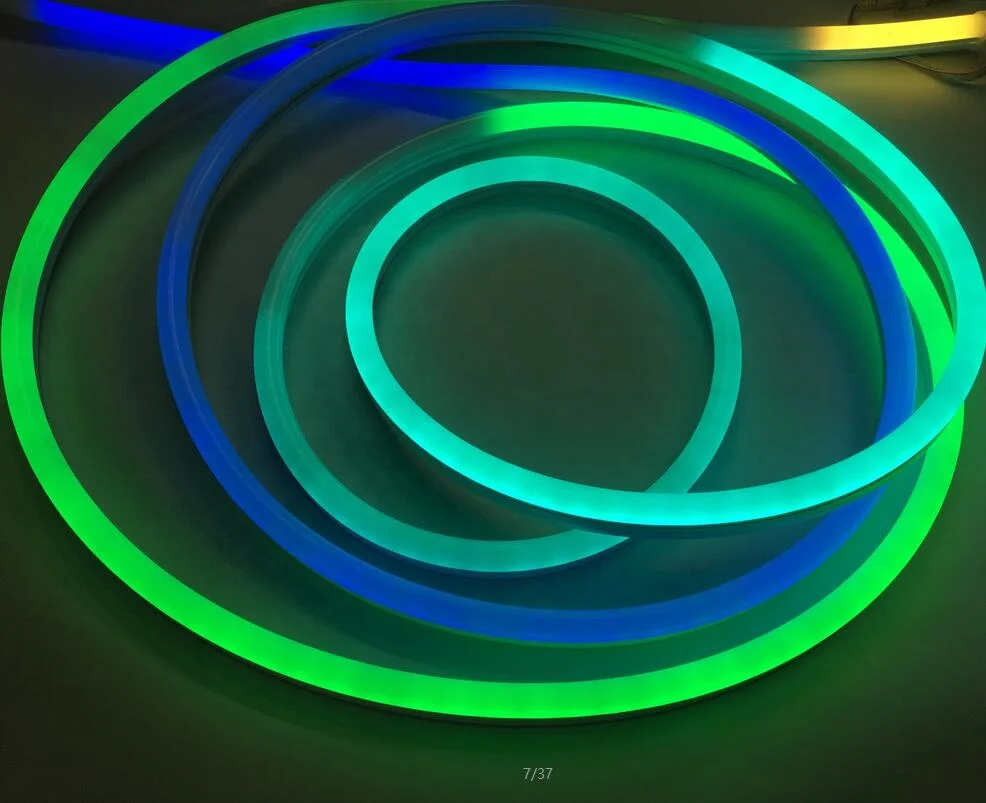

Waterproof outdoor neon tube RGB addressable LED flexible neon tube DC12/24V

Share on (62323035154):


Price:

Quantity:


Product Overview

Description

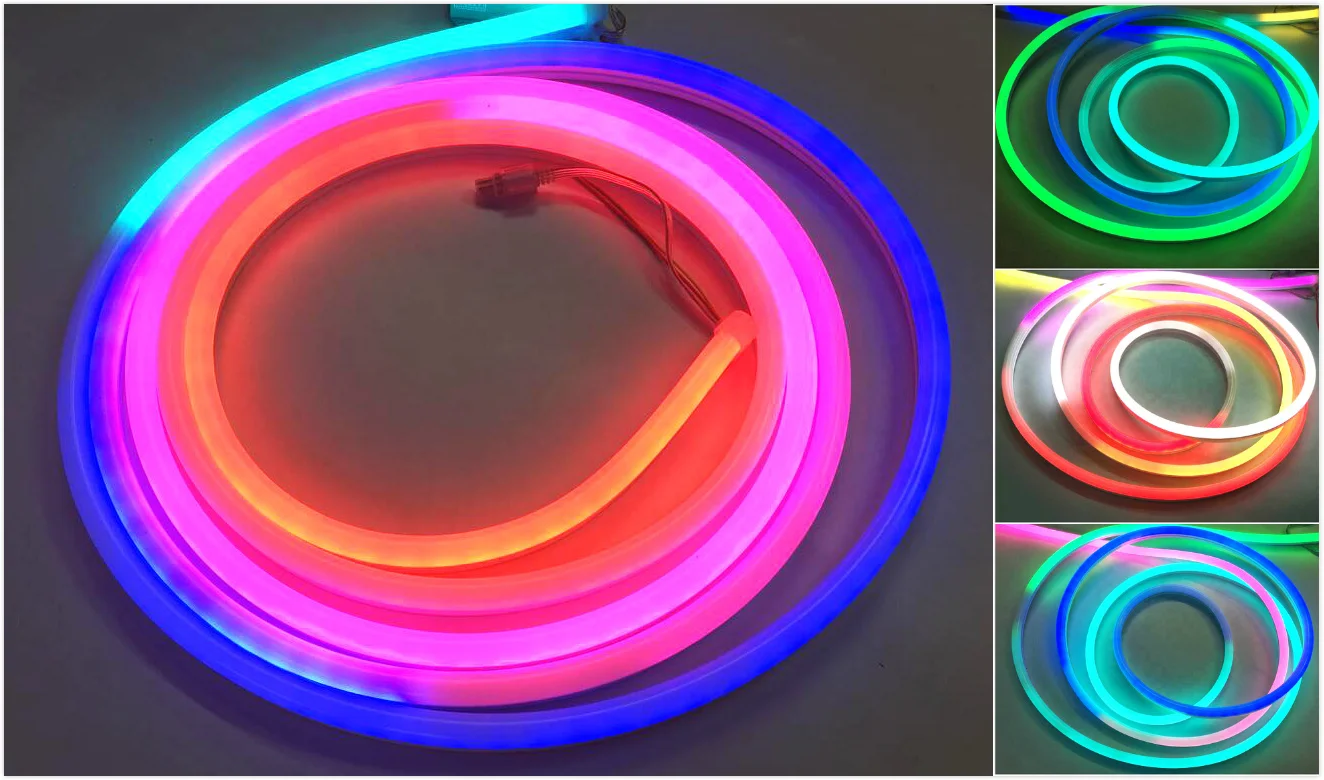

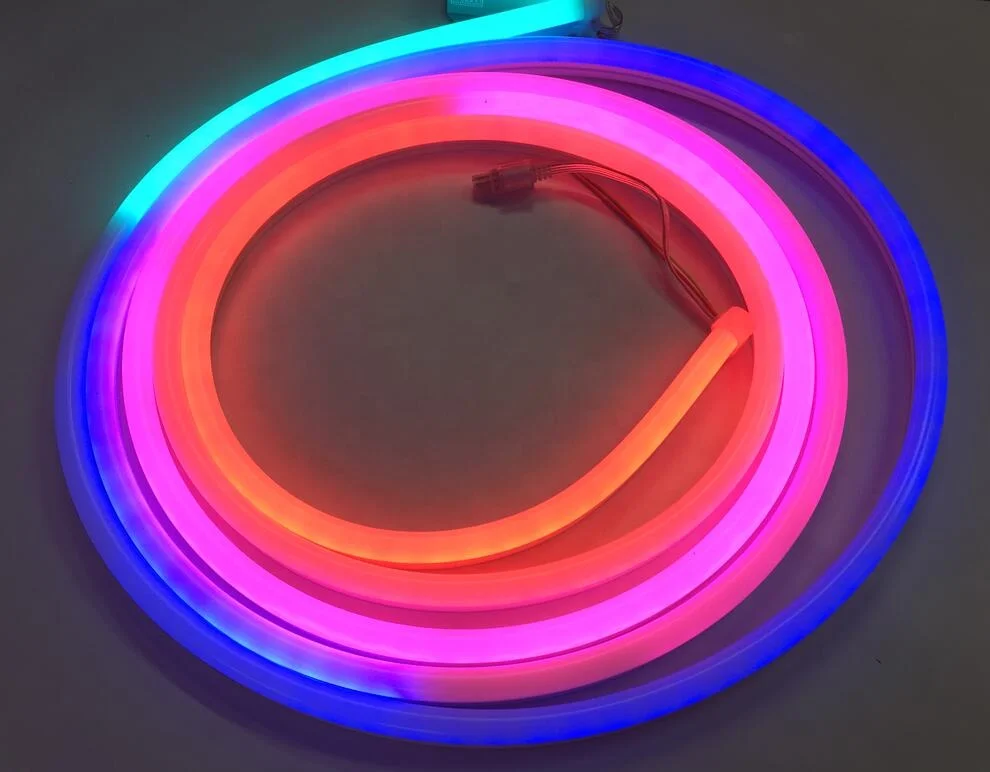

Waterproof outdoor neon tube RGB addressable LED flexible neon tube DC12/24V








Specifications































































Parameters







Input voltage



DC 12V/DC24V



Lamp power



14W/meter



IC Chip



UCS1903



LED chip



SMD 5050



LEDs Qty



60leds/meter



IC Qty



20pcs/meter



IP rating



 IP20,IP65, IP68



Beam angle



≥120°



Lifespan



30000h



Data transmission speed



800k/s



Dimension



W12*H20mm



Strip length



5 meters/roll






Features


1. Flexible led neon tube, this product is combined with PCBleds and silicone tube, a pair of F/M connectors. As well as a series of gluing process to ensure good water and UV resistance.

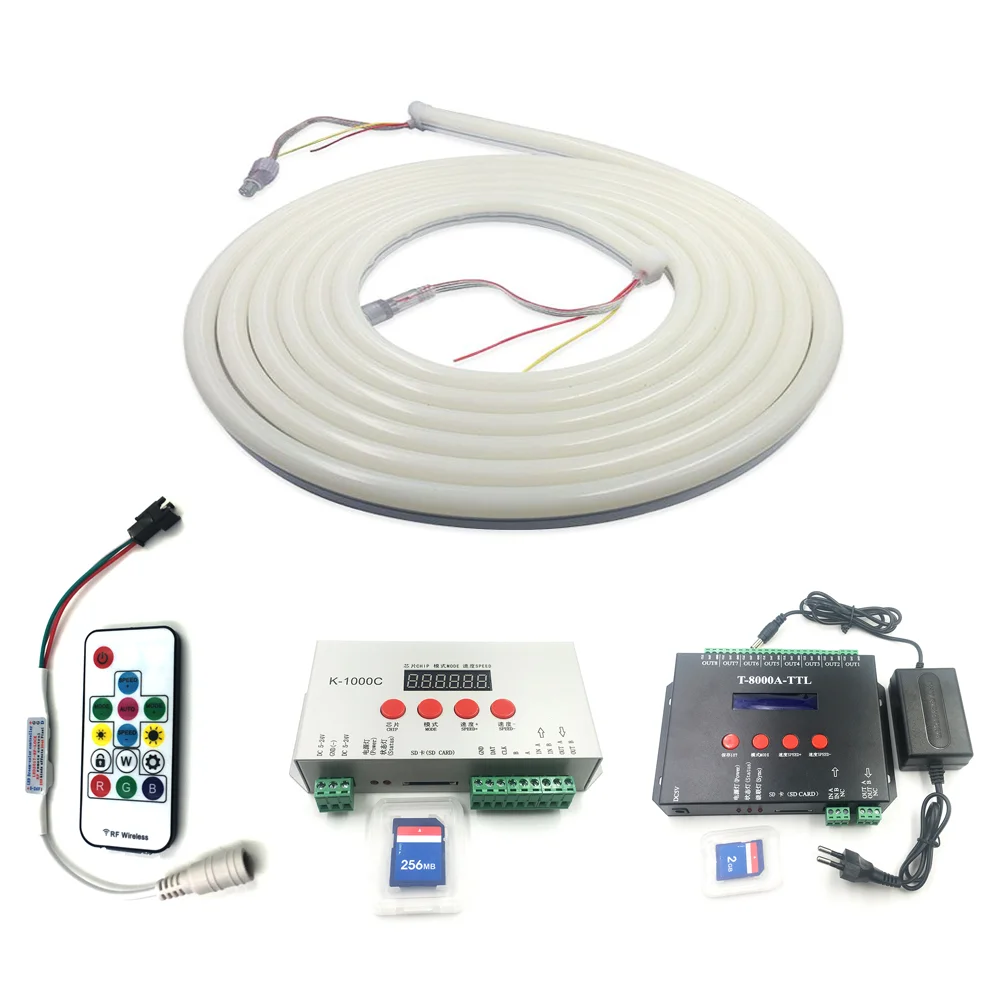

2. It is a RGB programmable product, can achieve many different light effects by using a LED controller such as K-1000c.


3. The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.


4. This neon tube can be cut by yourself according to the length you need


5. Customized requests are available, for example: Color, Length (Maximum length is 5 meters)


6. This product has CE and RoHS certifications.





The Neon Tube with Different Connector

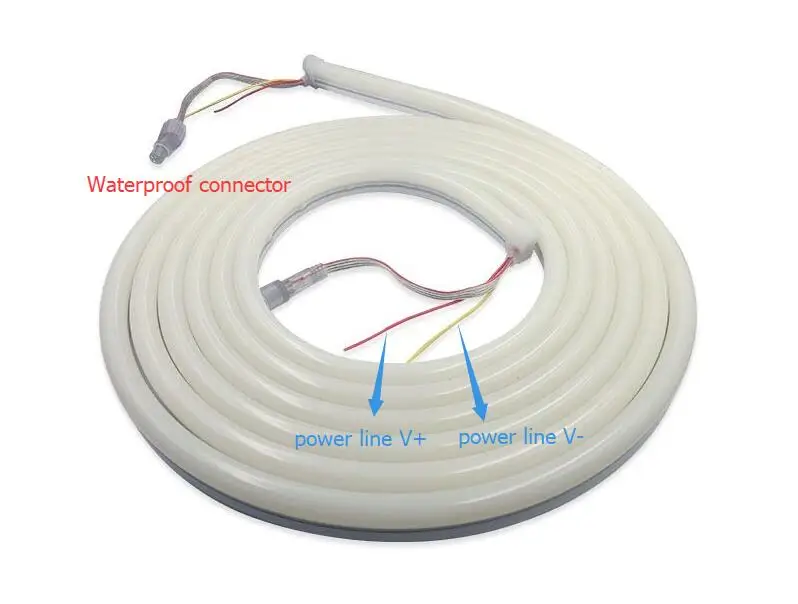

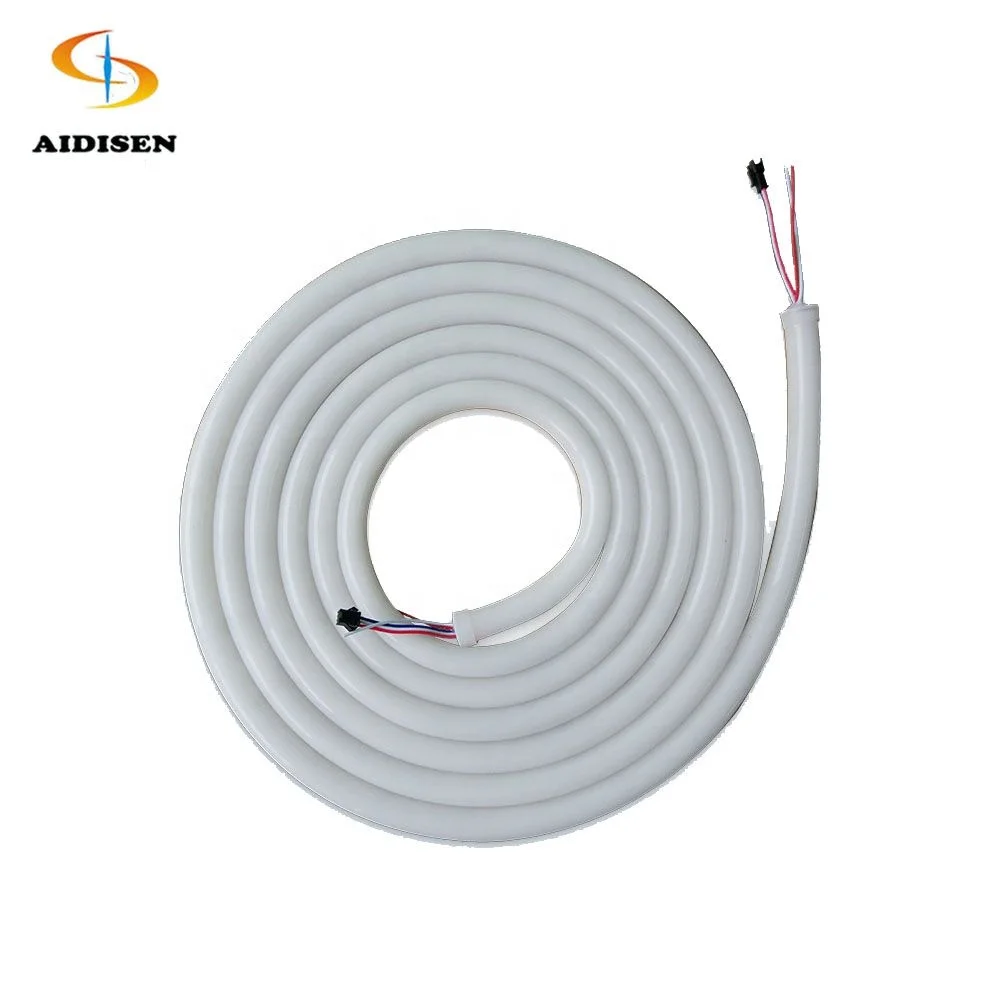

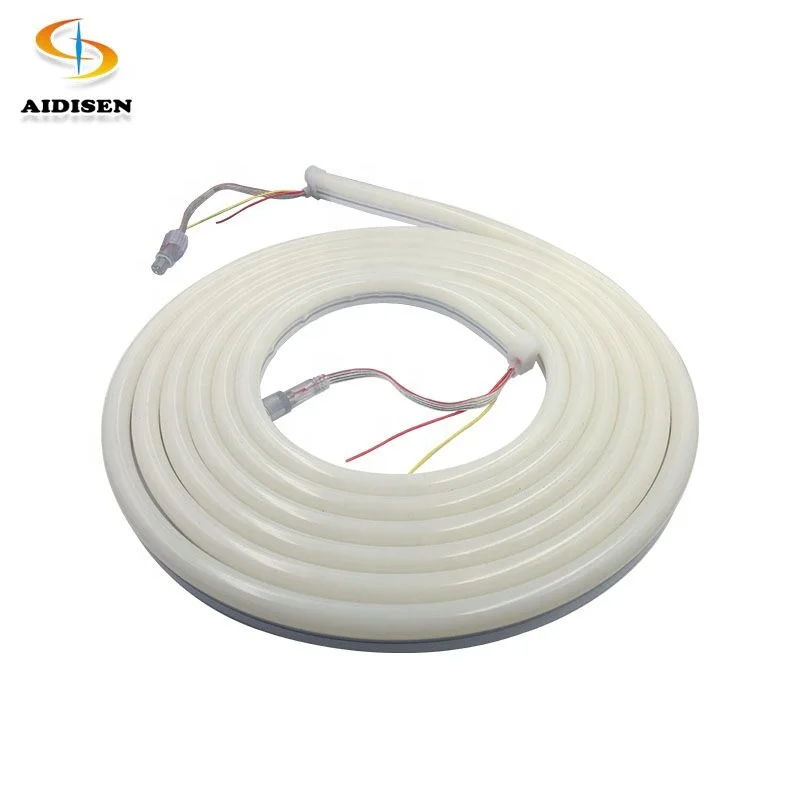

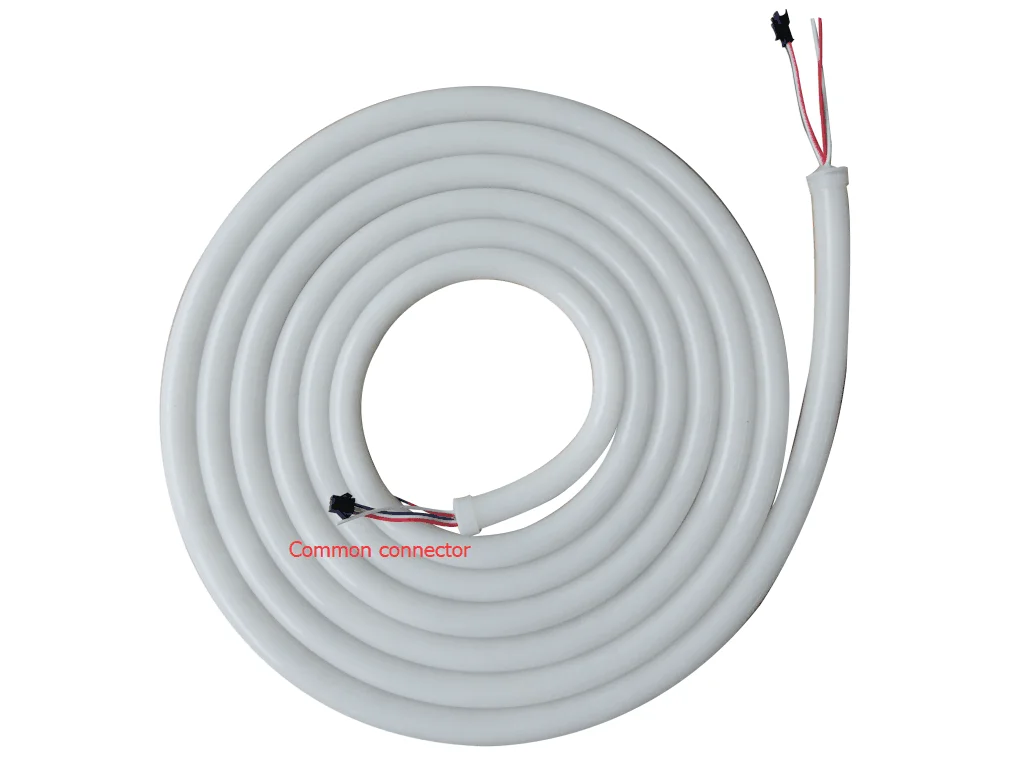

                     Common Connector                                        Waterproof Connector





Applications


neon tube-1.jpgneon tube-4.jpg





1. Amusement Park Rides Light


    Ferris wheel, Carousels, Pirate ship, Pendulum, Tower and so on.

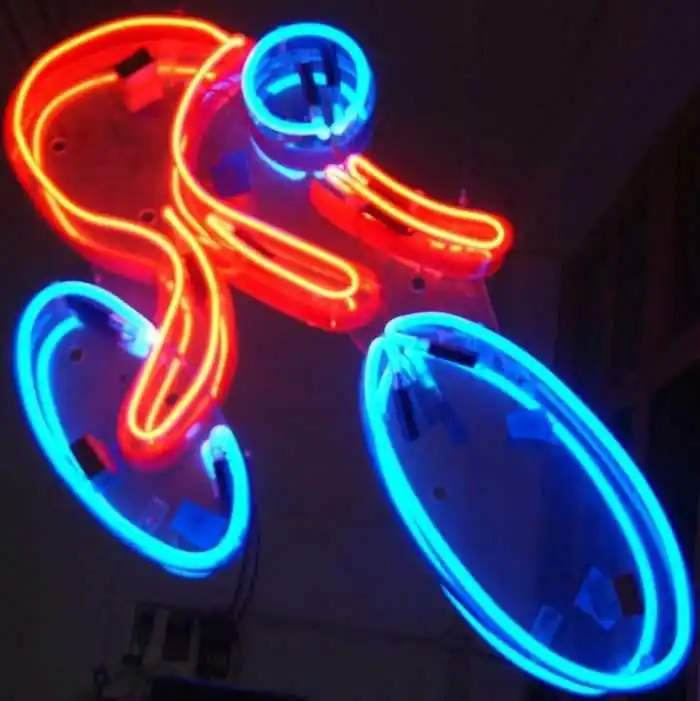

2. Advertisement Outdoor Signboard Backlight


    Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.


3. Stage Decoration Light


    KTV, Disco, Bar, Night club and other stage light.


4. Commercial Light


    Hotel, Shopping mall, Theater, Square and so on.


5. Home Decoration


    Lighting, Home party, Christmas decoration, etc.

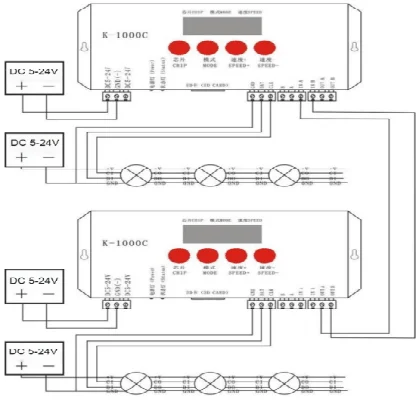

Controller Connection

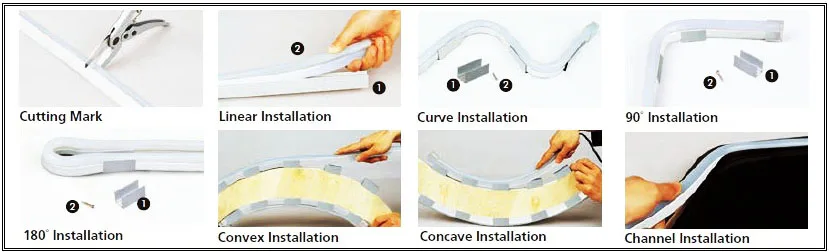

 montaj na led neon.jpg




Notes:


1. Male connector (with pins) is signal input port, female connector (without pins) is signal output port.


3. We suggest that every roll of tube connect to the power supply in parallel to avoid voltage decline.


4. One controller can only support up to 2000pixels (1024pixels adivesed), more than 2000 pixels, you need to cascade with multiple controllers.





Pictures




Packing and Shipping


christmas decorations rgb led pixel chain ws2811 ucs1903 christmas lights led pixel ws2811 12mm


Shipping


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door.


2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.


3. Customers specifying freight forwarders or negotiable shipping methods.


4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.



5. Payment methods: T/T, PayPal and Western Union.



6. 100% payment if the total amount less than 5000USD.


7. 30% deposit and 70% balance before shipment if the total amount is more than 5000USD.
