7 Inch Car Truck Bus Split Screen 4 Channels Quad AHD 720P Car Security Rear View Monitor Built in DVR Recording Car Lcd Monitor
- Category: >>>
- Supplier: Epark (Shenzhen) Technology Limited
Share on (62323042380):
Product Overview
Description
Products Description & Specification
7 inch Car Truck Split Monitor Built-in DVR Recording 4 Channels Quad Display Front/Left/Right/Back Camera for Trailer

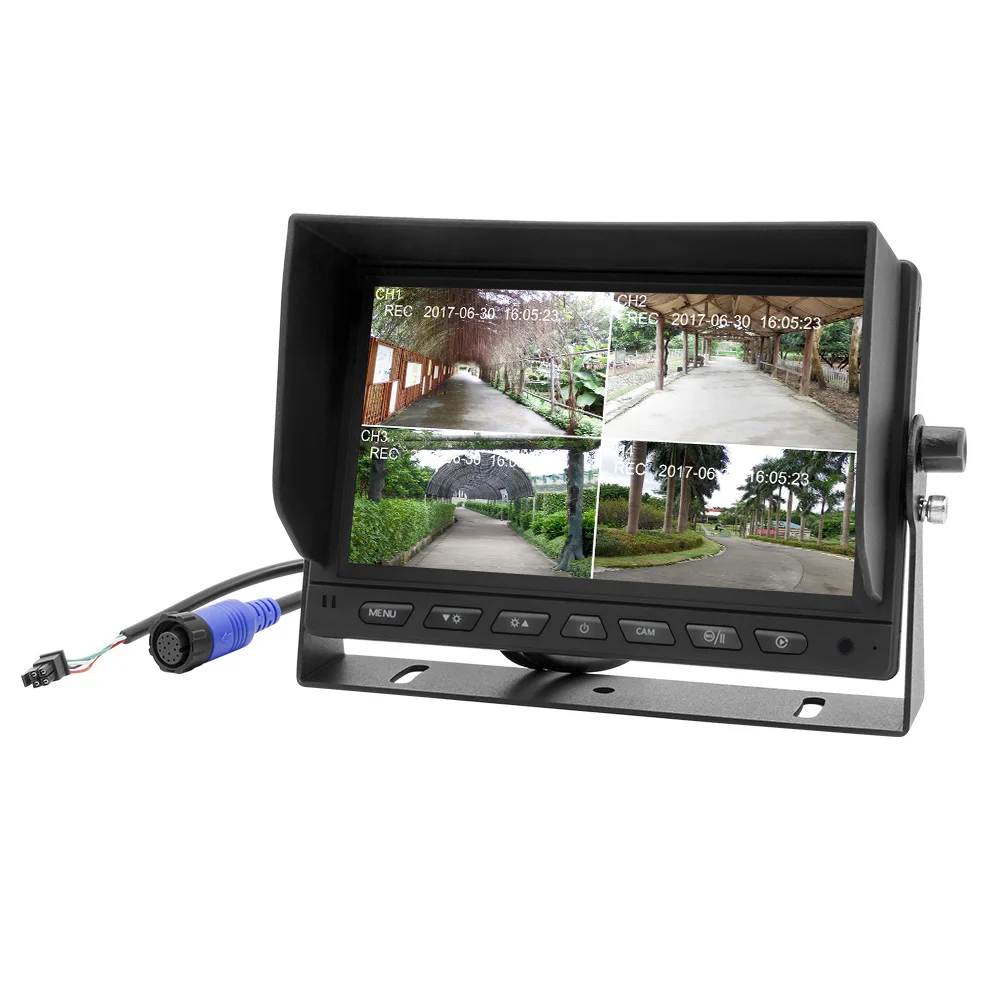

This rearview camera monitor we called EM-703HDVR is New arrivals, the resolution is 1024 x RGB x 600, which offers superior image & stable quality.The 7 color quad monitor is built-in DVR recording , it can view 1 camera separately or view all 4 pcs 720P cameras simultaneously,It is specially installed on bus,truck,trailer for reversing, luminous buttons to ensure better vision in darkness.
Specification | ||||||
Screen size | 7 inch | Voltage | DC 10-36v | |||
Resolution | 1024 x RGB x 600 | brightness | 350 nits | |||

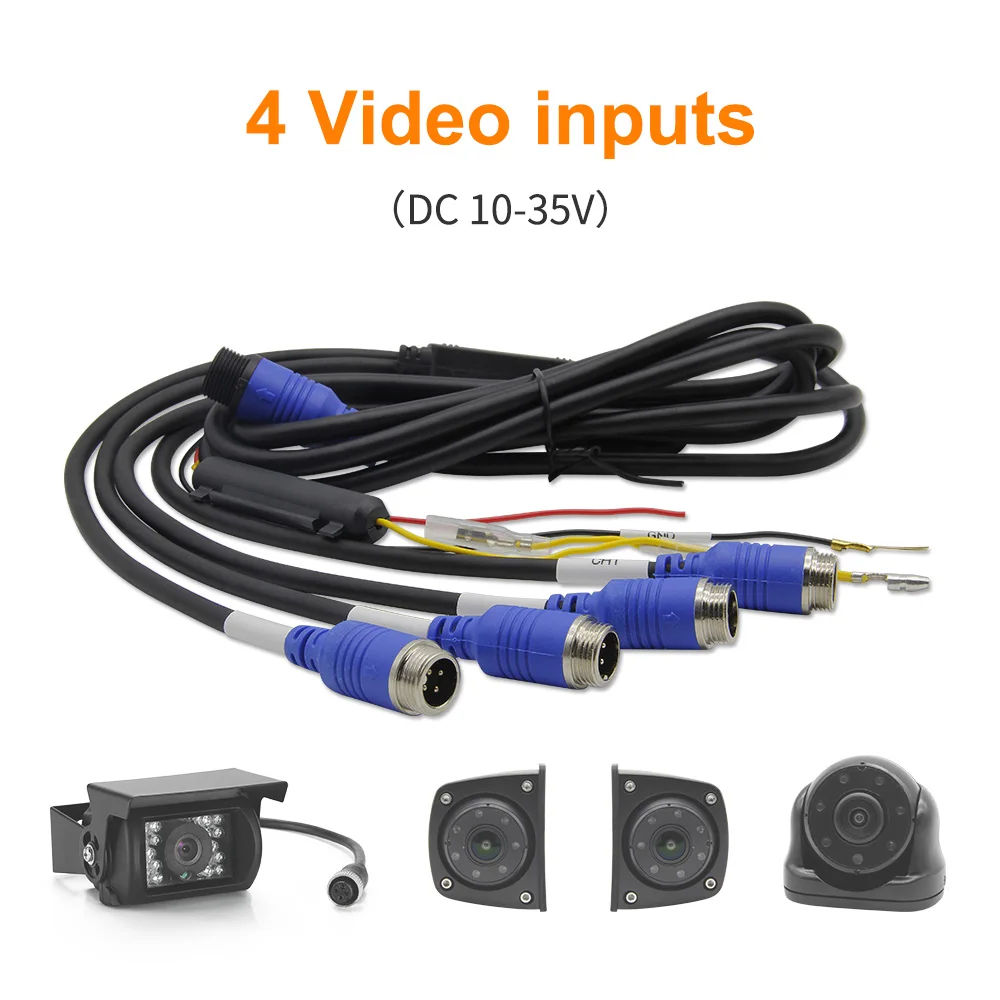

Input | 4 ch 720P inputs | Bracket | U type metal Stand | |||
Ratio | 16 : 9 screen | connector | 4pin male | |||
Menu | OSD | System | PAL/NTSC | |||

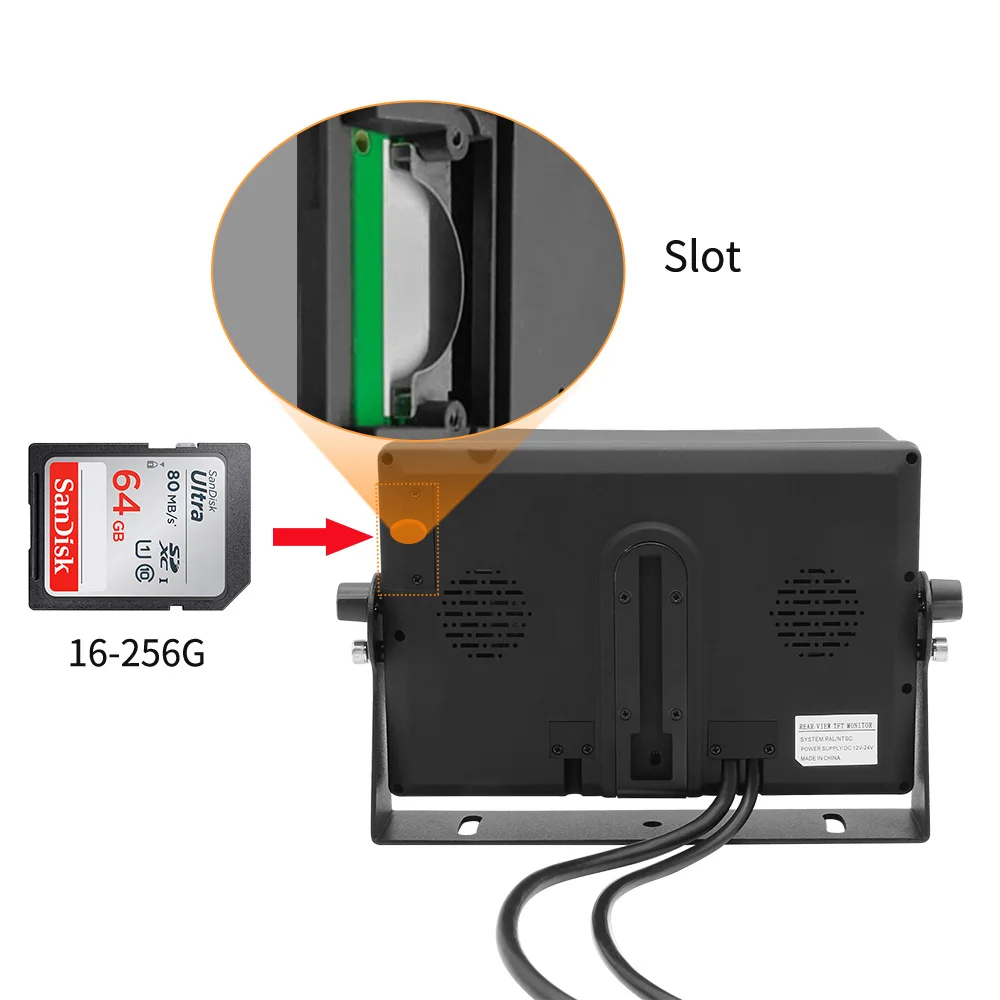

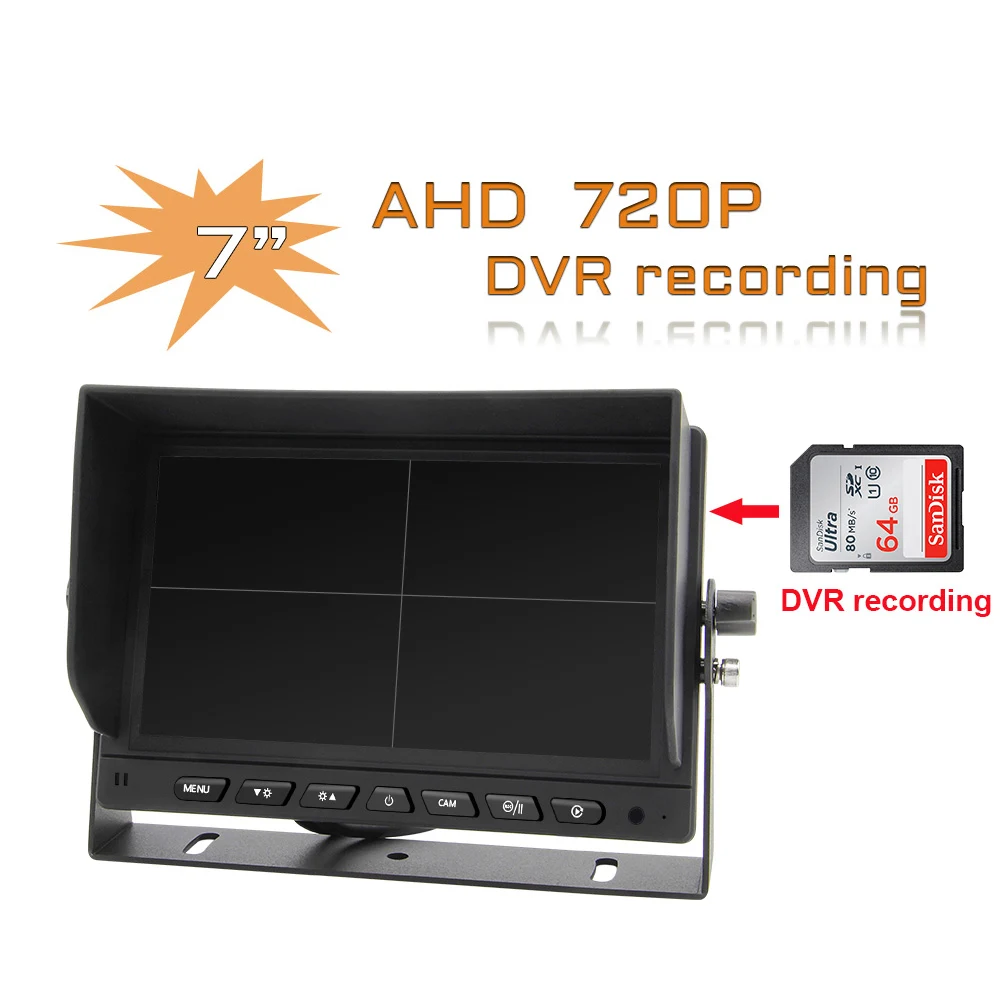

Functions | built-in DVR recording,support 16~128G sd card | |||||
overwrite function ,H.264 video | ||||||
1 way audio input,with speaker | ||||||
4 channel trig 1~15 seconds selectable | ||||||

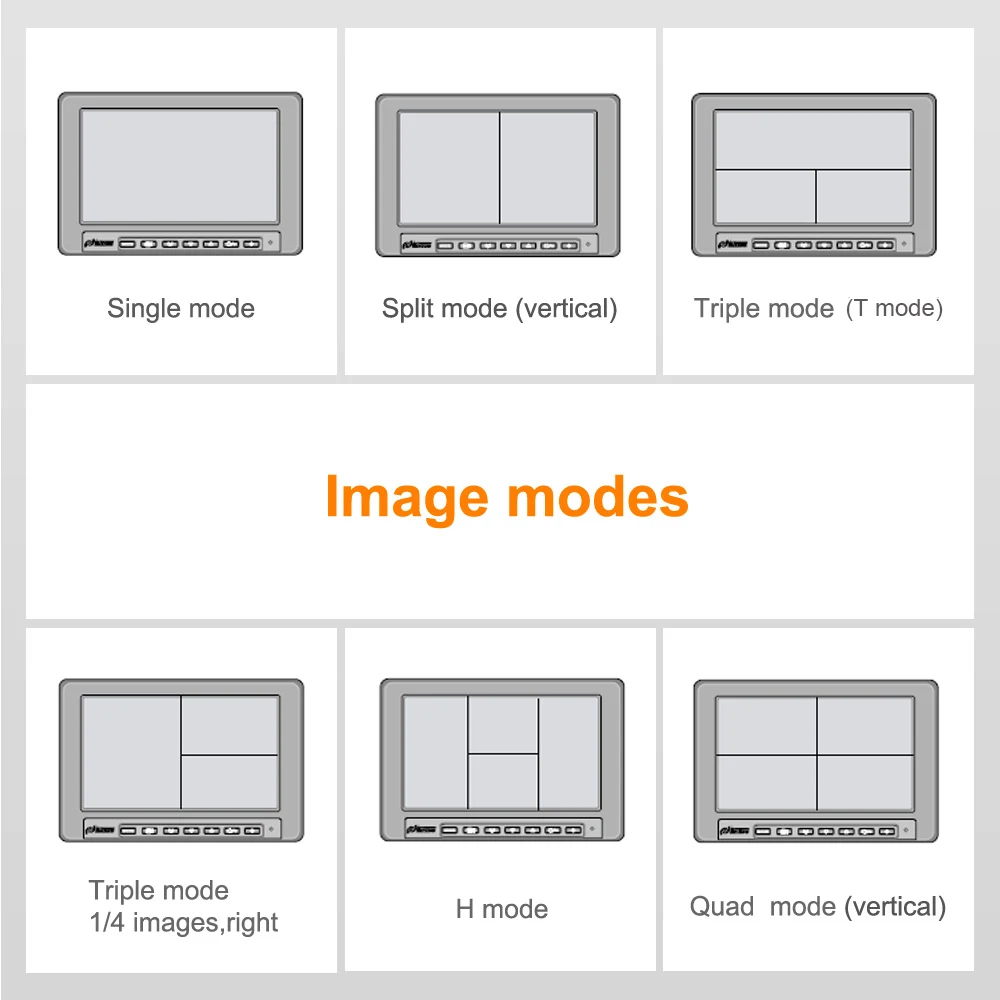

single/two/triple/quad images changeable | ||||||
Details Images
Best Matches
Factory & Certification
Why Choose Epark
Quality Products & Customer-Oriented Service
A. Quality Products:
1. Images sensor and PCB board
Epark use the genuine sensor directly from Sony, Panasonic, OmniVision, PixelPlus . Independent R&D PCB Board by our own SMT machines.
2.Lens
Epark use Full glass lens 5 layers instead of 3 layers to ensure the best quality of camera.
3. Waterproof
Epark choose high quality silicone adhesive for waterproof sealing, IP68 testing (equaling to 10 meters water pressure) for each camera are available for high requirements .
4.Camera's housing
Epark use metal housing for enduring usage.
5.Cables
Epark use 8P/13P pure copper video cable with locked screw connector which offer clearer image and lasting usage than normal cable
6. Quality Control
1st : 100% Raw material quality control
1st : 100% Raw material quality control
2nd : 100% inspection after assembling
3rd : 100% aging test
4th: 100% quality inspection on packing lines
5th : sample inspection(MIL-STD-105E II (MA=1.5,MI=2.5) standards)
before delivery Our defective rate is nearly 0% before shipment and lower than 0.3% after shipments.
7.Certification
CE, E9 certificate for monitor/cameras, IP68 for camera, IP65 for video cables.
B. Customer-Oriented Service:
B. Customer-Oriented Service:
1.Tooling & Mold Service
Our engineer has over 10 years experience in designing ,and our technical team can quickly support your OEM & ODM requirements .
2.After-Service
Epark offers 7 days refundable policy without any condition. Life time technical support.
3.Warranty
2 years warranty for our products. Free replacement will be sent immediately for defective products but not including damages caused by improper usage.
Product Catalogs
Tag: 1080P, Night Vision, Waterproof
Power:10V~24V~36V
View angle: 120°,135°,150°. 360°
Power:10V~24V~36V
View angle: 120°,135°,150°. 360°
Tag: Anolog , Digital 2.4G, WI-FI Wireless
Resolution:VGA, 720P, 1080p
Disstance: 25M, 100M(open area)
Resolution:VGA, 720P, 1080p
Disstance: 25M, 100M(open area)
Tag: AHD, Auto-Dim, 3 Videos Input, DVR , Quad
WorkingTemperature:-30~70 °C
Power:10V~24V~36V
System:PAL / NTSC
WorkingTemperature:-30~70 °C
Power:10V~24V~36V
System:PAL / NTSC
Tag: Fisheye lens, Auto-shutter, Explosion-proof, Dual lens, Forklift
Resolution:600TVL,720P,1080P,AHD
View angle: 120°,135°,150°.
Resolution:600TVL,720P,1080P,AHD
View angle: 120°,135°,150°.
Tag: Waterproof, Night Vision. Universal vehicle
Power Supply:8-13V
View angle:150°, 170°
Horizontal Resolution : 600 TV Line
Power Supply:8-13V
View angle:150°, 170°
Horizontal Resolution : 600 TV Line
Tag: Chevrolet, Mercedes Benz, FIAT Ducato, IVECO daily, FORD Transit, Opel Vivaro, Renault Trafic, Renault_Master,
Nissan-NV400, Opel_Movano, Dodge Promaster, Nissan NV200
Nissan-NV400, Opel_Movano, Dodge Promaster, Nissan NV200
FAQ
Q1: Are you manufacturer or Trading?
A1: we are manufacturer,we have 1500 squre meter plants and assemble monitor camera system.
Q2: How to place an order?
A2: For Ready to Ship products, Click Start the Order---- >Fullfill information---->Payment---->Wait for the goods.
For customized products, Send inquiry----> Confirm PI---->Fullfill information---->Payment---->Wait for the goods.
For customized products, Send inquiry----> Confirm PI---->Fullfill information---->Payment---->Wait for the goods.
Q3: How can i get a better price?
A3: Price are negotiable for bulky order.
Q4: How can you guarantee the quality?
A4: Strict quality control policy ,24 MONTHS WARRANTY and Lifetime technical support.
Q5: How do i pay?
A5: We accept TT, Paypal , Western Union.
Q6: whats your delivery time?
A6: Normally delivery time is about 1-7 days for sample, bulky order is about 10- 30 working days depend on quantity.
