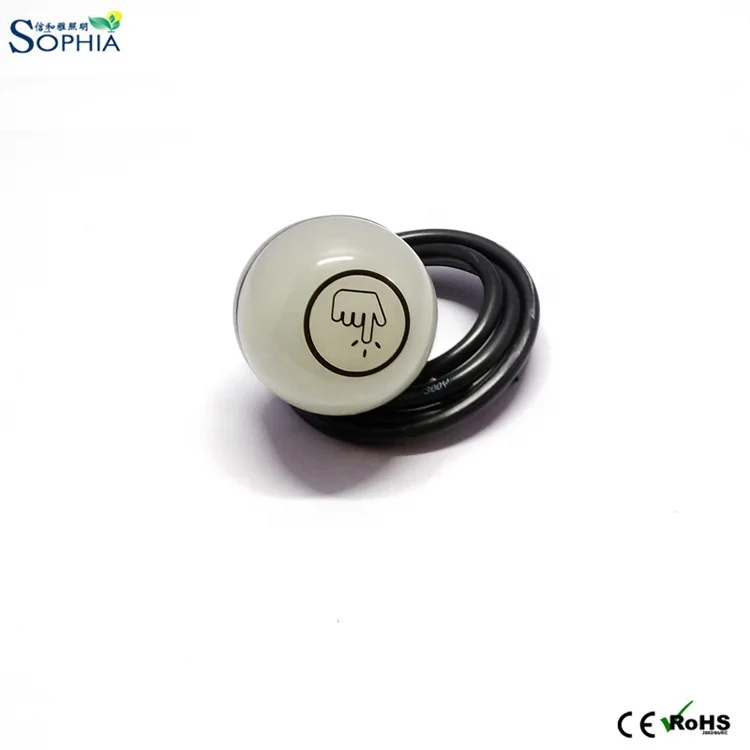

RL50T RS485 illuminated Touch button push button with M12 QD for automation (62323195770)

Share on:


Price:$46.50 - $52.80
Price in USD:Details

Quantity:


Product Overview

Description


Sophia 50mm diameter 12V-30V Illuminated touch button push button industry bus communication, pick to light used in automation, pharmacy, hospital, WMS system

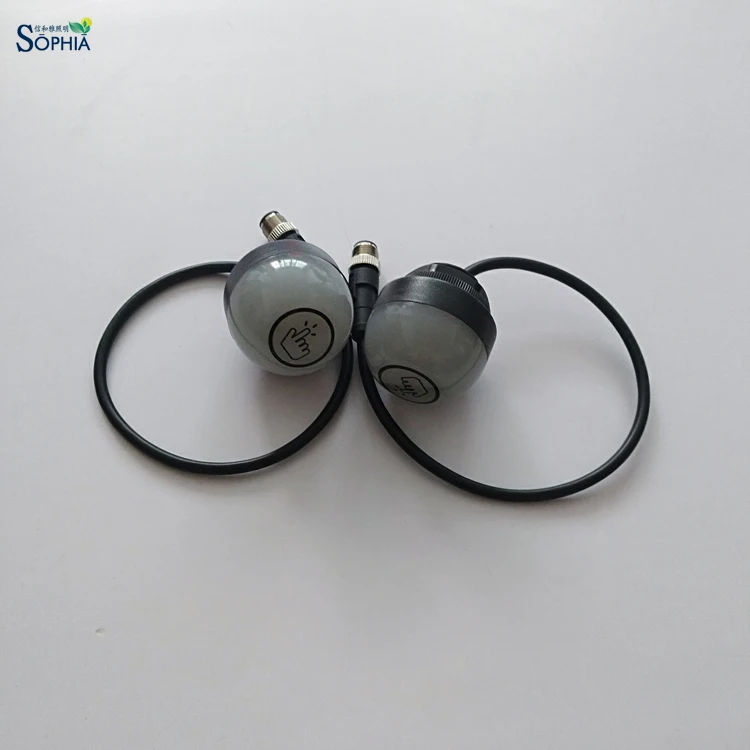

 RL50T 23.jpg

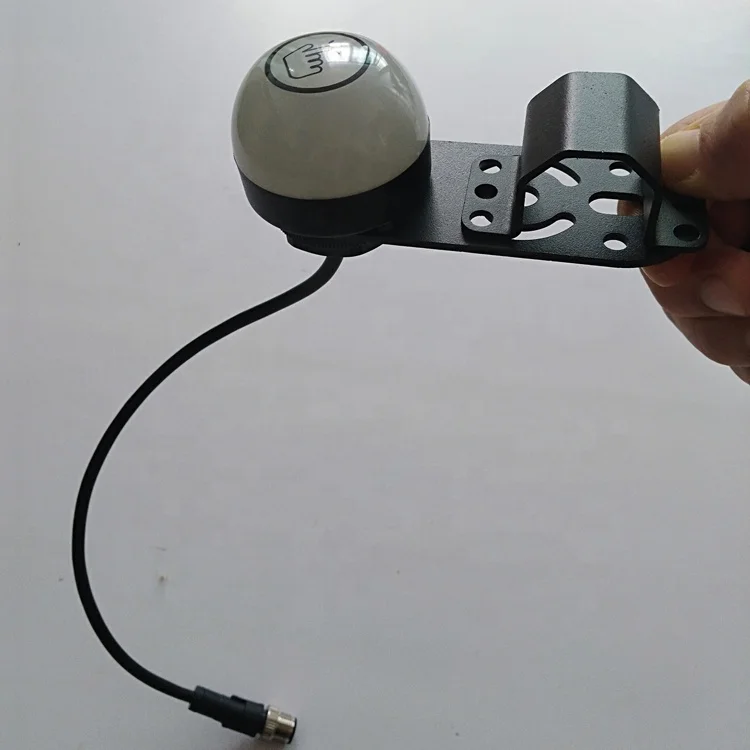

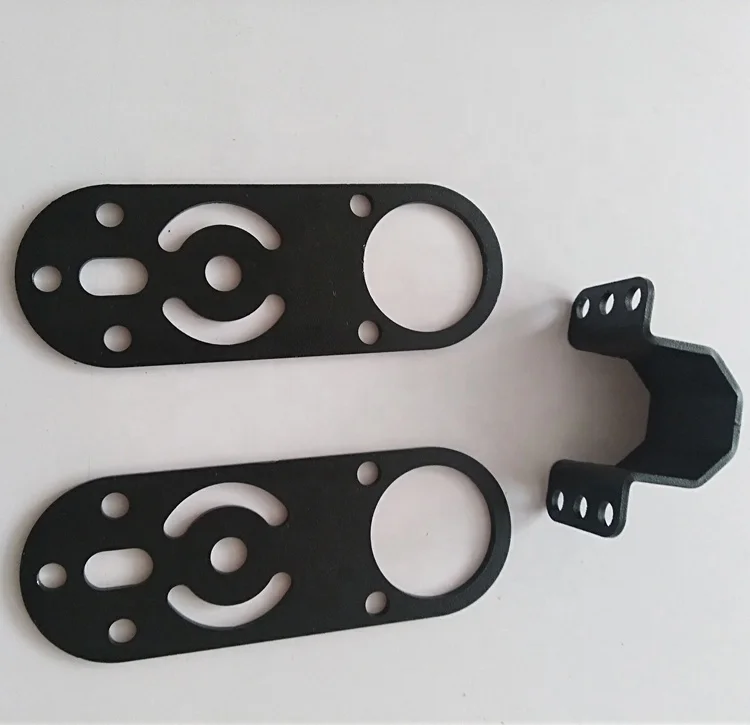

Fixed by metal kit specially for aluminum tube

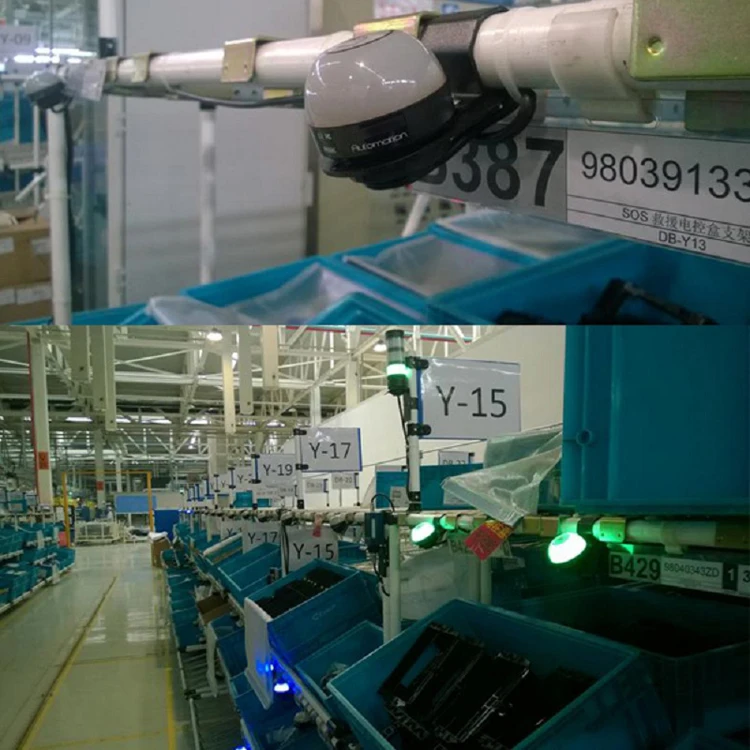

RL50T 9.jpg

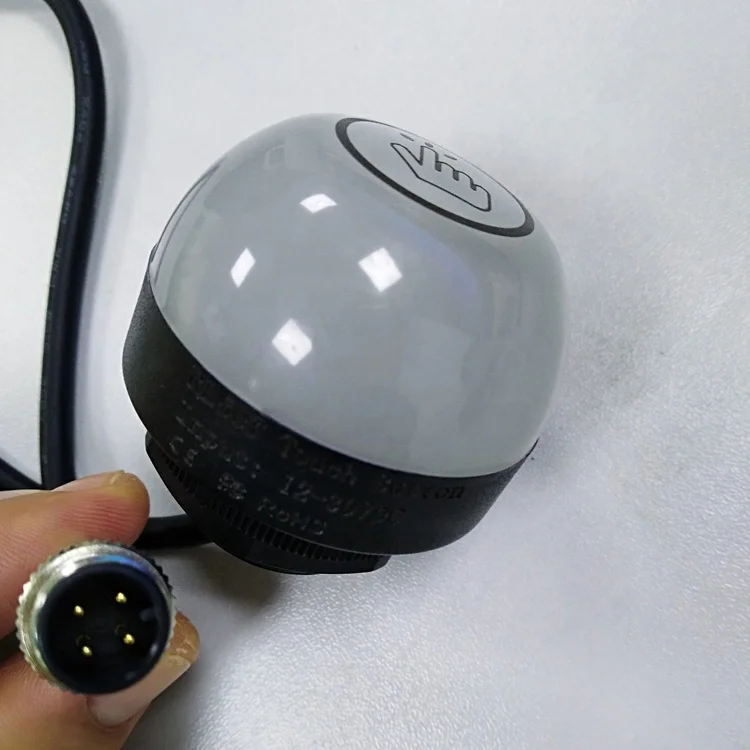

 End with cable or M12 quick connector


RL50T has I/O, RS485 and IOD version

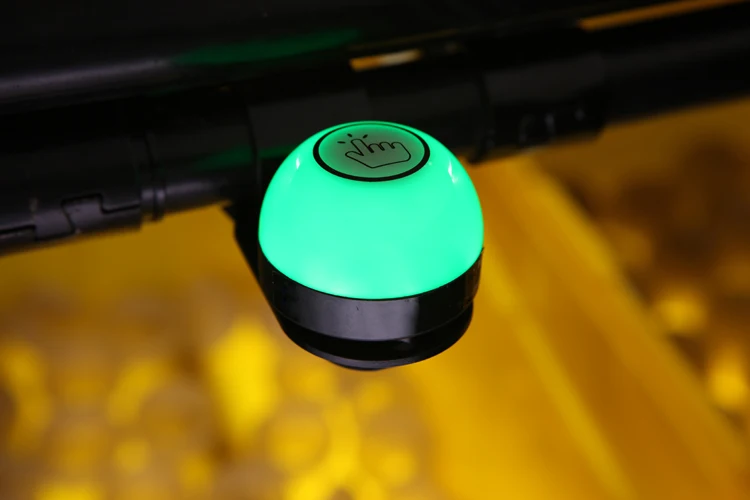

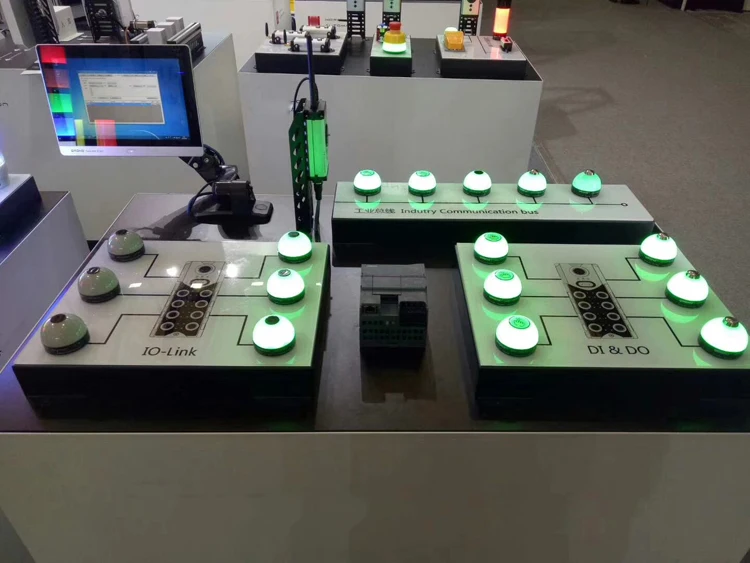

RL50T Green.jpgButton with indicator.jpg

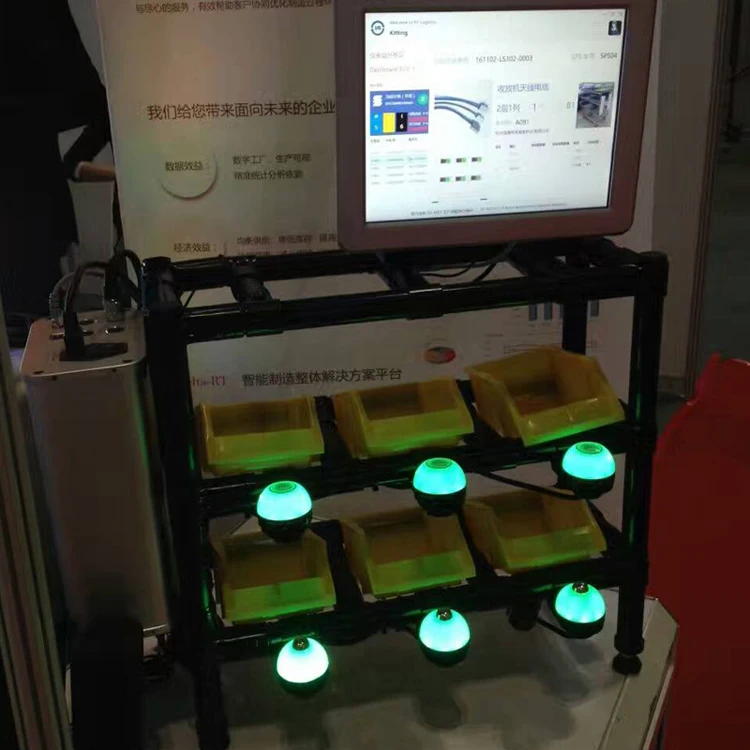

Mounting and application

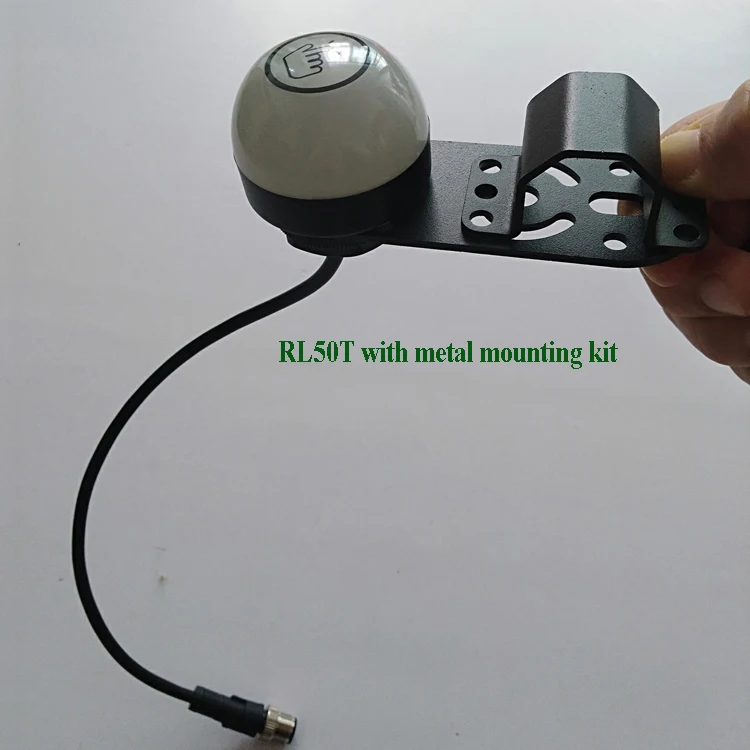

RL50T mounting


RL50T 10.jpg





RL50S Optical button

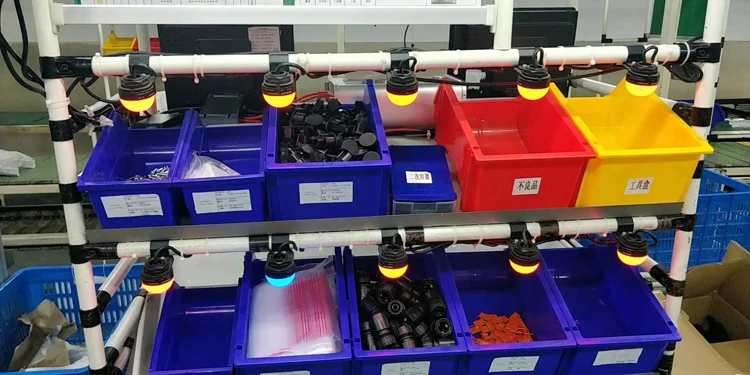

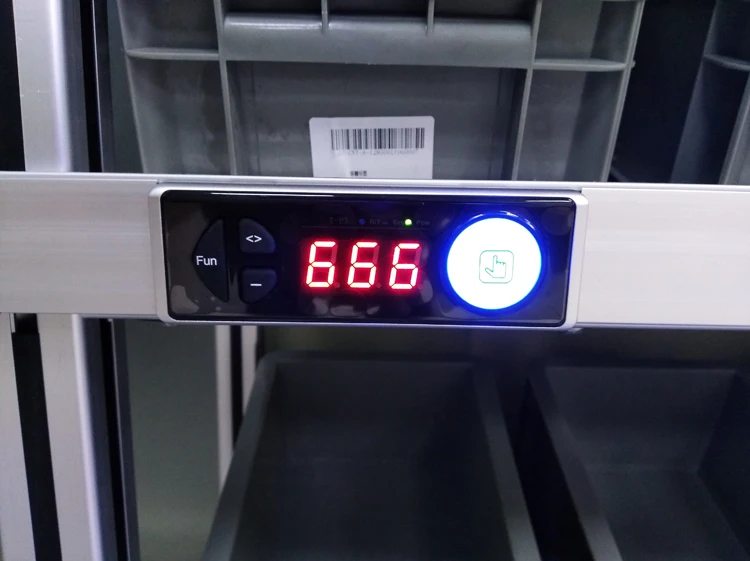

PTL (2)

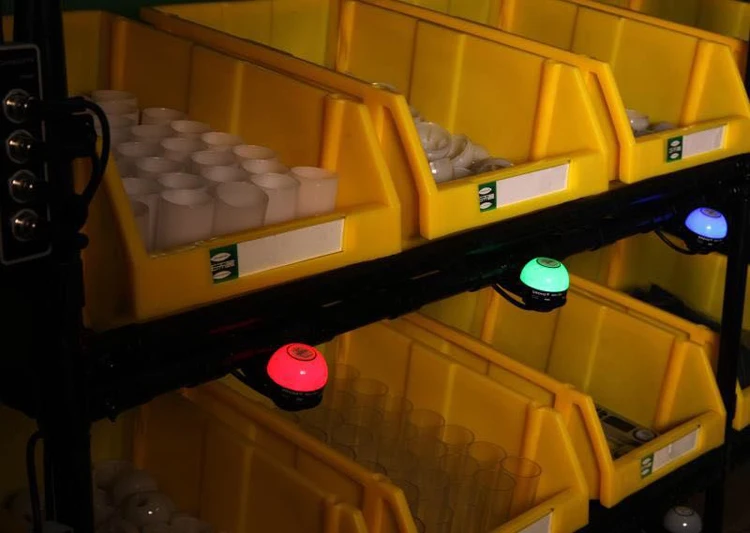

RL50T in different colors for different status


RL50T RYG.jpg

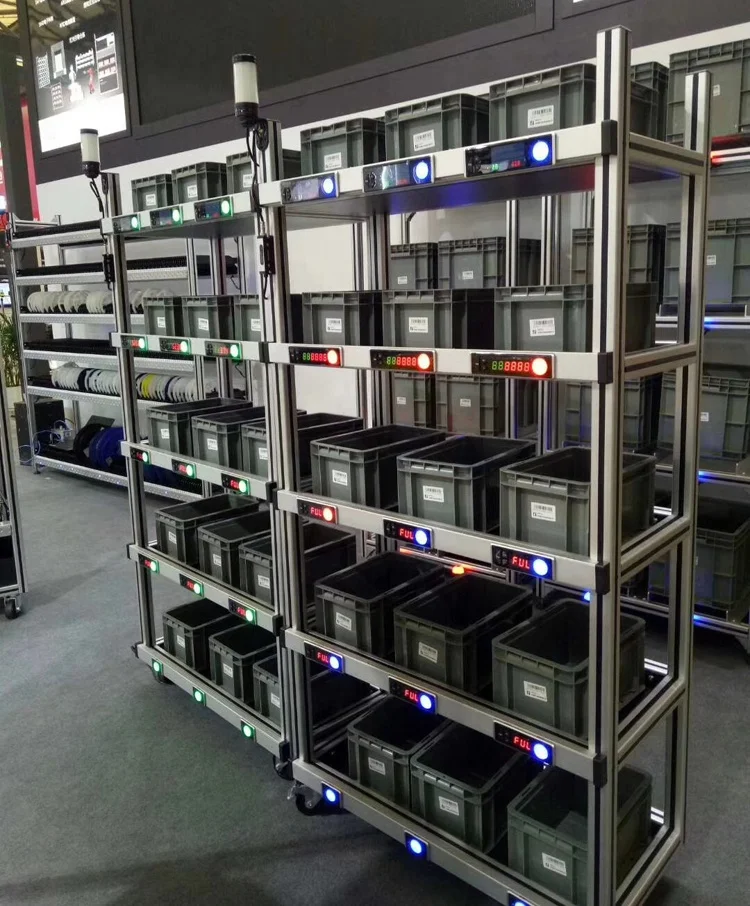

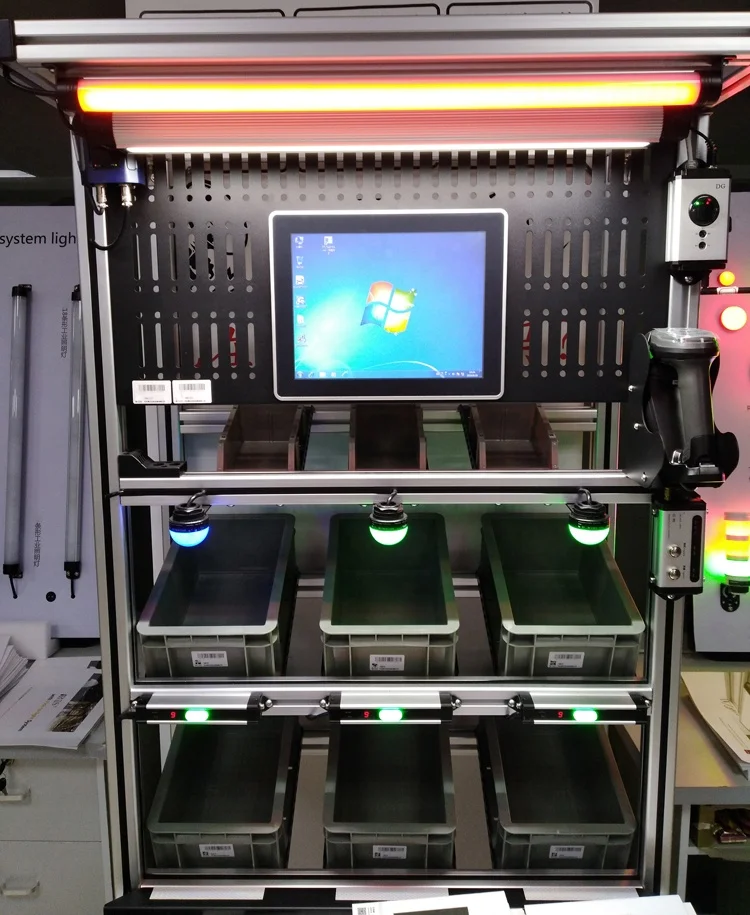

Pick to light systemPick to light









Item No.: RL50-T Series
Power: Less 5W;
Input: DC12V-30V;


Supply current:


          Red, Green, Blue<75mA(12VDC); <40mA(30VDC);


          Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);


           White<205mA(12VDC); <100mA(30VDC)

IO type: Job light: Gree; Job+Sense: Yellow; Mis-picking(Sense but no job): Red.


IB intelligent bus: Indicator color customized and controlled by instruction.


IOD: Three colors control separately





























































































Item No.



RL50-T Touch button series



Supply Voltage



12V-30Vdc



Supply Current



Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc



Output Rating:







a, Maximum Load



150mA



b, On-State Saturation Voltage



<2V(10mA dc); <2.5V(150mA)



c, Off-State Leakage Current



<10uA(30Vdc)



Indicators



7 colors available: red, green, yellow, blue white etc



I/O Type


Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red

IB intelligent bus



7 colors controlled by instruction



Electronic Protection



Protected against reverse polarity and over current



Output Response Time



25 milliseconds(max.) On and Off



Connections



M12 QD wth 0.3m cable, or 1m cable



Working temperature ()



-40~50



Humidity



95% at 50℃



IP rating



IP69K



Dimension



50mmx50mm(ODxH)



Mounting thread



M30x1.5mm



Material



ABS and Polycarbonate



Approval



CE    FCC



Feature



Interactive touch button;


Actuated with work gloves;


Rugged, fully encapsulated IP69K construction;


7 colors available


Price is much cheaper than international brand

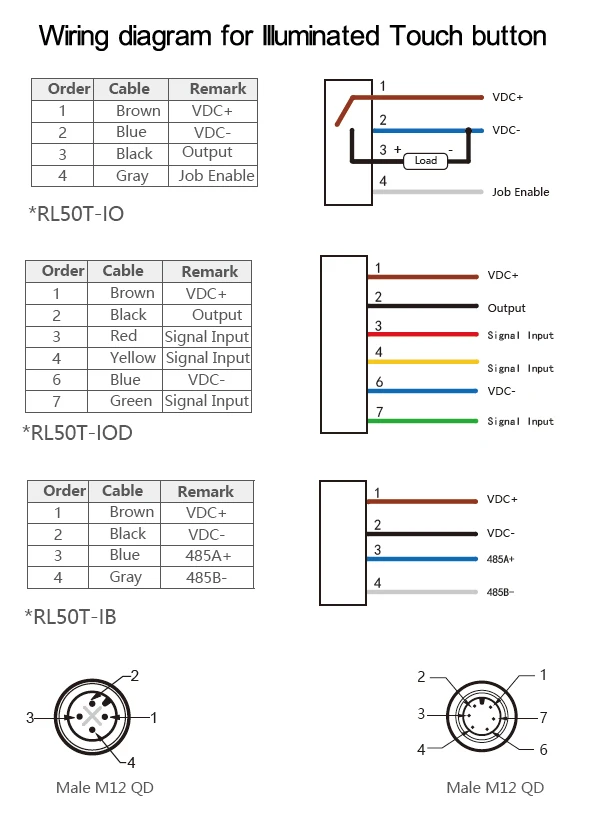

 Wiring for touch button.jpg


More similar products

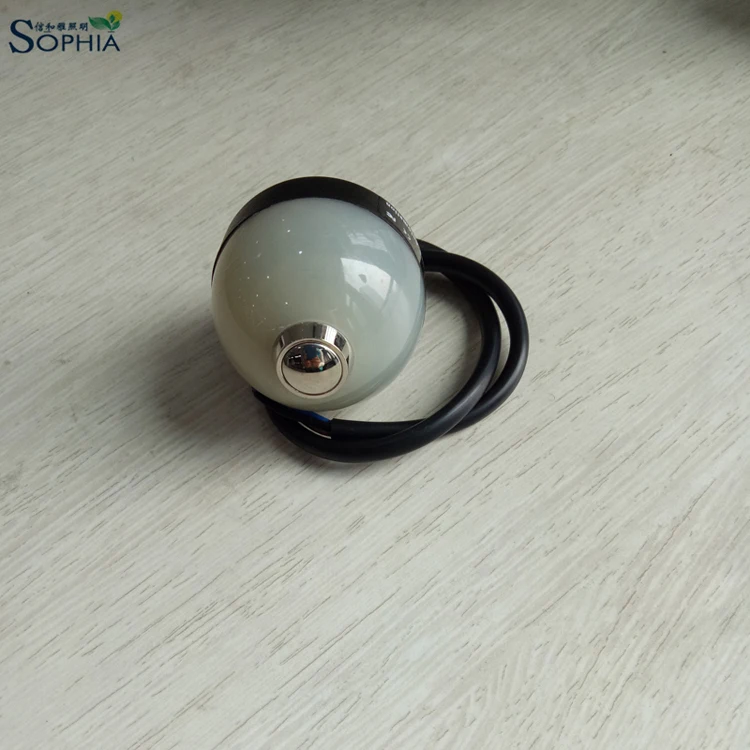

RL50P Push button


RL50P 03.jpg

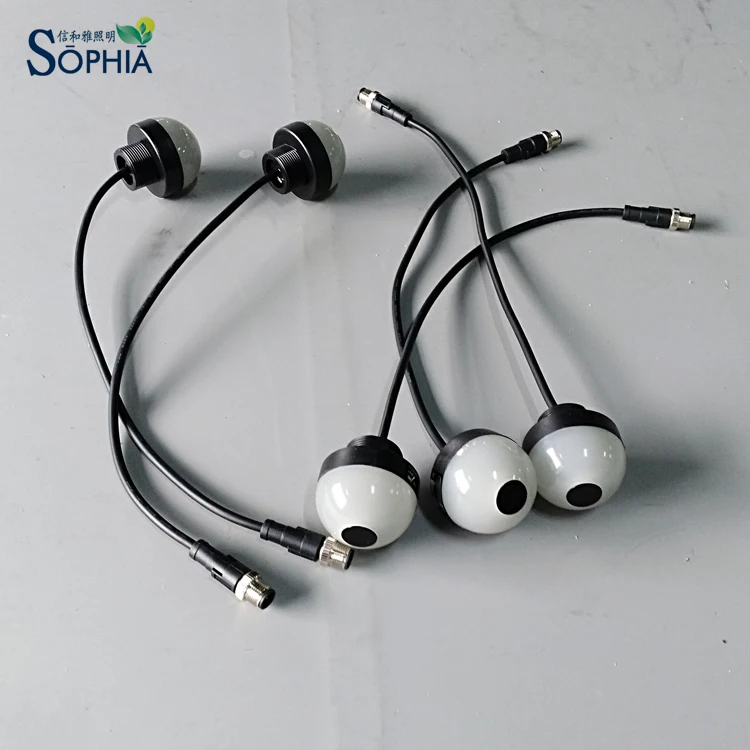

RL50S Optical button


RL50S optical button.jpg

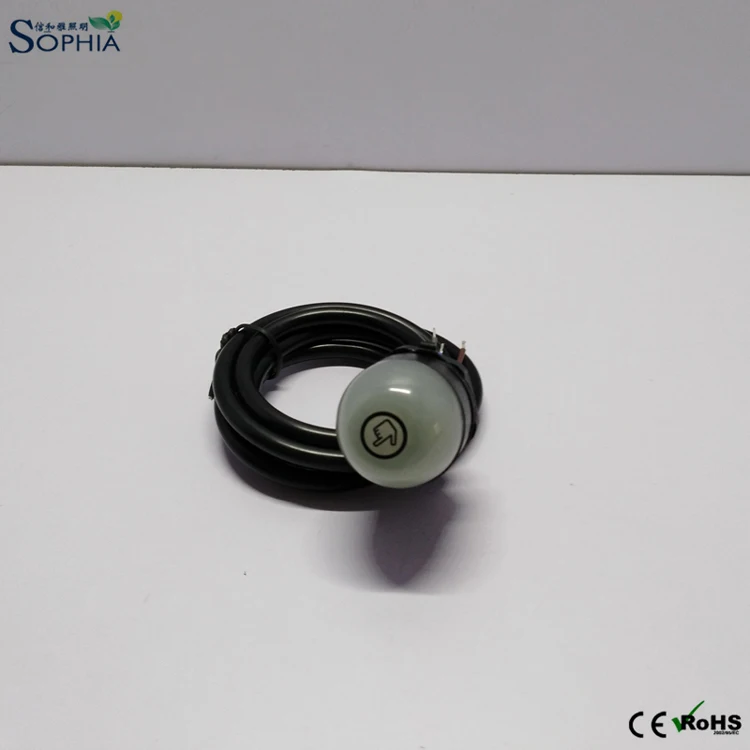

RL30T 30mm Touch button


RL30T touch button 750.jpg

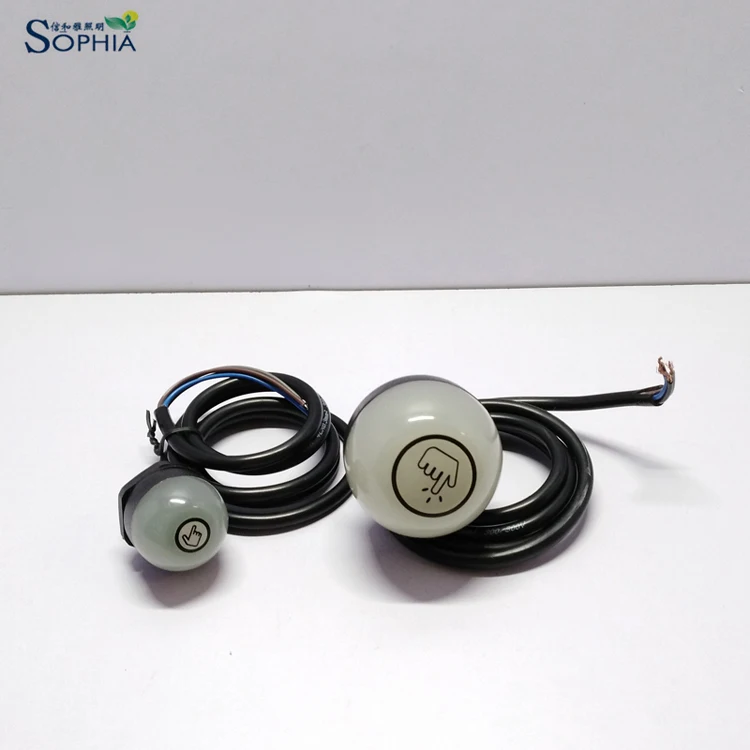

RL30T and RL50T touch button


RL50T & RL30T.jpg

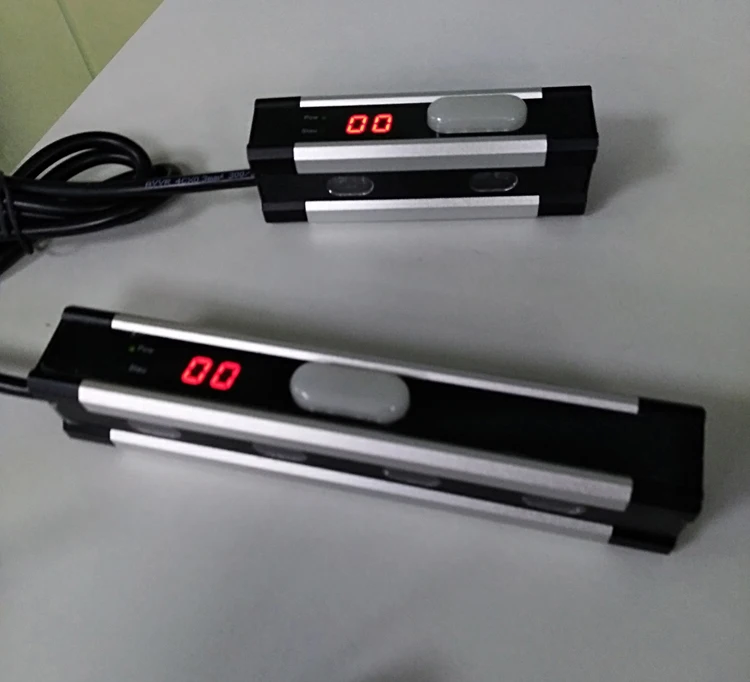

PVR Verification array, Two & Four beams


PVR 2&4 beams.jpg

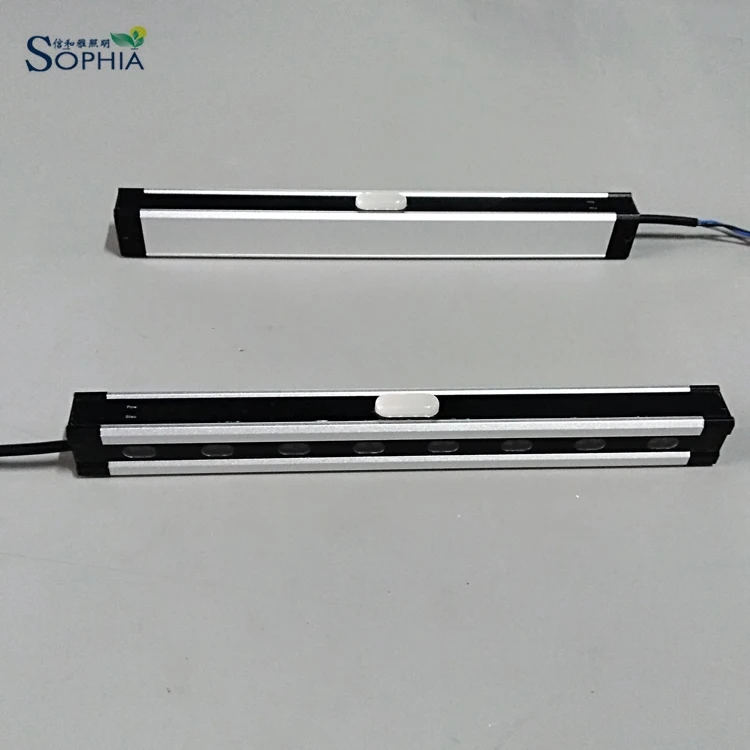

Eight beams PVR


PVRS8 5.jpg

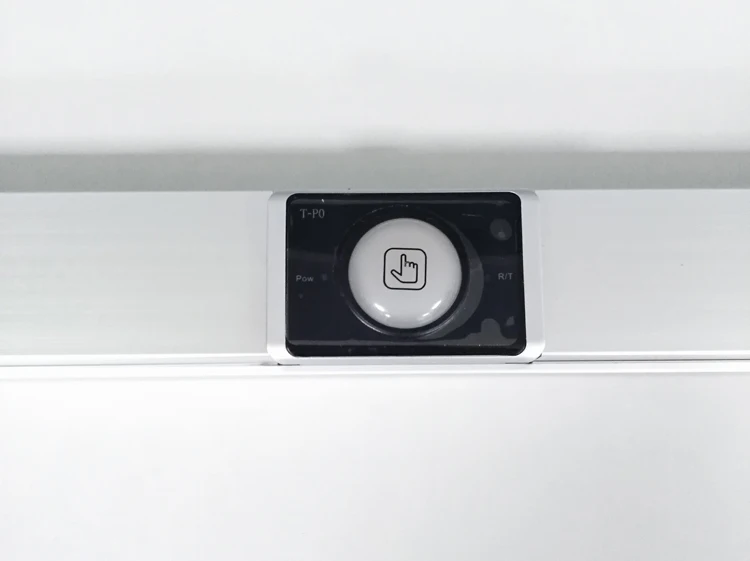

PTL with touch button only


P0 PTL2.jpg





Three digit Pick to light

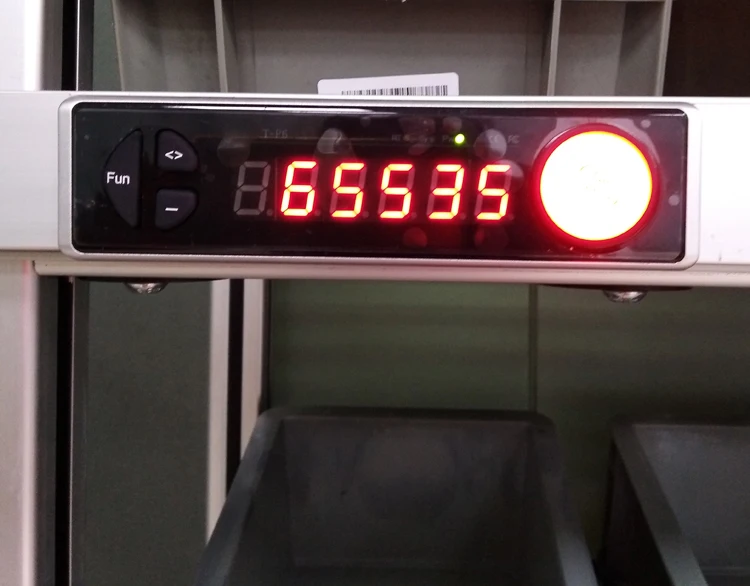

Six digit Pick to light


6 digit.jpg

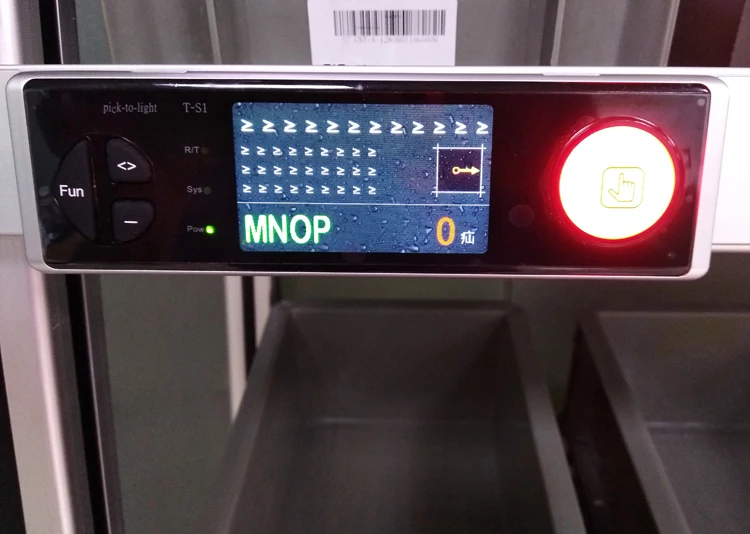

Text Pick to light


TEXT PTL module.jpg

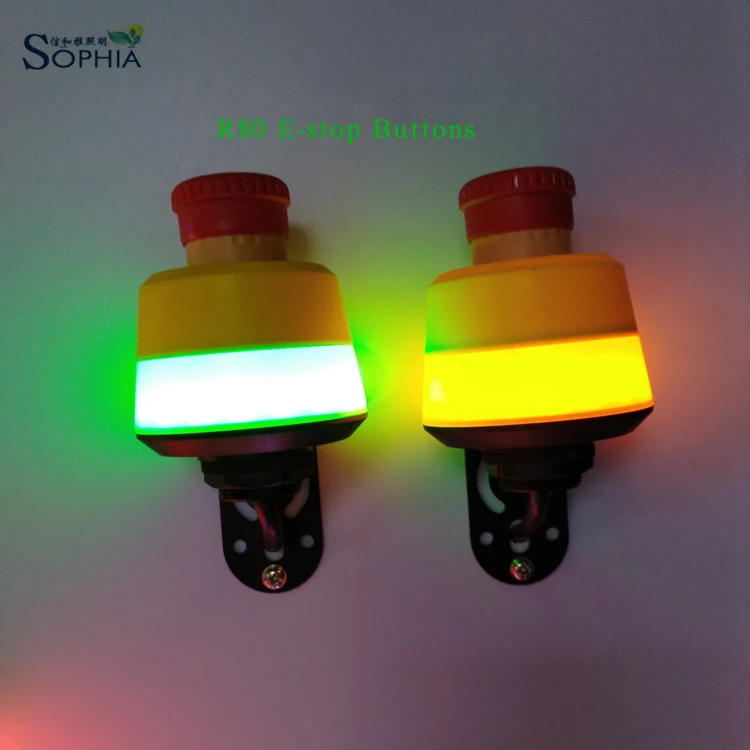

R80 Emergency stop buttons
