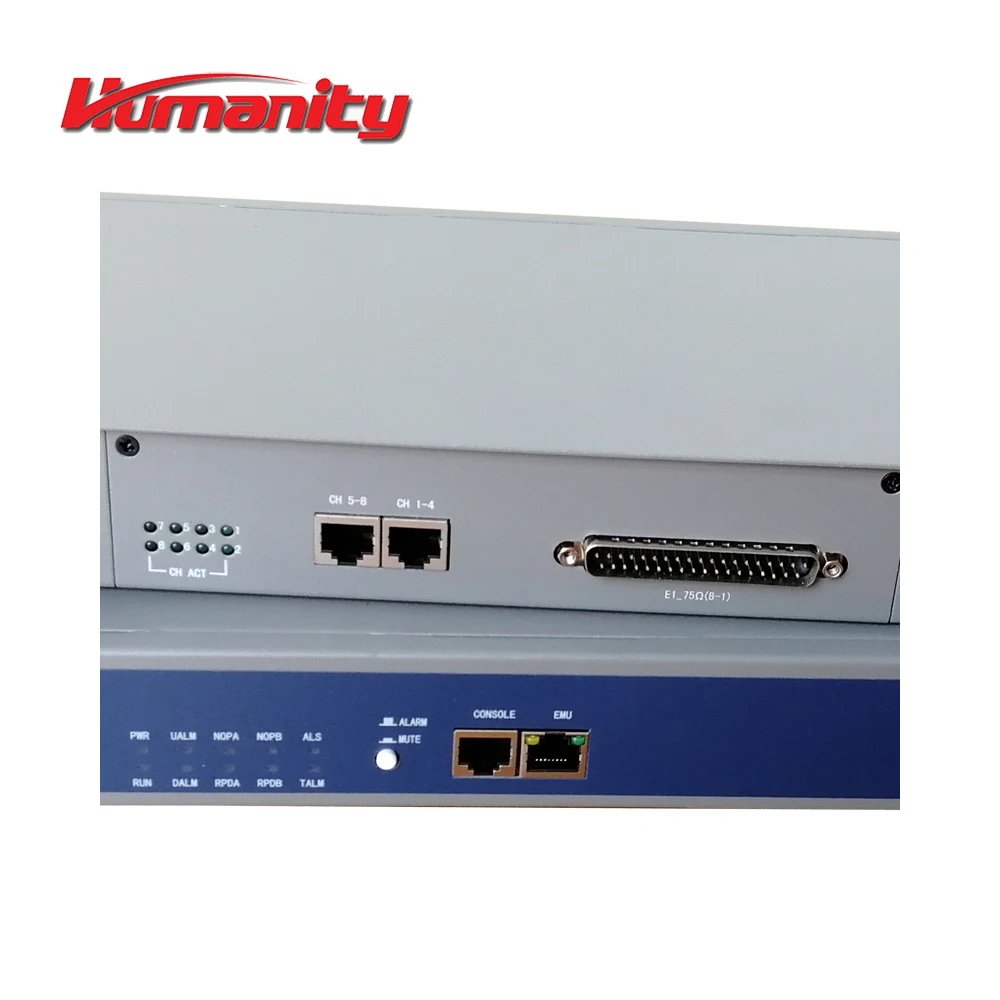

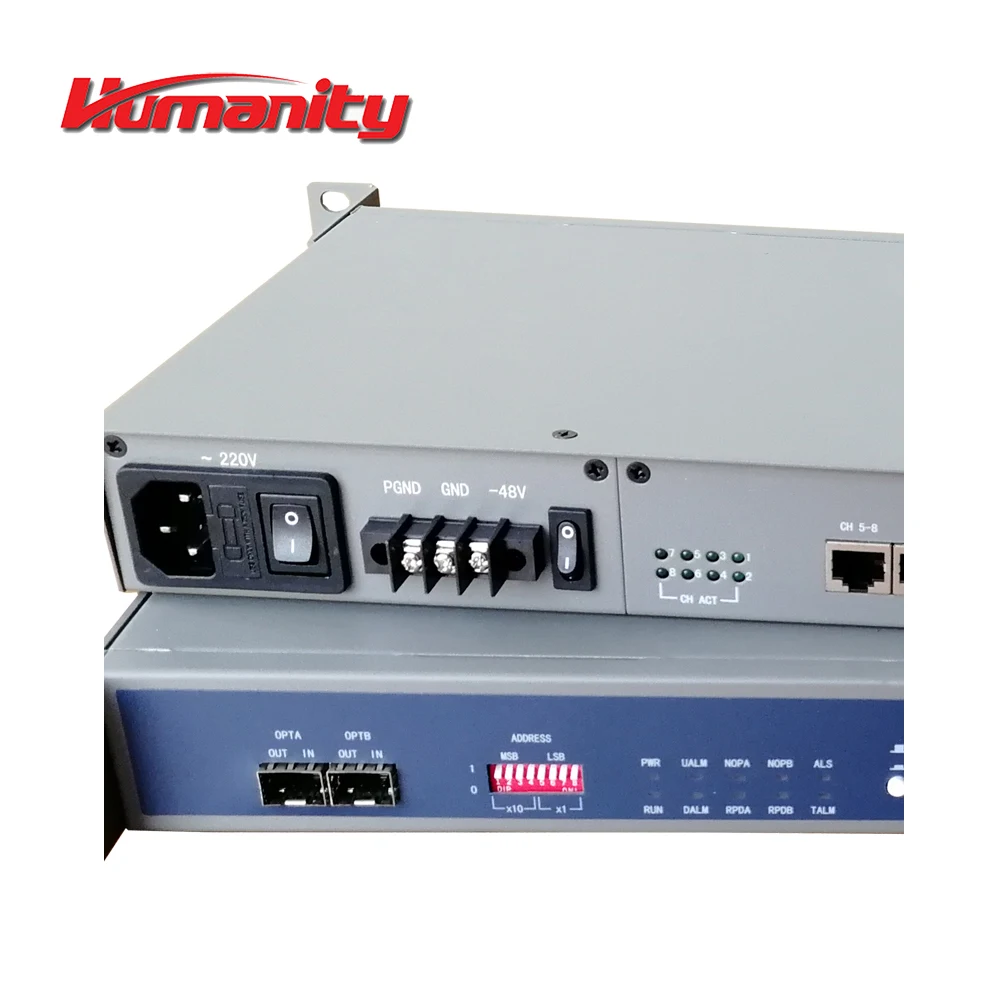

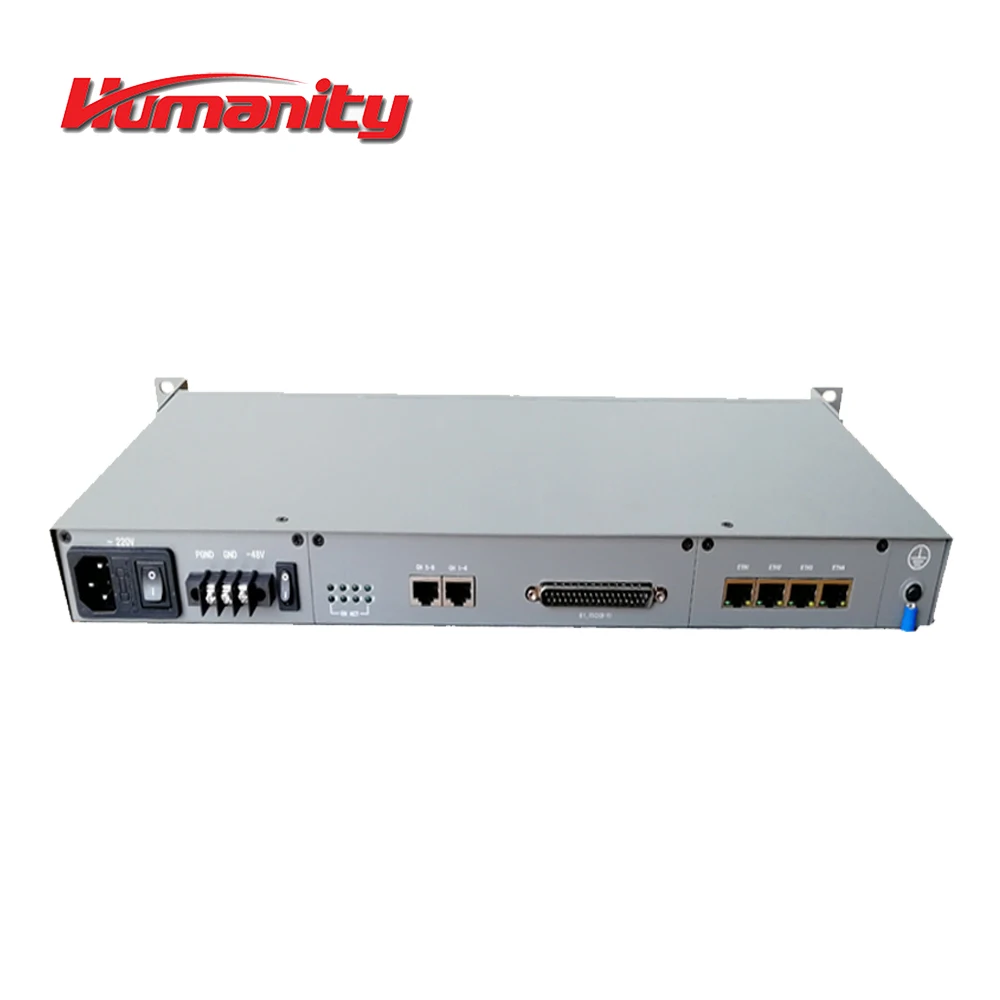

Humanity HM-RS1030 8E1+4Ethernet SDH multiplexerrealizes 8E1, 4Ethernet and customized PCM services over fiber optical line. It's with full alarm monitor, high integration, low power consumption, stable performance and easy to use.
Main Features
l 1U 19inch design
l 2xSTM-1 for uplink
l Supports optical 1+1 protection, please use 2xSFP optical modules for 1+1, chain application or ring application.
l Supports Remote power Down Detection (RPD) and Auto Laser Shutdown (ALS)
l Supports E1 loop back, includes E1 loop to line side and E1 loop to device side.
l HM-RS1030 provides an embedded BERT (Bit Error Ratio Tester) for maintenance
Technical Parameters
Optical
E1
Two optical with rate of 155.52Mbps
Comply with ITU-T G.957
Optical: support SFP/LC, use155M type
Not offer SFP modules by default, please contact us if you need
8E1
With DB37 connector. DB37/BNC for 75ohm DB37/RJ45 for 120ohm
Line code: HDB3
Ethernet
Customized services

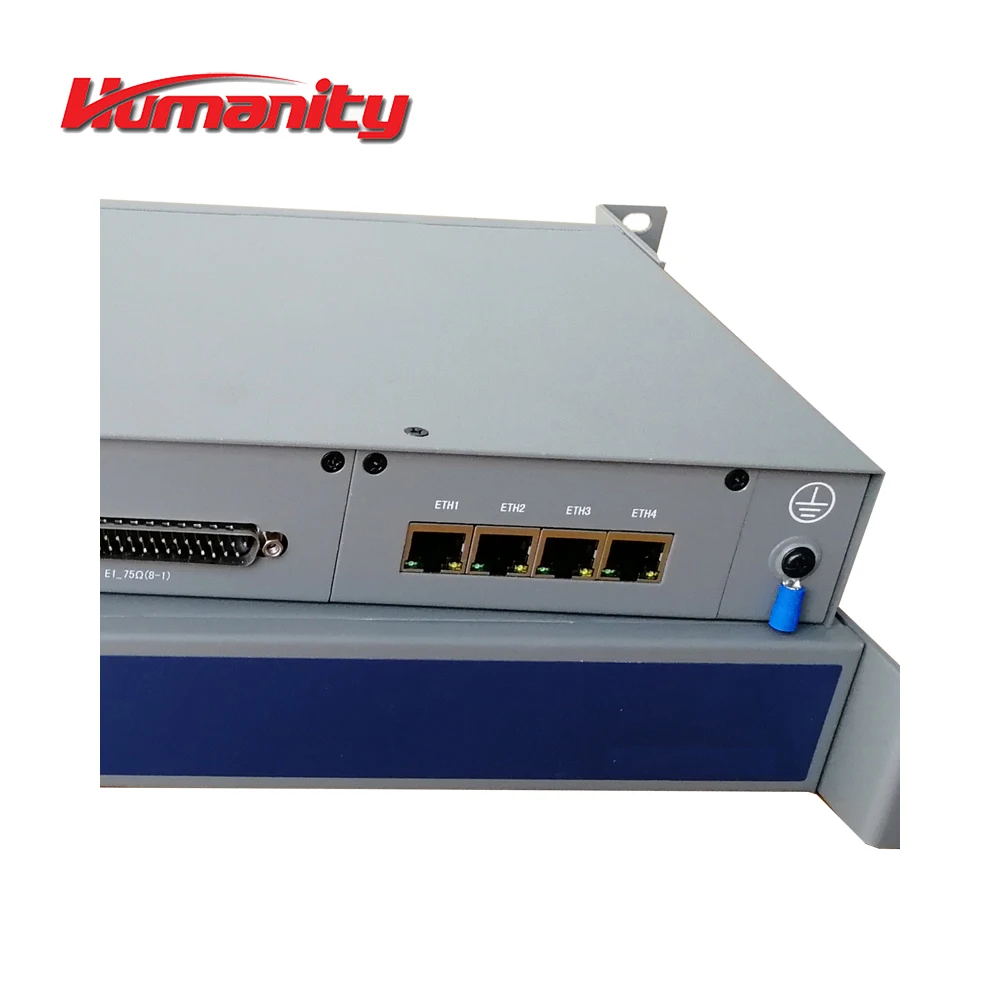

4xEthernet offered
Ethernet auto adapt 10/100M, full/half duplex
Support MDI/MDIX
With RJ45 connector
MTU: support up to 1536/1552 bytes
The 4xEthernet can be set VLAN or physically isolated by management.
