Product description
Technical Parameters(Specification):
3BBL Micro brewing equipment configuration
Item
3BBL Beer equipment standard configuration system
configuration
---- Malt mill :1set 250-400Kg / h, motor power 3KW, roller style.
---- Mash boiling tank (500L ,1set)
---- Mash lauter/ whirlpool tank (500L,1set)
---- Fermentation tank (1000L,6sets)
---- Ice water tank (1000L,1set)
----Wort pump
-- Plate heat exchanger (1set)
---- Refrigeration group (2set)
---- Ice water pump (SGR40-6-20,1set)
---- CIP pump (3T/h,1set)
---- Power cabinet (1set)
Delivery time
Within 30days
Payment terms
T/T 30% of total value in advance, the balance after production finished
Warranty period
5 years warranty for main produces
Life-long follow-up service.
Price
Flexible according to different equipment configurations
Appearance of mashing tanks
Stainless steel or red copper outside
Stainless steel 5 bbl beer brewing system Description(Features):

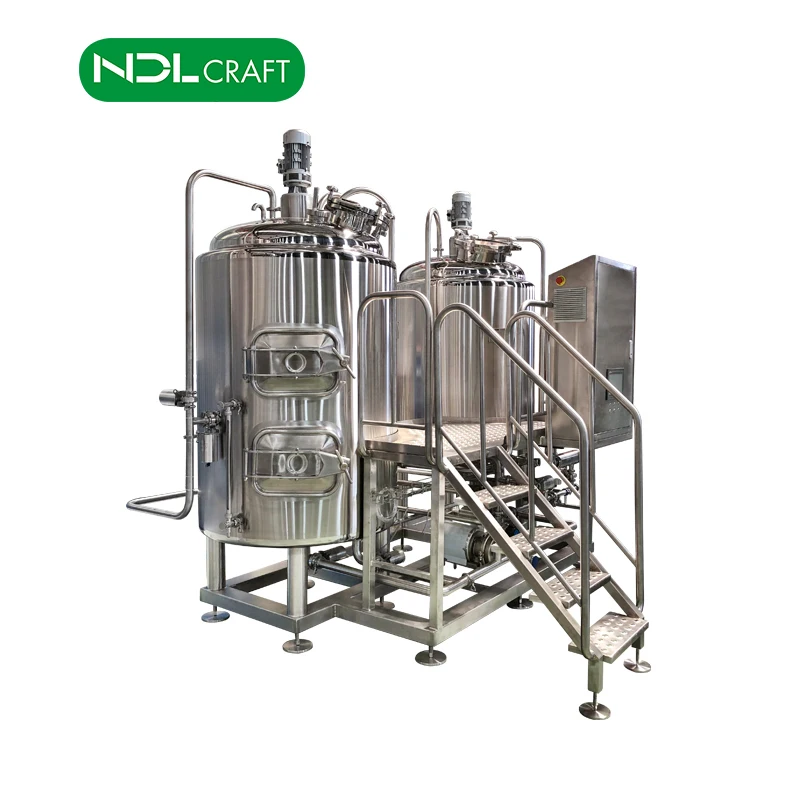

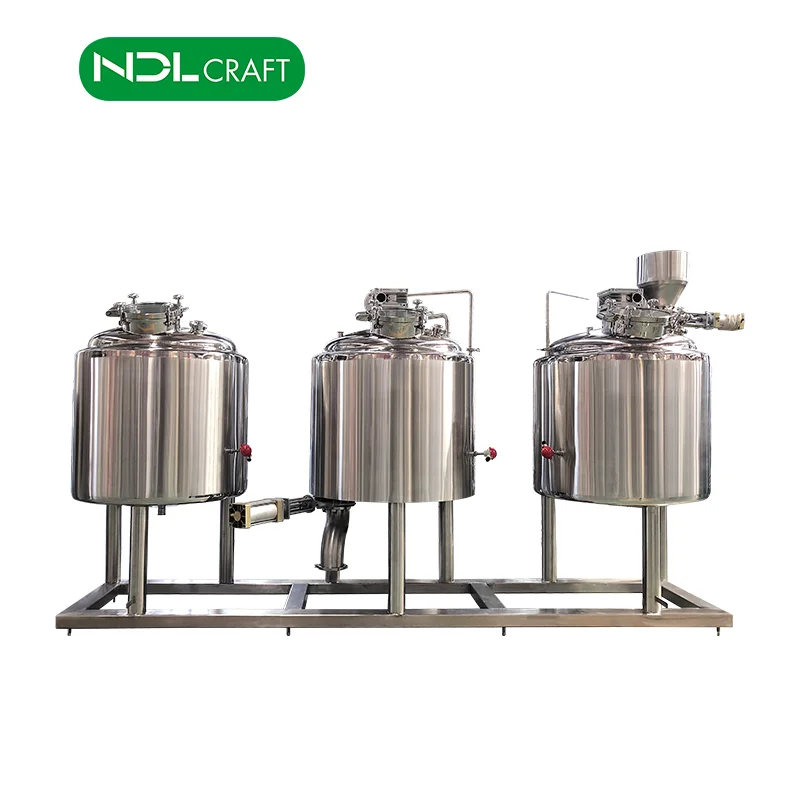

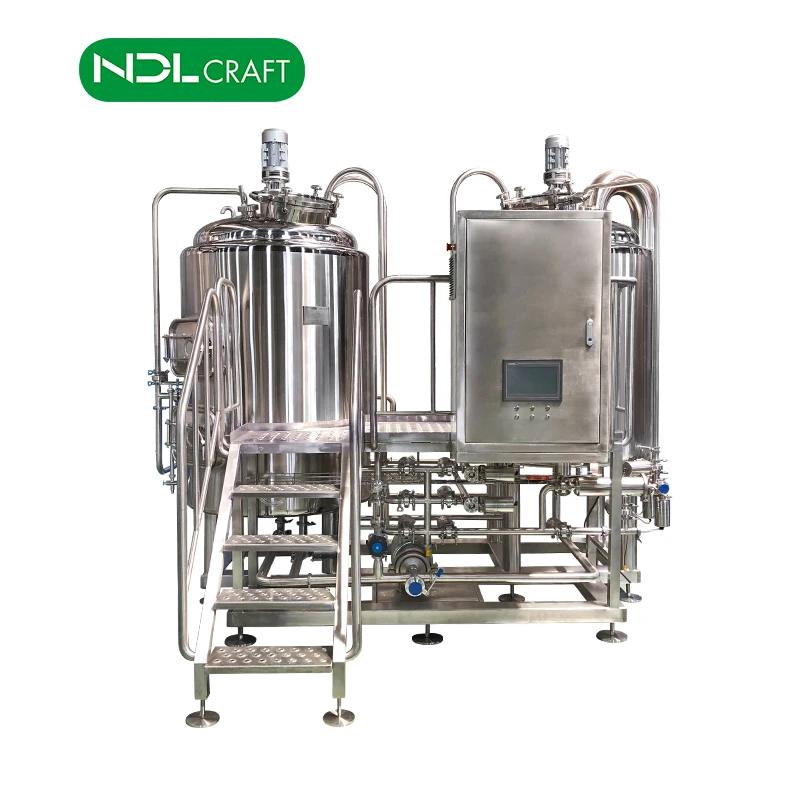

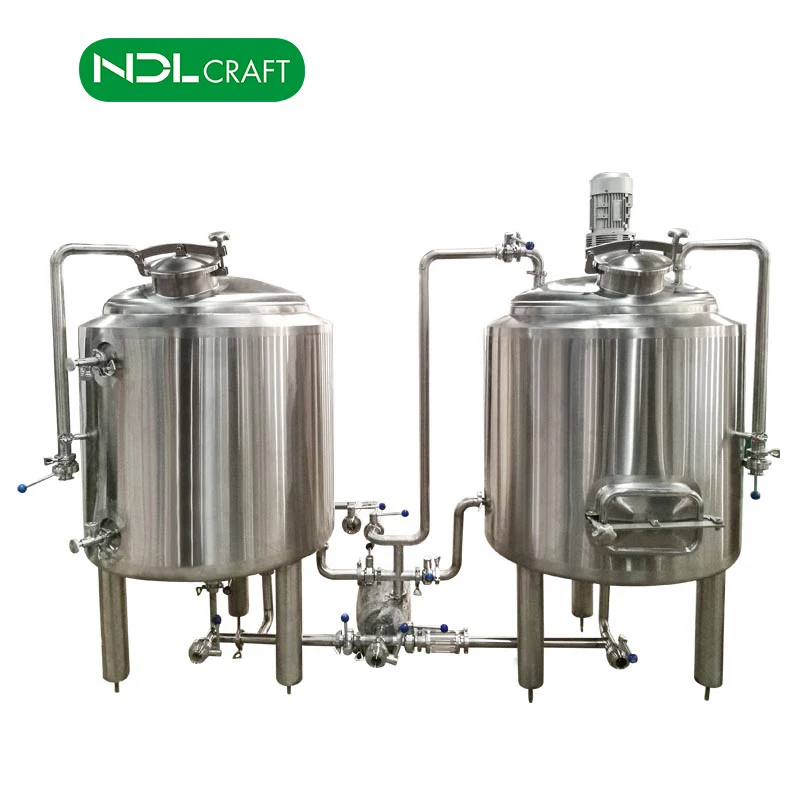

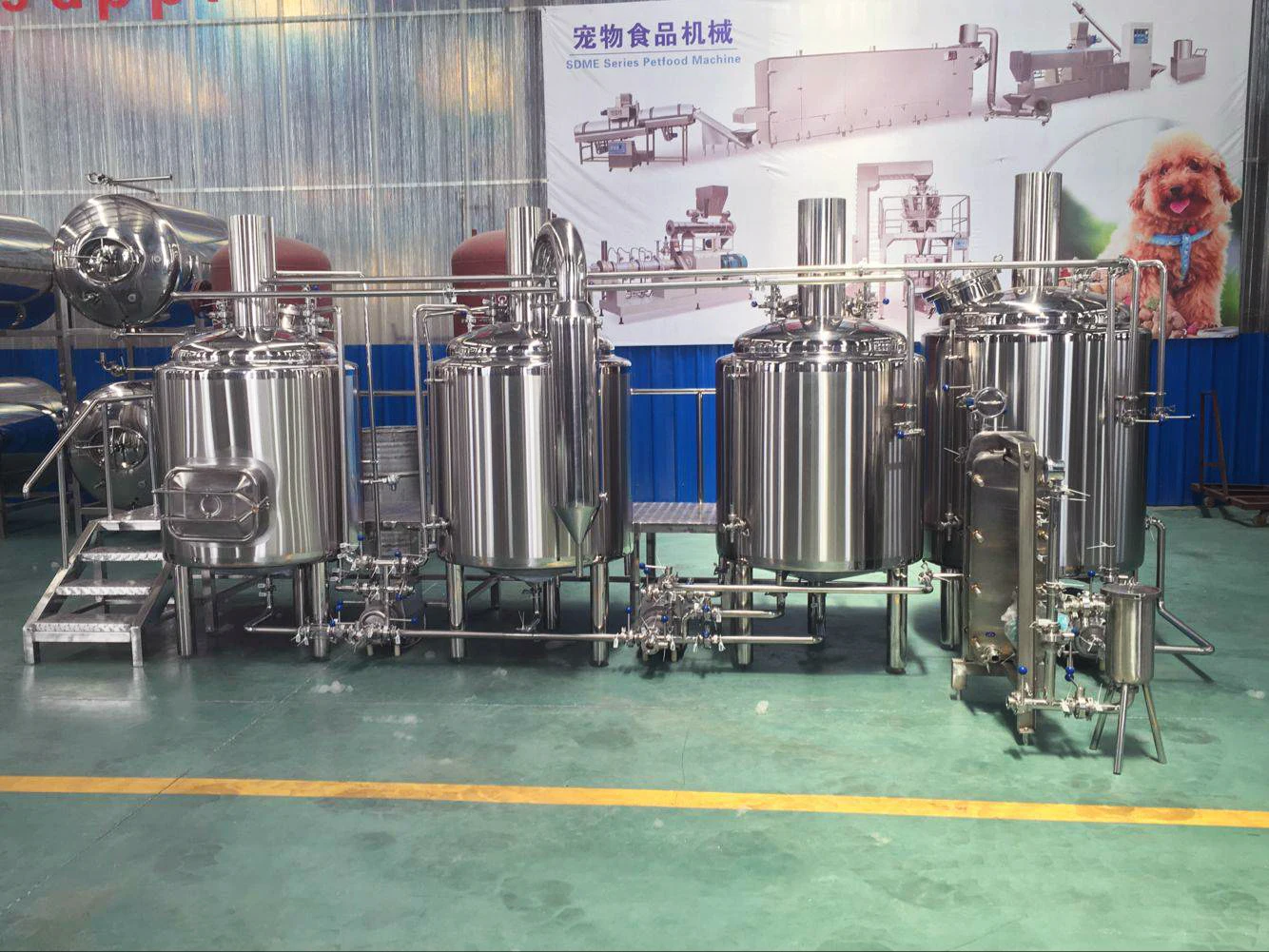

3BBL Brewhouse System(3-vessel with a hot water tank):
NDL CRAFT experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a NDL CRAFT Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.

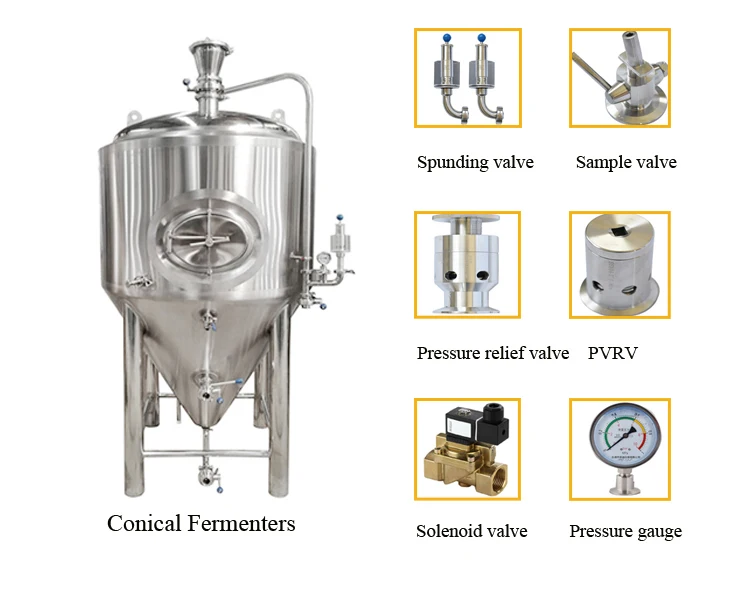

3BBL Fermenting System:
NDL CRAFT professional fermenters are made from stainless steel as it is easy to clean and can be reused almost indefinitely. They all have a valve at the very bottom of the cone which can be used to remove sediment, and also drain the finished beer for bottling or kegging when done. Most also have a second port higher on the cone which can be used to draw samples of beer for measurement or tasting.
Grain Milling system
The barley malt goes into the mill where it is cracked open allowing the sugars to be released from the grain. The cracked grain then travels up the auger and into the hopper where it is then released into mash tun.
Glycol cooling system
1. Capacity: 100L-10000L, and even bigger micro craft stainless steel beer brewing system.
2. Inner-jacket is ( SUS304) 3.0mm, External-jacket ( SUS304) is 2.0mm, dish head ( SUS304) is 3.0mm.
3. Cooling method: Two stage cooling (Glycol water and tap water work cooling), and Single stage cooling (Cold water cooling) 4. Control method: Automatically by PID controller cabinet.
5. Interior finish: Overall polishing to 0.2-0.4um without dead corner.
Controlling system
1. PID semi-auto controller, PLC auto controller, brand is Siemens, Schneider, LG for optional. 2. Electric components have Certificate 3. Offer floor type and wall hanging assembling 4. Control all the beer brewing system temperature, motor and pump's show on/off.
The stainless steel 3bbl beer brewing system accessory:
All the stainless steel fittings are certificated SUS304 and can be tested. Excellent motor,pumps,valves,electric elements. Hopback machine, boiler, and so on .
So you can trust in our quality. Every part of the stainless steel 3bbl beer brewing system is from world famous brand, (SIMENS PLC, Schneider/ABB/Omron low voltage electronic, Shanghai Huazheng boiler, COOLSOON chiller, Copeland compressor, suspension plate exchanger ans so on), so you can trust in the quality.
The samples & application:

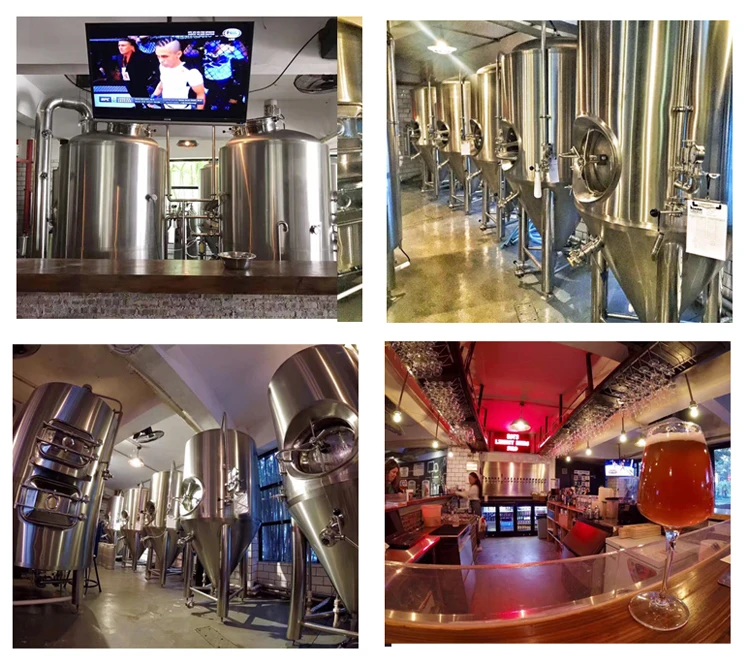

3 bbl beer brewing system are the most best popular seller brewery equipment for many customers who are from different countries, now, Let us take the customer of USA, Norway, and Sweden as an example, Please see below:
Company Introduction
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that providesmany kinds of customized tanks and turnkey projects throughout the world.The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
1. We have manufactured beer equipment for more than 10 years.
NDL CRAFT own more than 10 years’ experience. We have reliable suppliers of beer equipment materials. The quality of our equipment is guaranteed from source.
2. The stable annual output was 80 sets.
The stable output was upon the stable quality. It can be achieved only through innovative research and development together with decades of experience on countless brewery projects all over the world.
3. Our tech and service team was powerful and professional.
We can meet customer’s requirement to the utmost extent upon our tech and service. We have our own professional beer brew master and Engineer who all can supply service at buyers’ appointed places.
4. We have our own brand “NDL”
In the past 10 years, our brand "NDL" have high reputation at home and abroad. We have our agent in Europe, South America, North America and Asia, We would like to search more agent around the world.
5. NDL equipment can brew more than 8 kinds of beer.
Such as Ale beer, Wheat beer, Barley beer, Extra strong beer, Green beer, Black beer, white beer, etc. in accordance with your taste.
Plant Tours
Get an inside look at our facility!
We welcome you to view our factory. Learn how we change the brewing industry with our products, view beer brewing system for sale currently in production, and meet the staff members that will be assembling your new equipment.
Packaging
1.When Delivered by LCL (Less Container Loading), The tank will be covered by Pearl Wool, then Packed in Wooden case !
2.When Loaded in Whole Container, The beer brewing system will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container !
3.Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
4.Experienced package guarantee the quality of equipment and ensure customers’ satisfying.
Our Service
Design
Whether you need a complete 3 bbl beer brewing system or specific piece brewhouse of equipment, NDL engineers are here to get you started. Utilizing the latest 3D & CAD techniques and schematics. SDET has the design resources and expertise to produce the beer brewing equipment you will need to start brewing your special recipes in notice.
Before you confirm the order to us, our engineer will make all the drawings to you for free based on your production requirements and building situation, such as tanks technical drawing, building layout drawing. After you confirmed all the drawings, equipment specification list and other details, we will start production.
Installation and Training:
NDL provides complete start-up services on all its craft beer brewing equipment, best of all, the NDL start-up team experienced in quickly getting yourstainless steel 3bbl beer brewing system up and running. NDL experienced trainers are available to provide on-site training. This includes operating the touch screen control panel, testing of beer brewing equipment, as well as cleaning and maintenance procedures.
