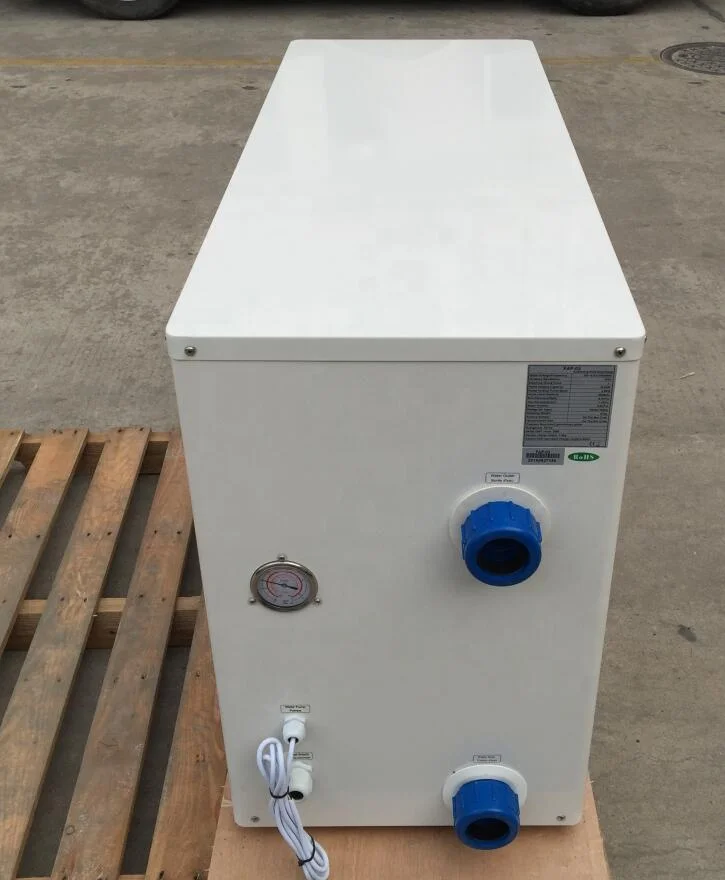

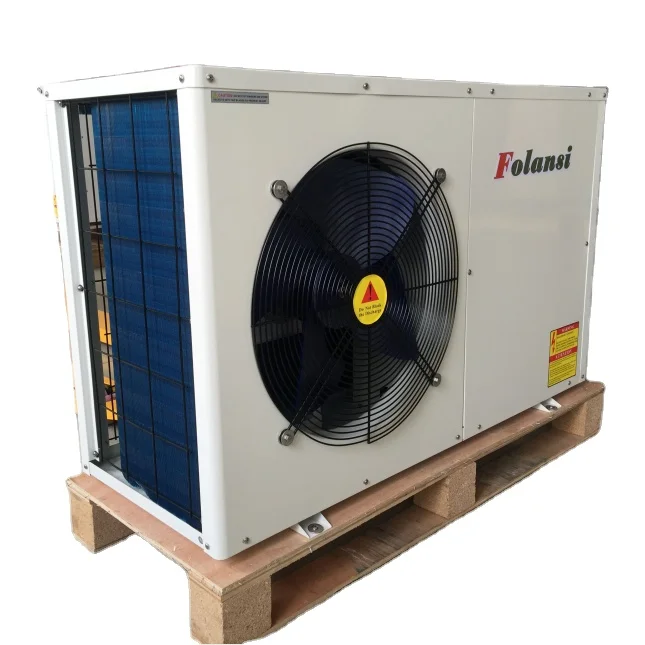

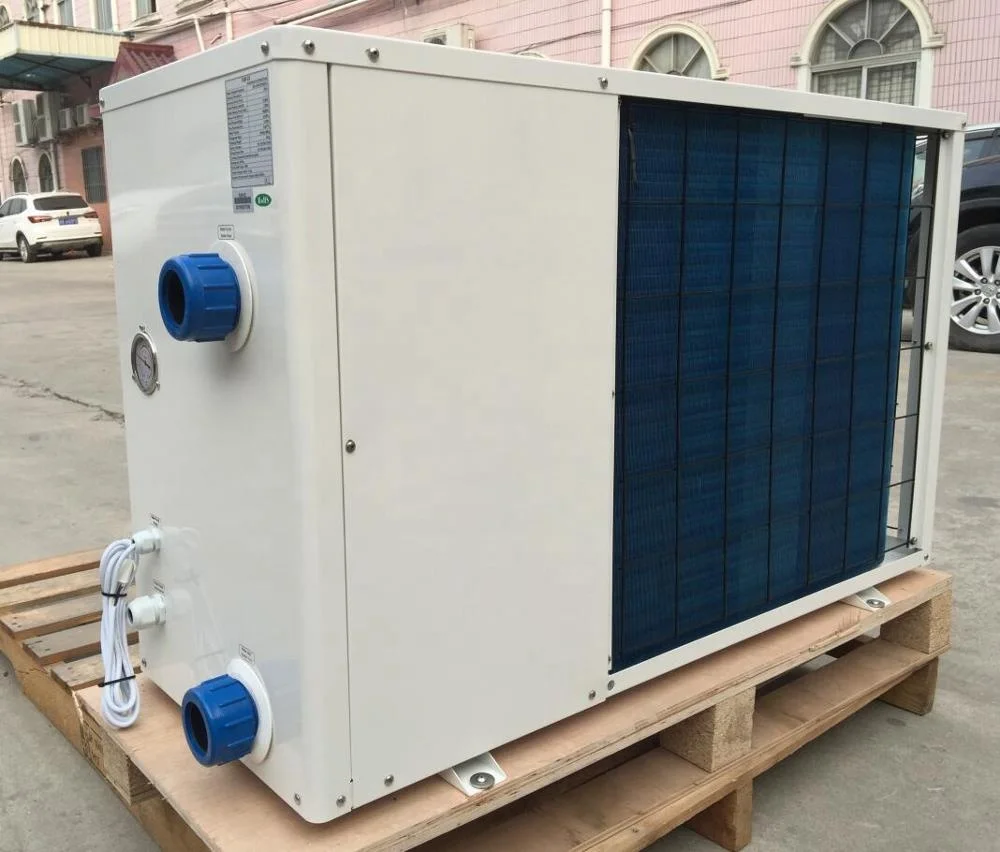

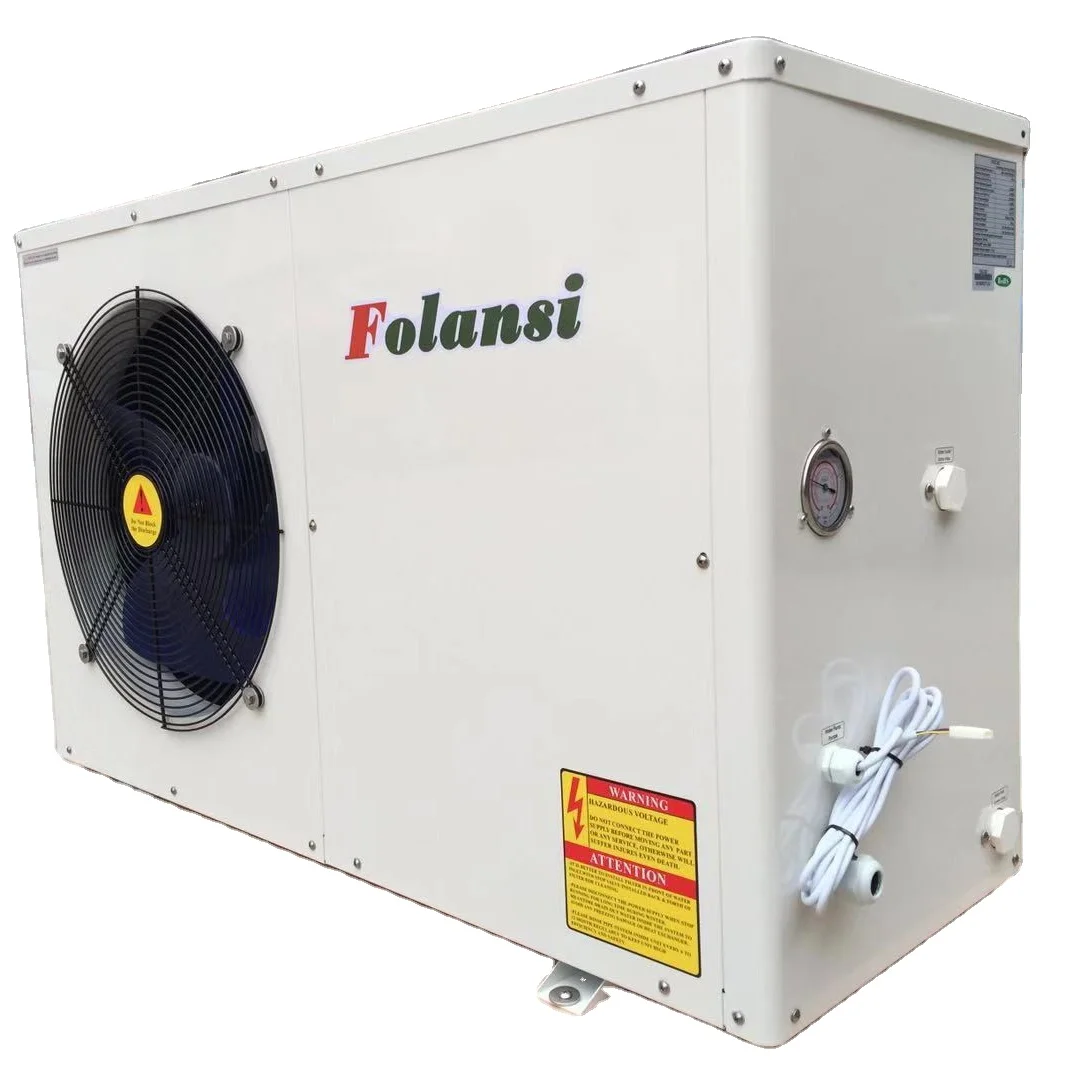

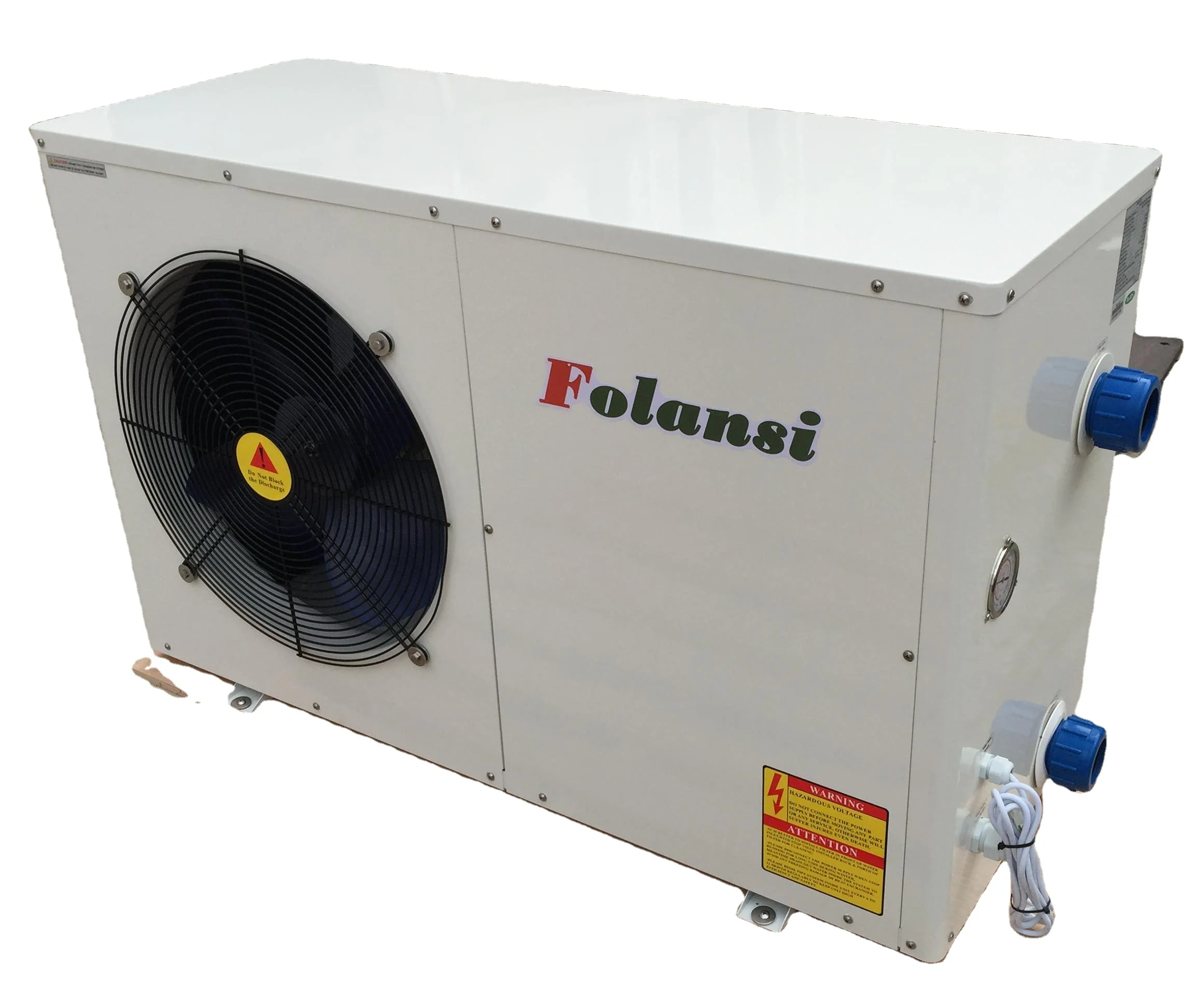

13kw Swimming pool heat pump for spa

Product Overview

Description

Model			heat pump	FAP-03
Rated heating capacity			kW	13
			BTU	44369
Rated input power			kW	2.46
Rated heating input current			A	9.8
COP			kW/kW	5.2
Max running current			A	17.1/11
Power source				220V/380/50Hz
Noise level			dB(A)	45
Dimention		Width	mm	1000
		Depth	mm	350
		Height	mm	620
Weight			kg	110
Water temperature control precision				±2℃
Working environment				15℃~43℃
Throttle type				Electronic expansion valves
Refrigerant	Type			R417A, R407C,R410A
Compressor	Brand /type			panasonic/sanyo
				Copeland scroll
	Qty		pc	1
Heat source side	Heat exchange type
	Motor power fan type
	Motor power		kW	0.1
Hot water side	Heat exchanger type
	Water flow		m3/h	4.40
	Water pressure drop		kPa	20
	Connect pipe size		Inch	1-1 /2
	Water size max work pressure		kPa	600
