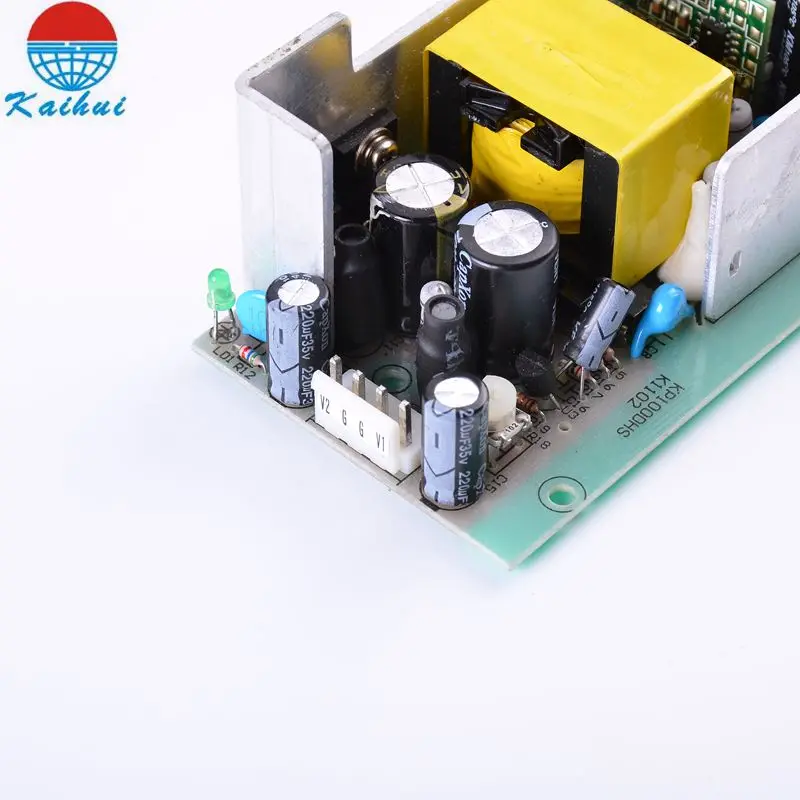

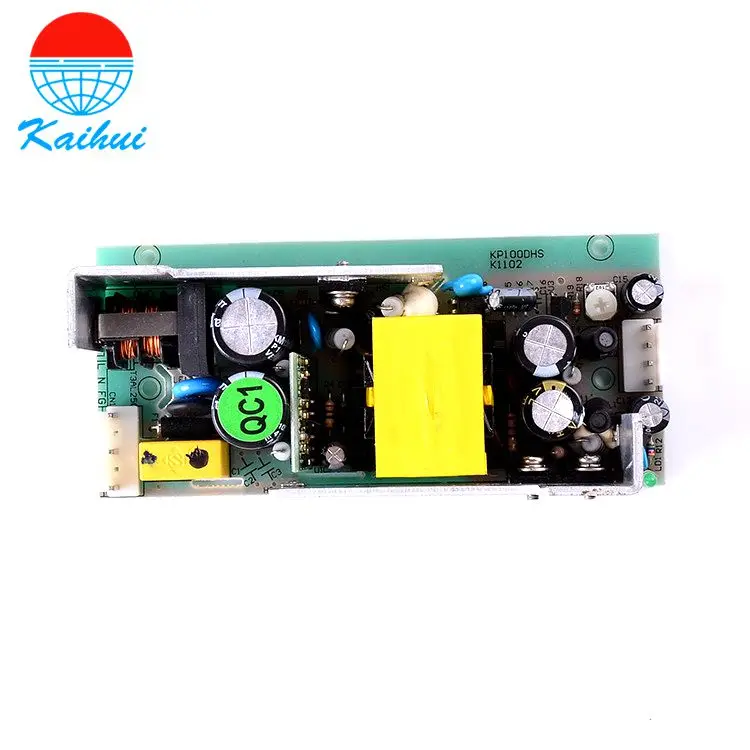

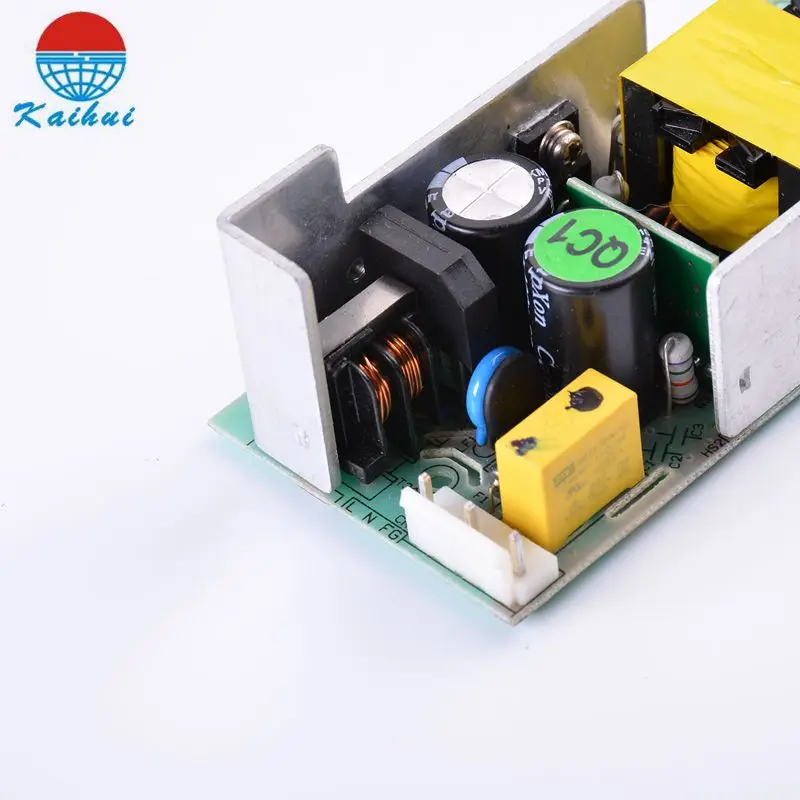

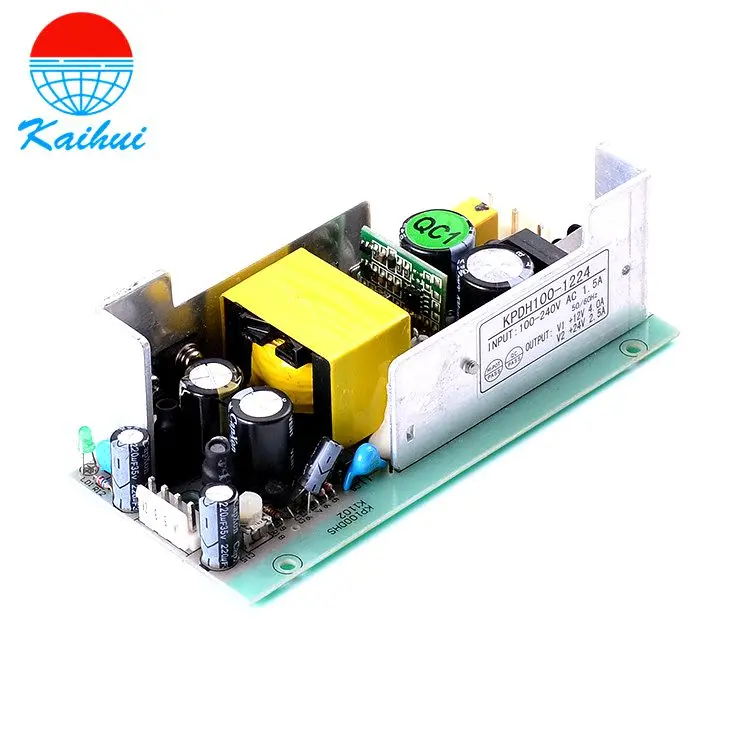

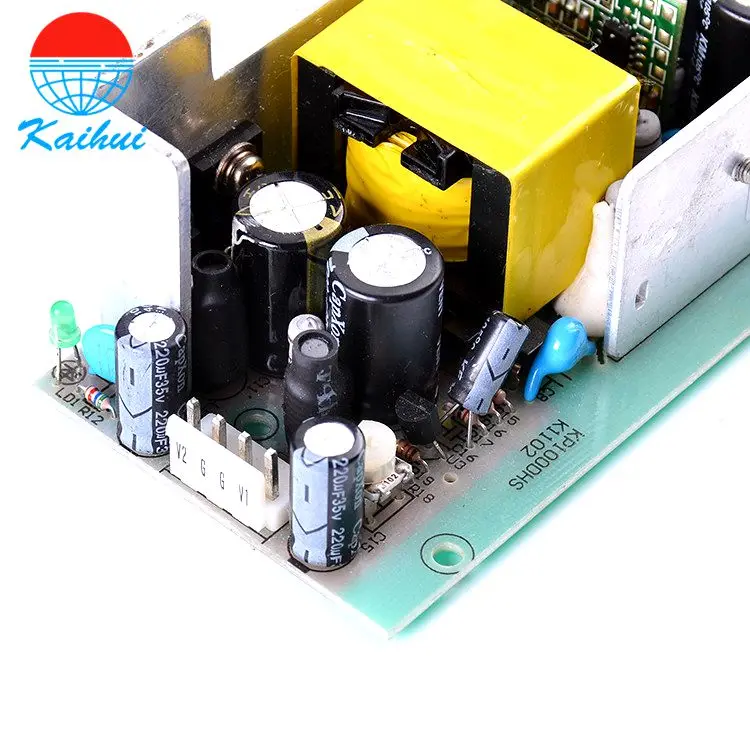

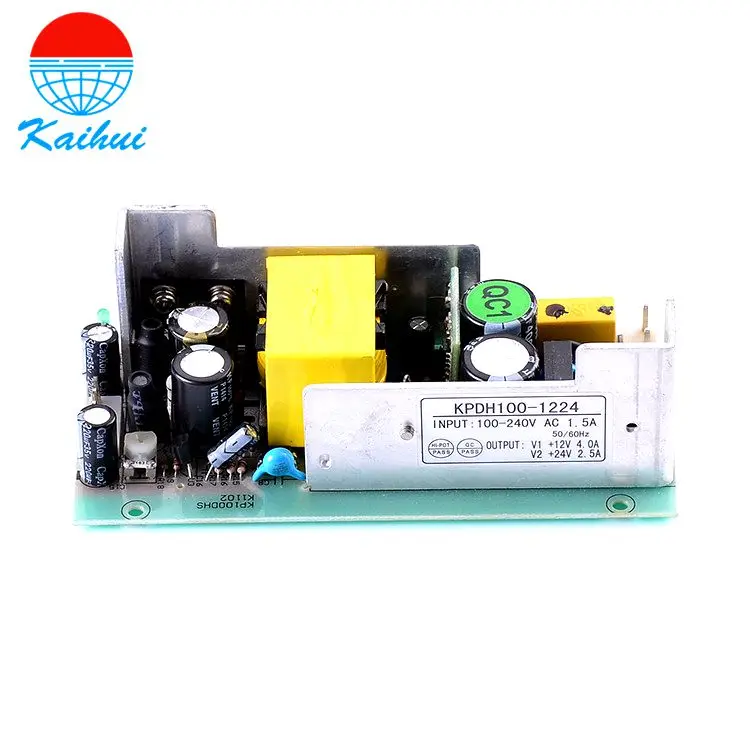

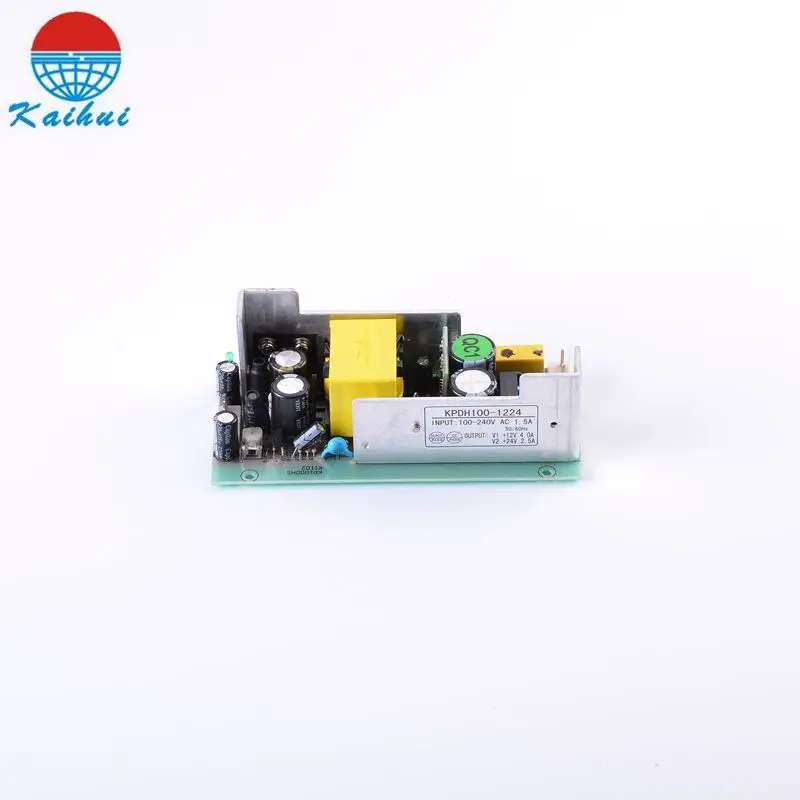

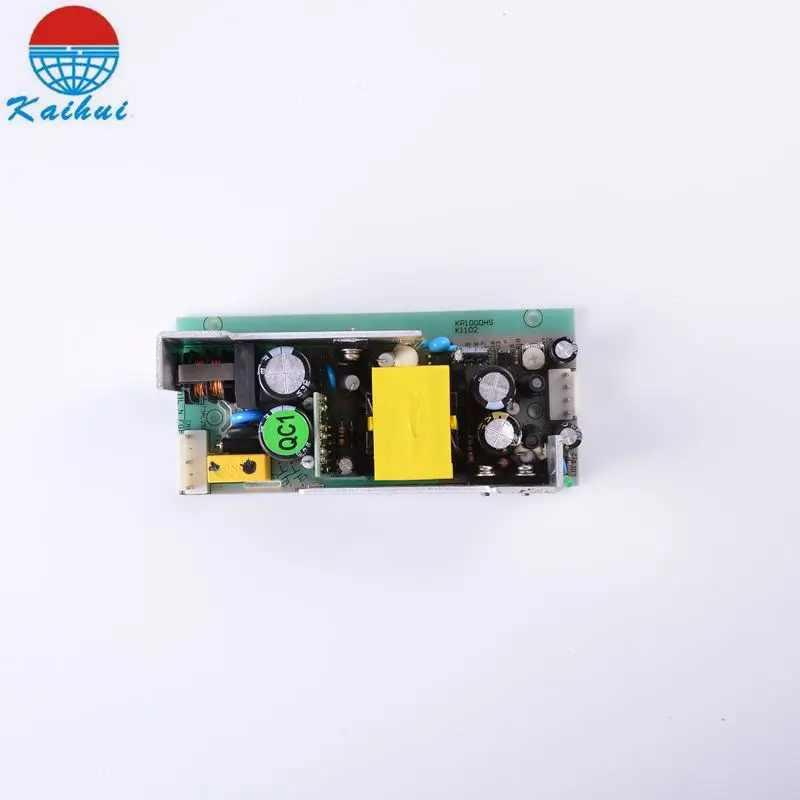

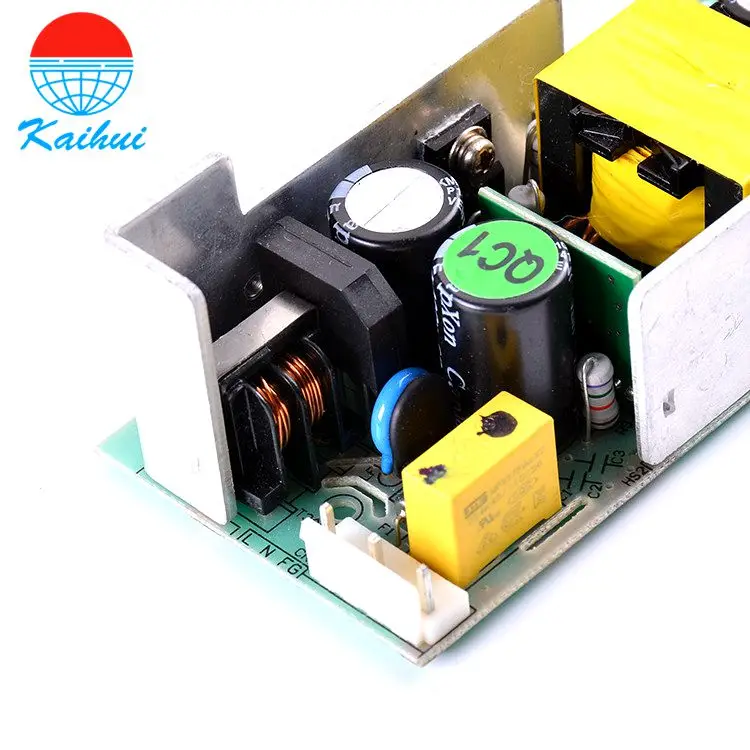

Импульсный источник питания, 220 В переменного тока, 12 В, 24 В постоянного тока, импульсный источник питания с двойным выходом, 100 Вт, для светодиодного драйвера освещения

1,Small size, high power;

2,Wide range AC input voltage;

3,short circuit, overload, overvoltage protection.

 parameter           Item No.

 KPDH100-1224

OUTPUT

DC Output Voltage

Output Rated Current

Output Current Range

0.1-5A

0.1-4A

Rated power

                                          108W

Ripple

ADJ.output range

±10%

Output Accuracy

Line Regulation

±1%

Load Regulation

±1%

Set up,Rise,Hold up time

500ms,50ms,20ms

INPUT

Input Voltage range

88~264V AC

Input current

1A/230V AC

Input frequency

47~63Hz

Efficiency

>87% @ 220V AC

COLD START   40A/230V

<0.5mA/240VAC

Over Temp.protection

105~150%

KPDH100-12: 14~18V

ENVIRONMENT

Working Temp.,Humidity

-20~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.Coefficeent

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

SAFETY&EMC

Safety standards

MEET TO GB4943,EN60950

Pressure

I/P-O/P,I/P-FG:1.5KV AC 1min.

Insulation resistance

I/P-O/P, I/P-FG,:500VDC / 100M Ohms

EMC standards

MEET EN55022 CLASS A

OTHER

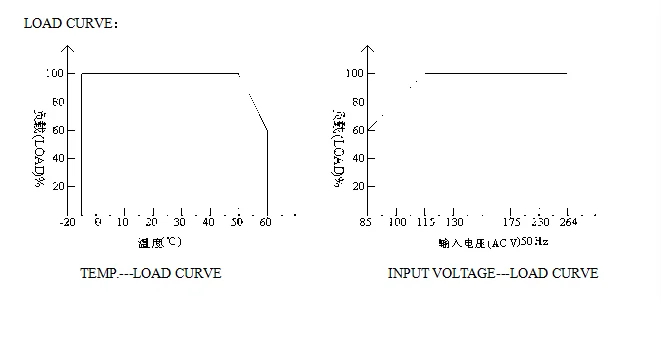

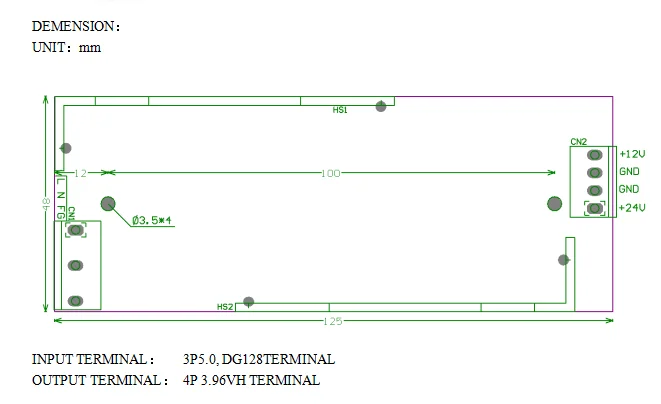

Demension

125*56*45mm

Weight

0.3Kg

1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2.Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured.

other load is fixed at 60% of the load.
