Product Overview
Description
QHS series Drinking Mixer
Automatic Carbon Dioxide Beverage Mixing Machine
Product Description
AUTOMATIC CARBONATED DRINK MIXER / MIXING TANK
Beverage mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
1. Parameter
(1) Range of proportion on syrup and water 1:3 1:10
(2) Volume of Carbonation (CO2: H2O in volume) 2: 5
(3) Mixing precise error ≤2%
(4) Cooling water temperature in entry mouth 0-4
(5) Cooling water pressure in entry mouth 0.01-0.08Mpa
(6) Syrup temperature in entry mouth 2-8
(7) Syrup pressure in entry mouth 0.01-0.08Mpa
(8) CO2 pressure in entry mouth 0.7-0.8Mpa
(9) CO2 pure % 99.9% (10) Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11) Working pressure of tank 0.2-0.5Mpa
(12) Total motor power 6.3KW
2. Products Structure and Working Procedure
(1) CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2) Main working Procedure
1. Cooling water→multi-grade pump→oxygenating CO2→volume control
2. Cooling syrup→multi-grade pump→syrup tank→volume control (a and b → multi-grade pump→static mixing device→ CO2 air resource→filter and pressure reducing→ tank→filling machine
Characteristics
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for
mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
In comparison with other domestic equipment of the same kind, it achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation, action coordination, continuing production, good mixing and excellent electric control.
(1)The volume ratio of CO2 and 1L water is 2. 5 to 2. 8.
(2)The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well.
(3)The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine. Quality materials are usedfor this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid.
Beverage mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
1. Parameter
(1) Range of proportion on syrup and water 1:3 1:10
(2) Volume of Carbonation (CO2: H2O in volume) 2: 5
(3) Mixing precise error ≤2%
(4) Cooling water temperature in entry mouth 0-4
(5) Cooling water pressure in entry mouth 0.01-0.08Mpa
(6) Syrup temperature in entry mouth 2-8
(7) Syrup pressure in entry mouth 0.01-0.08Mpa
(8) CO2 pressure in entry mouth 0.7-0.8Mpa
(9) CO2 pure % 99.9% (10) Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11) Working pressure of tank 0.2-0.5Mpa
(12) Total motor power 6.3KW
2. Products Structure and Working Procedure
(1) CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2) Main working Procedure
1. Cooling water→multi-grade pump→oxygenating CO2→volume control
2. Cooling syrup→multi-grade pump→syrup tank→volume control (a and b → multi-grade pump→static mixing device→ CO2 air resource→filter and pressure reducing→ tank→filling machine
Characteristics
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for
mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
Mixer machine is using injecting gas-water mixer is specially designed for soda and non-soda drinks such as lemonade, cola and juice, as well as for other soft drinks such as mineral water, grape juice, juice wine and apple juice.
In comparison with other domestic equipment of the same kind, it achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation, action coordination, continuing production, good mixing and excellent electric control.
(1)The volume ratio of CO2 and 1L water is 2. 5 to 2. 8.
(2)The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well.
(3)The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine. Quality materials are usedfor this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid.
(4)The machine is designed for various beverage productions. Besides the two-step carbonization, high CO2 content and low production temperature ensures the volume ratio of CO2 and 1L water to be 3. 5 to 4. 0, or higher.
Automatic Carbonated Drink Mixer / Mixing Tank Benifits
(1) Be designed and made for improving the proportion of the water, syrup and carbon dioxide
(2) It adopts foreign advanced technology-static mixer to lighted water layer, increase carbonizing time, ensure the mixing
efficiency
(3) Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize
(4) High quality water pump and SIEMENS electrical equipment and other parts make up a complete automatic control system
(5) It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages
(6) It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks
Automatic Carbonated Drink Mixer / Mixing Tank Benifits
(1) Be designed and made for improving the proportion of the water, syrup and carbon dioxide
(2) It adopts foreign advanced technology-static mixer to lighted water layer, increase carbonizing time, ensure the mixing
efficiency
(3) Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize
(4) High quality water pump and SIEMENS electrical equipment and other parts make up a complete automatic control system
(5) It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages
(6) It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks
Model | QHS-2500 | QHS-3500 | QHS-5500 | QHS-10000 | |||
Production capacity(kg/h) | 2000-2500 | 3000-3500 | 5000-5500 | 10000 | |||
Mixing production scale(water:sugar) | 3:1-6:1 | ||||||
Contect of CO2 | 2.5-3.5 | ||||||
Mixing temperature℃ | ＜4 | ||||||
Power consumption(KW) | 2.5 | 3 | 5 | 8 | |||
Overall size(mm) | 1500*1000*1900 | 1700*1000*2200 | 2000*1500*3000 | 3000*2000*3000 | |||
Detailed Images

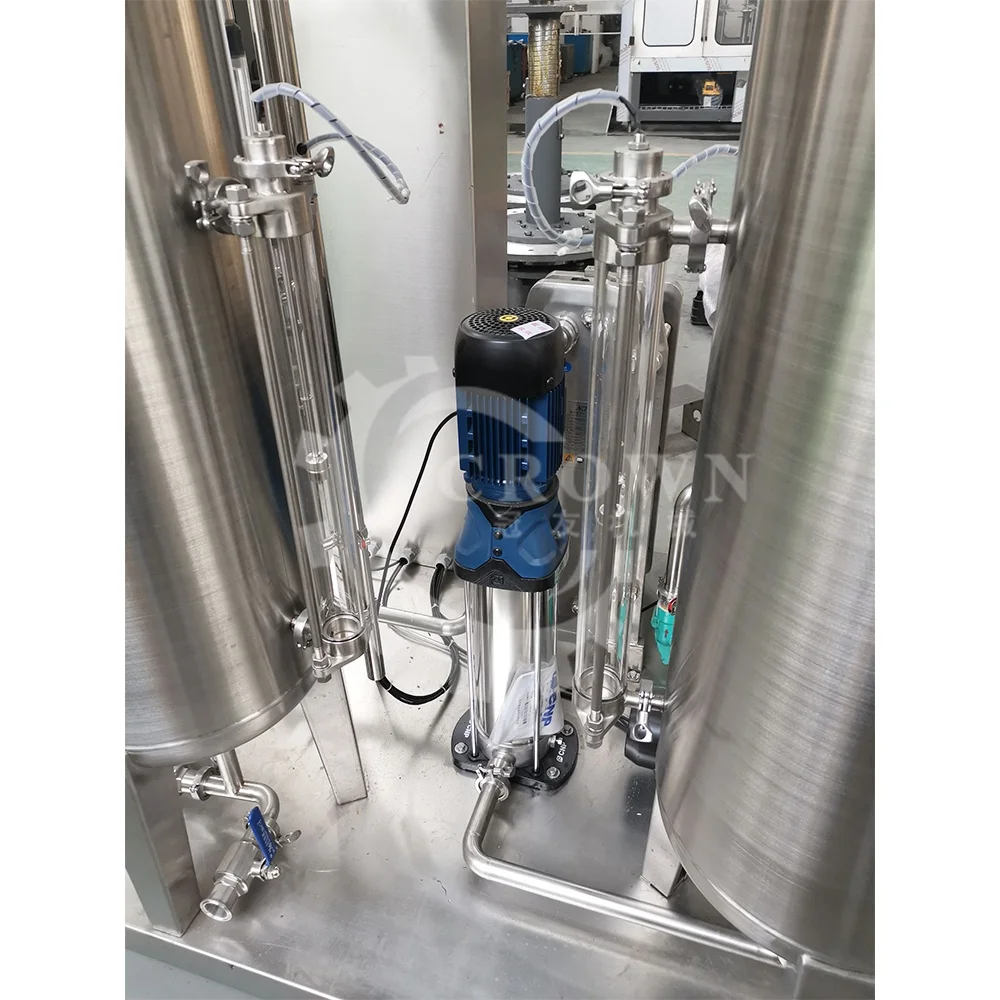

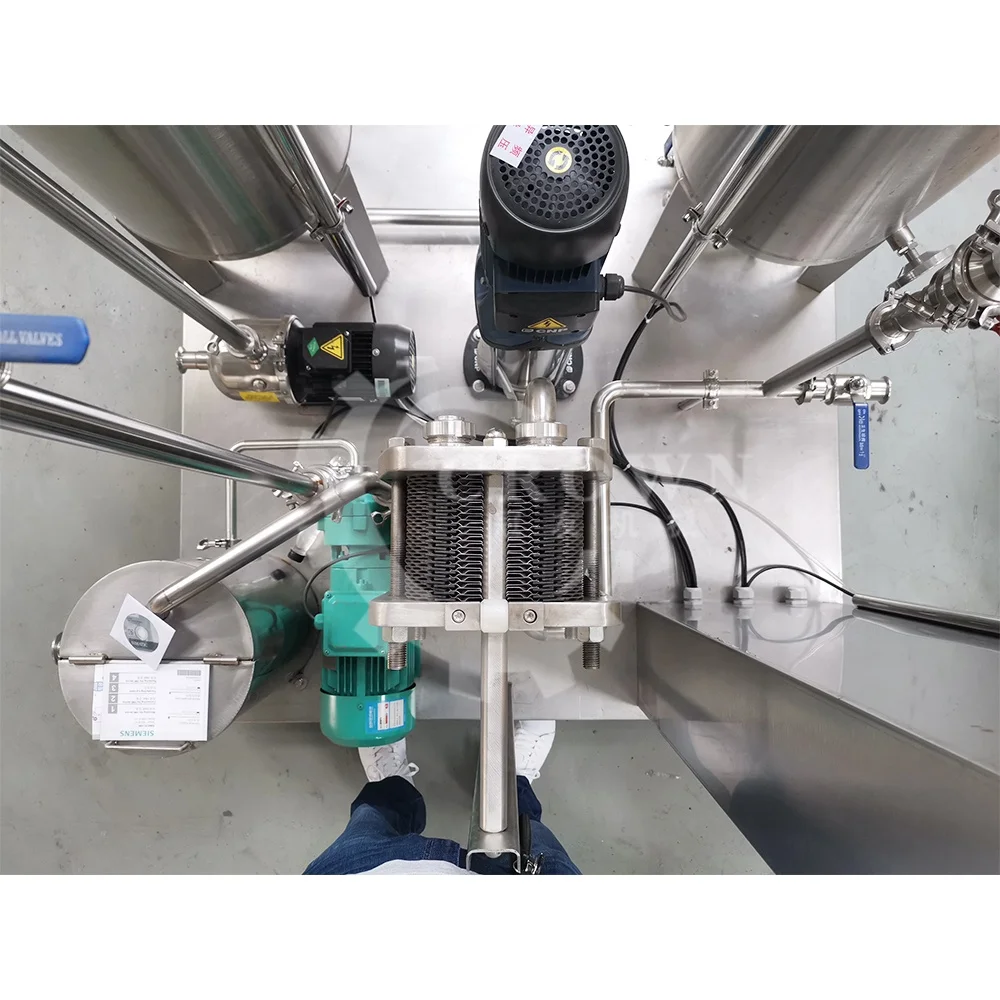

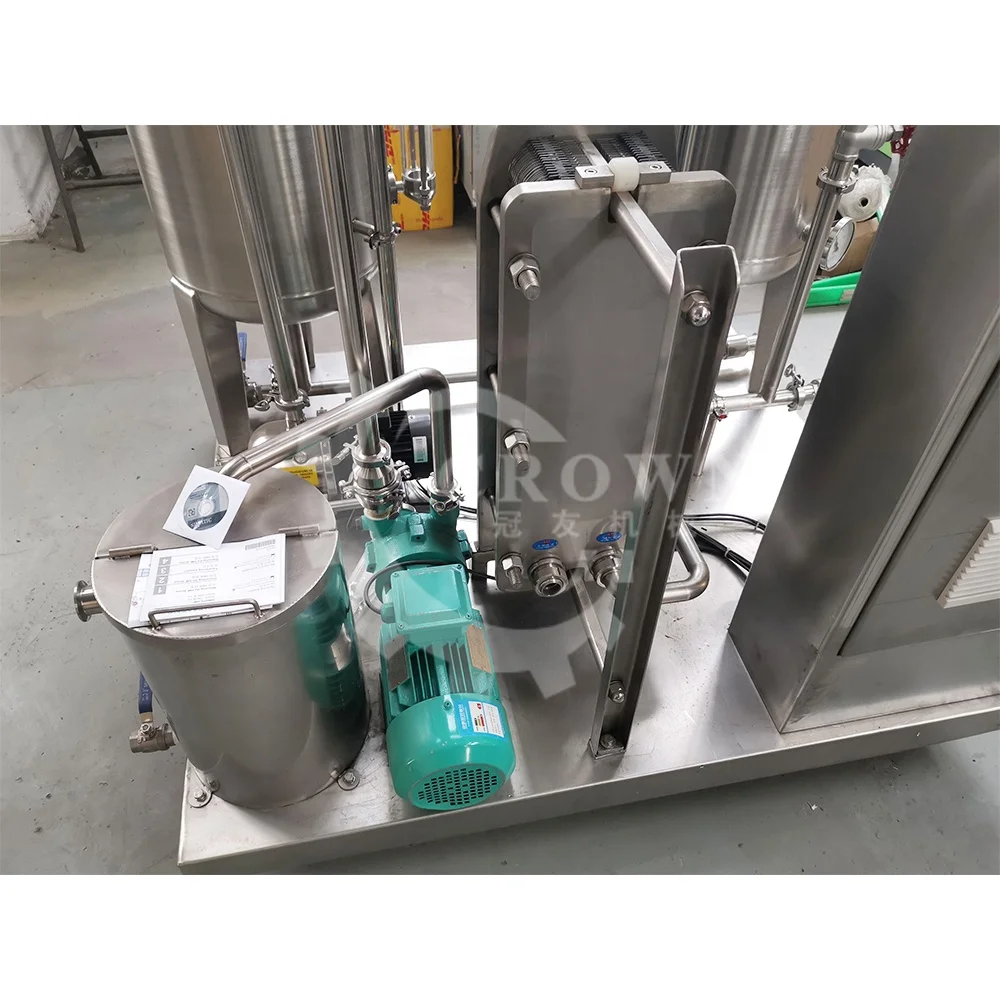

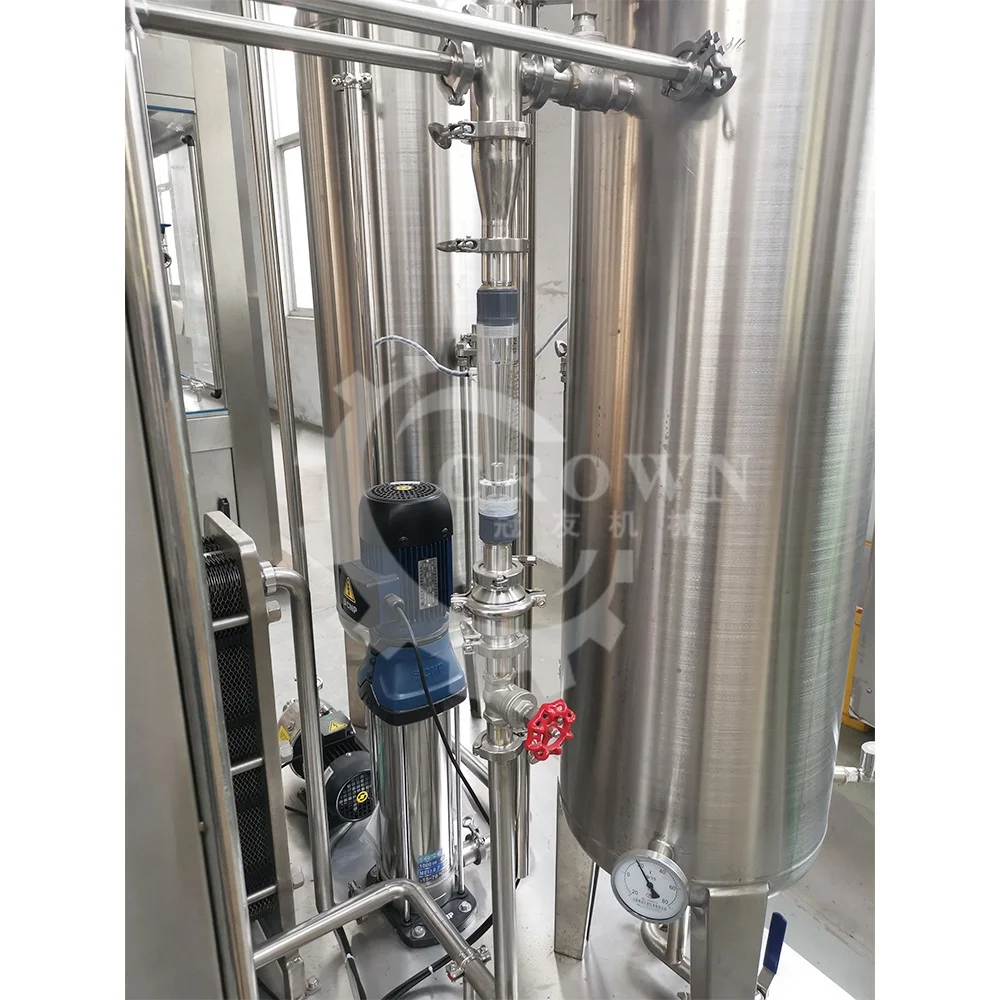

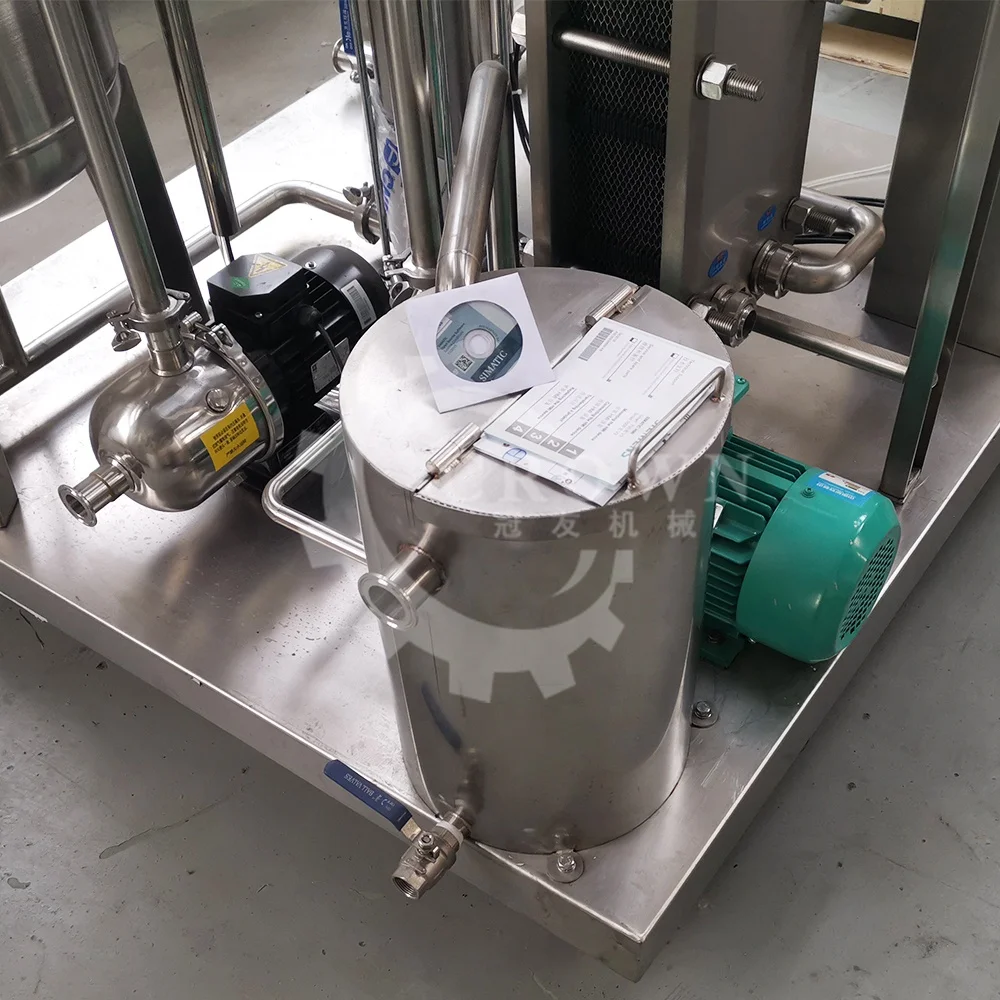

Detail photos of the carbonated soft drink mixer
Packing&Shipping
Crown Serive
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
