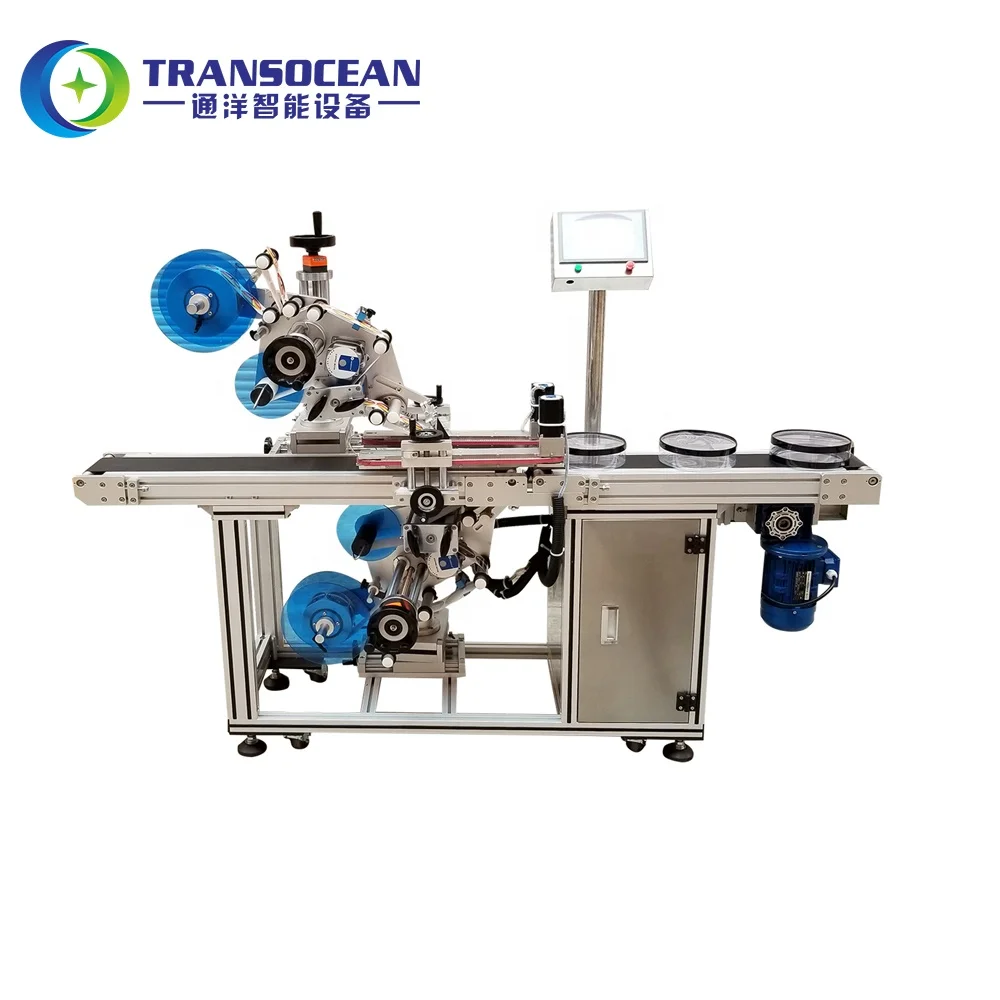

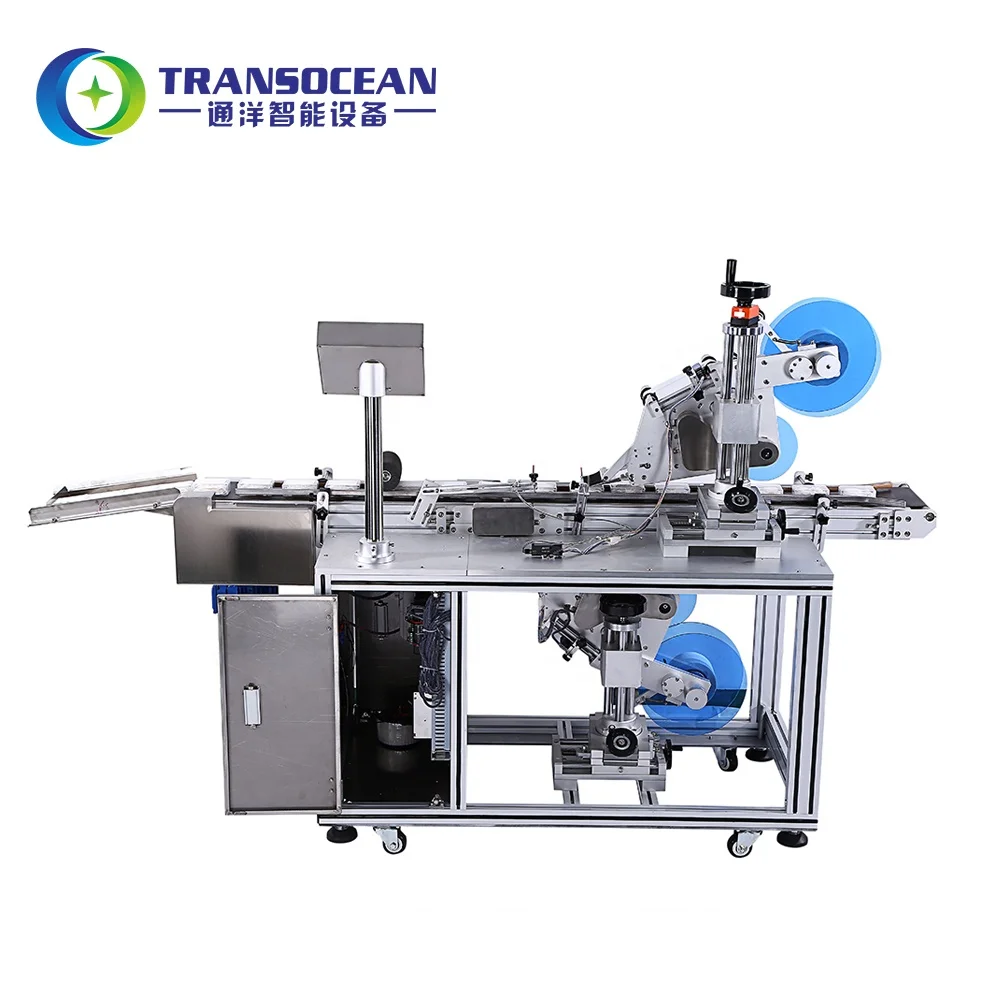

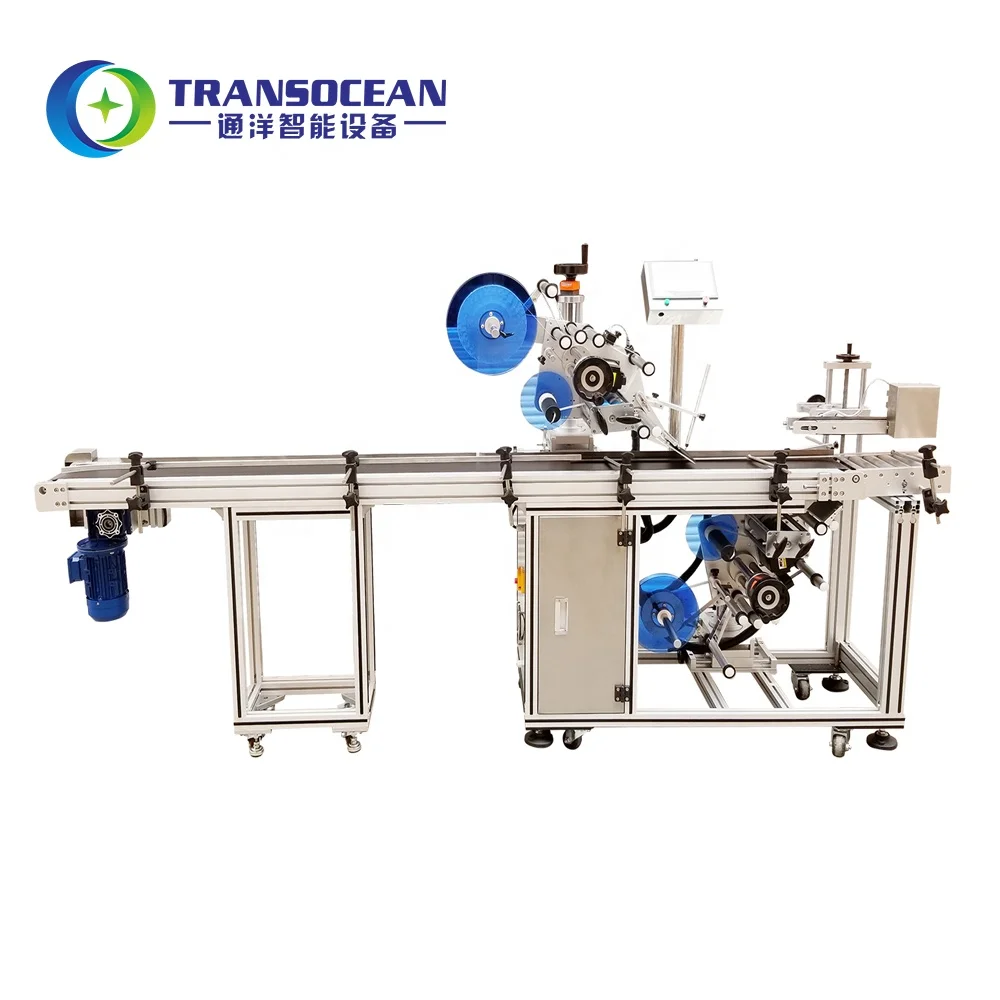

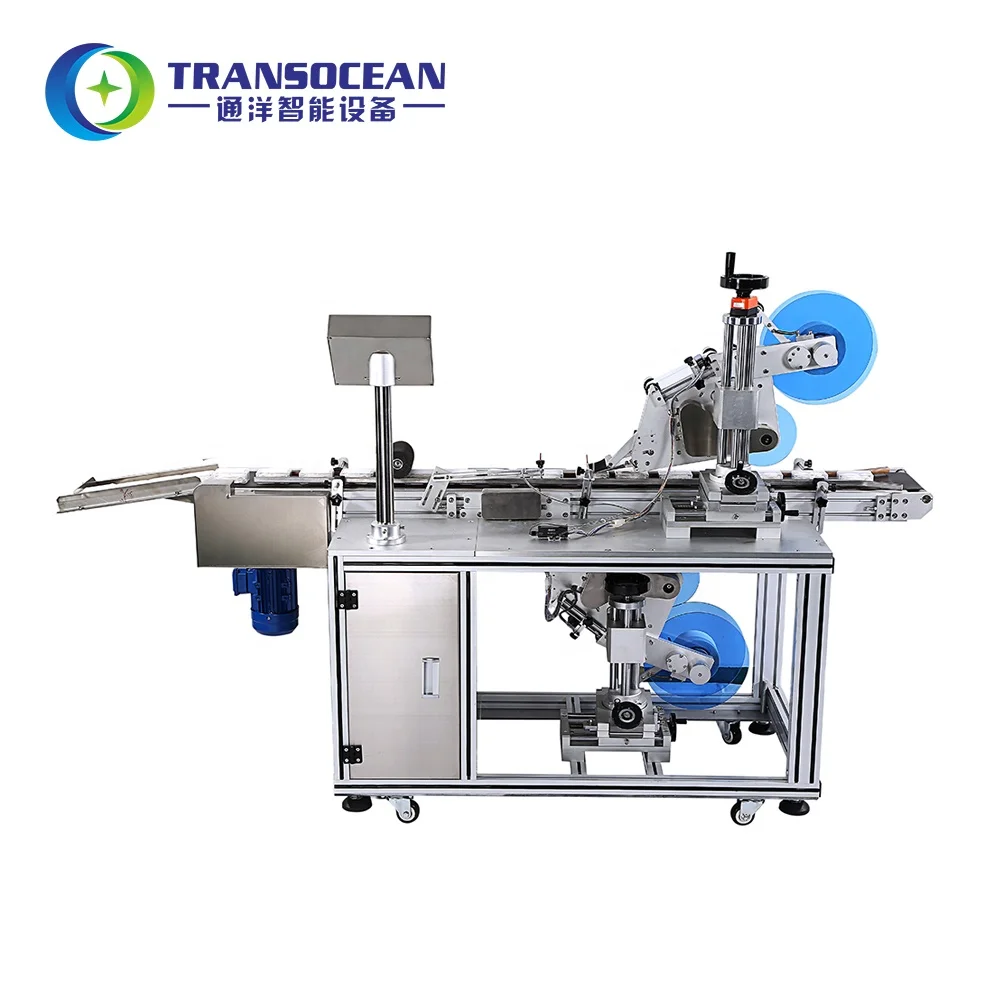

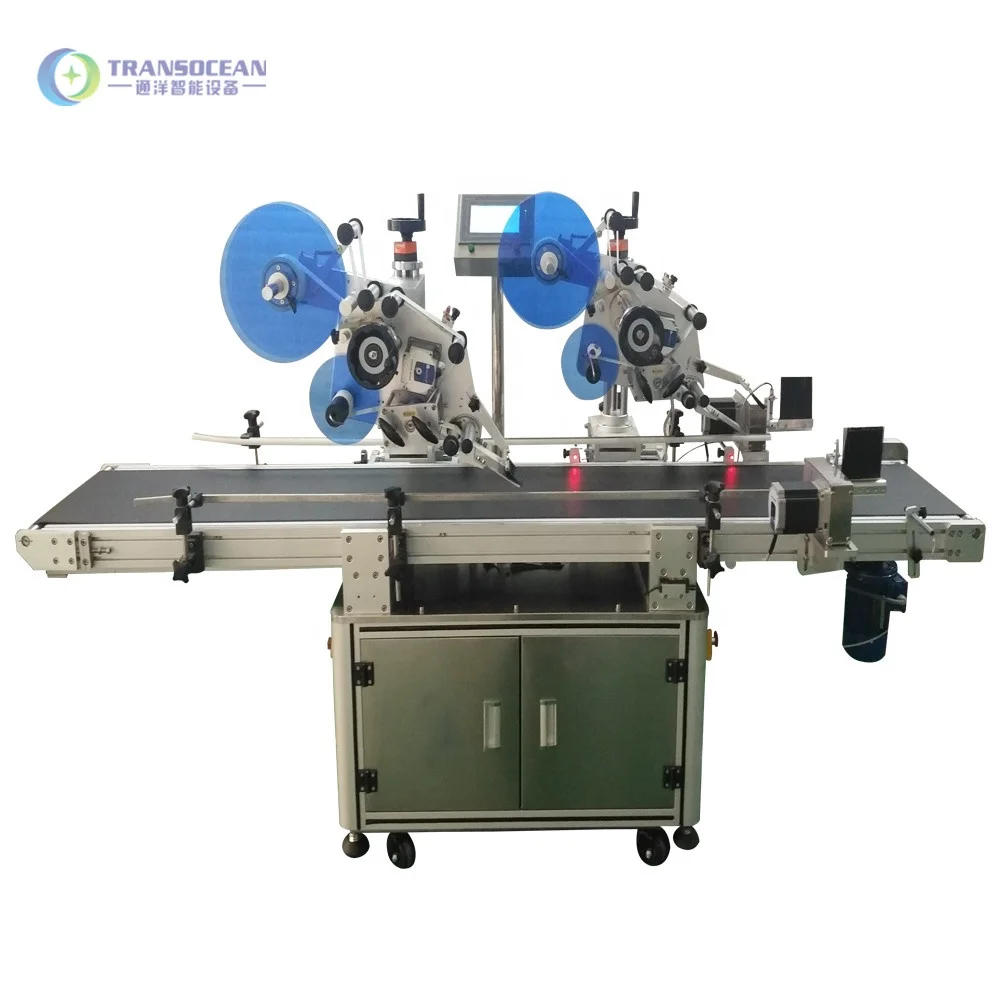

battery double sides bag lighter top labeling machine
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (62324006408):
Product Overview
Description
Product Application
Applicable label and bottle:
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) It is suitable for above/below plane and not flat surface of labeling. Such as books, folders, boxes, cartons and so on.
3) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
SPECIFICATIONS | ||||||
Labeling accuracy | ±1mm (excluding products, labels, error) | Labeling speed | 40--80 pcs/min (related to the product and label size) | |||
Apply the product size | Length: 40-400mm Width: 40-200mm Thickness: 0.2-120 mm (Can be customized) | Apply label size | Length:6-150mm; Width: 15-130 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | ￠76mm | |||
Apply labels outside diameter | ￠240mm | Voltage | 220V | |||
Power consumption | 700W | Net size (L*W*H) | Machine size: 2000*730*1420 mm Packing size: 2100*900*1600mm | |||
Net weight | About 435Kg | |||||

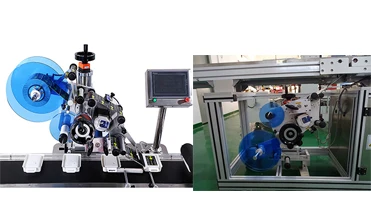

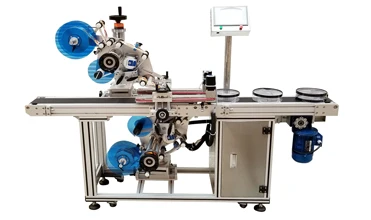

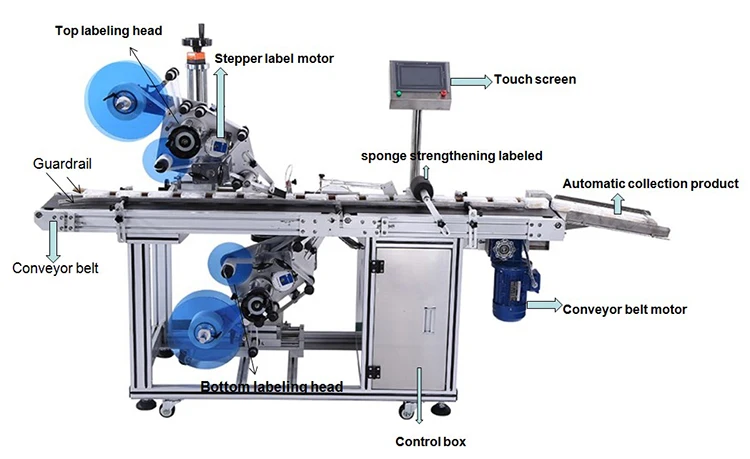

top and bottom labeling at the same time
Top side and bottom are each for a labeling head, so the top and bottom label can labeling at the same time.
subdivided stepper motor or servo motor drive to send labels, accurate label delivery; label belt bypass correction mechanism design to ensure that the label does not shift left and right during the traction process; eccentric wheel technology is applied to the traction mechanism, the traction label is not Slip to ensure accurate labeling;
Automatic photoelectric tracking
with no production no labeling, no standard automatic calibration and automatic label detection function to prevent leakage and label waste

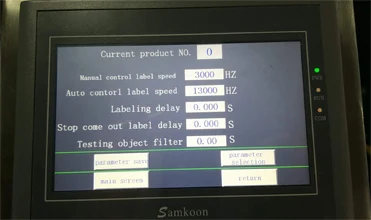

Touch screen
Touch screen operation interface, full Chinese annotation and perfect fault prompt function, various parameter adjustments are simple and quick, and easy to operate;
Other languages available: such as: Spanish, Arabic, French. and so on.
Import label sensor
1. Germany Sick and Italy Data logic of self-adhesive label sensor. (standard model)
2. Germany Sick and LEUZE sensor not only can use for self-adhesive label, but also can use for transparent label. (price calculated separately).
Powerful
with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient for production management;
Remark
1. 1. This machine only need electricity. No need to connect air compressor.
2. In order to ensure zero-risk purchase of this machine, we have standard model in stock, welcome customers to send samples to us, free trials, and take video to you for confirm. Place an order after you appropriate.
Thermal transfer coding
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
hot coding machine
1. The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
2. ours coding can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm. the size of each character of text, there are 3 kinds:
length*width*high
2*3*15mm
1.2*3*15mm
1.2*2*15mm
3. Ribbon specifications: 30*100mm-2 rolls
4. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
Online printing and labeling
Online printing label and labeling at the same time.
Can connect to the database, the printing software can connect to the database according to the customer's requirements, print the corresponding data information
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.
* View our Factory.
After-Sales Service
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.
