China Easy Installation Building 20Ft 40Ft Container House
- Category: >>>
- Supplier: Qingdao Sanjiangrunda Steel Construction Co. Ltd.
Share on (62324030644):
Product Overview
Description

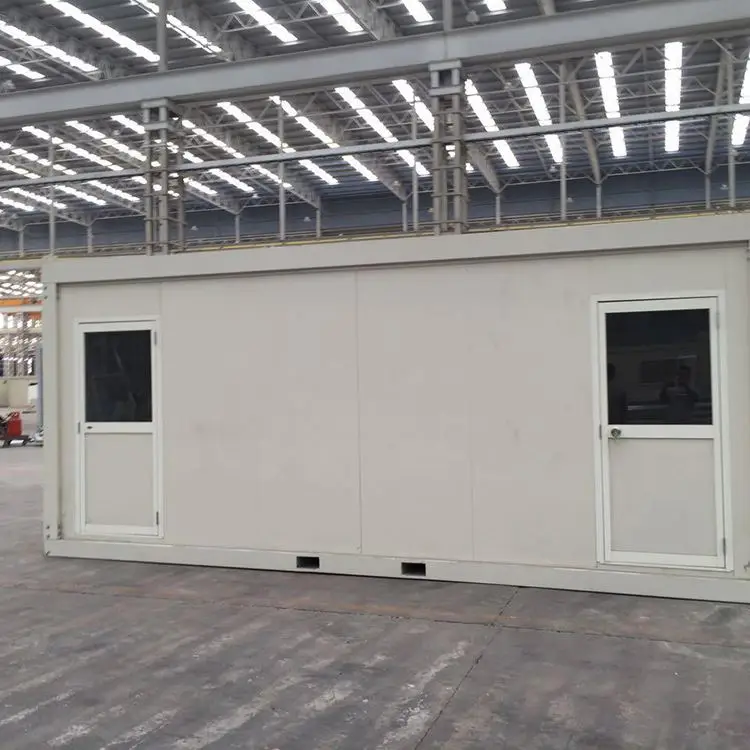

China Easy Installation Building 20ft 40ft Container House
Product Description

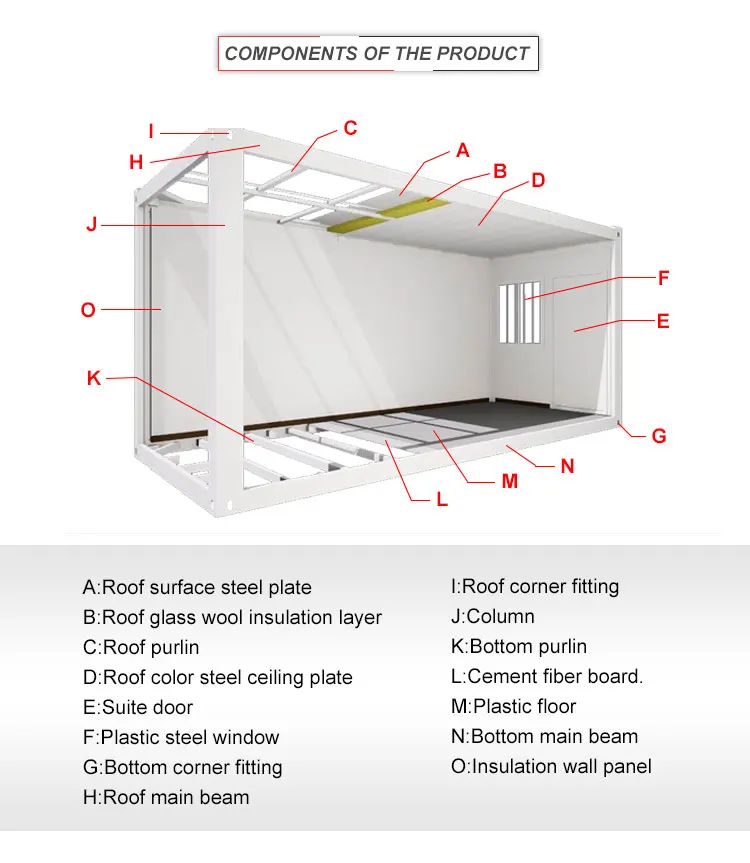

Item name | Low Cost Flexible Prefab Container House | |
Top Frame
| Roof surface steel plate | 0.5mm color steel plate (butyl tape) |
Roof insulation | 100mm glass wool blanket 14kg/m³, double-layer insulation ceiling | |
Top Beam | Section size 160mm, 3.0mm thickness | |
Roof corner fitting | High-grade bailing box corner fitting 210mm*150mm*200mm*4.0mm thickness | |
Roof purlin | C-type steel 100mm*40mm*1.0mm 5pcs + square tube 30mm*30mm*1.0mm 2 pcs | |
Ceiling tile | Factory prefabricated V831 high-quality color steel ceiling tile 0.45mm, matching Z-type parts | |
Bottom Frame
| Bottom Main Beam | Section size 160mm, thickness 3.0mm |
Bottom corner fitting | High-grade bailing box corner fitting 210mm*150mm*160mm*4.0mm thickness | |
Bottom purlin | Square tube 100mm*50mm*1.2mm*14pcs, high-dense purlin | |
Cement fiber board | 1172mm*2800mm*18mm, damp-proof, fireproof, deformation | |
Plastic floor | 1.6mm PVC plastic floor, with resistant and anti-skid layer | |
Bottom insulation | 100mm glass wool blanket 14kg/m³, one-side alluminized paper, 0.45mm color steel sheet (optional) | |
Doors & Windows
| Container house specialized security door | 845mm*2050mm color steel sheet 0.6mm thickness |
Container house specialized windows | 1130mm*1100mm hollow glass 3+6+3 security mesh | |
Column and wall
| Column | 210mm*150mm, thickness 3.0mm |
Insulation wall panel | 75mm glass wool sandwich panel, V1150 type, double side base panel thickness 0.4mm(Orange peel pattern), 50kg/m³ | |
Structure auxiliaries
| Wiring system on the roof | Including one set light line, two sets socket lines, one set air-conditioner line, one set distribution box including air switch and one explosion-proof plug |
Electrical | Premium Brand single open switch*1, five hole socket*4, 16A air-conditioner socket*1, 24W ceiling light*2 including wires | |
75mm Gutter | 0.8mm steel panel bending piece, including drain hole | |
Rainpipe | dia. 50mm PVC rainpipe*4, including clips | |
Internal corner edge trim | 0.6mm steel panel bending piece, including punching at the sockets | |
Installation accessories
| Container spliced lock set | Hexagon socket screw and steel splice plate, lock on up, down, left and right respectively |
Waterproof accessories | Epdm waterproof tape and hosepipe weather proofing sealant | |
Fastener to fix with the ground | Container house special customized aluminum alloy anti-skid plate | |
Column decorative sheet | three-section splicing type decorative buckle gusset plate | |
Company Information
Our Services
Packaging & Shipping
FAQ
♦ Q: What kind of company you are, factory or trade company?
A:We are professional steel structure building manufacturer, and our factory located in Qingdao, Shandong.
♦ Q: What could we provide for your steel structure building?
A: According to customers requirements, we could provide the main steel frame, roof floor decks, wall panels, doors and windows, sanitary appliance, tiles, ceiling and so on.
♦ Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
If you have no design, please provide the details, such as location, wind speed, dimension, material or other requirements, we could make the design and quotation according to your specification.
♦ Q: How about your quality control?
A: We have got related quality control certificates. All the products processing including cutting, welding, bending, shot blasting, packing, storing, loading have strict quality control to ensure qualified products.
♦ Q: Is third party inspection available?
A: SGS, BV, ITS, etc. are available, it is according to client requirement.
♦ Q: What about the installation?
A: We would provide installation instruction for you, and technicians also could be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, and wages will be charged by the buyers.
♦ Q: What is your payment?
A: T/T, L/C, and Trade Assurance on Alibaba are available.
