Bcomtech, Новое поступление, видеодомофон с высоким разрешением, Wi Fi

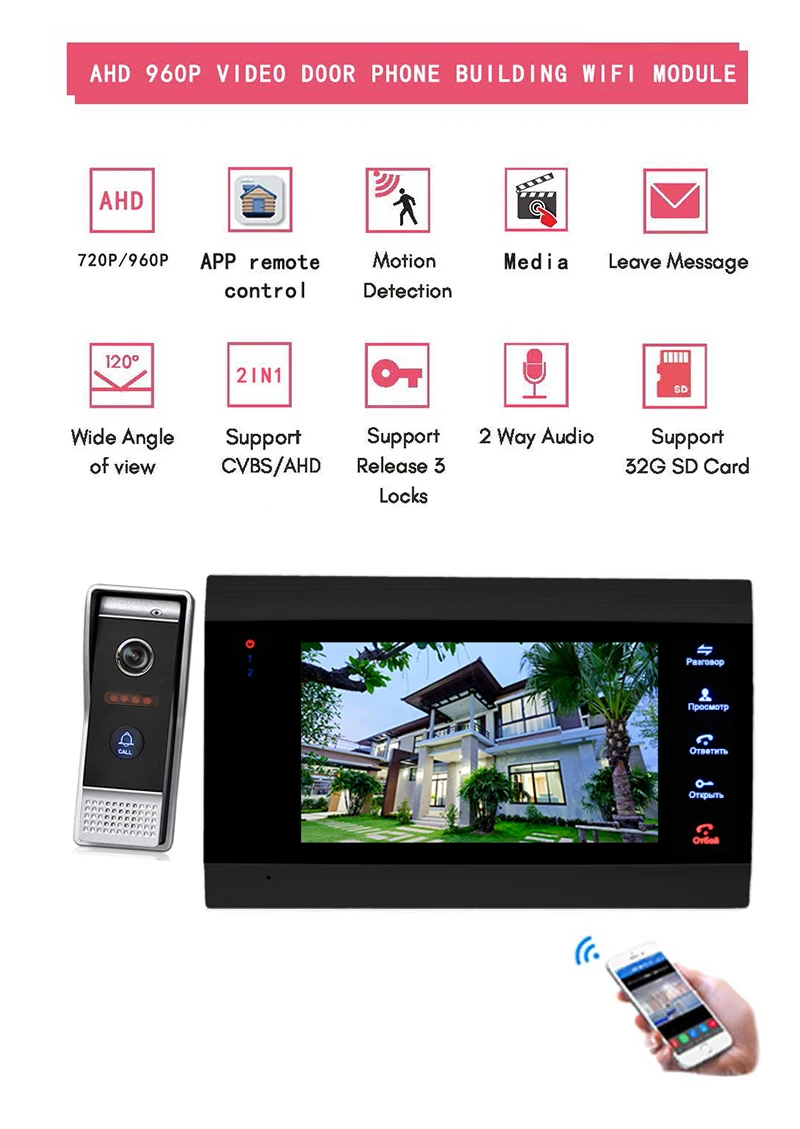

Why Choose Bcomtech Video Door Phone Intercom ?

♦ 7 inch LCD clear screen, resolution is 1024*600 HD
♦ Take photos and videos store in 32GB TF card

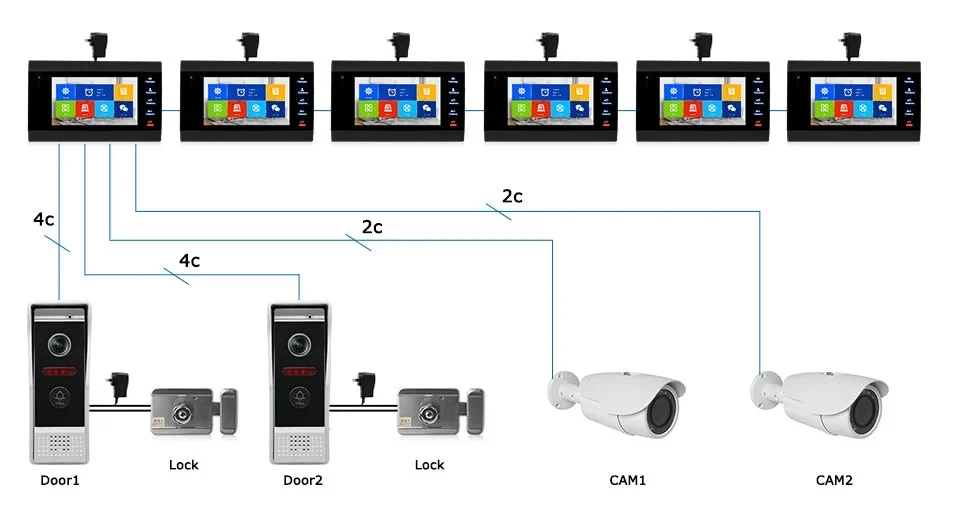

♦ Support 2 call panel + 6 indoor monitor + 2 CCD camera & 2 alarm
♦ Two way intercom between with monitors
♦ Menu function, it will be easy to operation
♦ DIY install
♦ Unlock door function with APP, WifiIntercom-D
♦ Internal memory, pictures shooting(Max.about 86 pieces, automatic cycle)
♦ Camera and monitor volume could be adjusted
♦ IR or LED clear night vision

Parameter

Indoor Monitor

Model

86706-EM

86706-EMB

Monitor

7" TFT LCD video doorphone

Resolution

1024(H)*3(RGB)*600(V)

Memory

Support Max. 32GB SD card

Intercom Mode

Hands-free dual-way communication

Conversation duration

120s

Keypad

Touch button

Power Consumption

400mA Max.

Power Supply

External power DC12V

Built-in power AC100-240V

Support

2 call panerl + 6 indoor monitor + 2 CCD camera & 2 alarm

Material

Acrylic wire drawing shell

Operation Temp

-10℃ +60℃

Installation

Surface mount

EM as suffix-sensor's key + memory

EMB as suffix-sensor's key + memory + built-in power

Outdoor Unit

Model

84203CR-AHD1.3

84203CR-AHD1.0

84203CR-80

Camera Sensor

1/3''CMOS, 960P

1/4''CMOS, 720P

1/3" CMOS, 800TVL

1.9MM Lens

1.9MM Lens

1/3''CMOS, 800TVL

wide angle lens: 110°

LEDs For Night LED

IR LEDs(120º)

Power Consumption

200mA Max.

Power Supply

Supplied from indoor monitor

Material

Aluminum alloy panel

Waterproof

IP65

Operation Temp

-40℃ +50℃

Istallation

Surface mount

Support Cell Phone Connectivity for Electronic Lock, Monitor CCD Camera/Doorbell

Our 7" video doorbell set supports connecting with PIR detector, CCD camera and alarm system. It can protect your home and property in all aspects.
Supproting cell phone connectivity for remotely control , 2 ways talk/unlock/monitoring

Dual-way Intercom, Call Transfer Among Monitors

This item is handsfree and available for dual-way communication. It supports communication between indoor monitor and outdoor camera, but also supports communication between monitor and monitor.

IP65 Waterproof, Anti-thunderstorm Design

The outdoor panel can also works well even in bad weather.

Indoor Monitor

♦7" TFT display, acrylic wire drawing shell

♦Each call panel can set different ringtones & morning/afernoon/night with different volume size(10 level)

♦Support 2 call panels +6 indoor monitor + 2 CCD camera & alarm

♦Key-unlock, monitoring,internal-communication among indoor monitors, call transfer, recording & picture

♦External motion detection (triggle alarm recording or picture optional)

♦Monitor built-in battery for time memory (re-start machine, need reset time)

♦Support setting un-lock time, suitable for different electronic lock

♦Built-in or external power optional

Outdoor Call Panel

♦Anti-vandal pin-hole camera 3.7mm lens

♦Rain cover, corner bracket including

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦Weatherproof IP65 aluminium ally panel

♦Adjustable Intercom Volume

♦CMOS 420TVL, 600TVL,800TVL optional

♦IR LED Offset Lighting Can Obtain Better Evening Viewing

Package

Villa Intercom System
