Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine
Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine

Factory Price PVC / PET / PP / PS/ABS/EVA Automatic Plastic Blister Vacuum Forming Machine

Share on (62324234960):


Price:RUB 562,124.88

Quantity:

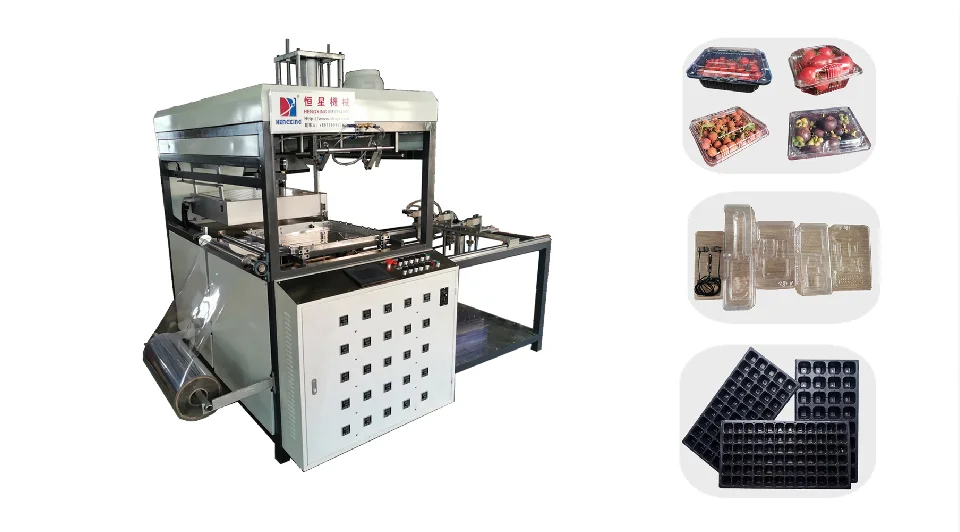

Product Overview

Description

Application：

 1. Vacuum forming machine is suitable for forming PVC, PET, PP, PC, PEGT, CPET, OPP, POF, PS, ABS, EVA and other materials.
2. Vacuum forming machine can be used to produce egg containers, salad boxes, snack boxes, fruit boxes, biscuit boxes, toothbrushes, batteries, gifts, hardware, stationery, decorations, medical, electronic and other plastic containers.

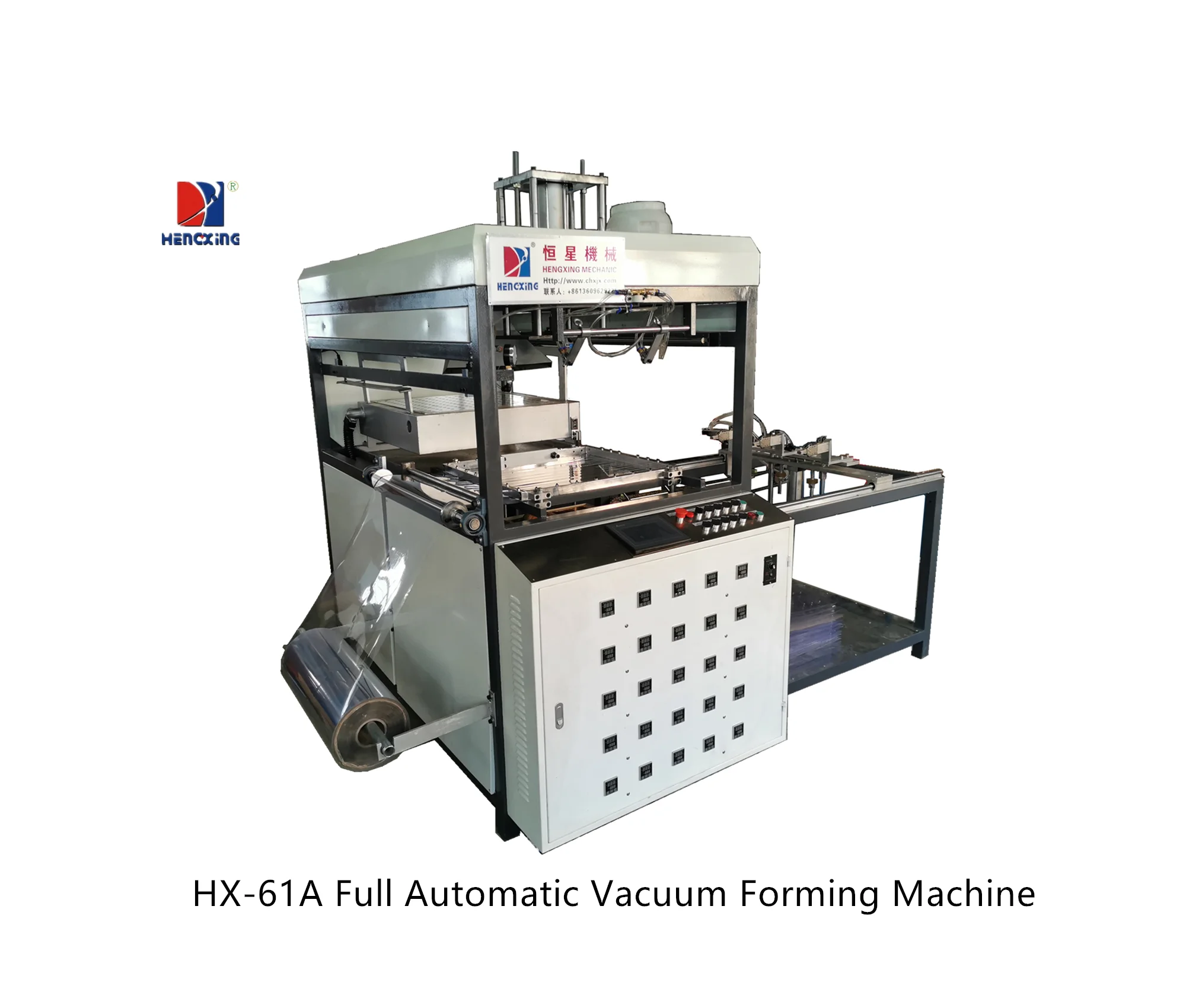

Model
HX-61A
Condition: New
Automatic Grade: Semi Automatic
Usage: Vacuum Forming Machine
Place of Origin: shenzhen longgang, China (Mainland)
Brand Name:HENGXING Blister Machinery
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Oversea service:Yes
Certification:CE
Power supply
AC380V
Power
19.5KW
Max.forming size
560*610mm(adjustable)
Max. forming height
200mm
Speed
200~300moulds/H
Thickness of material
0.1~2.0mm
N. weight
650KG
Machine size
2630*2040 *2060mm

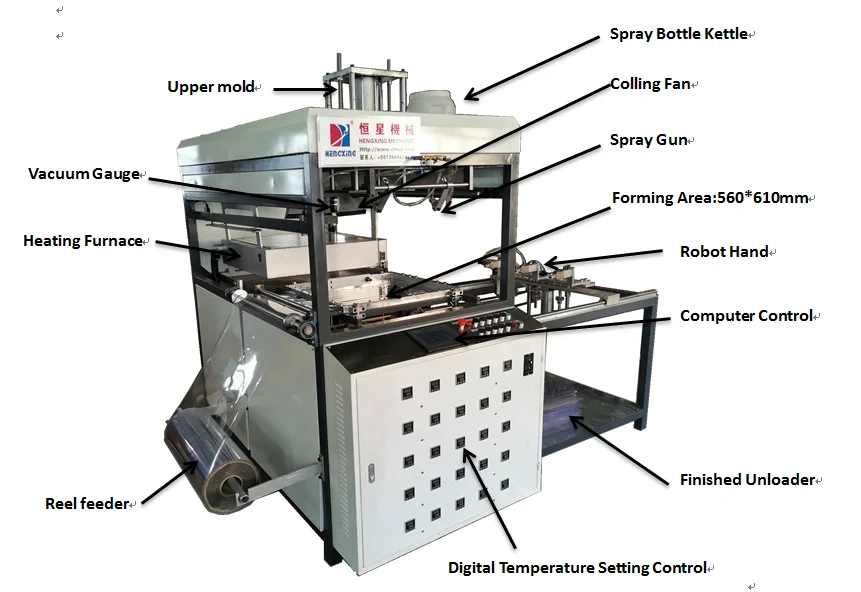

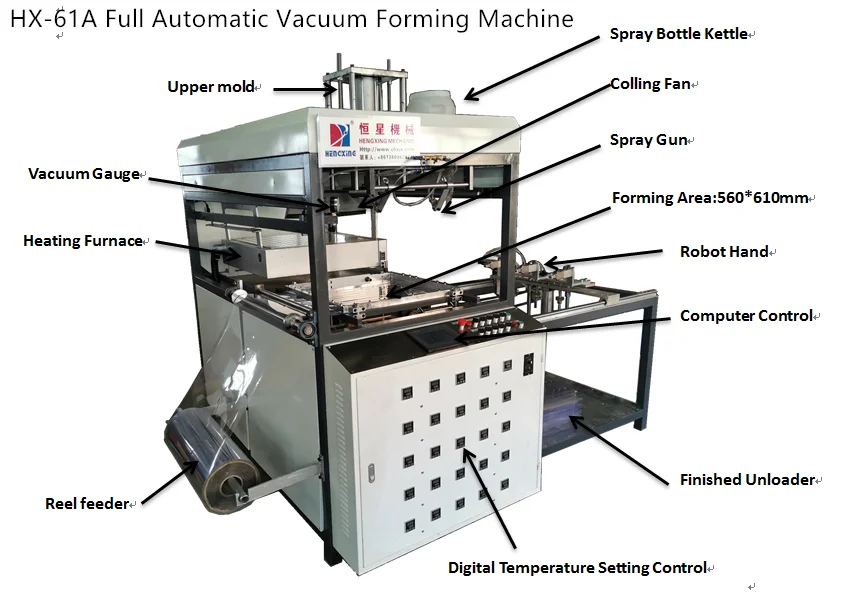

Main Features

1. Equipment investment cost is low, return is fast 2. Small batch blister production & production of blister samples 3.Fix with high quality vacuum pump and has stable performance and strong suction. 4.Independent temperature control system, simple operation and easy maintenance. 5. Large-scale cooling fan which can cool the products quickly. 6. Water-spray cooling system which suit for thick material.(optional) 7. Fully automatic.

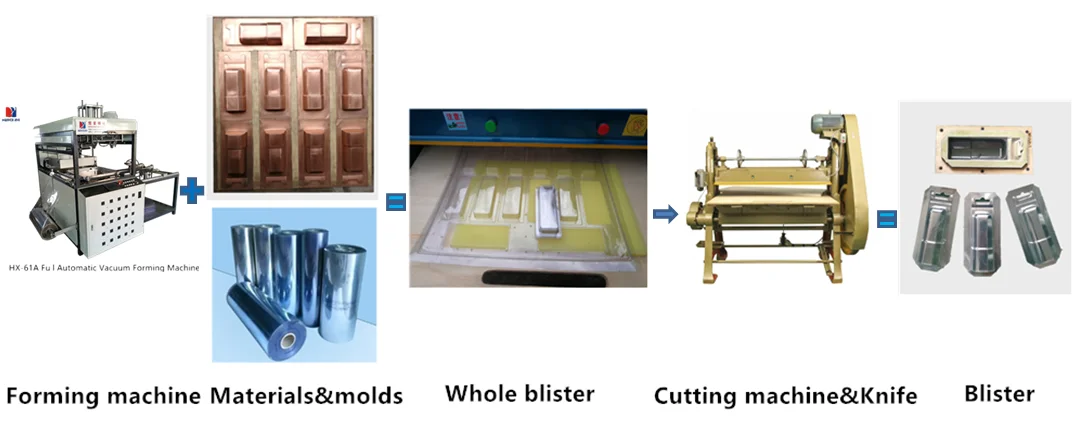

Working principle

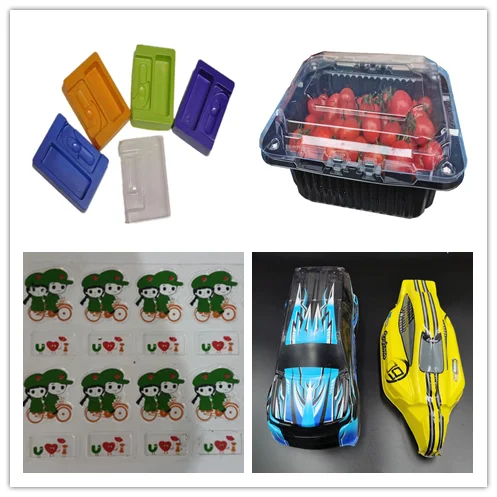

Sample

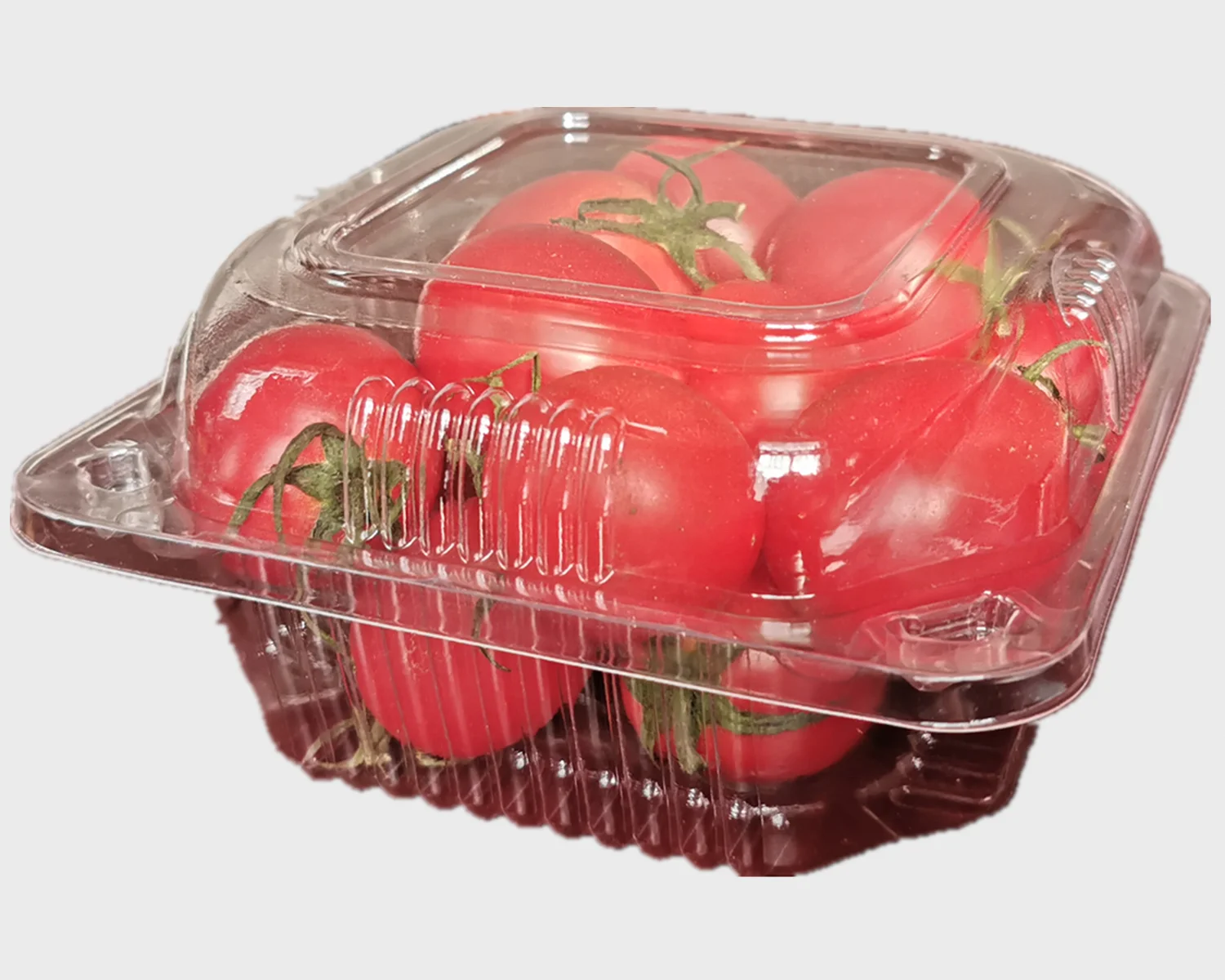

Fruit box, salad box, egg box

Cake box, dessert box

PS, ABS Electronic tray
Food Tray
Blister packaging box
Cosmetic blister box, flocking blister box
Details Images
Control Bord
Temperature control
Main Features
Name: Temperature Gauge Brand: HENGXING
Original: China
Every gauge is connecting with the heater, if one heater breaks the gauge will show u, and then u can change the heater

Knob temperature control & digital display temperature control

1.Knob temperature control, economical and durable
2.Digital display temperature control, more precise temperature adjustment
Mould Plate
Machine Parts
Name:Mould PlateForming Area: 560*610mm




Roller Carriage

Machine Parts Name: Roller Carriage Brand: HENGXING
Original: China




Vacuum pump

Name: vacuum pump

Brand: HENGXING
Original: China 20m³/h

Packing & Delivery
Packaging
Size
2000 (L) * 1250 (W) * 1950 (D)
Weight
670kgs
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products 1
HX-2 blister cutting machine
Working area:1160×400
HX-30T Hydraulic cutting machine
1.Working area: 510 × 1250mm
2.OEM
HX-6347 Thick plate plastic forming machine
1.Forming size:1500*2000 mm
2.OEM
HX-50 blister selling machine
1.Platen area: 300 × 500mm
2.OEM
HX-3350 Blister folding machine
1.Platen area: 330 × 500mm
2.OEM
HX-8000SR High frequency
1.Platen area: 400 × 600mm
2.OEM
FAQ

1.  If  I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?

Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.

All above service is free.
The service cost in customers` country was not included if requires oversea service.

2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.

3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.

4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.

6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.
Company Profile
About USHengX Blister Machinery (Shenzhen) Co., Ltd. was established in 1998. Is a professional manufacturer of plastic vacuum forming machine, semi-automatic plastic molding machine, thick plate plastic molding machine, printing positioning plastic molding machine, high-frequency welding machine. With more than 22 years of production experience, we serve more than 2,000 companies worldwide. Our products have won high praise from customers all over the world for their high quality and competitive price.
our service
1. Provide overseas installation and training services 2, equipment warranty for 1 year
