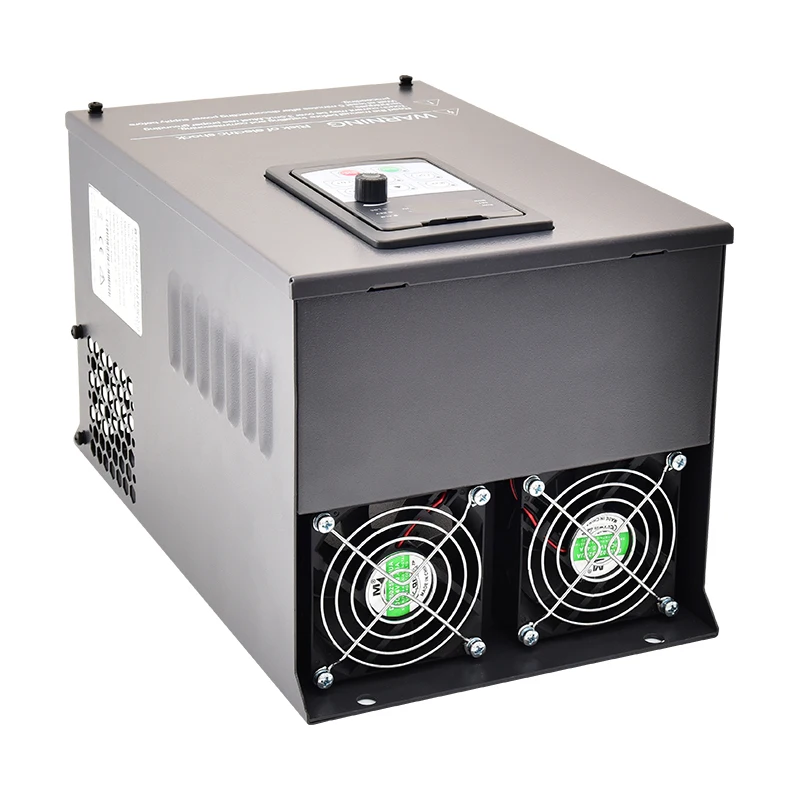

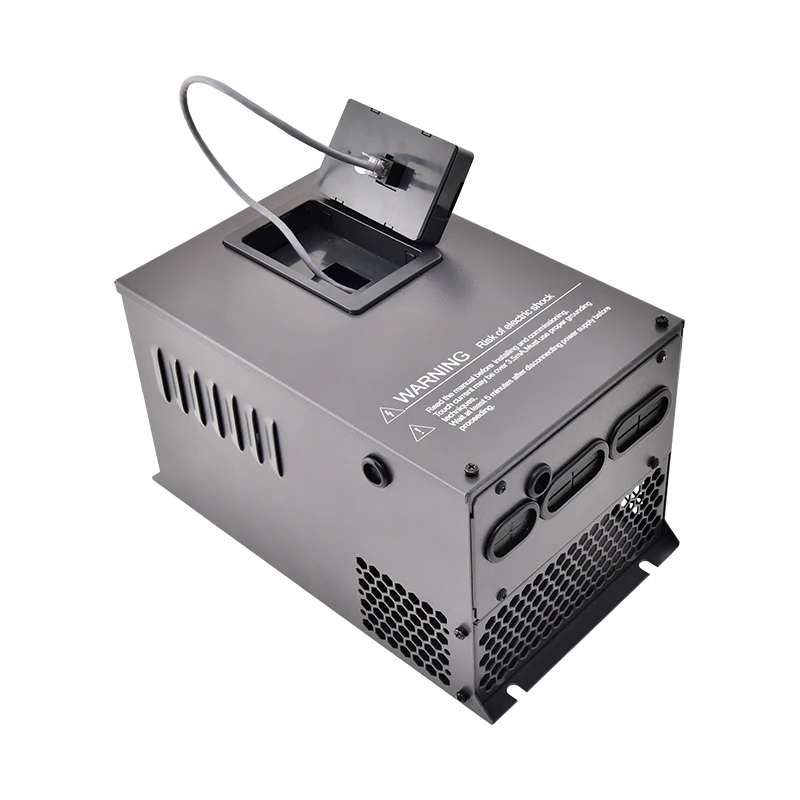

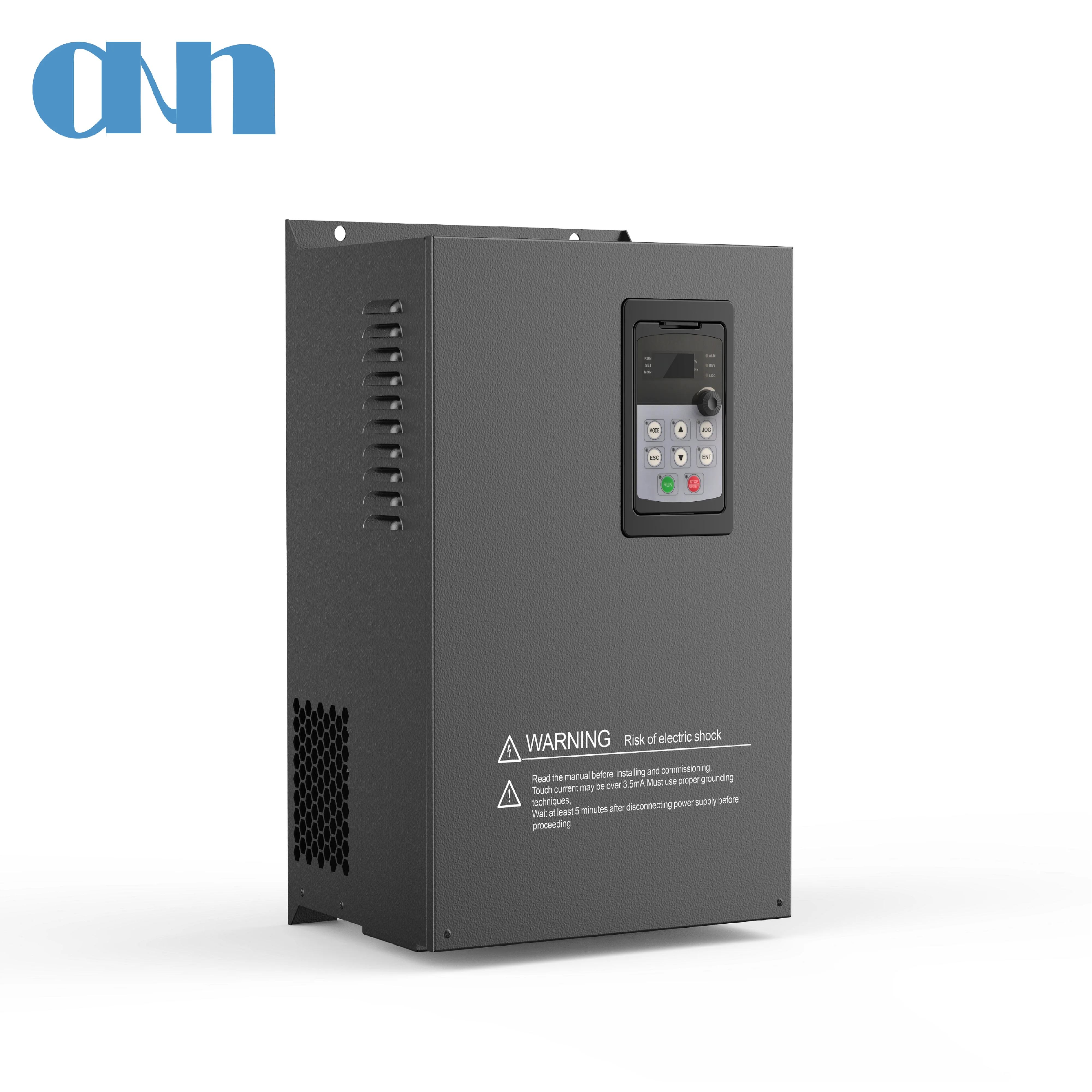

75KW 90KW variable frequency drive D31 series frequency converter 50hz to 60hz vfd drive
- Category: >>>
- Supplier: Jiaxing Dannahe Electronic Science & Technology Co. Ltd.
Share on (62324273430):
Product Overview
Description
Product Description
| MODEL | G TIPE (heavy load) | P TIPE (heavy load) | Outline Dimensions(mm) | ||||||
| input current (A) | output current(A) | motor power(kw) | input current (A) | output current(A) | motor power(kw) | H | W | D | |
| D31-0R5G/1R5P-T4 | 3.6 | 2.3 | 0.75 | 6.4 | 4.1 | 1.5 | 145 | 107 | 144 |
| D31-1R5G/2R2P-T4 | 6.4 | 4.1 | 1.5 | 8.7 | 5.5 | 2.2 | |||
| D31-2R2G/3RP-T4 | 8.7 | 5.5 | 2.2 | 10.9 | 6.9 | 3 | |||
| D31-3RG/4RP-T4 | 10.9 | 6.9 | 3 | 14 | 9.4 | 4 | |||
| D31-4RG/5R5P-T4 | 14 | 9.4 | 4 | 20.7 | 12.6 | 5.5 | 200 | 138 | 134 |
| D31-5R5G/7R5P-T4 | 20.7 | 12.6 | 5.5 | 26.5 | 17 | 7.5 | |||
| D31-7R5G/11RP-T4 | 26.5 | 17 | 7.5 | 36.6 | 24.6 | 11 | 232 | 153 | 164 |
| D31-11RG/15RP-T4 | 36.6 | 24.6 | 11 | 40 | 32 | 15 | |||
| D31-15RG/18RP-T4 | 40 | 32 | 15 | 47 | 38 | 18.5 | 335 | 200 | 195 |
| D31-18RG/22RP-T4 | 47 | 38 | 18.5 | 56 | 45 | 22 | |||
| D31-22RG/30RP-T4 | 56 | 45 | 22 | 70 | 60 | 30 | |||
D31-30RG/45RP-T4 | 70 | 60 | 30 | 80 | 75 | 37 | 410 | 260 | 214 |
D31-37RG/45RP-T4 | 80 | 75 | 37 | 94 | 92 | 45 | |||
| D31-45RG/55RP-T4 | 94 | 92 | 45 | 128 | 115 | 55 | 560 | 305 | 300 |
| D31-55RG/75RP-T4 | 128 | 115 | 55 | 160 | 150 | 75 | |||
| D31-75RG/90RP-T4 | 160 | 150 | 75 | 190 | 180 | 90 | 600 | 310 | 310 |
| D31-90RG/110RP-T4 | 190 | 180 | 90 | 225 | 215 | 110 | |||
| D31-110RG/132RP-T4 | 225 | 215 | 110 | 265 | 260 | 132 | |||
| D31-132RG/160RP-T4 | 265 | 260 | 132 | 310 | 305 | 160 | 720 | 355 | 345 |
| D31-160RG/185RP-T4 | 310 | 305 | 160 | 355 | 350 | 185 | |||
| D31-185RG/200RP-T4 | 355 | 350 | 185 | 385 | 380 | 200 | 920 | 480 | 390 |
| D31-200RG/220RP-T4 | 385 | 380 | 200 | 430 | 425 | 220 | |||
| D31-220RG/250RP-T4 | 430 | 425 | 220 | 485 | 480 | 250 | |||
| D31-250RG/280RP-T4 | 485 | 480 | 250 | 545 | 530 | 280 | 1100 | 480 | 405 |
| D31-280RG/315RP-T4 | 545 | 530 | 280 | 610 | 600 | 315 | |||
| D31-315RG/350RP-T4 | 610 | 600 | 315 | 665 | 650 | 350 | |||
| D31-350RG-T4 | 665 | 650 | 350 | 665 | 650 | 350 | 1100 | 650 | 465 |
| D31-400RG-T4 | 785 | 725 | 400 | 785 | 725 | 400 | |||
| D31-500RG-T4 | 885 | 860 | 500 | 885 | 860 | 500 | |||
| D31-560RG-T4 | 950 | 950 | 560 | 950 | 950 | 560 | 2200 | 1100 | 800 |
| D31-630RG-T4 | 1100 | 1100 | 630 | 1100 | 1100 | 630 | |||
| D31-710RG-T4 | 1280 | 1280 | 710 | 1280 | 1280 | 710 | 2200 | 1400 | 800 |
| D31-800RG-T4 | 1380 | 1380 | 800 | 1380 | 1380 | 800 | |||
