Product Overview
Description
Product Description:

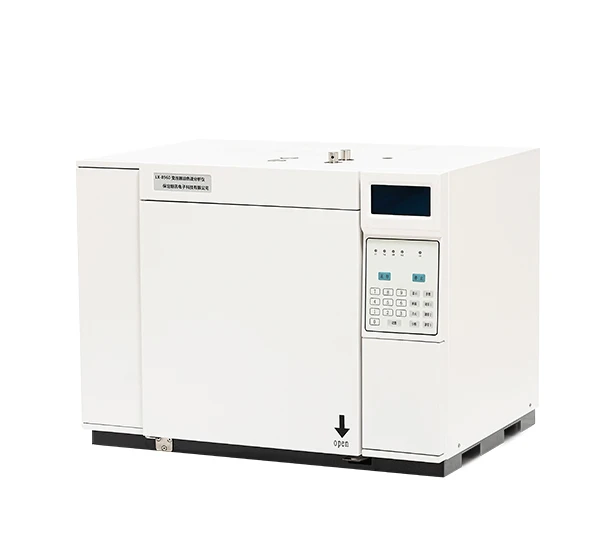

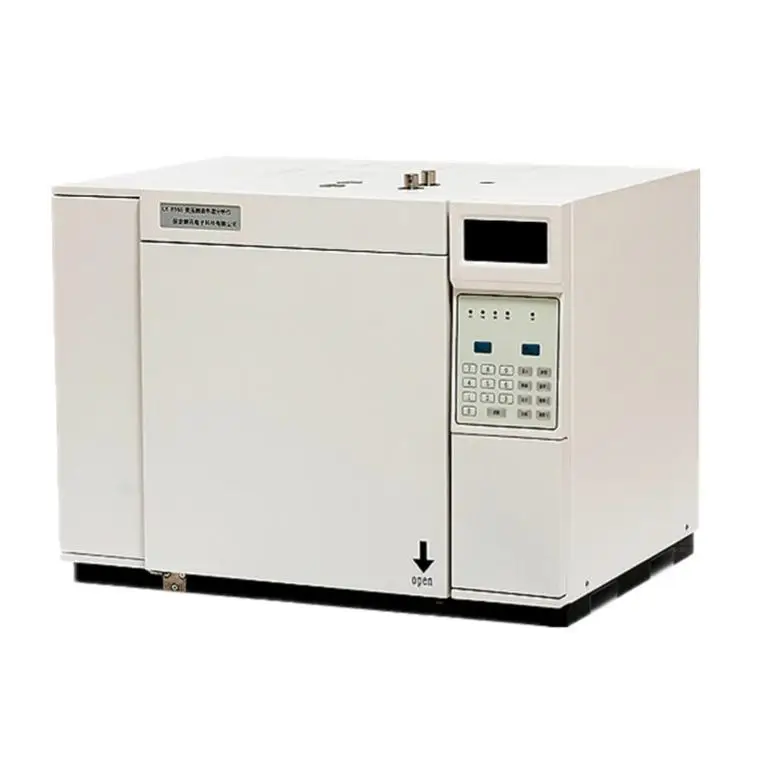

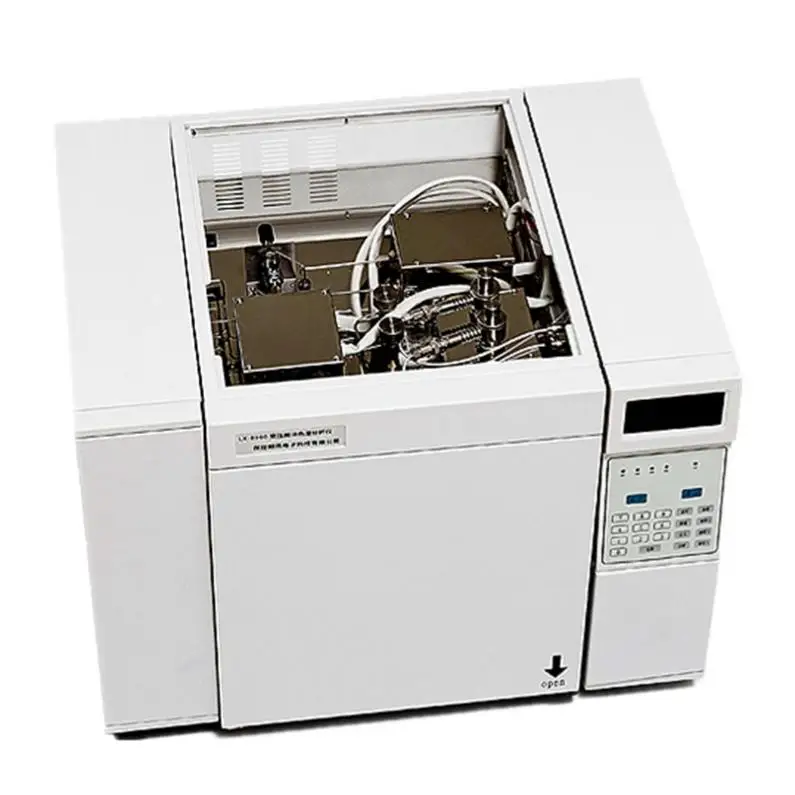

LXGC1212 network electric chromatograph is in accordance with the people's Republic of China national standard GB/T 17623-1998 "insulating oil dissolved gas component content by gas chromatography method", GB/T 7252-2001 "transformer oil dissolved gas analysis and judgment" in the guidelines recommended process of gas chromatograph and the design and manufacture of electric power system for gas chromatography.
Characteristics:
The series network power gas chromatograph has the following functions and features:
1. Using advanced 10/100M technology adaptive Ethernet communication interface, and a built-in IP protocol stack, the instrument can easily through the intranet, Internet to realize the long-distance data transmission; convenient laboratory erection,simplifies the laboratory configuration, convenient for the analysis of data management;
2. Design of 3 independent connection process. The instrument, can be connected to the local processing (Laboratory), supervisors,and supervisors, can easily make operation unit director and supervisor of real-time monitoring instrument and data analysis results;
3. instrument equipped with network edition workstation can simultaneously support multiple chromatograph work (253), the realization of data processing and control, simplifies the document management, and reduce the maximum user laboratory investment and operating costs;
4. instrument can be connected to the manufacturers through the Internet, to realize the remote diagnosis, remote program update (user license);
5. 5.7 inch color LCD screen. The instrument equipped with, operation meet the needs of different users;
6. system in English, with 2 sets of operating system, which can be switched freely.
1. Using advanced 10/100M technology adaptive Ethernet communication interface, and a built-in IP protocol stack, the instrument can easily through the intranet, Internet to realize the long-distance data transmission; convenient laboratory erection,simplifies the laboratory configuration, convenient for the analysis of data management;
2. Design of 3 independent connection process. The instrument, can be connected to the local processing (Laboratory), supervisors,and supervisors, can easily make operation unit director and supervisor of real-time monitoring instrument and data analysis results;
3. instrument equipped with network edition workstation can simultaneously support multiple chromatograph work (253), the realization of data processing and control, simplifies the document management, and reduce the maximum user laboratory investment and operating costs;
4. instrument can be connected to the manufacturers through the Internet, to realize the remote diagnosis, remote program update (user license);
5. 5.7 inch color LCD screen. The instrument equipped with, operation meet the needs of different users;
6. system in English, with 2 sets of operating system, which can be switched freely.
The main technical indicators:
Item | LXGC |
Test gas | 7 Gases or 9 Gases |
Temperature control area | 6 ways |
Temperature-programmed order | 8 order |
Programming | 1℃-50℃/min |
Injector types | packed column sampler capillary injector |

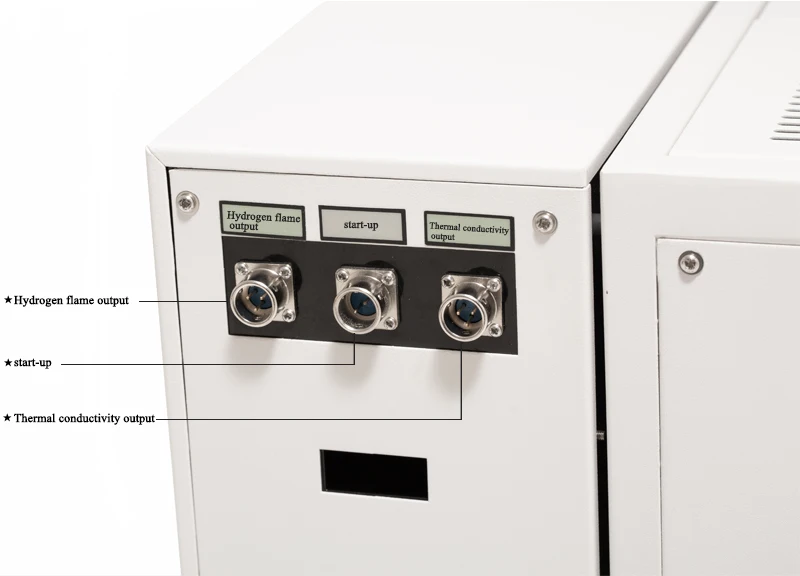

Detector number | FID ,TCD, optional |
Start sampling | manual ,automatic optional |
Communication interface | USB |
The detection limit: ≤2 × 10-12g / s (n-hexadecane / iso-octane) Baseline Noise: ≤2 × 10-13A Baseline Drift: ≤2 × 10-12A / 30min Linear: ≥106 Adjustable automatic ignition Settling time: ten minutes |
the thermal conductivity detector (TCD): Semi-diffused structure Power supply with constant current control mode Sensitivity: ≥5000mV · ml / mg. Baseline noise: ≤10μV. Baseline Drift: ≤100μV / 30min. Linear ≥ 104 |
temperature indicators: Oven: the temperature 5 °C ~ 420 °C Accuracy ± 0.1 °C Injector: The room temperature 5 °C ~ 420 °C Accuracy ± 0.1 °C Detector: the temperature 5 °C ~ 420 °C Accuracy ± 0.1 °C Reformer: The room temperature 5 °C ~ 420 °C Accuracy ± 0.1 °C |

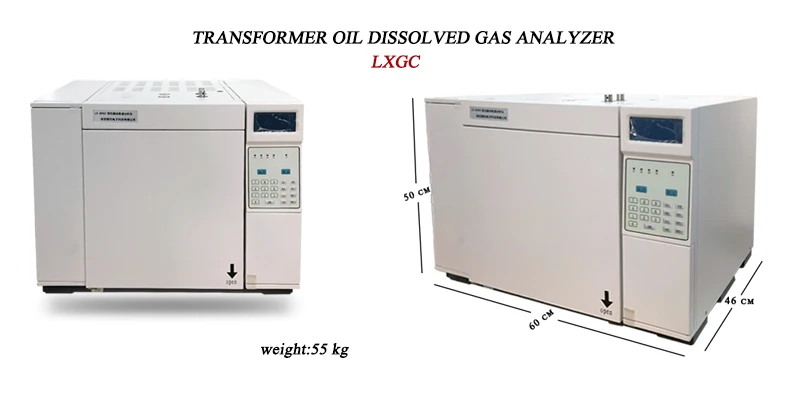

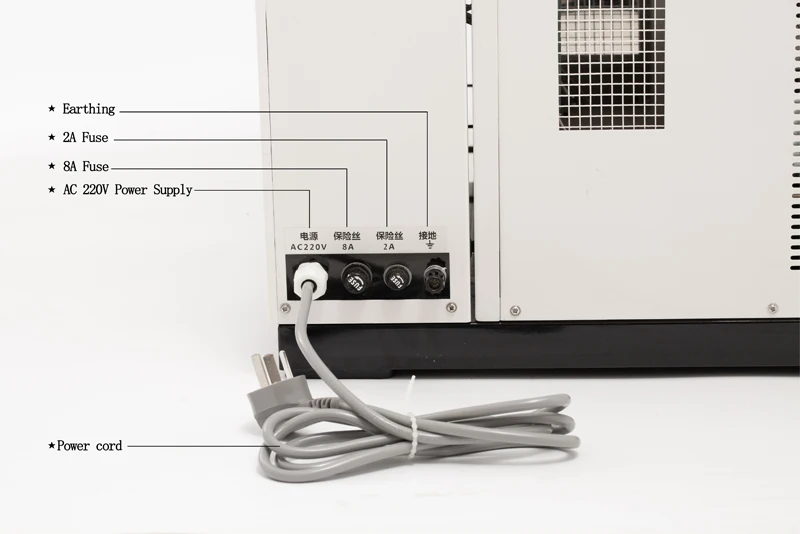

the other parameters: Power: 220V ± 10%V, 50Hz, Power: ≤2 kW Weight: 55 KG Dimensions: 46cm × 60cm × 50cm |
