Roller glass coating machine
US $10000-$13000
Tempered Glass Making Machine CE Certification Flat and Curved Tempered Glass machine
- Category: >>>
- Supplier: Luoyang Lever Industry Co. Ltd.
Share on (62324640297):
Product Overview
Description
Product Description
Tempered Glass Making Machine CE Certification Flat and Curved Tempered Glass machine

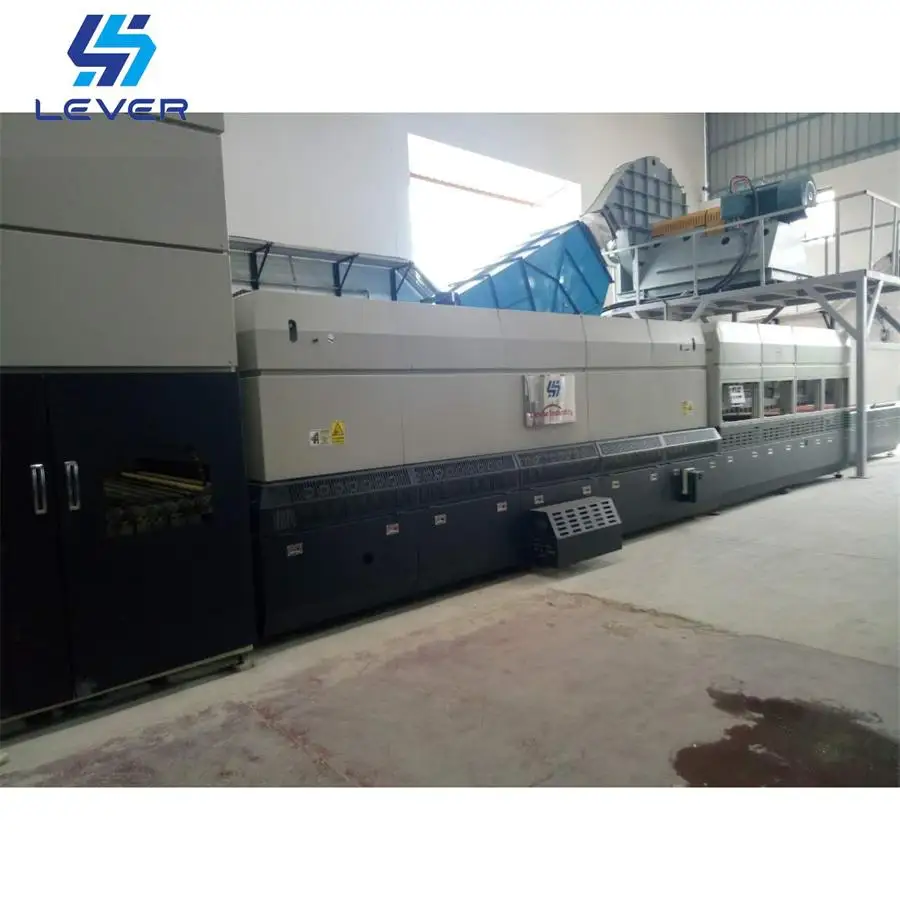

LV-TFB-2436-15L Combined Flat and Bend Tempered Glass Machine is a special plant used to produce the flat and curved tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), Automobile bus side glass, shower room, garden fence, elevator, furniture, etc.

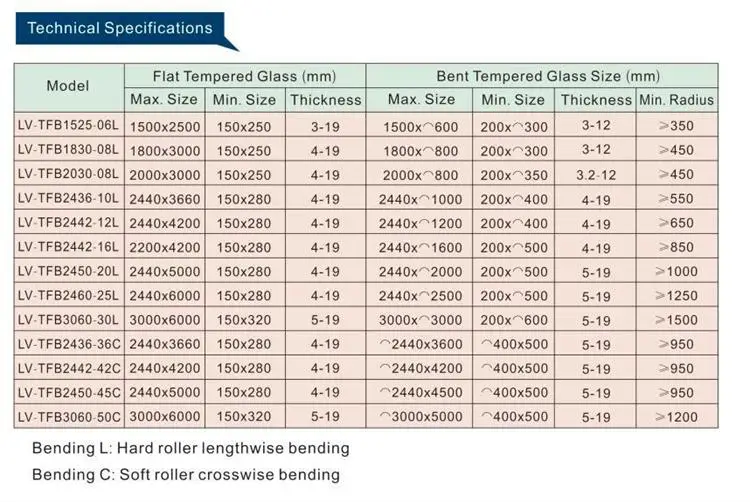

Name | Flat Tempered Glass | Curved Tempered Glass | |
Max Loading Area | 2440 x 3660 mm | 2440 x ⌒1500mm | |
Min. Glass Size | 150 x 300 mm | 300 x ⌒400mm | |
Glass Thickness | 4~19mm | 5~19mm | |
Min. Radius | 150 x 300 mm | R≥800mm, for 4-8mm; | |
Productivity | 15-17 loads per hour (take 5mm for example) | 27 loads per hour (take 5mm float glass for sample) | |
Blower Quantity & Power | 250KW x 1SET (Controlled by frequency inverter) | ||
Finished product rate | ≥97% (5mm as sample) | ||
Main Features

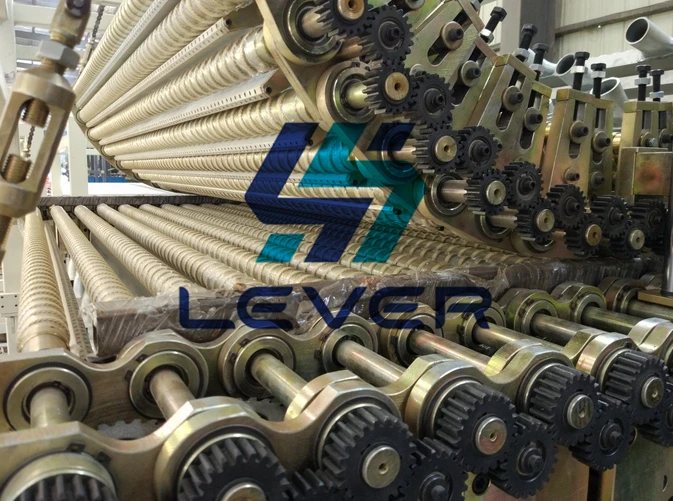

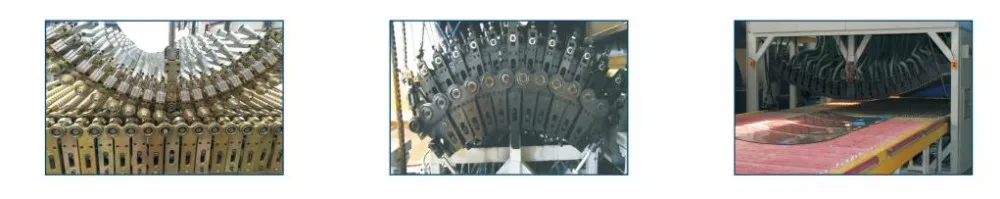

1). The process for glass curvature forming is controlled by computer. You can input the needed radius data to computer, then required glass will be produced accordingly. But some time, for the new radius, you should make some mini-adjustment manually at the first time. This section is suitable to process 3.2mm automotive car side door glasses.

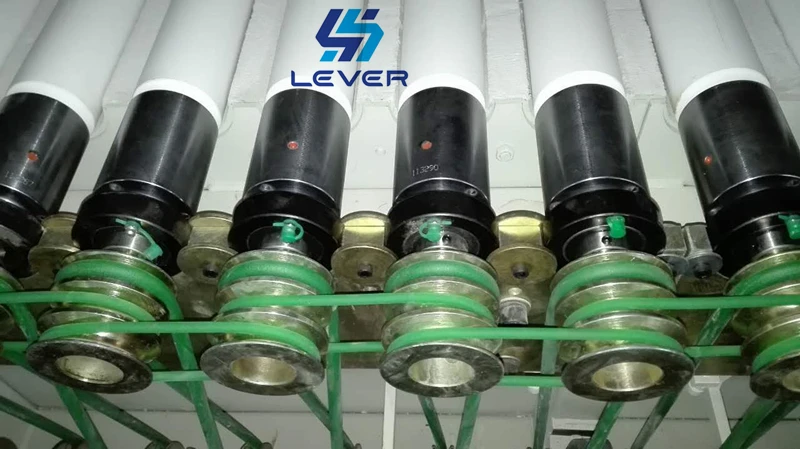

2). Materials: aluminum-alloy wheel with fiber rope

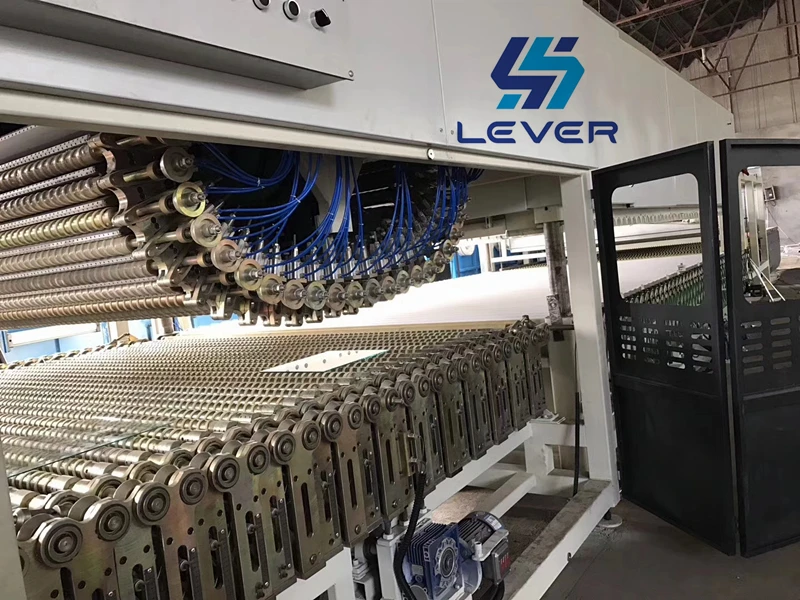

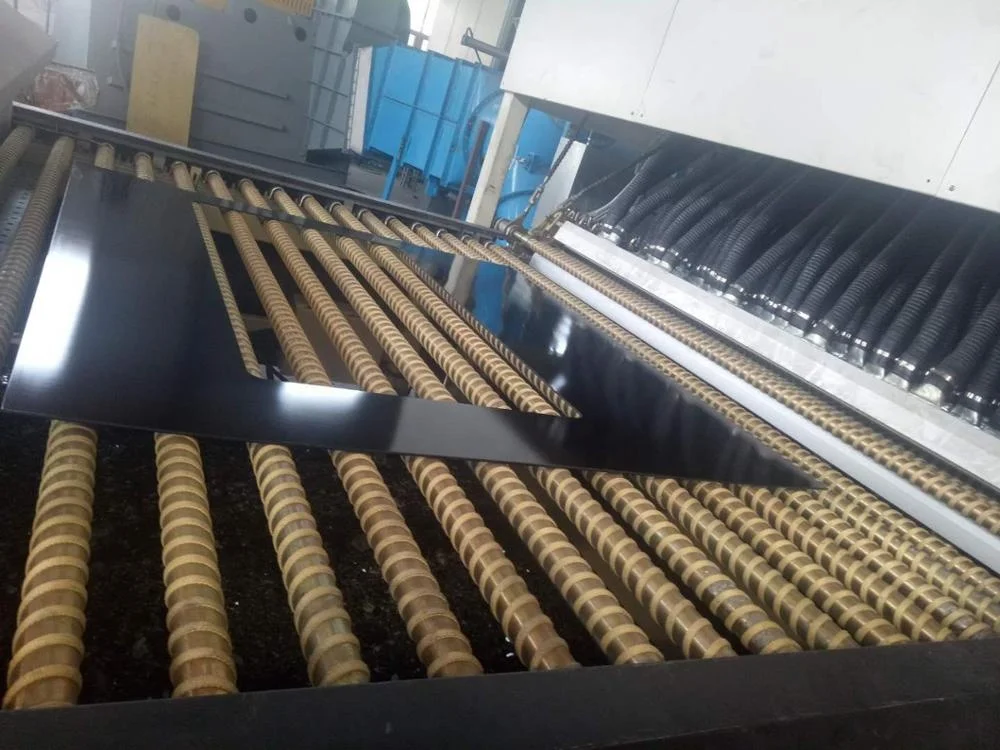

3). As separated structure, the cooling quench for bent tempering are fixed among the rollers and made actions for deformation accordingly. The cooling air is blown in from the grid back through heat resistant soft hose.4). Without any mold. The forming method is automatic quench transmutation.
5). Fixed length swinging and reciprocating swinging during the whole process
6). There is sensor for glass length measuring.
7). It is very easy to change the glass with different thickness or radius.
Certifications

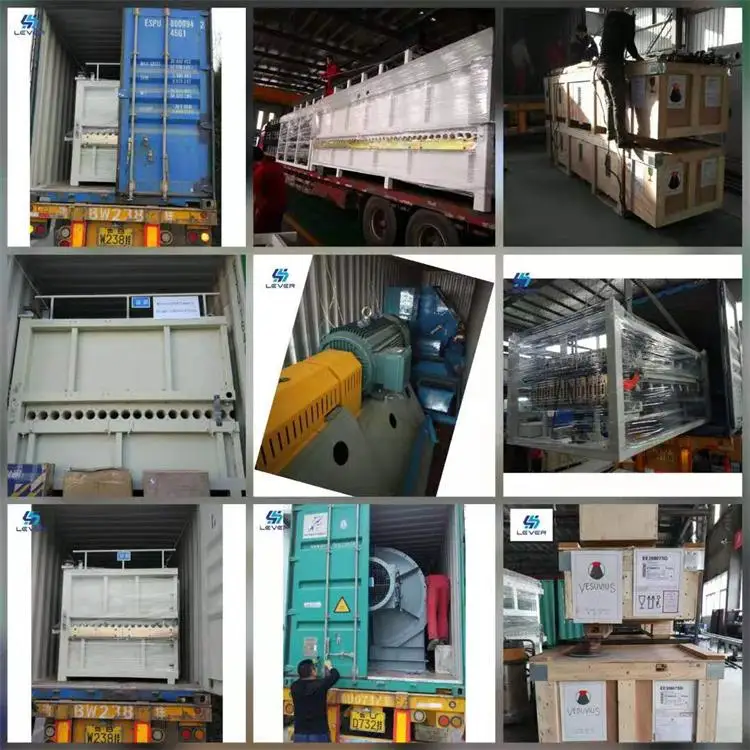

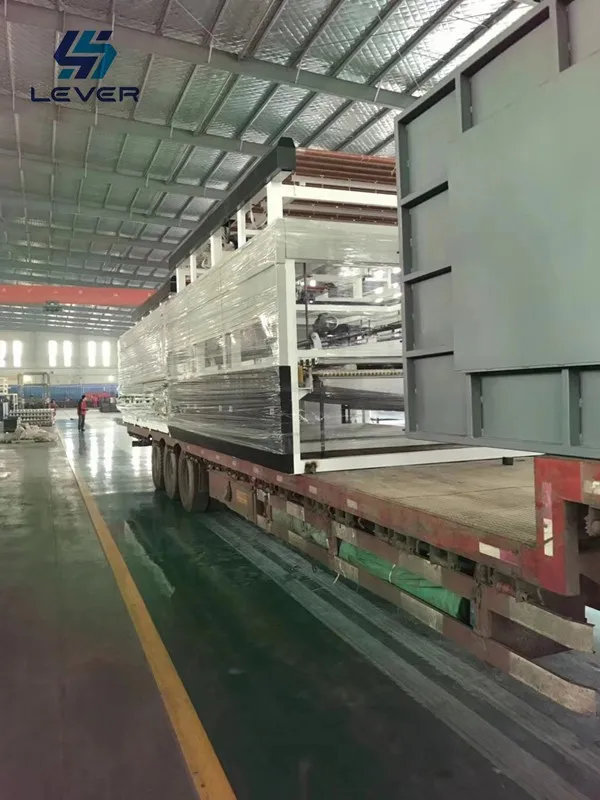

Packing & Delivery
Shipping in containers by sea
Glass Tempering Furnace will be Packed in wooden case or plastic film well and loaded in 40hHQ Containers to ship by sea.
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 3.2 T | |
Packaging Details | The normal package is film packing in container. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 2.5T | |
Packaging Details | The ceramic rollers and other small parts are packed in wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
Flat Glass Tempering Plant 1500*3600mm,3-19mm
91.8% Response Rate
Horizontal Rollers Hearth Convection Flat Glass Tempering Machine
91.8% Response Rate
2440*6000mm big size flat architectural tempered glass making furnace
91.8% Response Rate
Exhibition
Lever Glass Attend Mexician Glas Exhibition 2019
(Glass Technology Expo Mexico) in Mexico city
Date: Jun 11～13, 2019
Our Booth no.: AE13-AD14

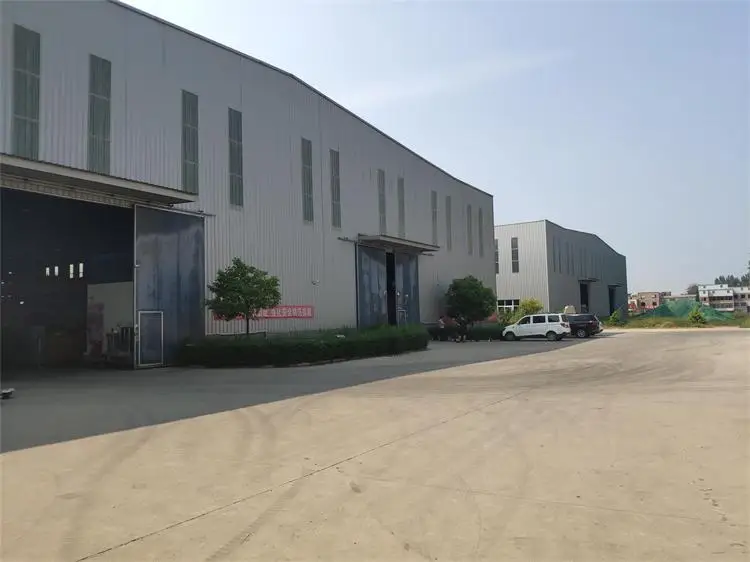

Company Profile
