asterisk 3CX phone system support dag1000 4 port ata adapter fxo gateway
asterisk 3CX phone system support dag1000 4 port ata adapter fxo gateway
asterisk 3CX phone system support dag1000 4 port ata adapter fxo gateway
asterisk 3CX phone system support dag1000 4 port ata adapter fxo gateway

asterisk 3CX phone system support dag1000 4 port ata adapter fxo gateway

Share on (62324662188):


Price:

Quantity:


Product Overview

Description


Products Description

DAG1000-4O
4 * FXO ANALOG VOIP GATEWAY

DAG1000-4O FXO analog gateway is a type of access gateway offering seamless connectivity between IP-based telephony networks and
legacy telephones (POTS) and PBX systems. The analog gateway has 4 FXO ports and is used to connect to analog PBX or the PSTN
lines of telecom carriers. With the standard SIP protocol, it's compatible with leading IMS/NGN platforms and SIP-based IP
telephony systems. It provides low-cost and easy-to-use VoIP solutions for small businesses, SOHO, remote offices as well as
enterprises with multiple branches.

Analog Gateway
Model Options
Description
DAG1000
DAG1000-2S
DAG1000-4S
DAG1000-4O
DAG1000-8S
DAG1000-8O
DAG1000-4S4O
2FXS (RJ11), 1WAN, 1LAN
4FXS (RJ11), 1WAN, 1LAN
4FXO (RJ11), 1WAN, 3LAN
8FXS (RJ11), 1WAN, 3LAN
8FXO (RJ11), 1WAN, 3LAN
4FXS, 4FXO (RJ11), 1WAN, 3LAN
DAG2000
DAG2000-16S
DAG2000-16O
DAG2000-24S
DAG2000-32S
16FXS (RJ11), 4LAN
16FXO (RJ11), 4LAN
24FXS (RJ11& RJ21), 4LAN
24FXS (RJ11& RJ21), 4LAN
DAG2500
DAG2500-48S
DAG2500-64S
DAG2500-72S
48FXS (RJ21), 2LAN
64FXS (RJ21), 2LAN
72FXS (RJ21), 2LAN
DAG3000
DAG3000-112S
DAG3000-96S
112FXS (RJ45), 4LAN
96FXS (RJ45), 4LAN
Details Images

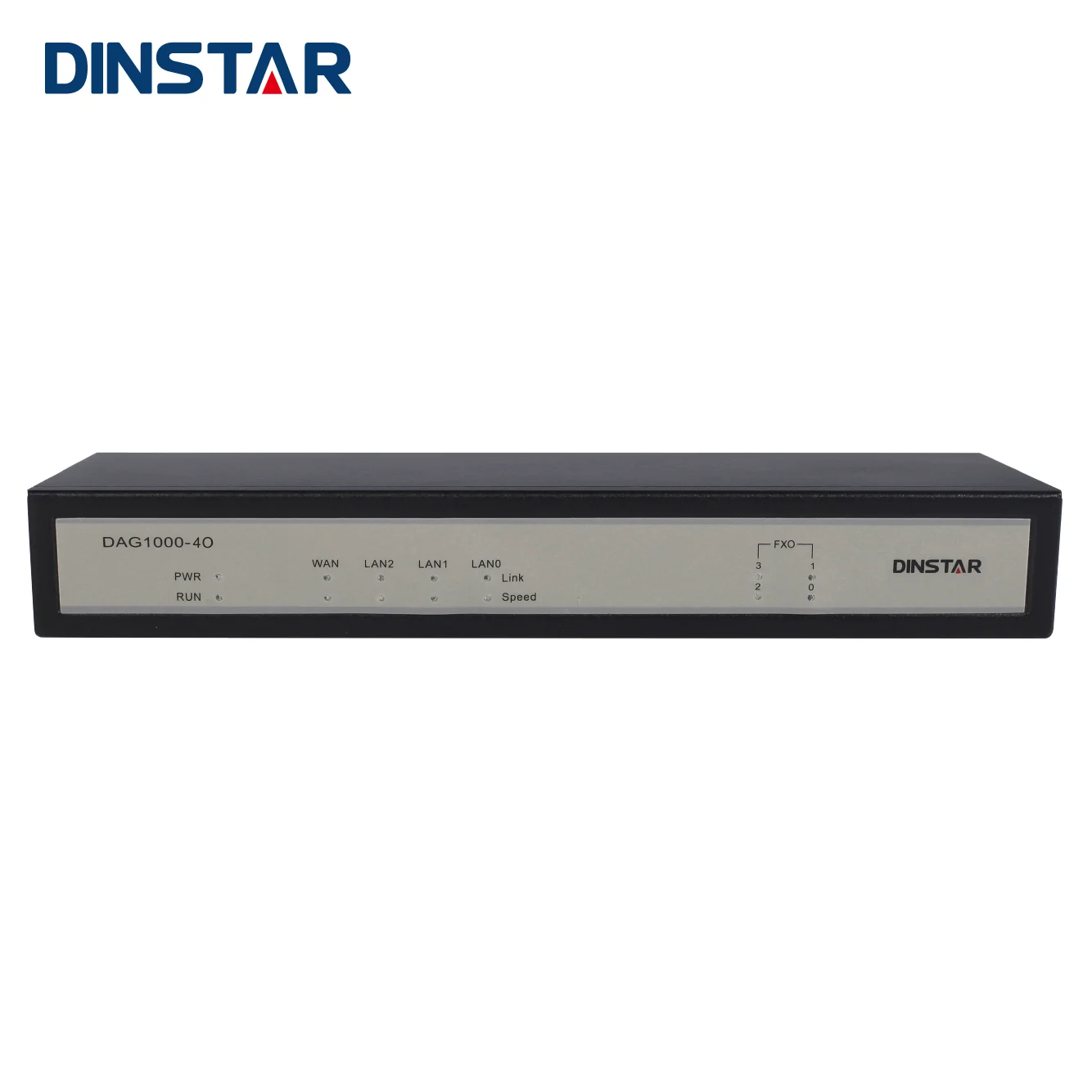

                         Front

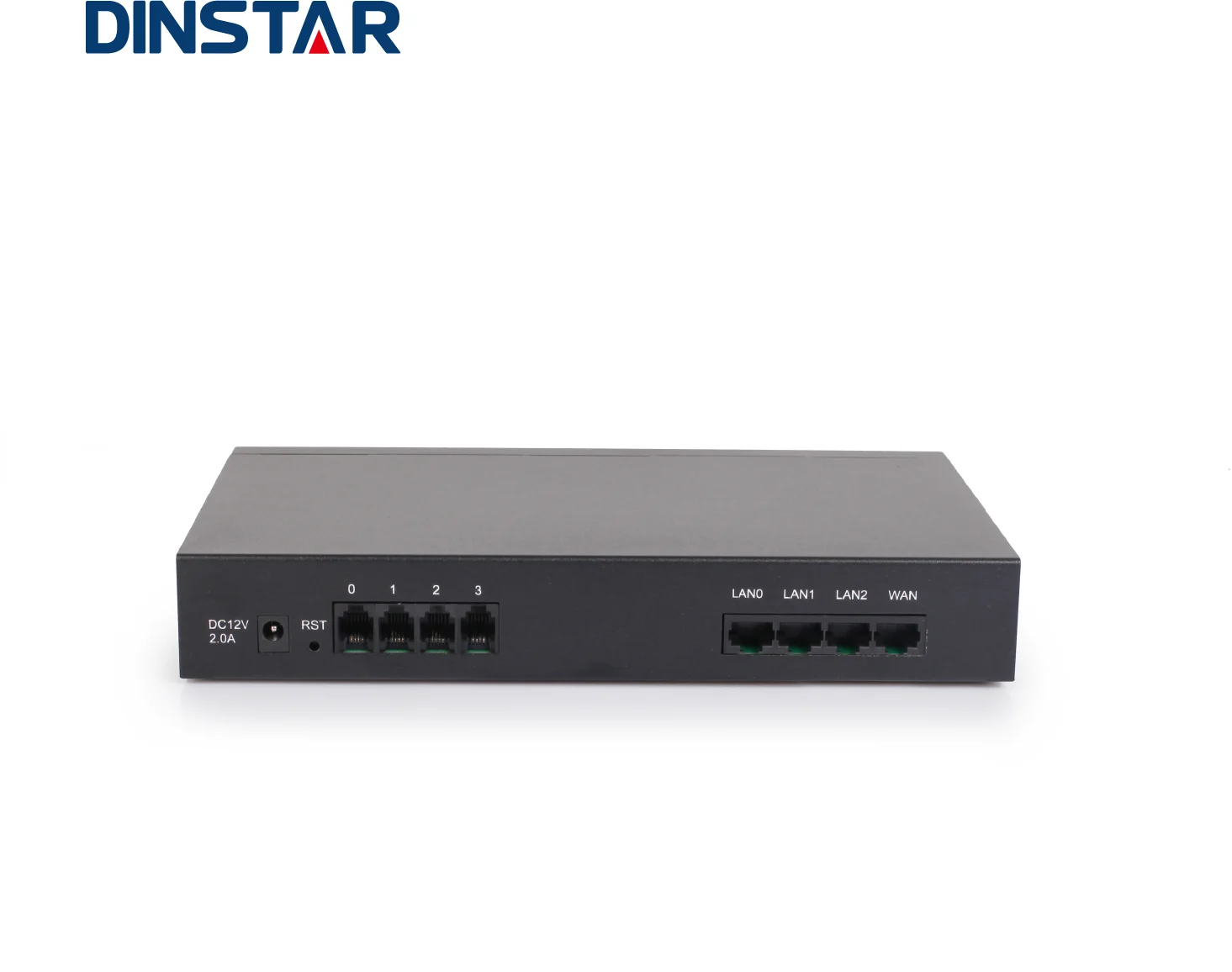

                            Back
\t\t\t\t\t\t\t\t\tkey features \t\t\t\t\t\t\t

* Cost effective gateway with 4 FXO ports
* Fax over IP (T.38 and Pass-Through)
* Support IPv4 and IPv6
* TR069 and SNMP
* Elastix/Broadsoft Certification
* Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR,G.726 etc.
* Fully compatible with leading IMS/NGN, SIP based IP telephony system

Project Scenario
Product Paramenters
Physical Interfaces
Capacity
4 FXO, RJ11
Ethernet Interfaces:
1WAN, 3LAN, 10/100Mbps, RJ-45
Console
1*RS232, 115200bps
FXO
Connector: RJ11
Dial Mode: DTMF/Pulse Dialing
Caller ID: FSK, DTMF
Polarity Reversal
Answer Delay
Busy Tone Detection
No Current Detection
Voice & FAX
G.711A/U law, G.723.1, G.729A/B,G.726, AMR,iLBC
Silence Suppression
Comfort Noise Generation(CNG)
Voice Activity Detection(VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ
VoIP
Protocol: SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT,rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Network Features
* Static/Dynamic IP,
* PPPoE
* DHCP Client
* IPv4/IPv6
* TCP, UDP,TFTP, FTP, ARP,RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS
* Ping / Tracert
* DHCP Option 66,120,121
* Port Group
* Web ACL
* Telnet ACL
* Action URL
* Digitmap
* Routing Rules based Prefixes
* Caller/Called Number Manipulation

Maintenance
SNMP v1/v2/v3
TR069
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Ping/Tracert Test
Network Capture
Outward Test(GR909)
NTP/Daylight Saving Time
IVR local Maintenance
Cloud-based Management
