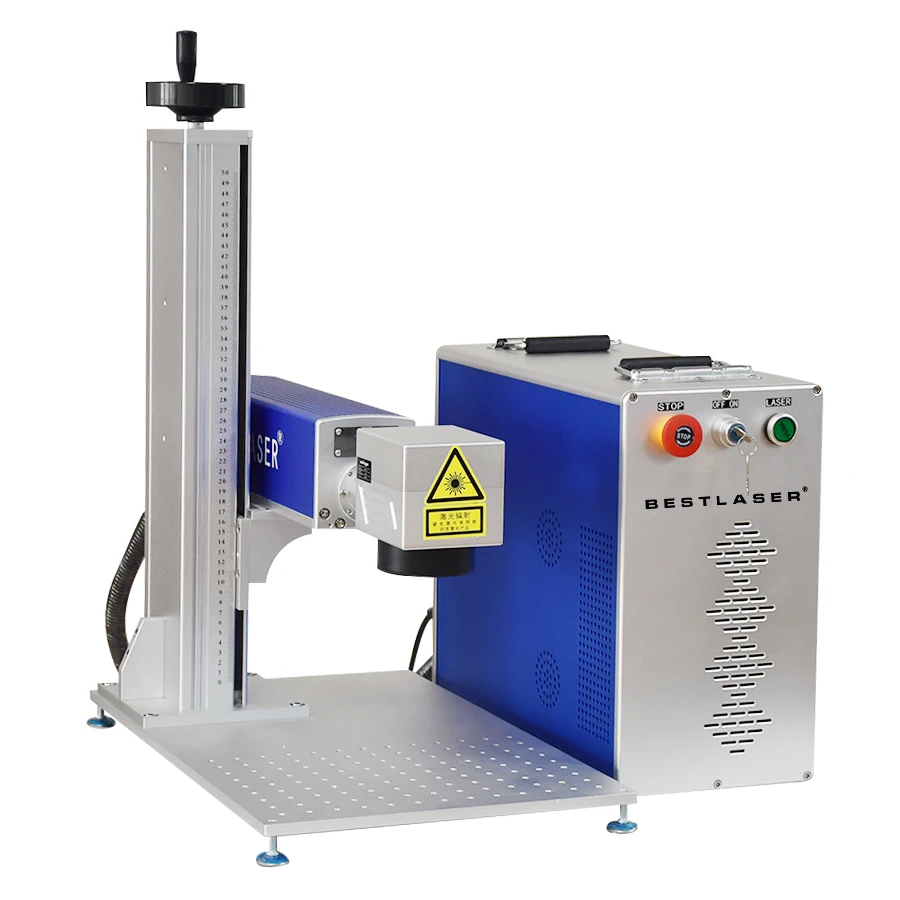

optical color portable mini metal 20 30w 50w fiber laser marking machine
- Category: >>>
- Supplier: Wuhan Beisida Laser Co. Ltd.
Share on (62324674209):
Product Overview
Description
optical color mini metal 20 30w 50w fiber laser marking machine
Machine Introduction
The portable laser marking machine is a new generation of laser marking system developed by Best Laser using the world's most advanced laser technology.
The fiber laser is used to output the laser, and the high-speed scanning galvanometer system is used to achieve the marking function. The optical fiber laser marking electromechanical light conversion efficiency is high, up to 20% (YAG is about 3%), which greatly saves energy.
Air-cooled cooling, good heat dissipation, no air conditioning and water circulation system, optical fiber can be coiled, the whole machine is small in size, the output beam quality is good, the resonant cavity has no optical lens, and it has the functions of no adjustment, no maintenance, high reliability and high performance.
Widely used in plastic buttons, plastic buttons, chargers, mobile phone light-emitting buttons and other marking work.
It is especially suitable for fields with high depth, smoothness and fineness, such as clocks, molds, bitmap marking and so on.
Fiber Laser Marking Machine for Metal Main Features

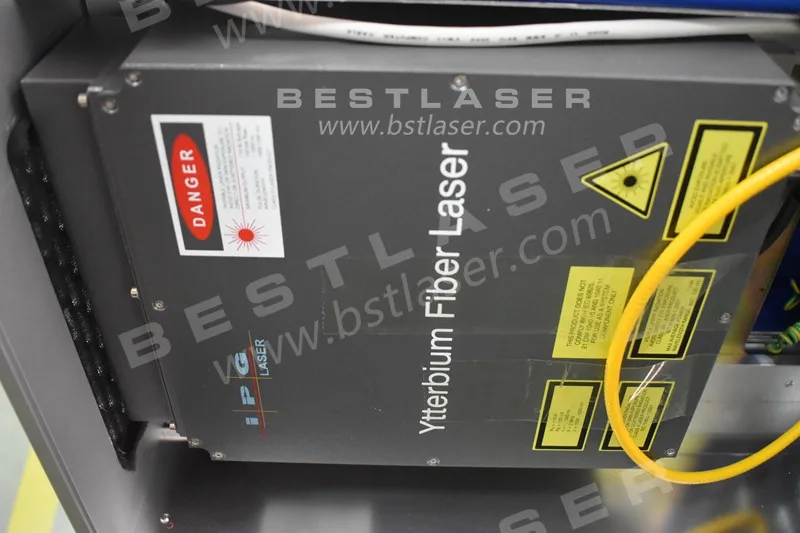

Laser Source with Adjustable Pulse Width
with the advantages of short pulses, lower pulses energy and less heated area,applying on Laser anodized Aluminum Nameplate for laser marking black color,it's widely used in Ipone Cover Marking and we have original technical parameters for you
Machine Cover
Integrated design with aluminum alloy materials ,high rigidity,non-deformation and get resty forever.whole machine appearance look modern and beautiful .

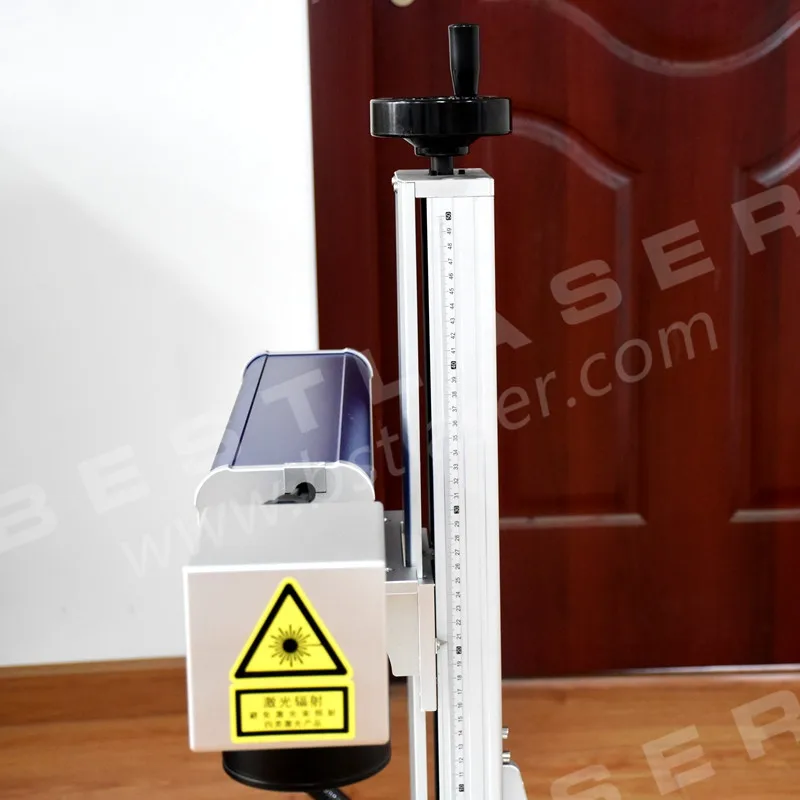

Column with Ruler Scale
Help user to adjust position the height of different marking object. So can positioning and find it easily next time
Singapore Imported Lens
High Ligh Transmission and electro-optical conversion efficiency

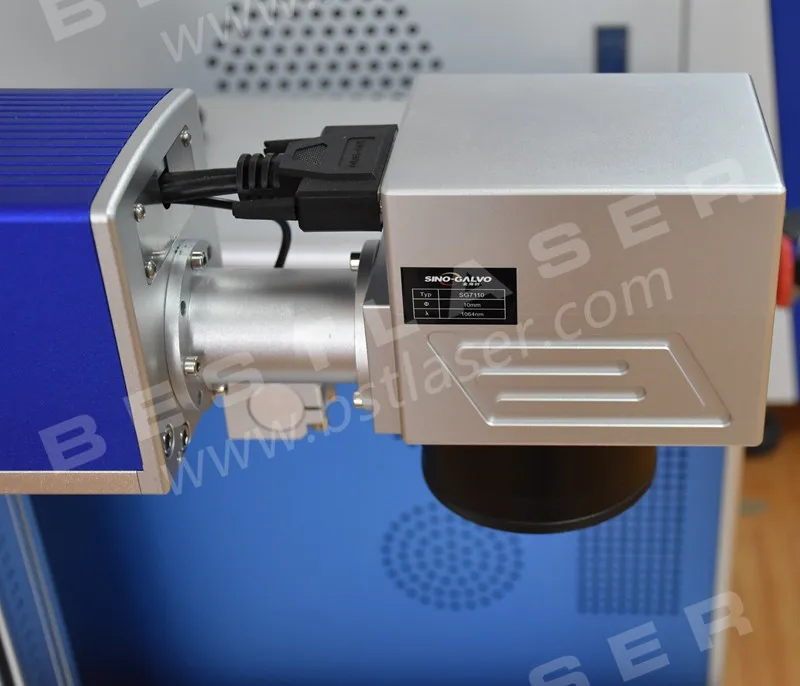

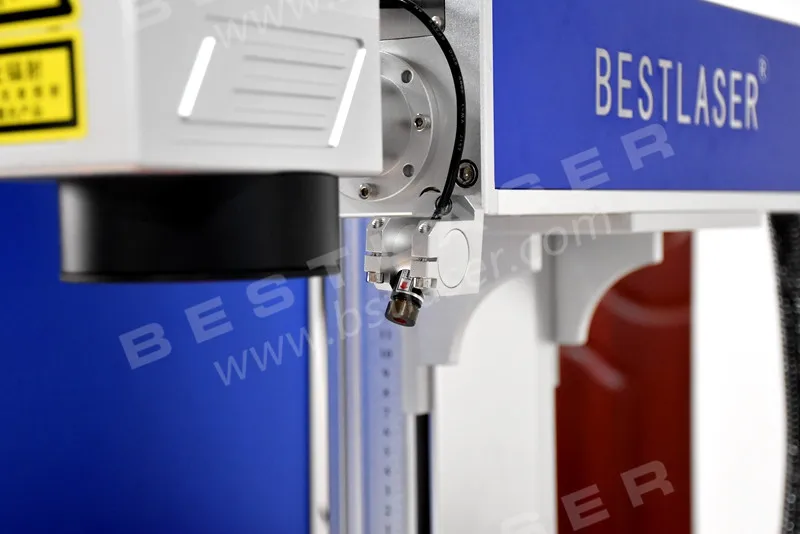

Galvonometer Scanning Head
Singapore Imported Digital Scanning Head Ensure High Precision and Fast Speed

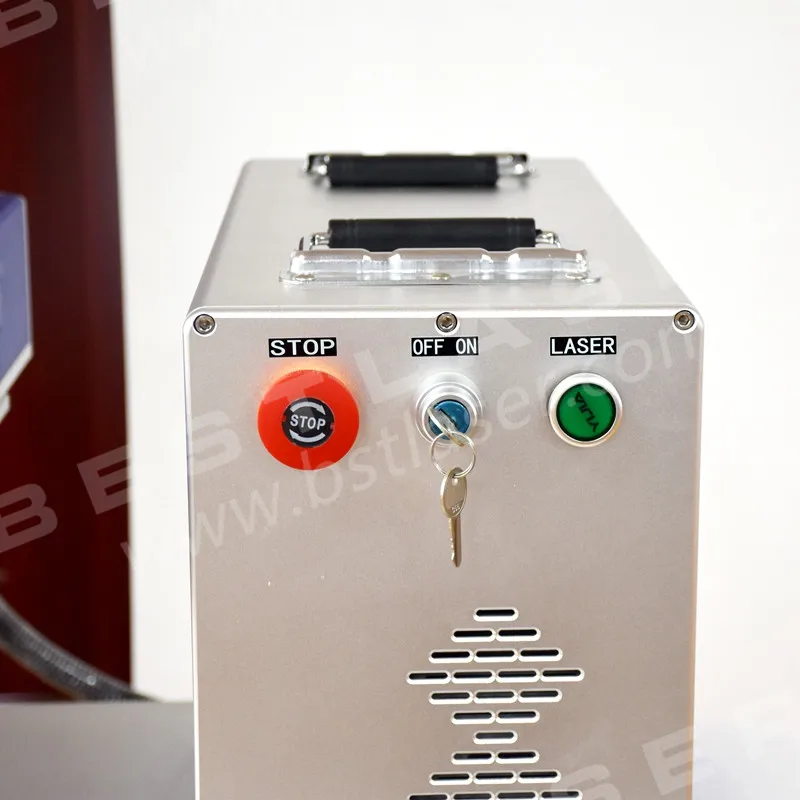

Buttons
Urgent stop-key switch-laser power button

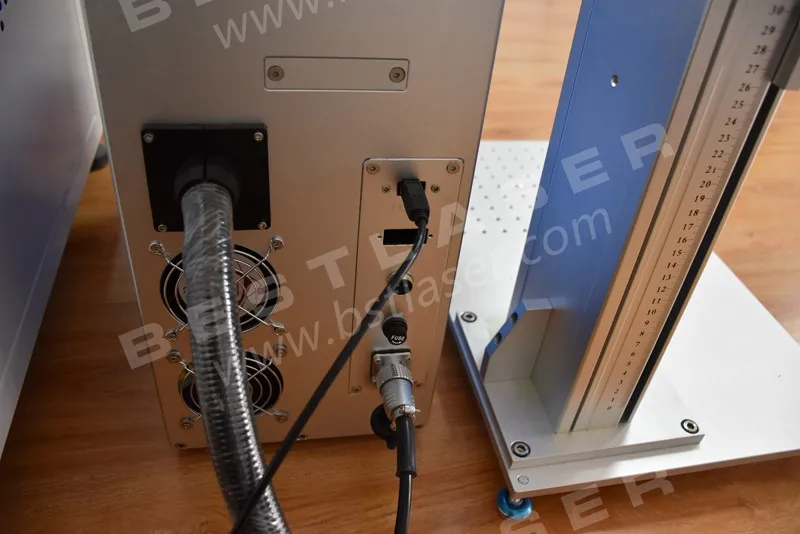

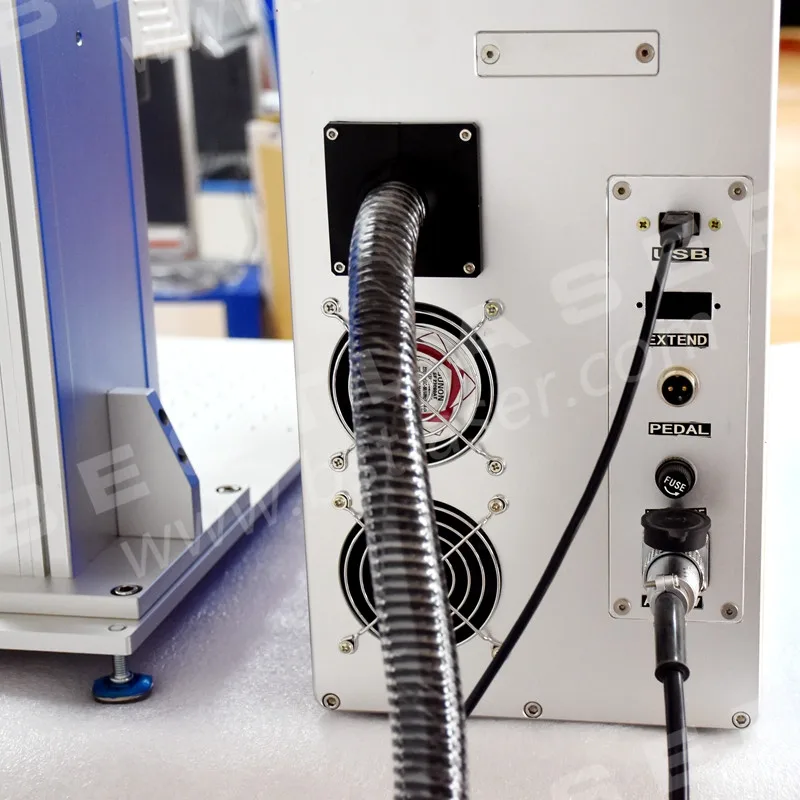

USB port and Rotary port
The exhaust fan is installed on the back of the machine.
Also, the USB port and rotary port is installed and you can connect with PC and rotary device.
Protective Glasses
To avoid laser hurt people's eyes, we have protective glasses as option.
Firm and Stable Wood craftcase Package
We use professional wood craftcase package, which is very safe for long transportation. No matter shipment by Air or Sea, it protects the machine from damage.
Item | laser marking machine for metal BE-F20B | ||||
Laser Type | 1064nm | ||||
Wavelength | 20-80Khz | ||||
Laser Pulse Frequency | <1.4M2 | ||||
Beam Quality | 10w/20W/30W/50w/100w | ||||
Peak Laser Power | <8000MM/S | ||||
Marking Speed | ≤0.5MM | ||||
Marking Depth | ±0.01MM | ||||
Repetition Precision | 0.02MM | ||||
Min. Line Width | 0.2MM | ||||
Min. Character | Air Cooling | ||||
Cooling Mode | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG | ||||
Graphic Formats Supported | AC 110/220V±10%, 50/60Hz | ||||
Power Source | 10-35 ℃ | ||||
Working Temperature | <75%( No condensation) | ||||
Working Humidity | Clean, free of dust | ||||
Working Environment | < 1000W | ||||
Gross Power | IP54 | ||||
Safety Protection Class | Ⅳ | ||||
Laser Generator Safety Class | 550-1200MM | ||||
Adjustable Height Direction(Upper surface) | 400-1500MM | ||||
Adjustable Height Direction(Side) | 0-200MM | ||||
Front And Back Direction Adjustable Distance | Any Angles | ||||
Marking Angles | 0~35℃ | ||||
Best Laser Fiber Laser Marking Machine for Metal Lighters is suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts,Plastic& Paper Materials, the Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.
Optional Items:
Rotary device(65mm, 80mm, 100mm diameter)
Rotary device can hold the round object and rotate when marking. It realizes rotary working.
Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)
The machine need equip with different focus lens if marking size different.
Also, marking size different, power and laser spot size vary.
Working table
It helps to adjust the focus distance.
XYZ axis can be adjusted up and down flexibly.
Fume Extractor
To protect the environment and human's health, the fume extractor can clean the fumes and dust occurred when working.
Rotary Table
The rotary table can rotary automatically when marking. It brings convenience when marking on small objects.
XY electric moving table
It works when marking on big size material. It can divide the marking job into several times.
Packaging | ||
Size | 96 (L) * 41(W) * 83 (H) | |
Weight | 70kg | |
Packaging Details | We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
