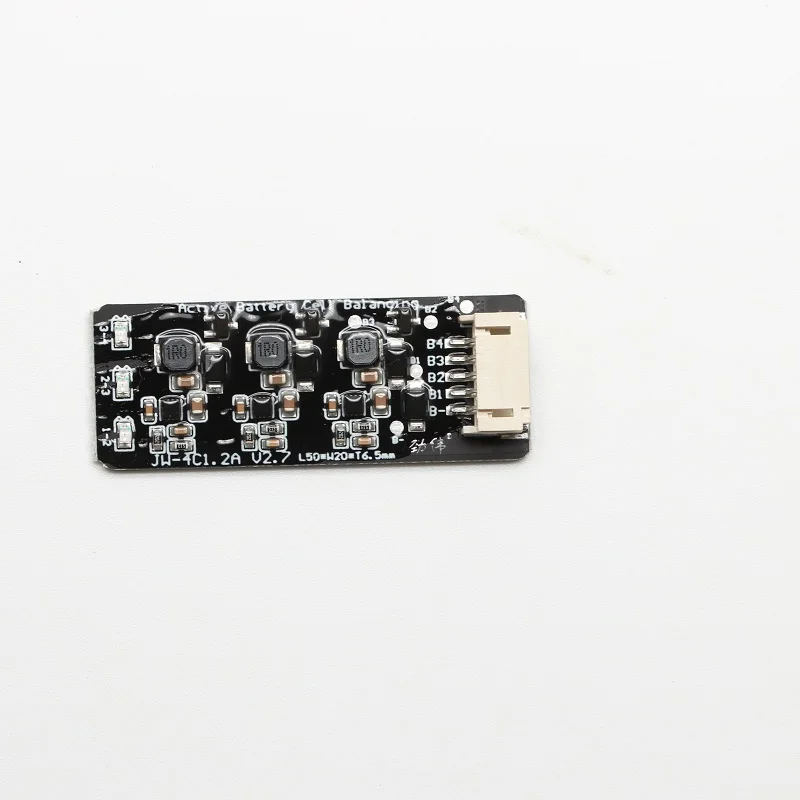

4S 12V active cell balancer for lifepo4 li ion batteries with active balancing current 1.2A active balancer
- Category: >>>
- Supplier: Shenzhen Yirui Technology Co. Ltd.
Share on (62324695572):
Product Overview
Description
E&J JW series Active Battery Balancer Specification
Lithium battery active balance energy transfer board Lithium battery
active equalizer High efficiency energy transfer equalization
Inductive energy transfer equalization board (current 1.2A
equalization current, slightly lower precision)
Technical Parameters
Working voltage 2.2V-4.5V, Li-ion Lipo Lifepo4 LTO Lithium battery
universal
Working principle, the inductor converts the transfer charge carrier.
When the battery error voltage is above 0.1V, the balance work is
started until the error is stopped at 30mv. The built-in improved
ultra-low internal resistance MOS, the balance current is 0-1.2A, and
the battery voltage difference is smaller. The smaller the current, the
static power consumption does not exceed 20uA! With balance
instructions!
Balanced voltage accuracy within 30mv!

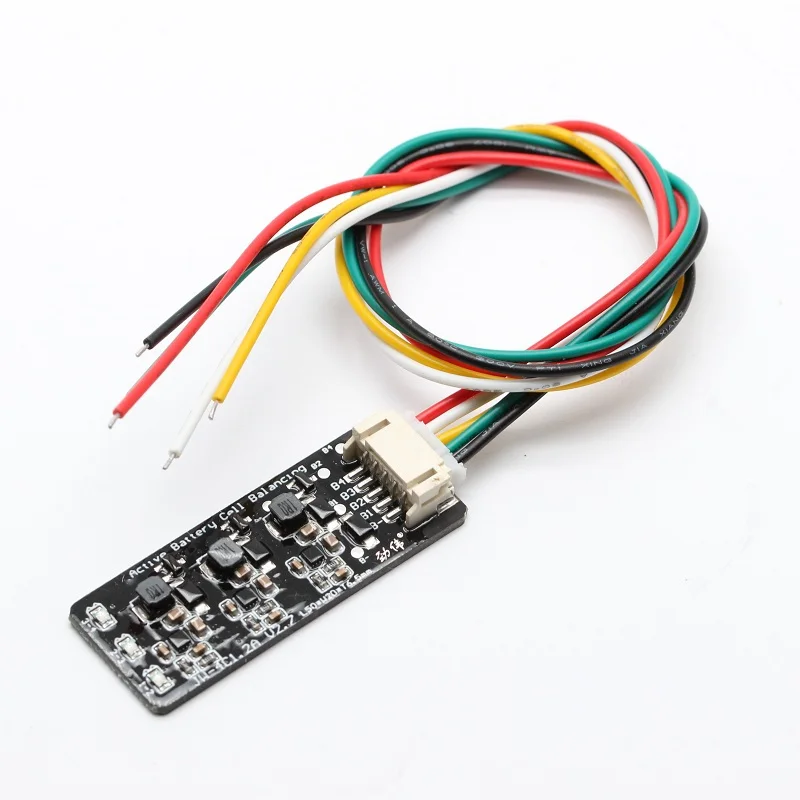

Wiring line length 30cm pure copper 22awg terminal wire!
High-precision energy transfer balance, exclusive balanced IC!

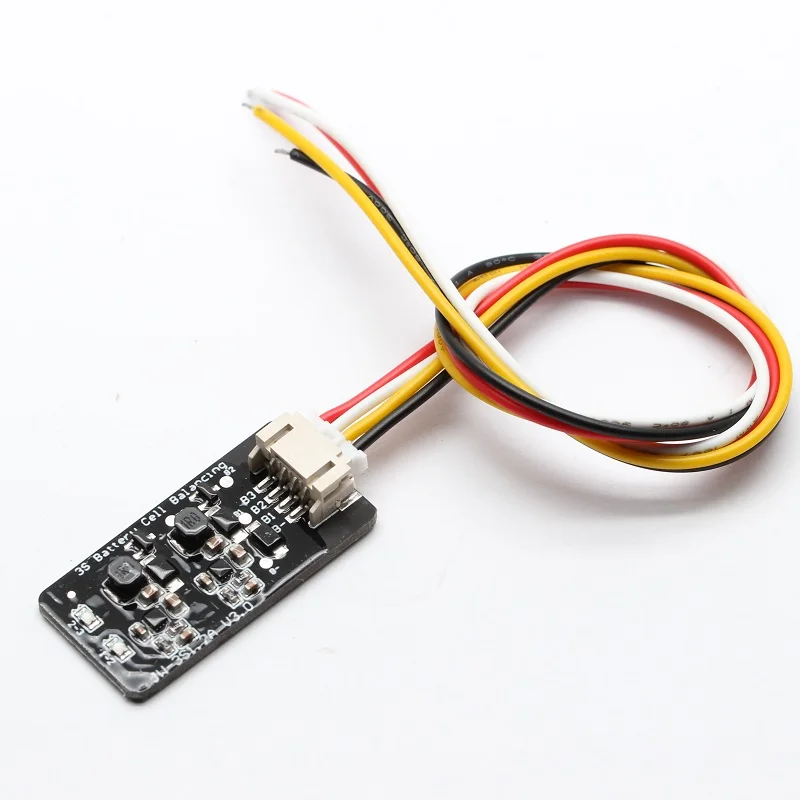

3S version can use for 1S ~3S
4S version can use for 1S ~4S
6S version can use for 1S ~6S
7S version can use for 1S ~7S
9S version can use for 1S ~9S
13S version can use for 1S ~13S
16S version can use for 1S ~16S
17S version can use for 1S ~17S

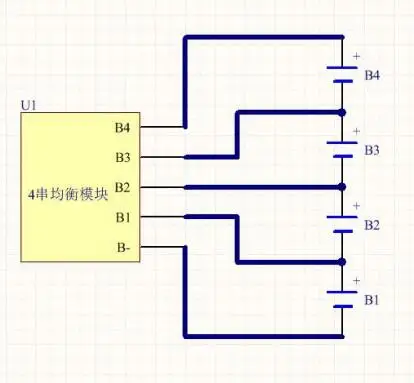

Connection Diagram(take 4S active balaner as example)
We designed and produced active balancers for lead acid/vrla/agm/lifepo4/lto/li-ion/lifeypo4/redox flow battery/nimh/nicd batteries. Custom make to support RS485, CANBus,Bluetooth,etc..
For 4S, 6S, 8S, 9S, 12S, 16S, 24S and support series to use.
1A, 1.2A, 2.0A, 3.0A, 5.0A, 8.0A, 10A balancing current for optional.
