Высокое качество 3 pin ВКЛ ВЫКЛ на 20A 250VAC мини электронный тумблер
Высокое качество 3 pin ВКЛ-ВЫКЛ-на 20A 250VAC мини электронный тумблер
Высокое качество 3 pin ВКЛ-ВЫКЛ-на 20A 250VAC мини электронный тумблер
Высокое качество 3 pin ВКЛ-ВЫКЛ-на 20A 250VAC мини электронный тумблер

Высокое качество 3 pin ВКЛ ВЫКЛ на 20A 250VAC мини электронный тумблер

Share on (62324765550):


Price:0,70 $ - 0,72 $

Quantity:


Product Overview

Description

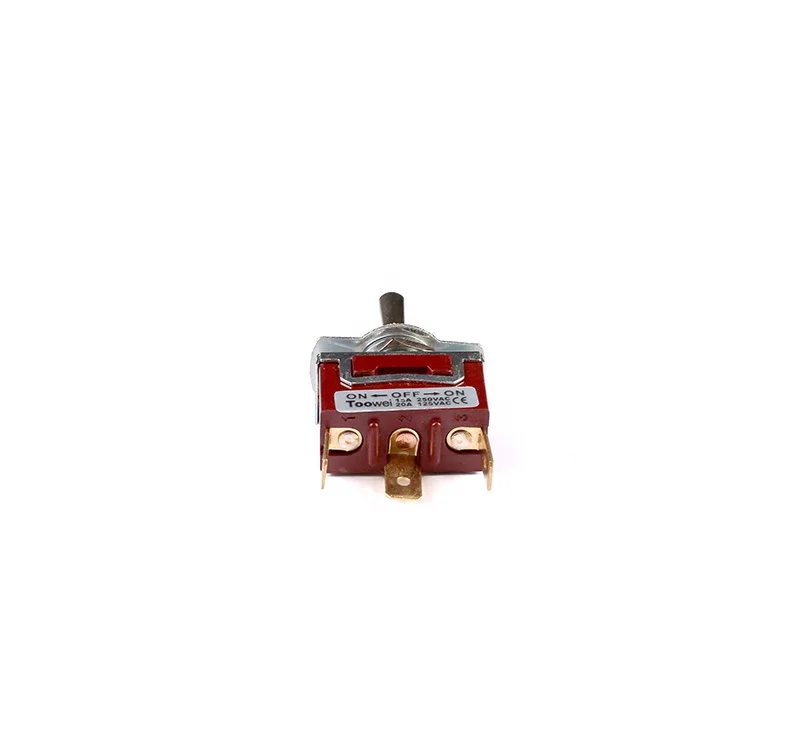

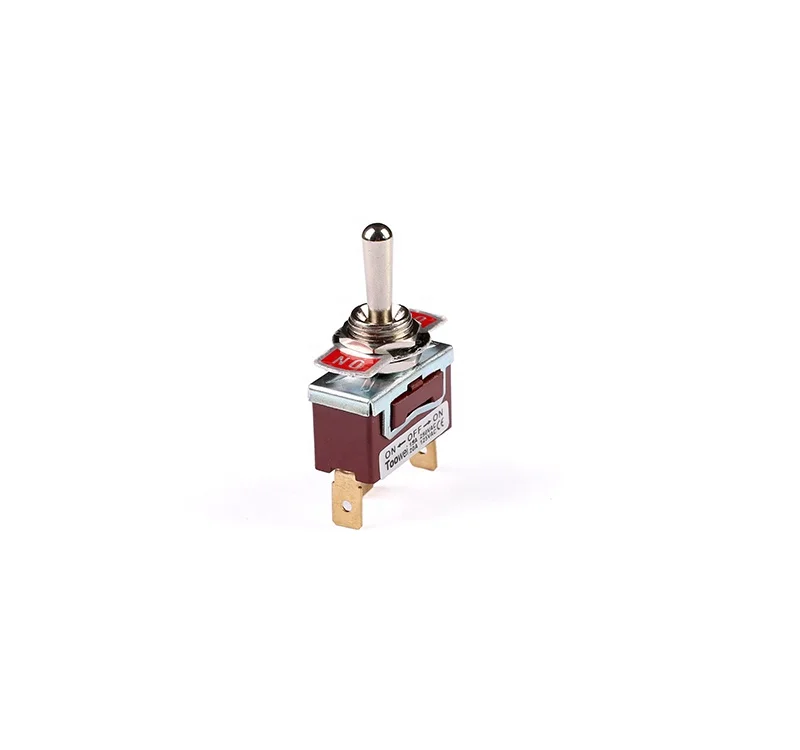

High Quality 3 Pin ON-OFF-ON Mini Electronic Toggle Switch




Product Description


Toggle Switch Information
Model
T701CT
rated voltage
10A 250VAC 20A 125VAC
Base material
Bakelite
Ambient Temperature
-25 ~ +80 degree
Founction
ON-OFF-ON

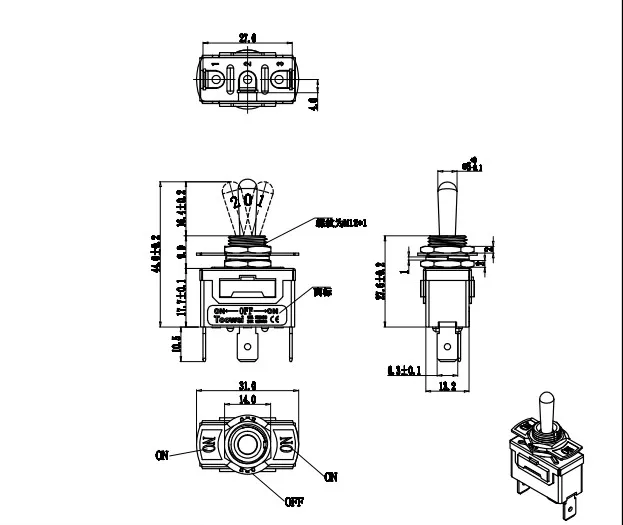

Mounting Dimension
Diameter 12+0.2mm
Usage
Food machinery, generators, industrial control, office automation



Specification


Technical parameter

1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
Contact resistance ≤ 50mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S

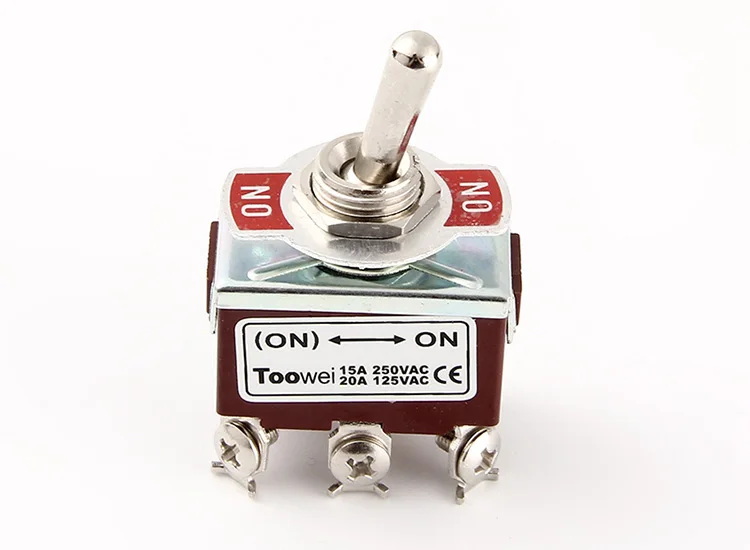

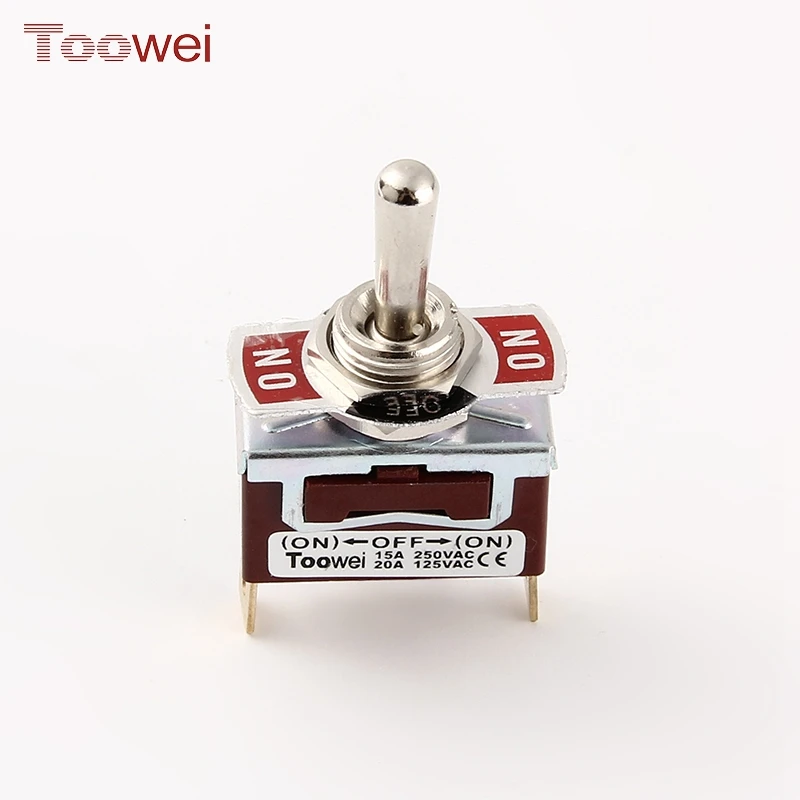

Other Model Show




Applications




Company Information




Exhibition




Packing&shipping




FAQ




Q1. CAN I HAVE A SAMPLE ORDER FOR TOGGLE SWITCH?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
