TOYO 1 ton electric chain hoist TY3 series high quality
- Category: Hoists >>>
- Supplier: Tianjin,Kunda,Hoisting,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
 | Gourd shell All aluminum alloy die casting, CNC integrated processing |
| All-in-one three-phase two-speed asynchronous motor | |
Reducer grinding teeth to process hard tooth | |
Sprocket wheel alloy steel sprocket wheel, high strength RUD chain imported from Germany | |

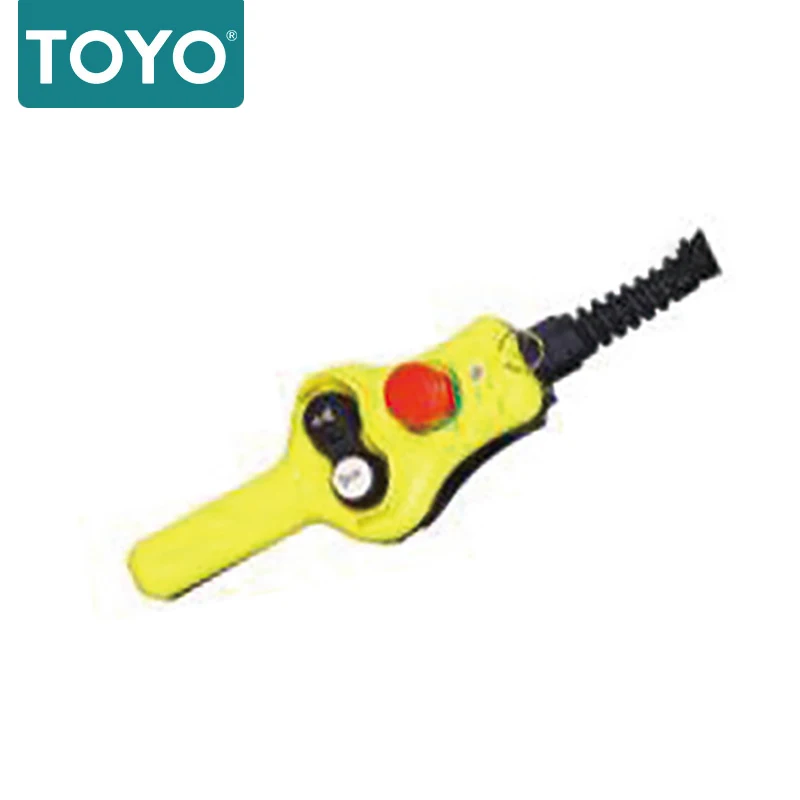

| GG handle imported from Italy-CHERRY German waterproof travel switch |
 | |
| Each TY3 Electric Chain Hoist is equipped, with fast and slow two-speed lifting speed. The speed ratios of TY30125, TY3025, TY3050and TY3100 are all 1:4, among which the fast-est speed of TY30125 is 20M/min. | Each TY3 Electric Chain Hoist is equipped with fast and slow two-speed lifting speed. The speed ratios of TY30125, TY3025, TY3050 and TY3100 are all 1:4, among which the fastest speed of TY30125 is 20M/min. |
| Model | Capacity(t) | A | B | C | D | E | F | Hmin | J | L | K | X |
| TY3F100-0.5T | 0.5 | 458 | 204 | 40 | 77 | 263 | 528 | 519 | 427 | 177 | 24 | 45 |
| TY3F100-1T | 1 | 458 | 204 | 40 | 77 | 263 | 528 | 519 | 427 | 177 | 24 | 45 |
| TY3F100-2T | 2 | 458 | 204 | 40 | 77 | 263 | 528 | 544 | 427 | 177 | 24 | 45 |
| Model | Capacity(t) | Standard Lift(m) | Classification(ISO) | Lifting Speed(m/min) | Lifting Short Chain | No.Chain | Out Put(kw) | Motor Speed(RPM) | Current(A) | Voltage(V) | Frequency(HZ) | Duty Cycle(FC%) | Standard 3M N.W(kg) |
| TY3F100-0.5T | 0.5 | 2~18 | M5 | 4/16 | 7X12 | 1 | 1.9 | 2680 | 3.8 | 3P 380 | 50 | 40 | 47.5 |
| TY3F100-1T | 1 | 2~18 | M5 | 2/8 | 7X12 | 1 | 1.9 | 2680 | 3.8 | 3P 380 | 50 | 40 | 47.5 |
| TY3F100-2T | 2 | 2~15 | M5 | 1/4 | 7X15 | 2 | 1.9 | 2680 | 3.8 | 3P 380 | 50 | 40 | 52.6 |
