1.Use ball valves to control spray and wash eyes, respectively.
2.Easy to operate, fast opening and closing, reliable sealing.

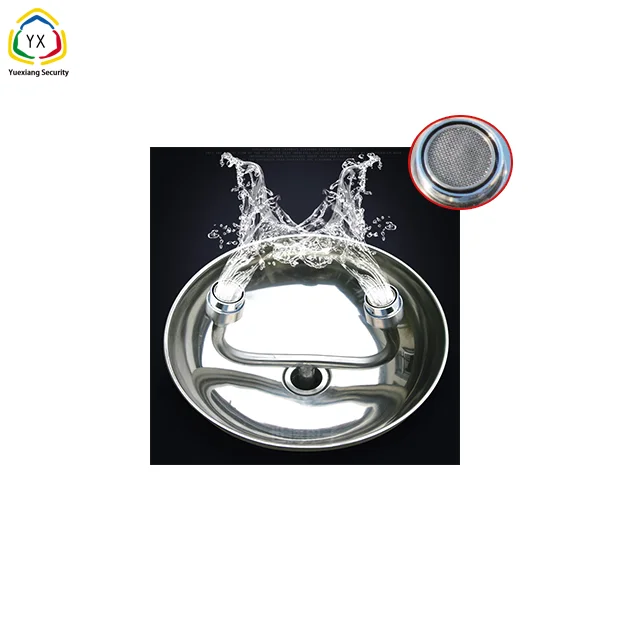

3. The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles.
4. Super chemical resistance to acids, alkalis, salts, oils, etc.
Specifications:

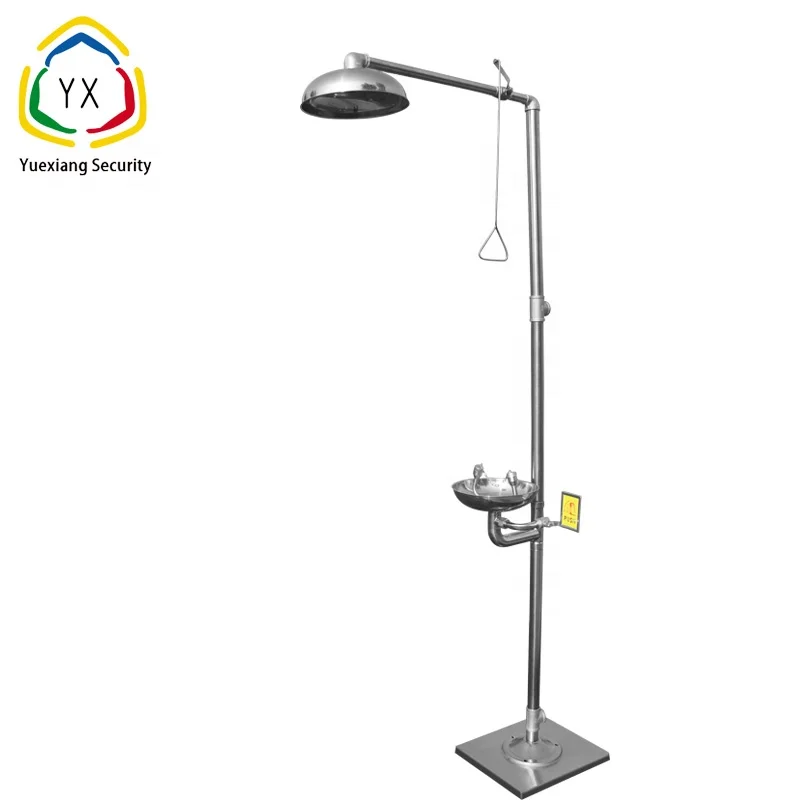

Opening mode: manual type
Product type: compound double eye washer
Hydraulic pressure: water pressure ≥ 0.25MpaG
Material: 304 Stainless steel
Sprinkler head spacing: 150-170mm
Nominal pressure: 0.4MPA
Sealing pressure: 0.45MPA
Working pressure: 0.20~0.40MPA
Height 2.3 m inlet and outlet size 1¼ wire
Spray flow L/min: 12-18
Eyewash flow L/min: ≥12
Applicable conditions: normal temperature pure water or water standard
Performance: Super acid, alkali, salt, oil and other chemical substances corrosion.
Use: suitable for nuclear energy, petroleum, chemical, machinery manufacturing, automobile ship building, casting, painting, printing and dyeing, medicine, medical and other industries
Features: emergency eye washing and body douche function
Production standard: ANS2Z358-12004 US standard
