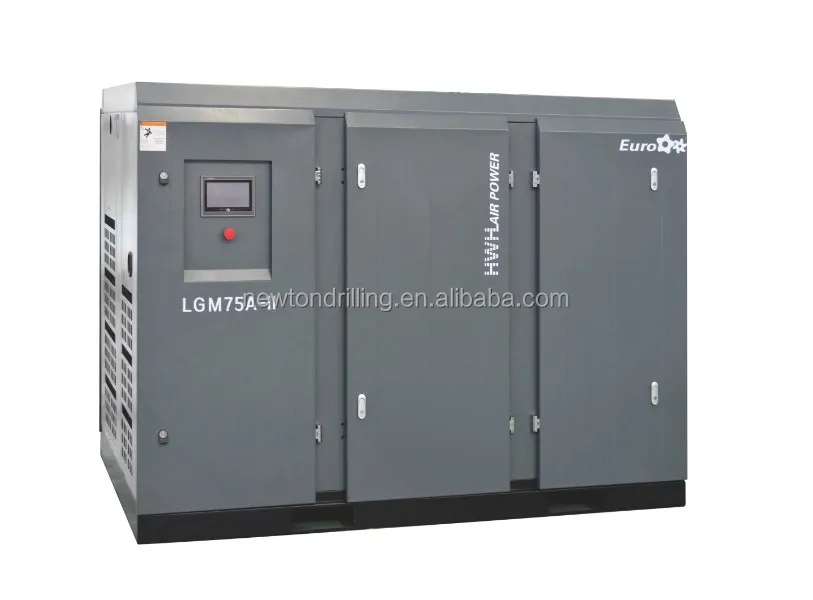

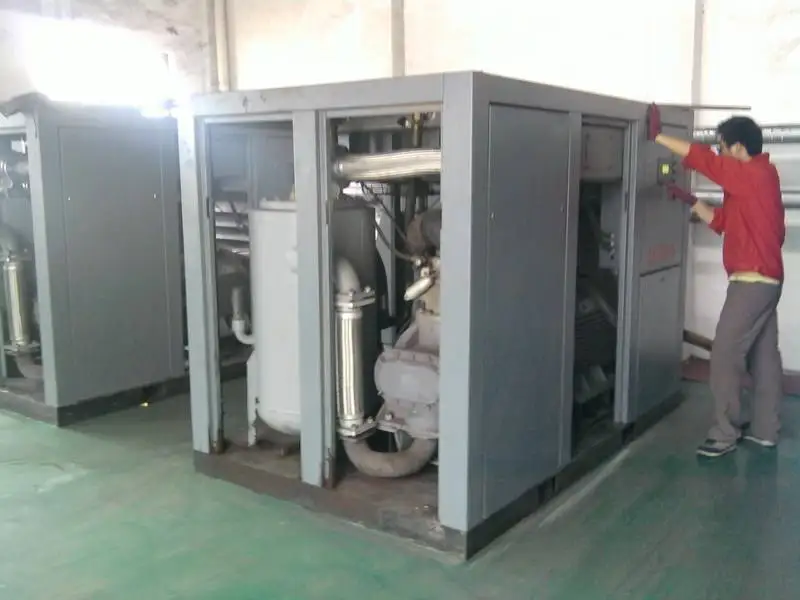

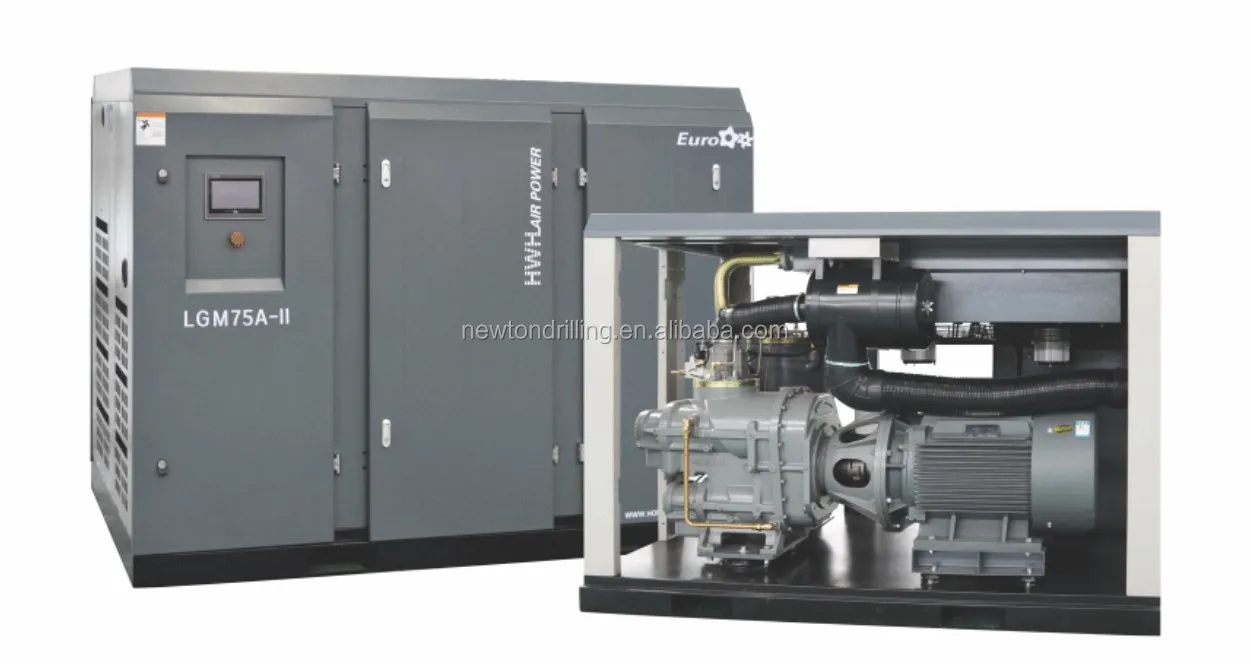

75kw 2 Compression Stage VSD Electric Energy Saving Air Compressor with PM motor

Product Overview

Description

75kw 2 Compression Stage VSD Electric Energy Saving Air Compressor with PM motor







 Host:
1.) Two-stage compression mainframe, large rotor and low speed.
2.) The upper and lower integrated design concept combines the primary compression rotor and the secondary compression rotor in one casing to achieve the highest compression transfer efficiency.
3.) The compression ratio of each stage is small, the leakage is smaller, and the volume utilization rate is high. The bearing has a small force and a long service life.

Intake system:
1.) Vertical straight-through air intake structure minimizes pressure loss, special air inlet sealing material, guarantees long service life, no wearing parts, reliable performance and long service life.
Piping system:
1.) The pipeline system adopts the American standard pipeline design. Due to the large inner diameter of the transportation pipe and the small flow resistance, the transportation rate is usually higher than the hose, stable, long service life and maintenance-free for life.
Permanent magnet motor:
1.) Variable frequency permanent magnet motor has the characteristics of high efficiency, high power factor, high efficiency interval, stable speed, zero slip and energy saving. Therefore, the permanent magnet frequency conversion equipment under the two-stage screw compressor can do more.
Controller:
1.) Using advanced microcomputer control to realize intelligent operation and humanized operation, the operation situation is clear at a glance.
2.) Equipped with advanced intelligent control system, various parameters such as pressure and temperature are continuously monitored, controlled and displayed according to preset values.
3.) With automatic fault alarm and protection function, store historical operation records in time.



Technical Parameter

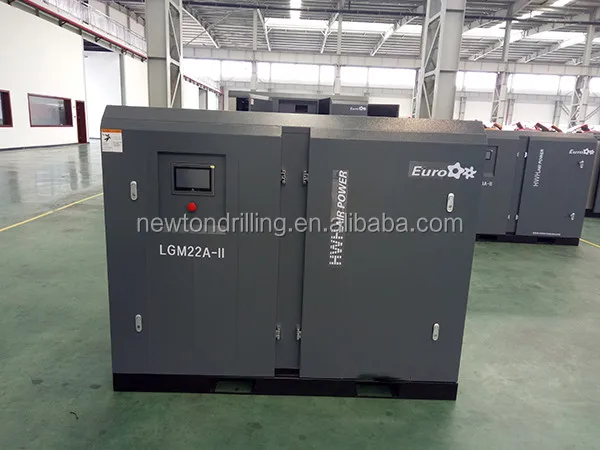

Model	LGM22A-II	LGM30A-II	LGM37A-II	LGM45A-II	LGM55A-II	LGM75A-II
Air Displacement(m3/min)	4.1	6.1	7.2	10.2	12.5	16.1
Working Pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.8
Compression stage	2	2	2	2	2	2
Motor power(kw)	22	30	37	45	55	75
Rotate speed(rpm)	1480	1480	1480	1480	1480	1480
Voltage(V/P/Hz)	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Start	Soft start	Soft start	Soft start	Soft start	Soft start	Soft start
Driven	Direct	Direct	Direct	Direct	Direct	Direct
Connector size	G1-1/2"	G1-1/2"	G1-1/2"	G1-1/2"	G2"	G2"
Cooling method	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Dimension(L*W*H)mm	1785*1110*1435	1785*1110*1435	1785*1110*1435	1785*1110*1435	2215*1350 *1600	2215*1350 *1600
Weight(kg)	1200	1300	1350	1350	2000	2150





Model	LGM90A-II	LGM110A-II	LGM132A-II
Air Displacement(m3/min)	20	24	28
Working Pressure(Mpa)	0.8	0.8	0.8
Compression stage	2	2	2
Motor power(kw)	90	110	132
Voltage(V/P/Hz)	380/3/50	380/3/50	380/3/50
Start	Soft start	Soft start	Soft start
Driven	Direct	Direct	Direct
Rotate speed(rpm)	1480	1480	1480
Connector size	DN80	DN80	DN80
Cooling method	Air Cooling	Air Cooling	Air Cooling
Dimension(L*W*H)mm	2702*1756*1984	2702*1756*1984	2702*1756*1984
	2400	2700	3000
