Cheap Parts Separation Vibratory Separator Sieve Sorter
Vibratory Separator Sieve Sorter Product Description:

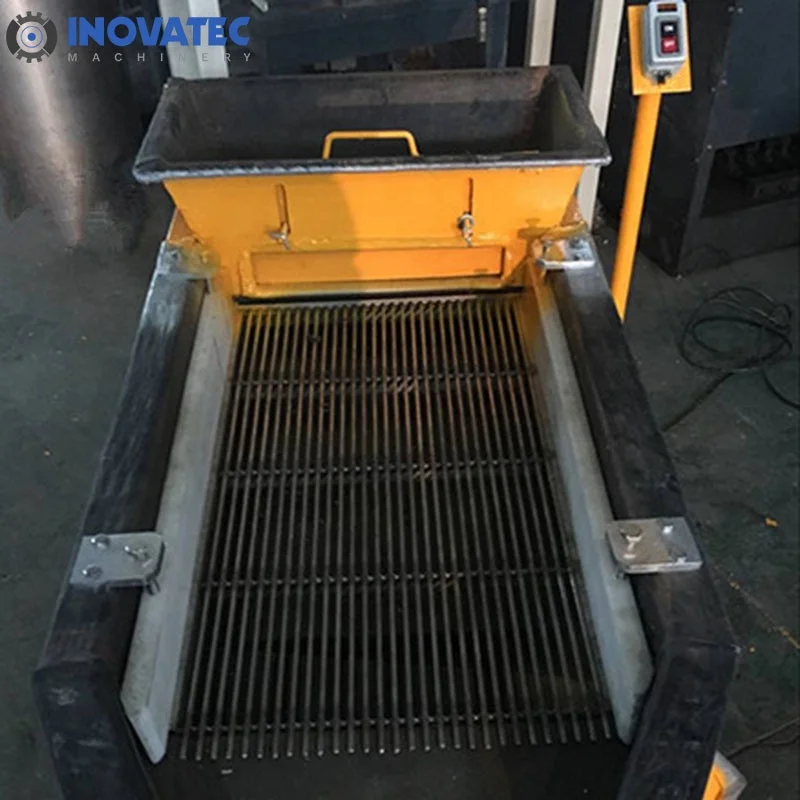

Inovatec Vibratory Separator Sieve Sorter is a removable equipment with 4 wheels so it can be moved to anywhere in the workshop.
The VS Series is necessary auxiliary equipment that helps other mass finishing machines for separation.
The vibratory separators are the simplest design model with a single on and off button. The separation screen is interchangeable
and available for stainless steel or Nylon screen.

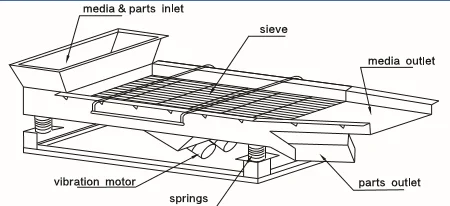

Once a finishing job is done, the operators pour media and parts mass into the separator to collect parts. Media falls through the
screen, then collected by operators and reused.
Vibratory Separator Sieve Sorter Feature:
* Double layer separation sieve to sieve out undersize media
* Punched hole separation panel/Nylon separation panel
* Speed converter to control vibration speed
Vibratory Separator Sieve Sorter Application:
* Fast media and parts separation
* Interchangeable screen
* Time-saving and cost saving
* Can also be used to sieve out undersized media
* Flexible design fit to other mass finishing equipment
Inovatec Vibratory Separator Sieve Sorter is a removable equipment with 4 wheels so it can be moved to anywhere in the workshop.
The VS Series is necessary auxiliary equipment that helps other mass finishing machines for separation.
The vibratory separators are the simplest design model with a single on and off button. The separation screen is interchangeable
and available for stainless steel or Nylon screen.
Once a finishing job is done, the operators pour media and parts mass into the separator to collect parts. Media falls through the
screen, then collected by operators and reused.
Vibratory Separator Sieve Sorter Feature:
* Double layer separation sieve to sieve out undersize media
* Punched hole separation panel/Nylon separation panel
* Speed converter to control vibration speed
Vibratory Separator Sieve Sorter Application:
* Fast media and parts separation
* Interchangeable screen
* Time-saving and cost saving
* Can also be used to sieve out undersized media
* Flexible design fit to other mass finishing equipment
Vibratory Separator Sieve Sorter | Dimension | Weight | Motor |
(mm) | (kg) | (kw) | |
VS35 | 1320x622x800 | 90 | 0.125x2 |
VS50 | 1750x640x900 | 160 | 0.25x2 |
VS100 | 2900x910x880 | 500 | 0.37x2 |
Product Application
Aluminum machining parts before after deburring
aluminum parts before and after smoothing
automotive parts before and after deburring
bearing parts before and after polishing-min
brass precision parts before and after polishing-min
brass punched parts before and after polishing-min
brass retainer before and after polishing-min
carbon steel parts before and after deburring-min
Epoxy plastic parts before and after cleaning-min
service team & exhibition
Production process
Certifications
Cooperation partner
Payment and Shipment
FAQ
Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.
Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.
Lifetime maintenance will be provided after the 2 year warranty period expires.
Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).
Accept L/C at sight (bulk order).
Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
