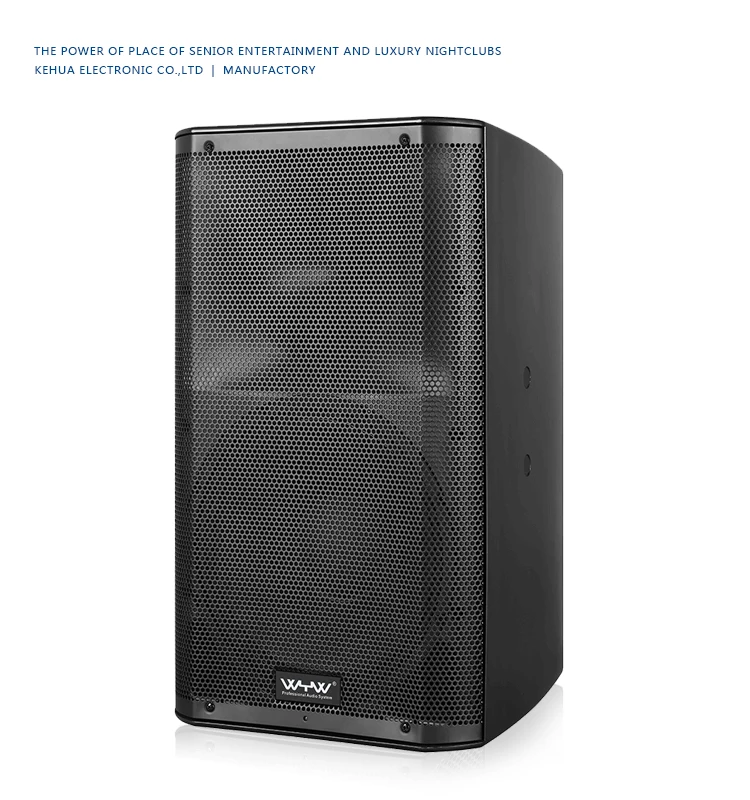

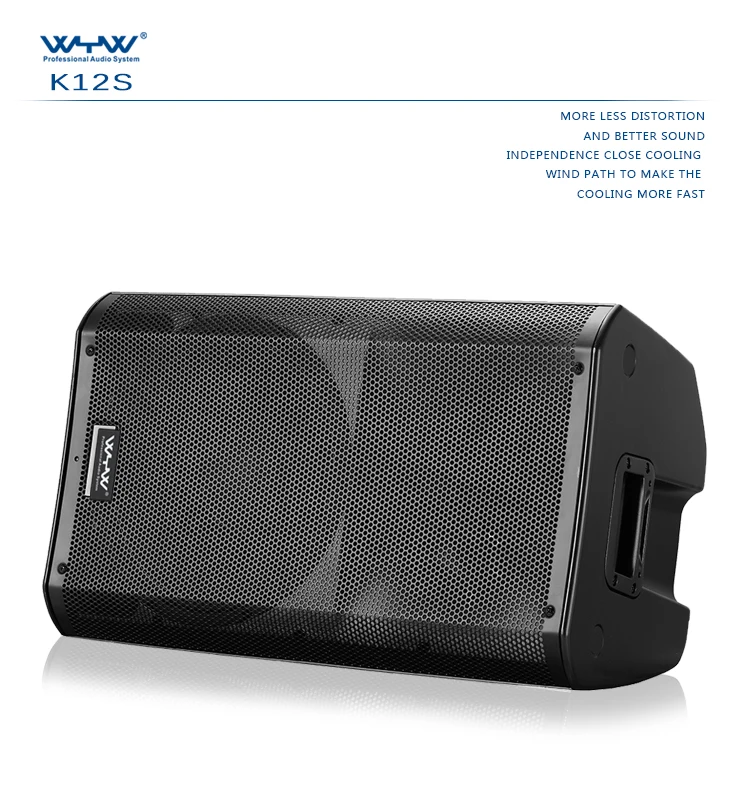

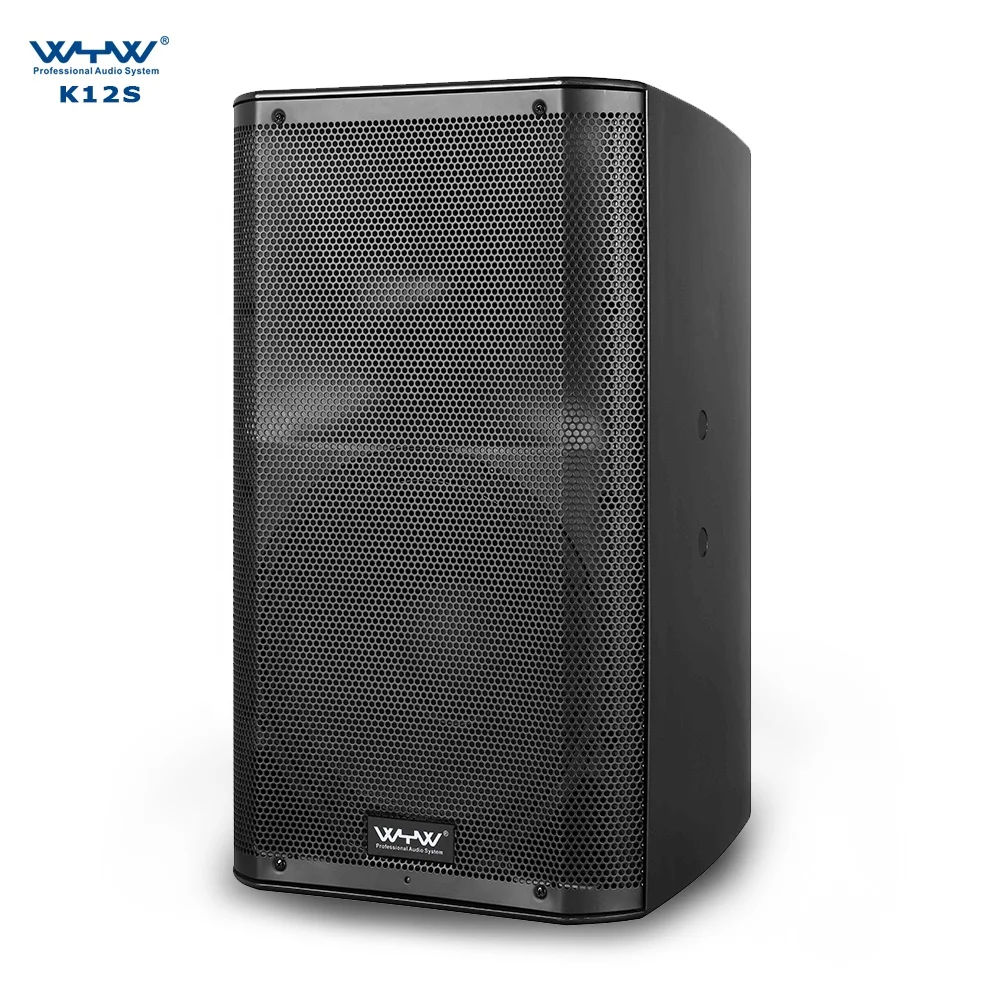

12 inch classD 1000w Active speaker

Share on (62324945570):


Price:$229.00 - $246.00

Quantity:


Product Overview

Description



K12S D1-1K12S d3-3k12s D2-2


We are a DJ and stage equipment manufacturer.


Manufacturer Of  Professional Audio Amplifiers, mixers, equalizer, limiter and crossover.


We support OEM and ODM.


If you have any special requirements please feel free to contact us.









  • Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output




  • Extensive DSP enhances system performance




  • DMT(Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.




  • Intrinsic Correction, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time,  frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.




  • DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.




  • GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.


    specification 2.jpg


































































Model



K12S



Power Output



1000 W continuous Class D
(500 W LF, 500 W HF)
2000 W peak



Input Impedance



XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
XLR / ¼" MIC mode: 2260Ω balanced
RCA: 10 kΩ



Controls



Power, Gain A, Gain B, Mic/Line, LF Mode, HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)



Indicators



Power, Signal A, Signal B, Standby, Limit, Mic

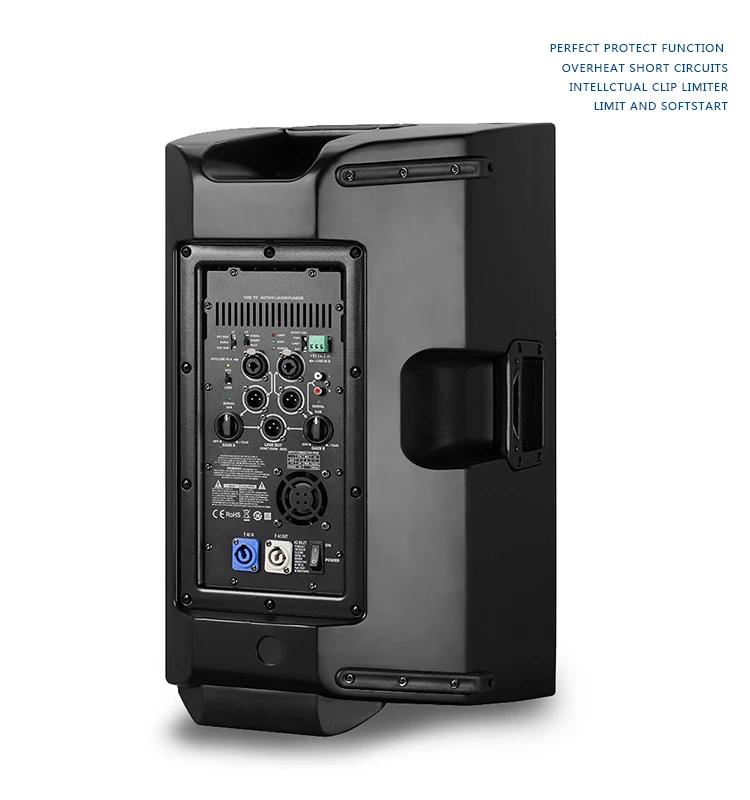

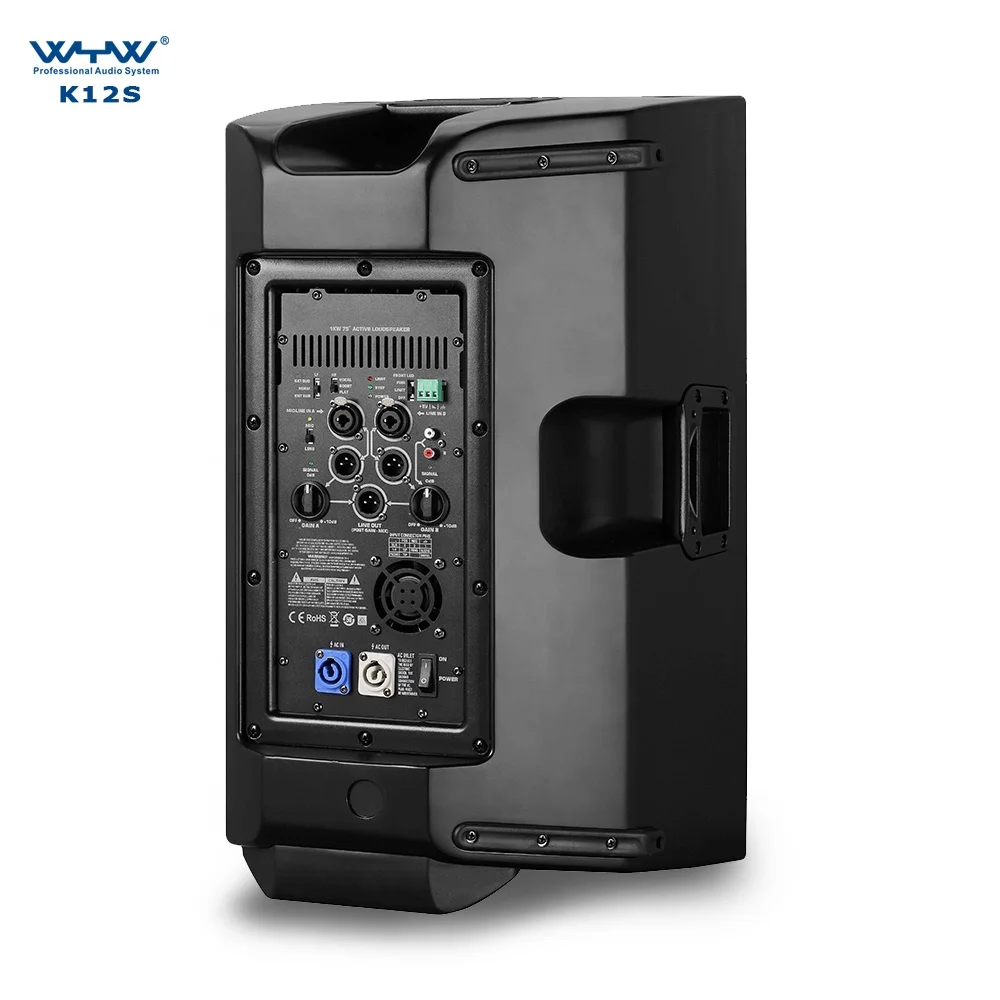

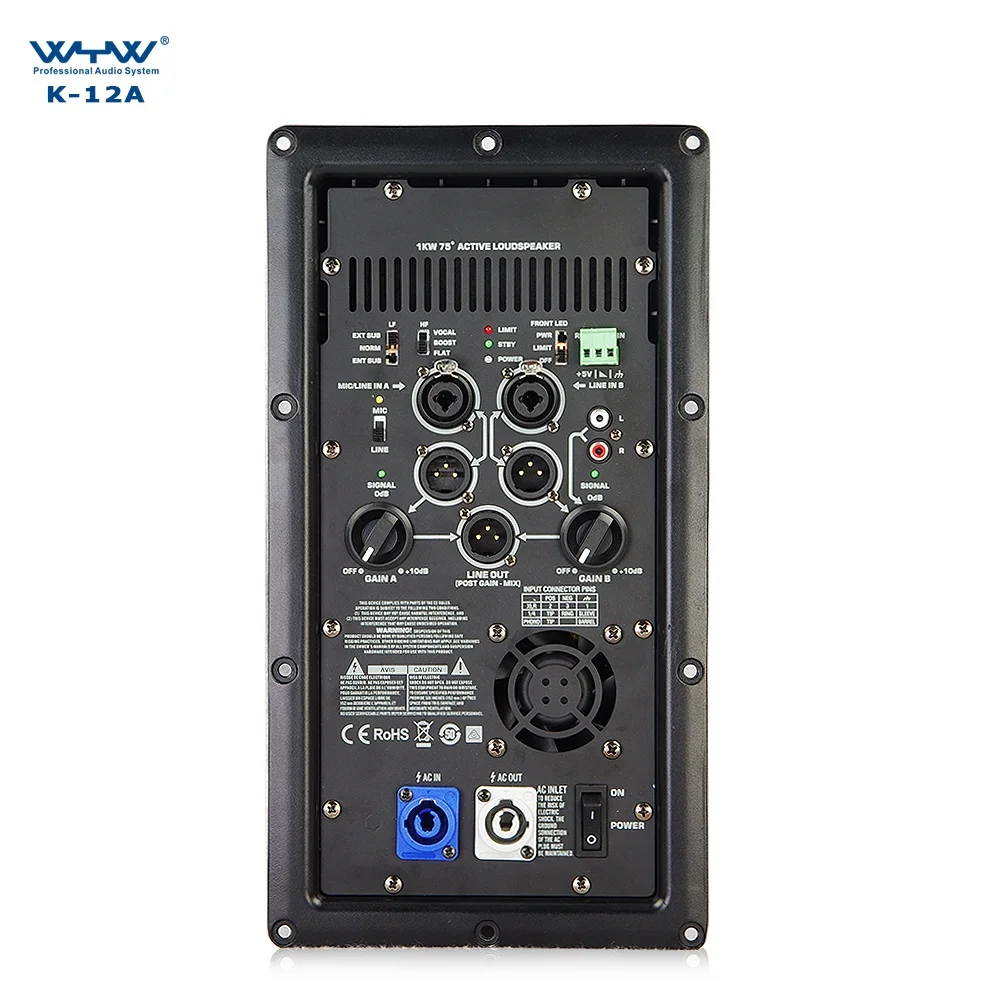

Connectors



Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector



Cooling



On demand, 50 mm variable speed fan



Amplifier Protection



Thermal limiting, output overcurrent, overtemperature muting, GuardRail



Transducer Protection



Thermal limiting, excursion limiting



AC Power Input



Universal power supply 100–240 VAC, 50 to 60 Hz



AC Power Consumption
(1/8 of full power)



100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A



G weight



26KG



Dimensions (W*H*D) mm



520*430*650



Output Circuitry



Class D



Established in 1998, Enping Kehua Electronics Factory is a manufacturer and trader specialized in the research, development and production of professional power amplifier, mixers and so on. We are located in Enping City , Guangdong , China. With convenient transportation access. It is a famous spatown and microphone world origin.


All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have provided OEM and ODM service for different customers. Our unremitting efforts,for your better service.


hot selling 20171218.jpg





new factory.jpg


 certificates 20161206.jpg


SHIPMENT.jpgPACKING & DELIVERY.jpg


new exhibition.jpg







1. Q: When your company established?


A: We started firstly as a trade company on 1998. Now we have many years experience in manufacturing electronic products. We are professional amplifier manufacturer.





2. Q: Where is your main market ?


A: Our main customers are from North America and Europe and other countries,etc.





About Warranty


3.Q: What’s your warranty period?


A: Our warranty period is 12 months. Customers have to ship back the defective products prepaid by express. After we received the defective goods, will finish the repairing within 7 days and return to you under our cost.





About Payment


4. Q: What’s your payment term?


A: For the sample order, we can accept Western Union, Wire transfer or Escrow. But for the Batch order, we support Payment term by T/T ( 30% deposit in advance, balance 70% before shipment ).





About Sample


5. Q: How can I order a sample?


A: .If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.


Please kindly send the inquiry to me. Click the “Contact Supplier”. You will find the real me.





6 Q: Can you supply free sample?


A: Normally, we only supply free samples to our regular clients. For new clients, we can return the sample fee after bulk order placed.





7. Q: How many days do you cost to prepare the sample?


A:We need 3~4 days for normal samples, 4~6 days or more will if the sample required OEM, and then will be sent via express and arrive in 15days.





8. Q: How about the sample price


A: The price of the sample is in accordance with the retail price.





9. Q: Can you do OEM/ODM for customers?
A: Of course, for the product design and package, our engineer can be design as your request, Any kind of logo printing or design are available.
