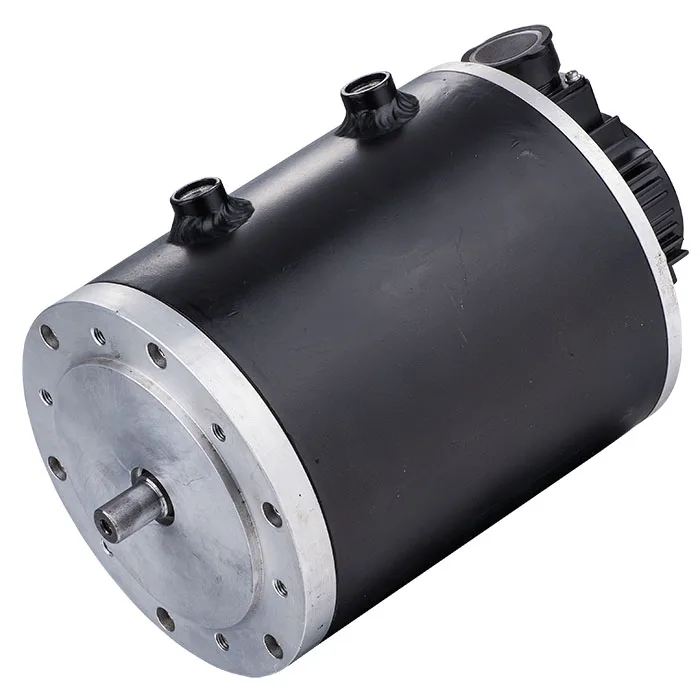

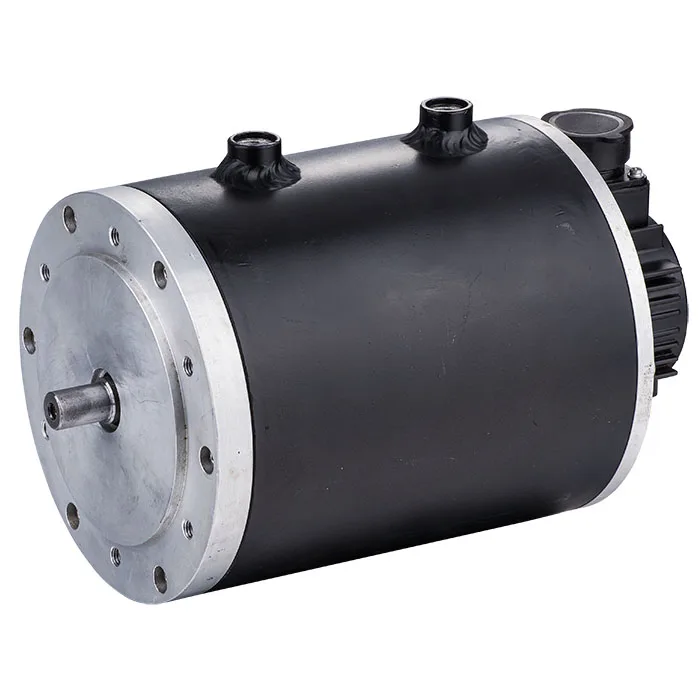

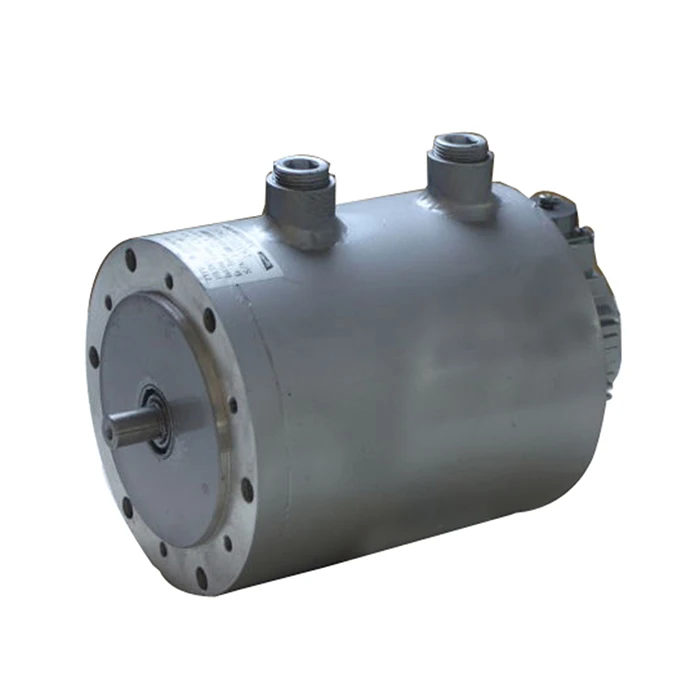

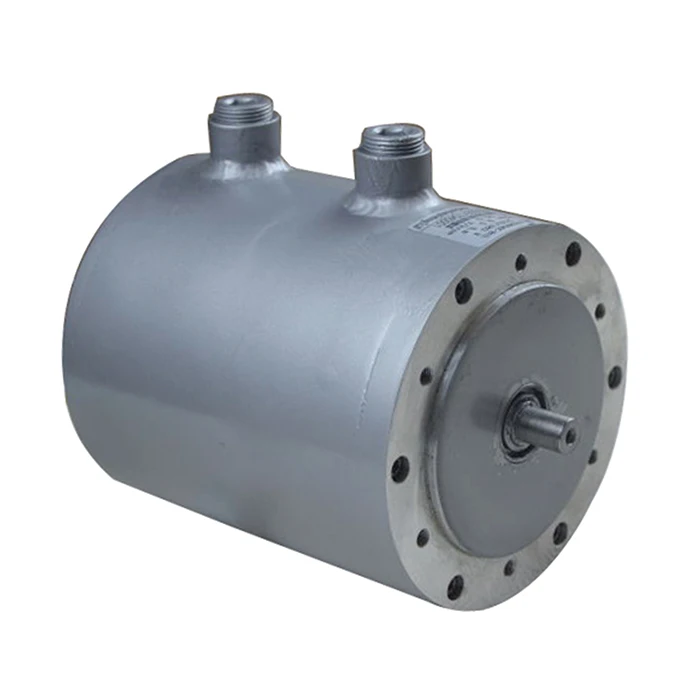

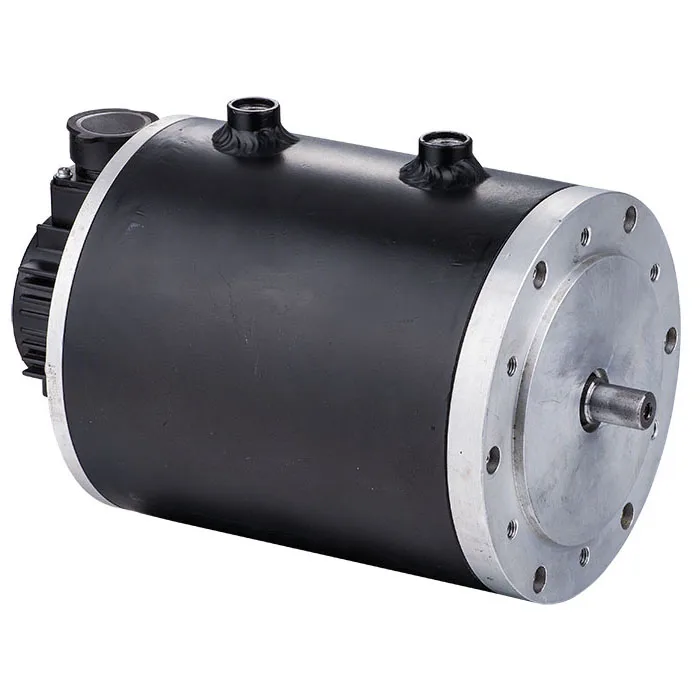

Synmot 1.5kW 50kW AC high speed pmsm motor
- Category: >>>
- Supplier: Zhejiang Synmot Electrical Technology Co. Ltd.
Share on (62324997924):
Product Overview
Description
Hot Selling
Product Image
Other explosions
Product Description:
Synmot high-speed servo motors are permanent magnet synchronous motors with rigid rotors,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry textile machinery.CNC machinery etc.
Product Parameter:
| Model | Rated torque | Rated voltage | Rated speed | Rated power | Rated current | Kt | Ke | Max speed | Max torque | Rotor intertia | Poles | weight | length |
| N.m | Vac | rpm | kW | A | N.m/A | V/krpm | rpm | N.m | kg.cm2 | Poles | kg | mm | |
| 110H15C70C | 2.1 | 380 | 7000 | 1.5 | 3.2 | 0.8 | 46.7 | 8000 | 6.2 | 3.5 | 4 | 11 | 215 |
| 110H15C80C | 1.8 | 380 | 8000 | 1.5 | 3.1 | 0.7 | 41.1 | 9000 | 5.4 | 3.5 | 4 | 11 | 215 |
| 170H80C80C | 9.5 | 380 | 8000 | 8 | 17 | 0.63 | 38.3 | 10000 | 19 | 3.5 | 4 | 26 | 244 |
| 170H11D12D | 8.8 | 380 | 12000 | 11 | 24 | 0.41 | 25 | 14000 | 17.6 | 3.5 | 4 | 26 | 244 |
| 170H15D20D | 7.2 | 380 | 20000 | 15 | 31 | 0.27 | 16.2 | 22000 | 14.4 | 3.5 | 4 | 26 | 244 |
| 170H22D20D | 10.5 | 380 | 20000 | 22 | 46 | 0.26 | 15.7 | 22000 | 21 | 4.5 | 4 | 28 | 265 |
| 215A11D50C | 21 | 220 | 5000 | 11 | 38 | 0.6 | 36.1 | 7000 | 42 | 33 | 4 | 41 | 163 |
| 215A13D50C | 24.8 | 220 | 5000 | 13 | 45 | 0.6 | 36 | 7000 | 49.6 | 38 | 4 | 43 | 170 |
| 215H22D50C | 42 | 380 | 5000 | 22 | 42 | 1.1 | 65.3 | 7000 | 84 | 68 | 4 | 53 | 210 |
| 215H30D50C | 57.4 | 380 | 5000 | 30 | 57 | 1.1 | 65.8 | 7000 | 114.8 | 96 | 4 | 63 | 250 |
| 215H37D50C | 70.7 | 380 | 5000 | 37 | 70 | 1.1 | 66 | 7000 | 141.4 | 123 | 4 | 75 | 300 |
| 215H50D50C | 95.5 | 380 | 5000 | 50 | 94 | 1.1 | 66.4 | 7000 | 191 | 84 | 4 | 93 | 370 |
Mounting Dimensions :
Company Information
FAQ
1.Q:Can i get sample ?
A:We are hornered to offer you sample for quickly check .
2.Q:Do you have the product in stock ?
A:All standard models we got in stock .special products are manufactured according to your requirement .
3.Q:When do you delivery ?
A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .
4.Q:How long can it works ?
A:Properly use can work for 3 years .
5.Q:Warranty period ?
A:18 months after the days then the products leave our factory .
6.Q:Payment period ?
A:In general.30% by T/T of the amount as deposit .70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
