Aluminum steel door plate v grooving cutting making machine
US $28000-$30000
Горячая Распродажа пневматический тип CNC VC 1250X3200 Вертикальный стиль V groover машина
- Category: CNC Grooving Machine >>>
- Supplier: Nanjing Rongwin Machinery Technology Co. Ltd.
Share on (62325036529):
Product Overview
Description
Product Description
Hot Sell Vertical style VC 1250X4000 Auto CNC V Grooving Machine for stainless steel
CNC V Grooving Machine:
1，Our machine use structure design,Overall rigidity, small deformation.2，This machine beam is fixed , has feeding system,worktable levelness is within ±0.03mm.
3，Blade rack move right and left by synchronous belt, V-cutting process is very stable,and the cutting surface is smooth.
Direction for use

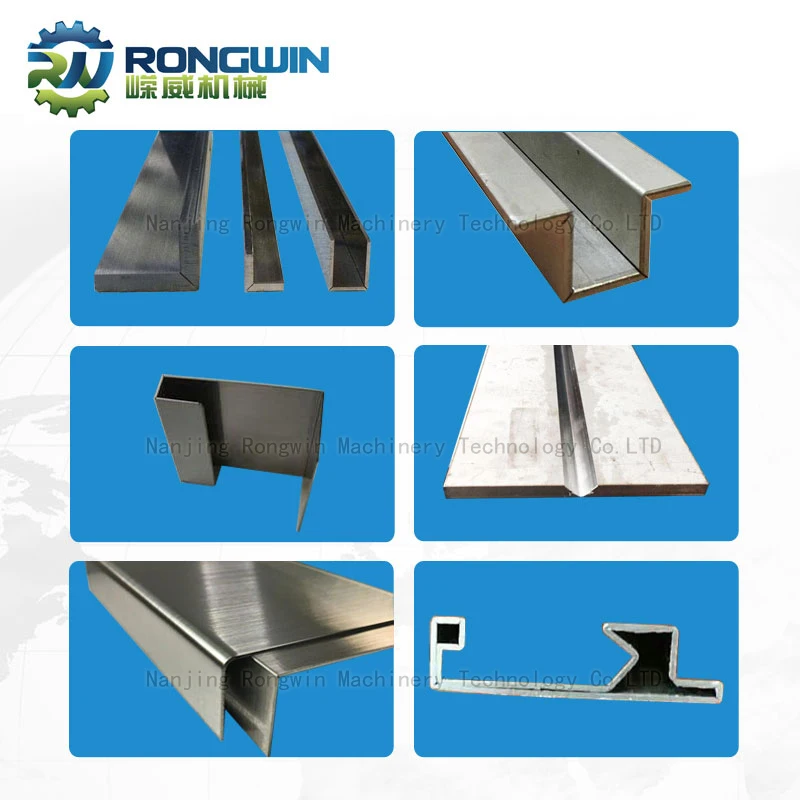

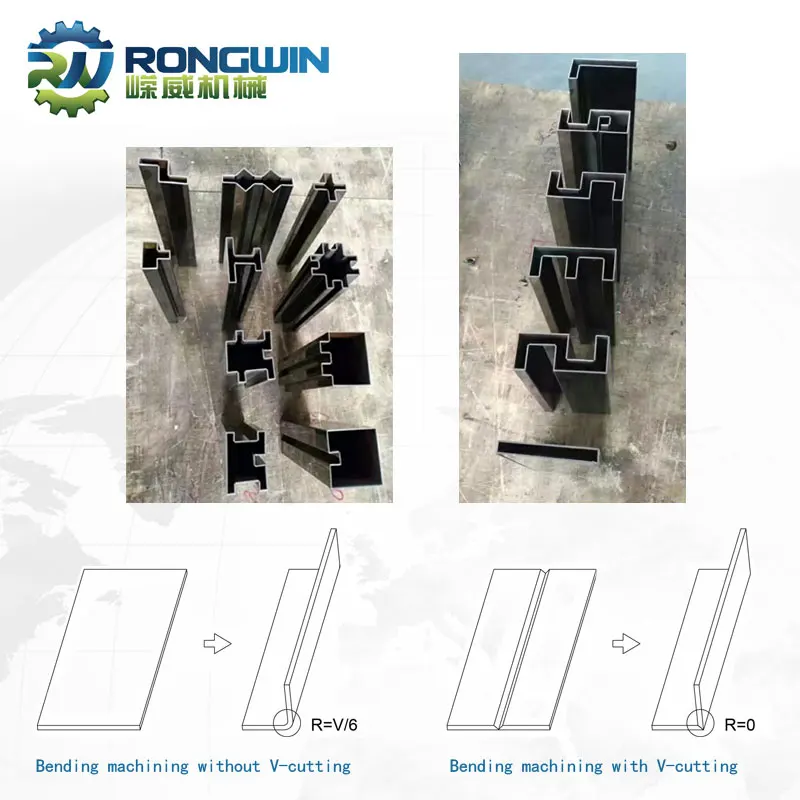

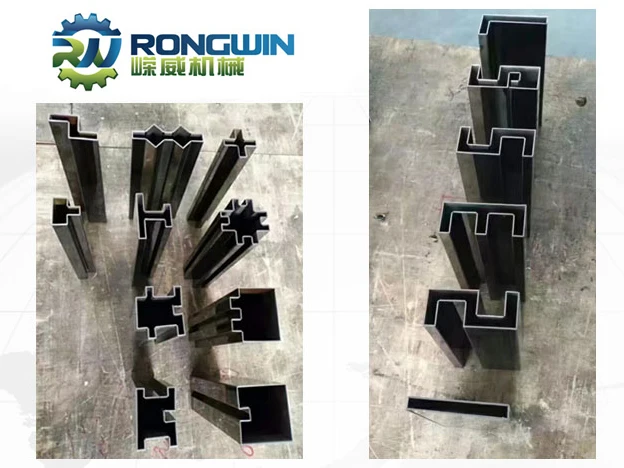

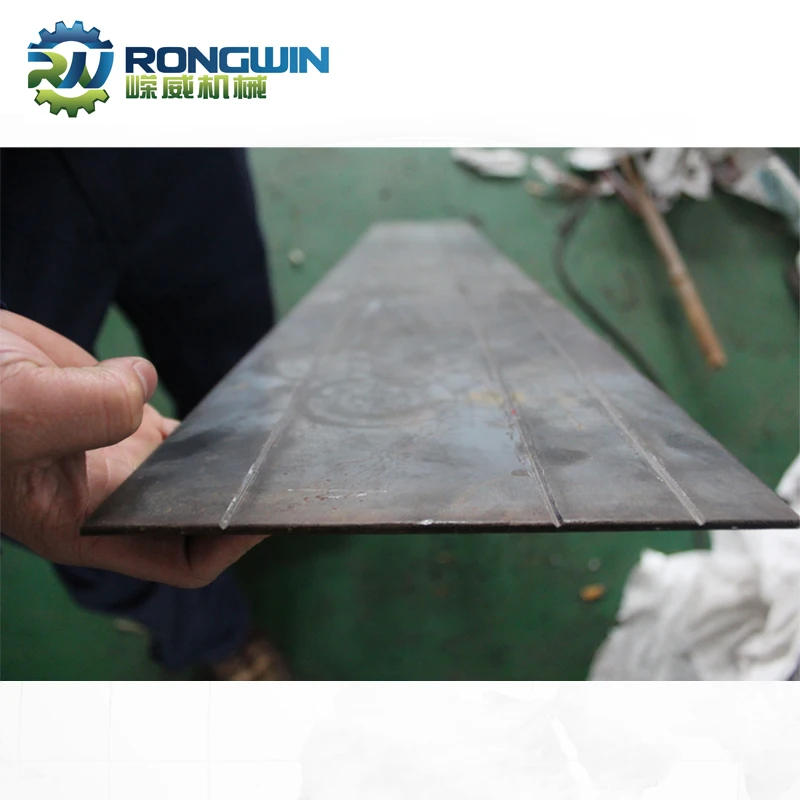

RONGWIN Brand auto v grooving machine is widely used in the sheet metal V-groove, U-groove and other irregular groove processing ,which is including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates. Particularly, it is can applicable to the V-groove processing of sheet metal before bending .
Detailed Images
The equipment used before and after the three knife molding process, resulting in the processing of iron is greatly reduced. The equipment adopts pneumatic control system, automatic clamp plate, pressing and releasing pressure, stable and reliable, work fast, makes the products processed without clamping marks, indentation, automatic spray cooling method for cooling, rapid cooling of the tool, prolong the service life of the cutter.
Equipment worktable with high strength of 6CrW2Si material as the base, the working table of the work piece, is not easy to wear. And the table panel and body parts by moving adjustable, the tip to table every bit of distance accuracy guarantee + 0.02mm or so.Pneumatic control is adopted in the equipment clamping and pressing.
Back stopper

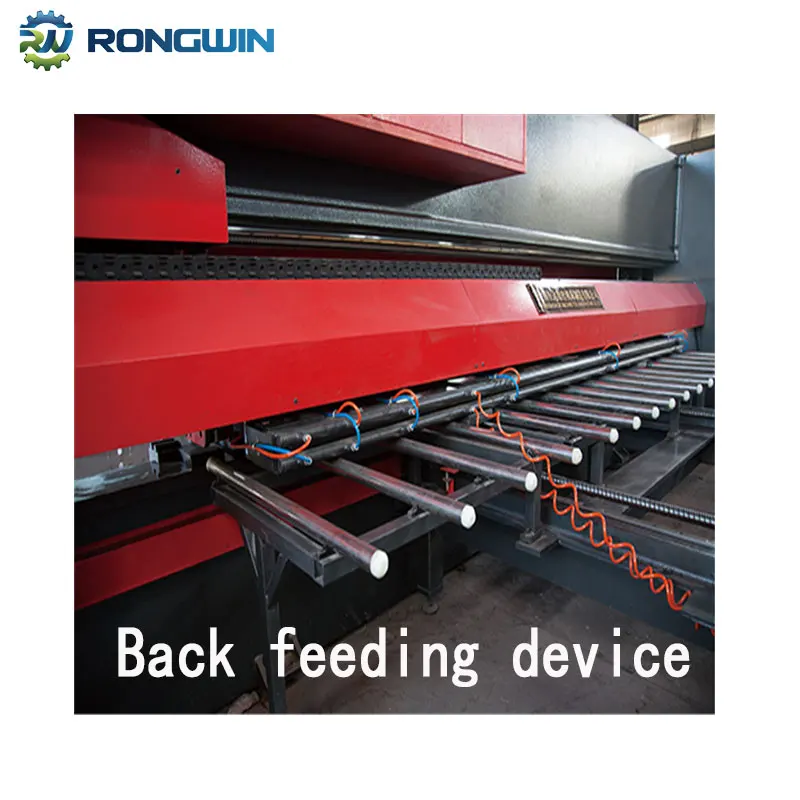

Evacuation equipment using material structure, making the equipment are not in the feeding and discharge of surface damage of sheet.Servo motor control tool and feeding device, planing and positioning precision, servo motor feeding, high precision and reliable.

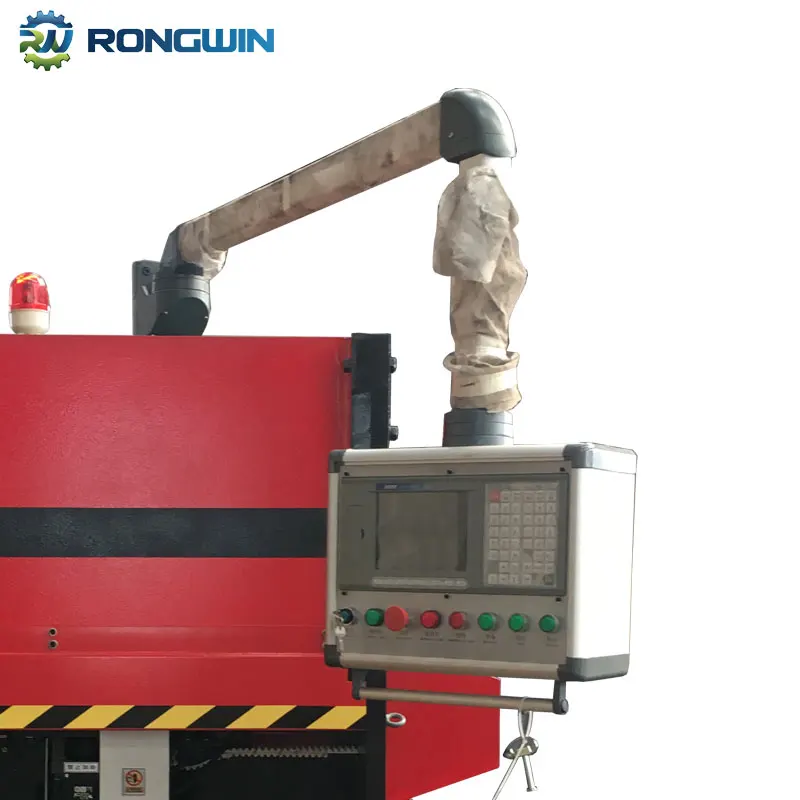

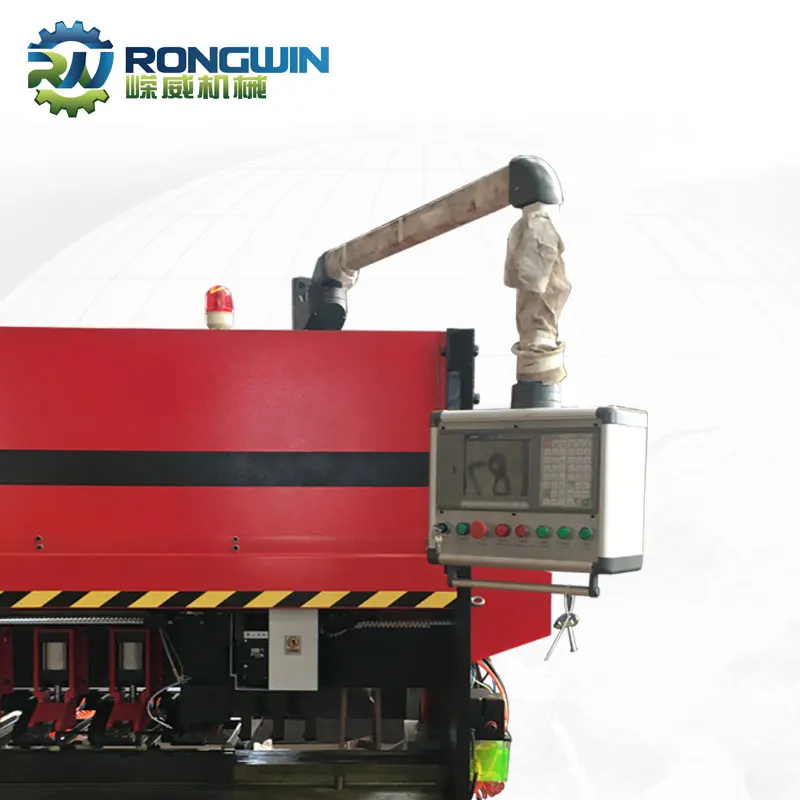

Equipment using PLC man-machine interface programming. Easy to learn and easy to understand, accurate positioning.Adopting Japan MITSUBISHI touch screen system, the technology is mature, the instruction input is quick and clear, and the product is stable and reliable.
Name | CNC V Grooving Machine |
CNC controller | Taiwan HUST-H4-2 axes CNC system |
Servo motor | Japan YASKAWA Brand 0.85kw |
Inverter | Japan Mitsubishi，Power: 3.7kw |
Main axes motor | Germany SEW，Power:3.0kw |
Proximity Switch | Germany Turk 1805 |
Electrical appliances are all well-known global French Schneider Inc of the original product, to ensure that the circuit's life and stability.
Size Information
Type | Max thickness | Max length | Max width | |
1250*3200 | 4.0mm | 3200mm | 1250mm | |
1250*4000 | 4.0mm | 4000mm | 1250mm | |
1250*6000 | 4.0mm | 6000mm | 1250mm |
