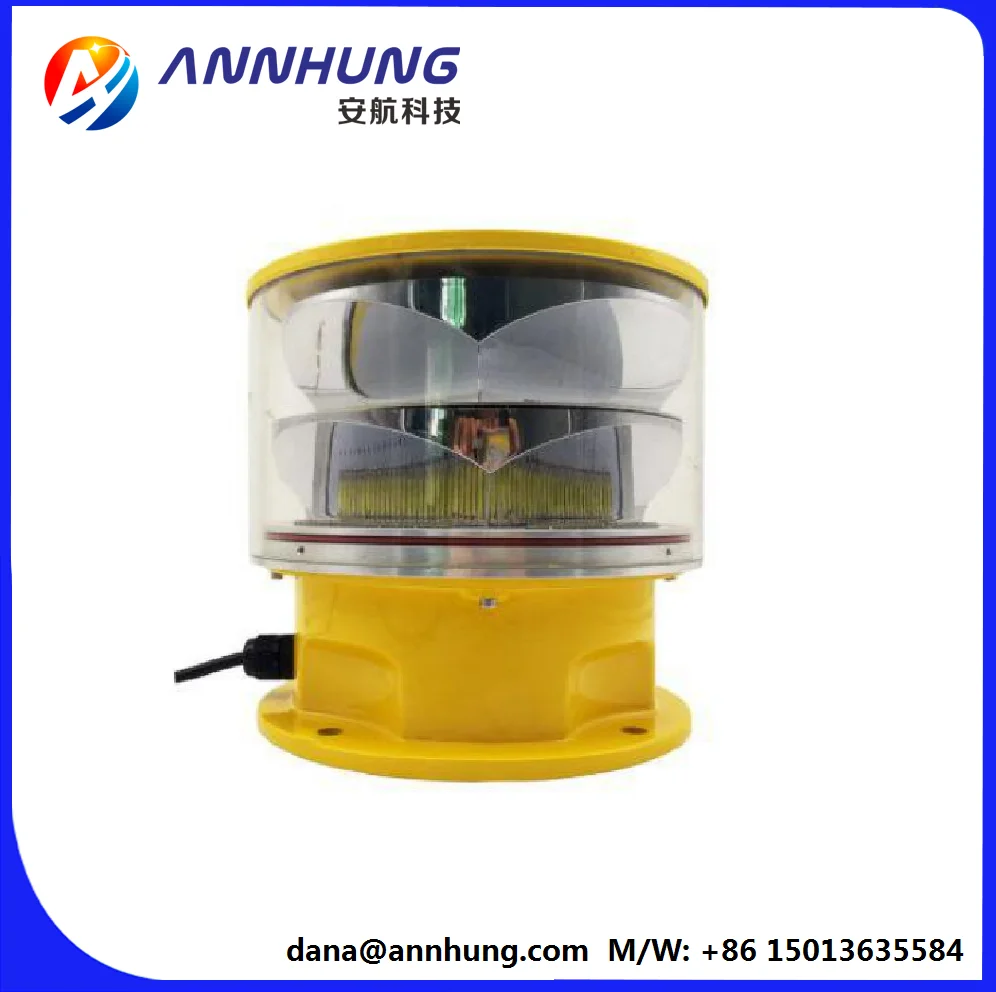

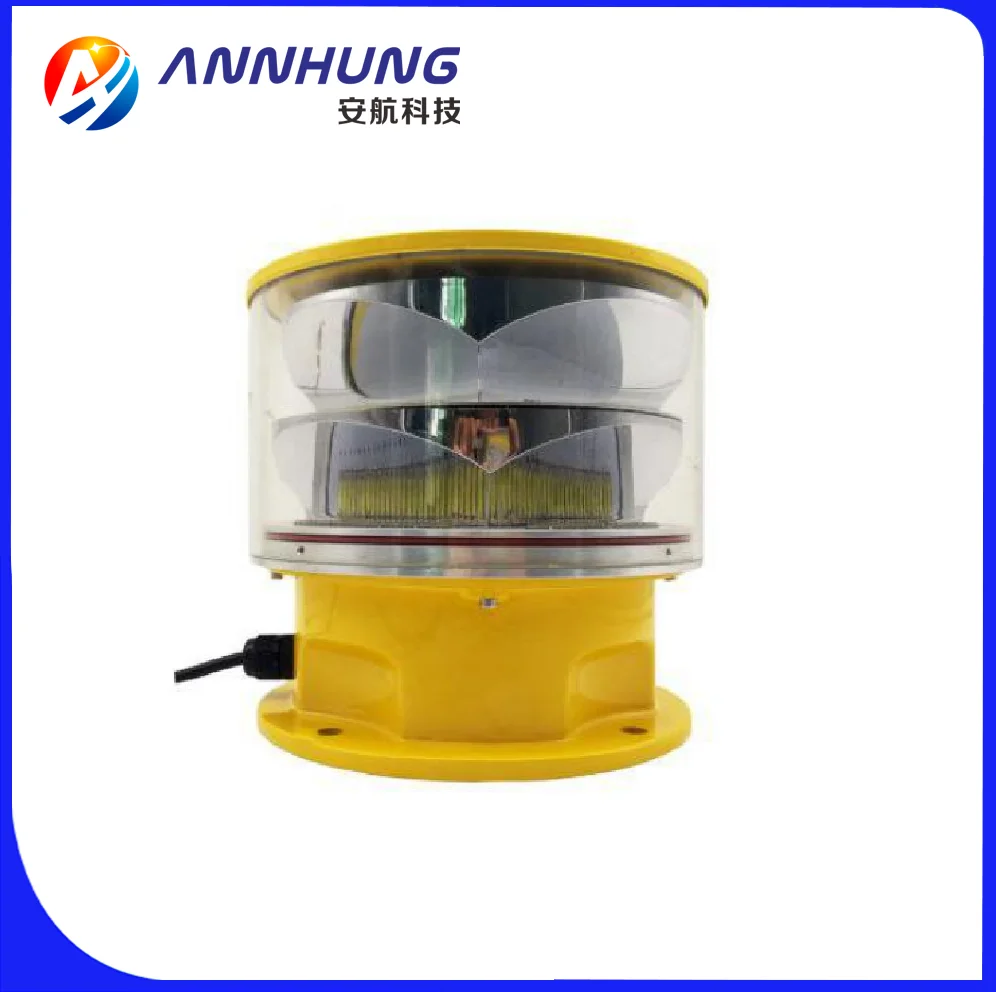

Medium Intensity Aviation Obstruction Light Aircraft Obstacle Double Lights
- Category: >>>
- Supplier: Shenzhen Anhang Technology Co. Ltd.
Share on (62325163540):
Product Overview
Description
Product Description
Product usage
This 2000cd Type B Aviation Obstruction warning Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters. Compliance ICAO standard.
Main-standby mode ensure the obstacle is always marked even one light fail. Because when main top main lamp fail,down standby lamp will turn on automatically. Provide relax safety protection.
Our Products adavantages：
Compliance:
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light** FAA L-864.
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole
light temperature won’t be high. Better products' proformance for your projecs.
light temperature won’t be high. Better products' proformance for your projecs.
Smarter design:
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Main-standby mode
Alarm contact for remote monitoring
Optional functions:
Infrared LED for pilot using NVG
GSM cellphone monitoring RS485/232 communication part for monitoring
User adjustable flashing rate(20, 30, 40, 60 flashes/minute)
GPS synchronization
We are manufacturer, products performanc can be customized
Application
AH-MI-DO medium-intensity 2000cd warning light system is used on the top of the High-rise
Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when
the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when
the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Detailed Images
Packing & Delivery
Product more parameters：
Light Source | CREE high intensity LED |
Available Colors | Red |
Intensity(cd) | >2000cd |
Flash characteristisc | 20-60 flashes per minute |
Operation mode | Dusk-to-dawn Automatically as standard.24 hours as option |
Dimension(mm) | 236 by 236 by 215 |
Weight(kg) | 4.5 |
Product Life Expectancy | 5 years Plus |
Body material | Polycarbonate (High borosilicate glass as optional) |
Base Material | Powder-coated Die-casting aluminum |
Wind Speed | 80m/s |
Waterproof | IP66 |
ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2013, table 6.3 Medium-intensity Type B Red Obstacle Light |
FAA | L864 |
Powder-coated color, Dry contact alarm output | |
Options Available | GSM cell-phone monitoring,RS485 communication |
Dry contact alarm output, GSM cell-phone monitoring | |
User adjustable flashing rate (20, 30, 40, 60) |
