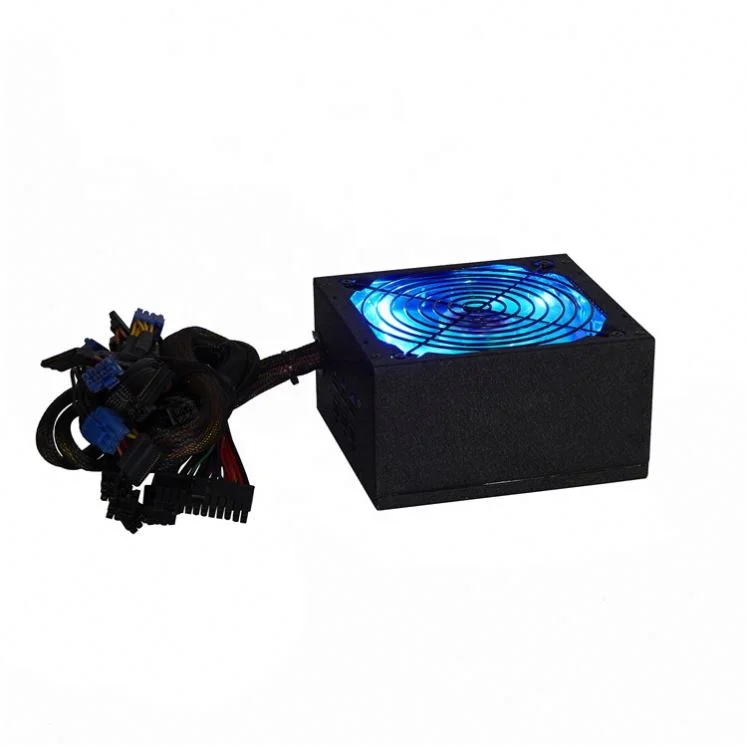

Atx Pc Power Supply 500W Apfc 80Plus Psu For Desktop
- Category: Computer Hardware >>>
- Supplier: Dongguan,Worldwide,Electronic,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Specification | |||||
| Model No. | ZU500W | ||||
| Rate Power | 500W | ||||
| Efficiency | <80% >80%(80plus) >85%(80plus Bronze) >90%(80plus Gold) | ||||
| AC input | 110/230V or 100-240V | ||||
| Housing Material | SECC or Black coating | ||||
| Fan size | 12/14cm black fan | ||||
| Housing Size | 150*140*85mm/160*140*85mm | ||||
| Packing | PE bag & 10pcs/bulk package, brown or white box, retailed color box | ||||
| M/B (20+4P) | 1 | ||||
| CPU(4+4P) | 1 | ||||
| PCI 6 PIN | 2 | ||||
| SATA | 6 | ||||
| Molex/IDE | 4 | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 36A | 18A | 18A | 0.5A | 2A |
| Max.output power | 380W | 90W | 6W | 10W | |
| Rated power | 450W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 20A | 20A | 20A | 0.5A | 2A |
| Max.output power | 420W | 100W | 6W | 10W | |
| Rated power | 500W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 42A | 22A | 22A | 0.5A | 2A |
| Max.output power | 450W | 110W | 6W | 10W | |
| Rated power | 550W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 44A | 24A | 24A | 0.5A | 2A |
| Max.output power | 500W | 120W | 6W | 10W | |
| Rated power | 600W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 52A | 24A | 24A | 0.5A | 2A |
| Max.output power | 550W | 120W | 6W | 10W | |
| Rated power | 650W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 56A | 26A | 26A | 0.5A | 2A |
| Max.output power | 600W | 130W | 6W | 10W | |
| Rated power | 700W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 60A | 26A | 26A | 0.5A | 2A |
| Max.output power | 650W | 130W | 6W | 10W | |
| Rated power | 750W | ||||
| Input AC | 100-240Vac 8-4A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 64A | 26A | 26A | 0.5A | 2A |
| Max.output power | 700W | 130W | 6W | 10W | |
| Rated power | 800W | ||||
FAQ
Q. What products you offer?
A.PC power supply,ITX power supply, industral power supply(1U power dupply, 2U power supply,FLEX power supply,SFX power supply, TFX power supply), LED power supply(waterproof power supply, rainproof power supply, 3D printer power supply,led dispaly power supply).CCTV power supply, Air inflator

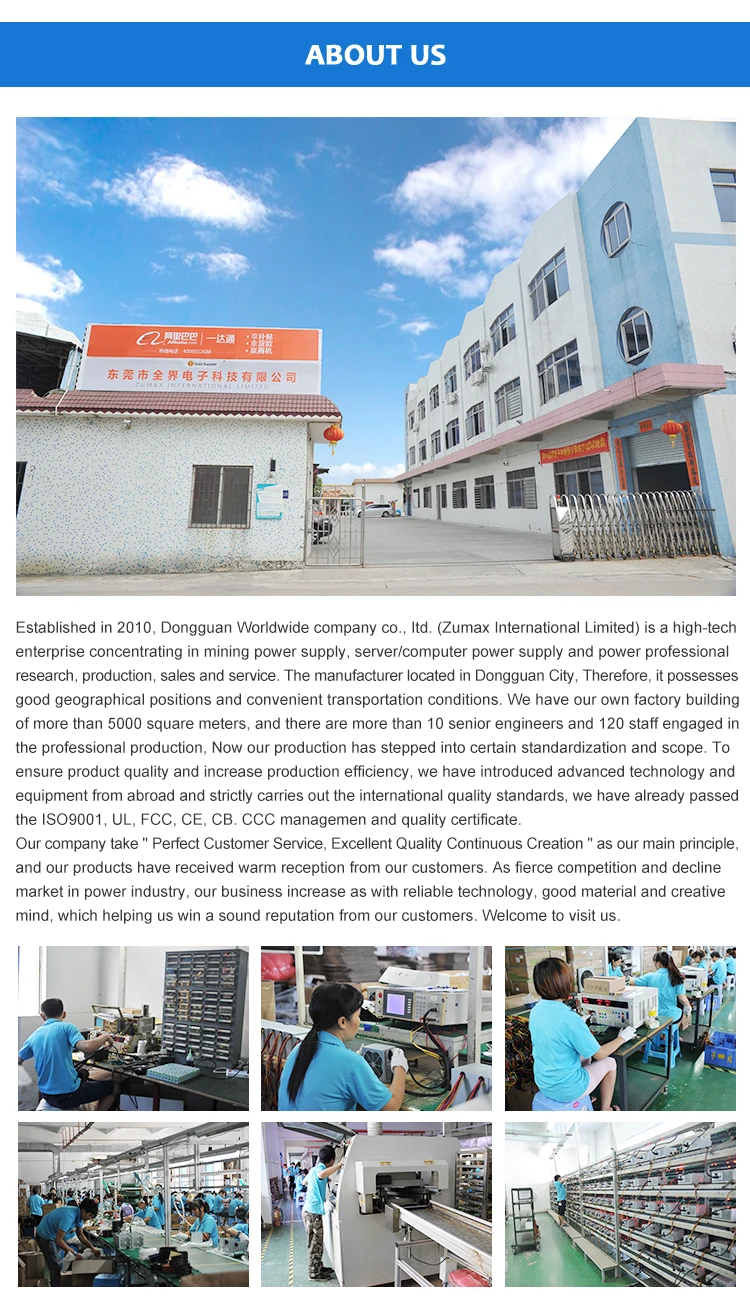

Q.Are you manufacturer or trading company.
A. We are manufacturer with profesional reserch and development group.Speclized in this indusrey more than 10year.
Q. what is your MOQ of switch power supply?
A.MOQ is 1 Piece.
Q.How many year warranty of your led power supply
A.Two years.
Q. Do you offer free sample?
A:Yes, we offer free sample, but client need to pay for the shipping fee.
Q.Do you have any certification?
A: Yes,we have UL CE-EMC,CE-LVD, CB,TUV, ROHS,FCC, EAC etc. if you need other certification with larger order, we can apply for it.
Q.Do you accept OEM and ODM service?
A: Yes, OEM and ODM are acceptable.
