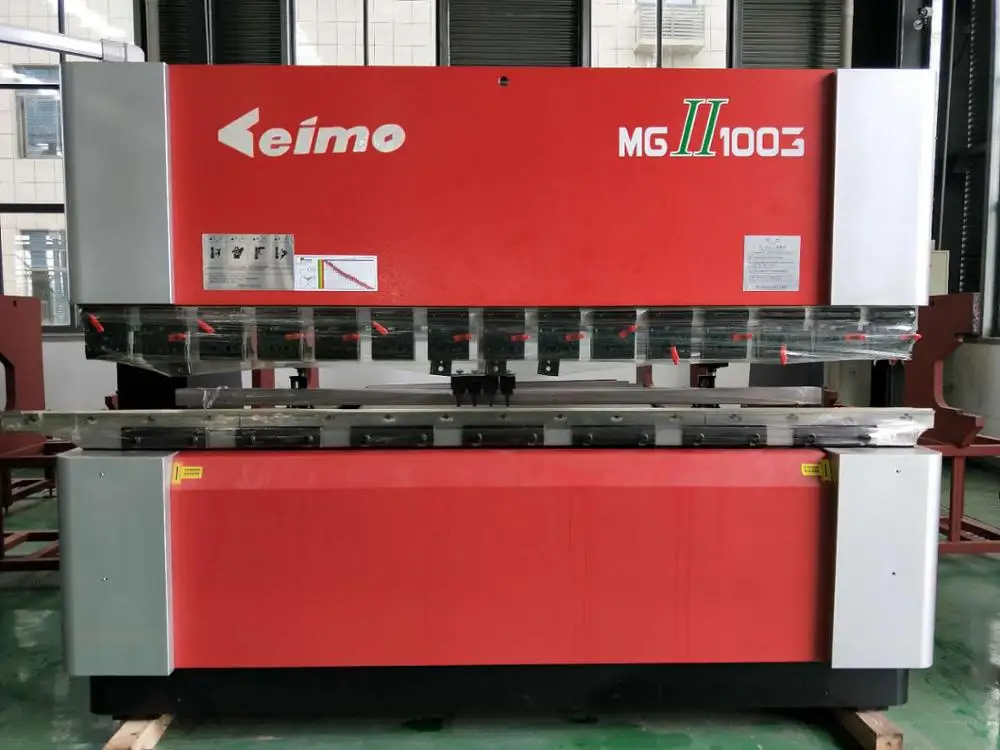

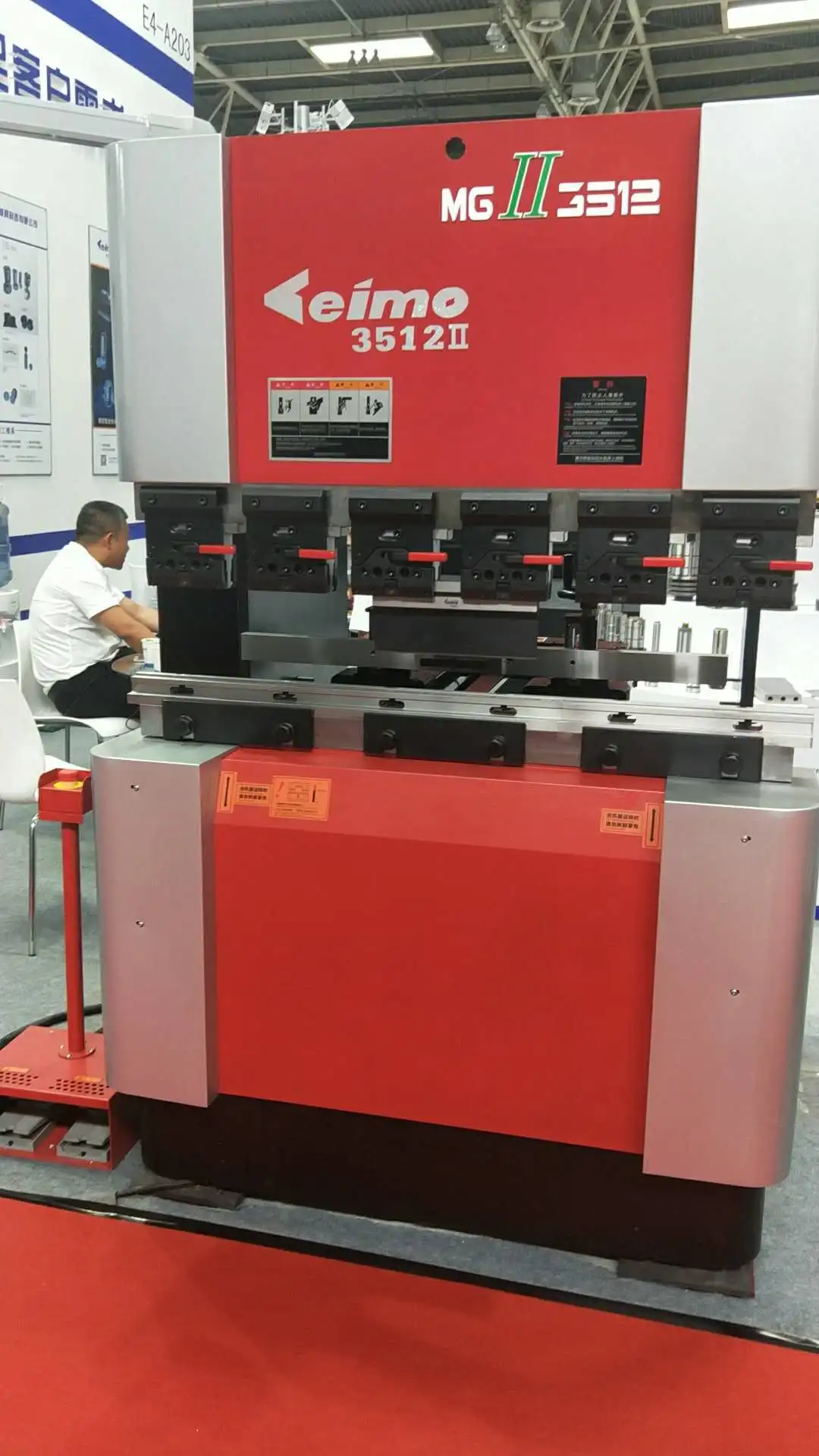

High precision CNC Bending Machines hydraulic bending machine folding machine
- Category: >>>
- Supplier: Anhui Leimo Mold Manufacturing Co. Ltd.
Share on (62325422684):
Product Overview
Description
Product Description
| Technical Parameters | Unit | MG Series | ||||||||
| Machine type | MG-3512 | MG-5012 | MG-5020 | MG-6012 | MG-6020 | MG-1003 | MG-1253 | MG-1254 | MG-1303 | |
| Nominal force | KN | 343 | 490 | 490 | 588 | 588 | 980 | 1225 | 1225 | 1274 |
| Bending length | MM | 1200 | 1200 | 2000 | 1200 | 2000 | 3100 | 3100 | 4000 | 3100 |
| Side distance | MM | 1020 | 1020 | 1720 | 1020 | 1720 | 2550 | 2550 | 3000 | 2550 |
| Throat Depth | MM | 200 | 200 | 405 | 405 | 405 | 405 | 405 | 405 | 405 |
| Table (slider) stroke | MM | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Opening height | MM | 370 | 370 | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Climbing speed | MM/S | 46 | 52 | 52 | 52 | 52 | 58 | 58 | 58 | 58 |
| Bending speed | MM/S | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Return speed | MM/S | 42 | 46 | 46 | 46 | 46 | 52 | 52 | 58 | 52 |
| Number of cylinders | PCS | 1 | 1 | 1 | 1 | 3 | 3 | 3 | 3 | 3 |
| Main motor power | KW | 3.5 | 4.5 | 5 | 4.5 | 5 | 7.5 | 7.5 | 11 | 11 |
| Weight | KG | 1600 | 2900 | 3800 | 3000 | 3800 | 6400 | 6400 | 7500 | 7400 |
| Machine length | MM | 1355 | 1455 | 2255 | 1455 | 2255 | 3055 | 3055 | 4000 | 3055 |
| Machine width | MM | 1025 | 1440 | 1440 | 1440 | 1440 | 1555 | 1555 | 1567 | 1555 |
| Machine height | MM | 1960 | 2070 | 2070 | 2070 | 2070 | 2421 | 2421 | 2450 | 2421 |
| Mailbox capacity | L | 26 | 33 | 33 | 33 | 45 | 65 | 72 | 72 | 72 |
