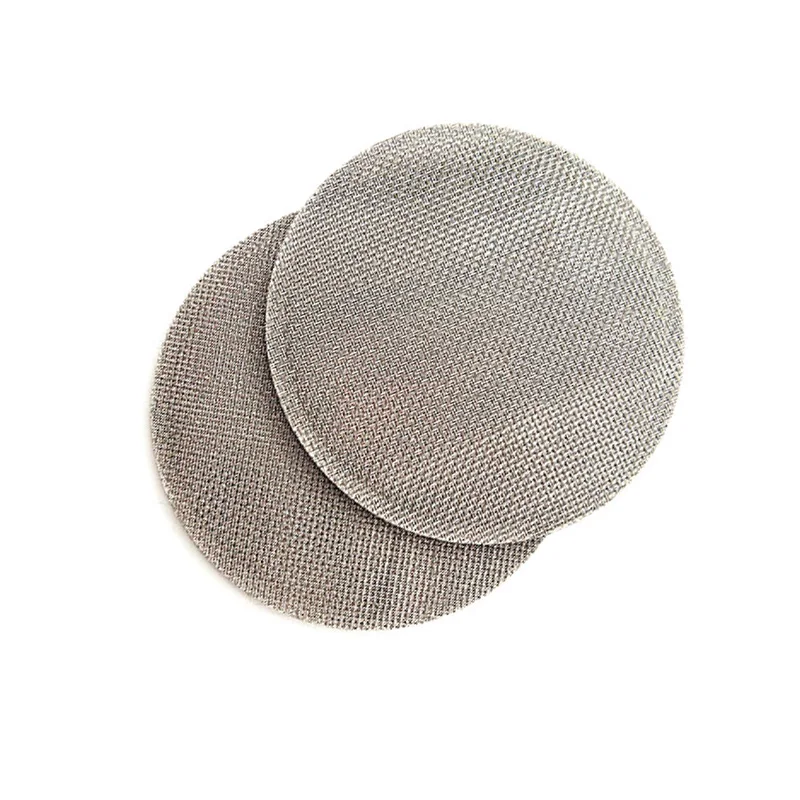

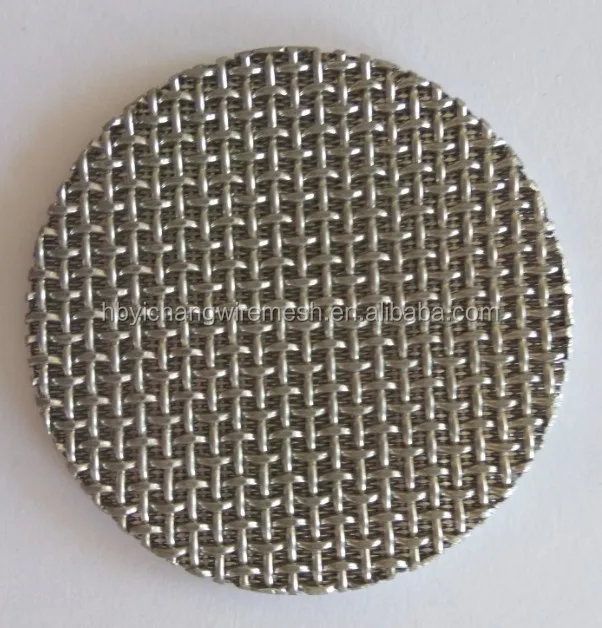

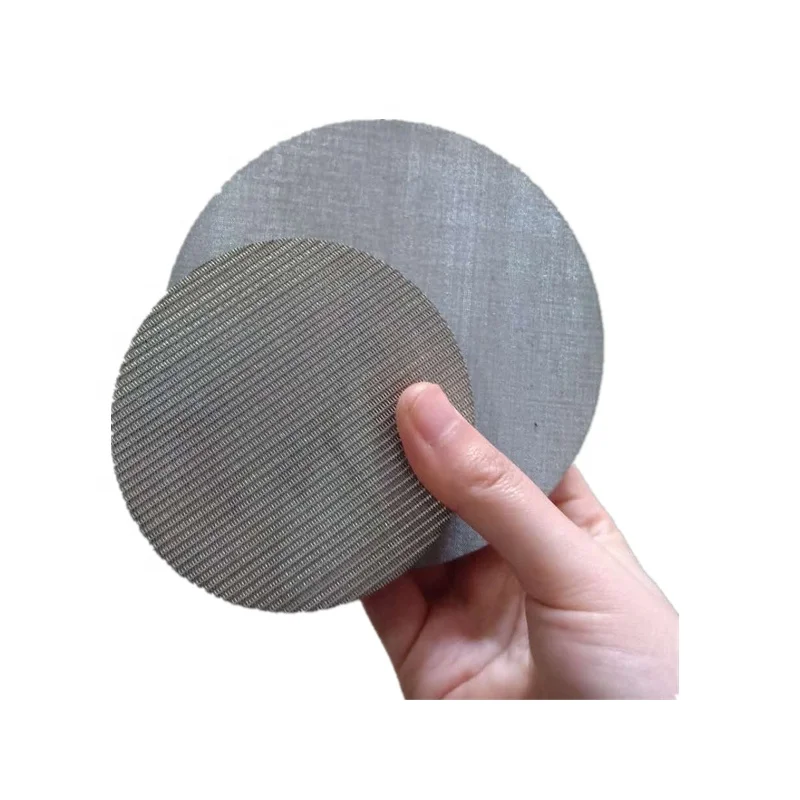

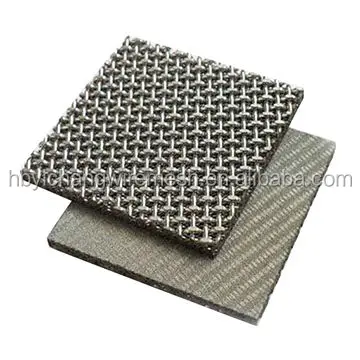

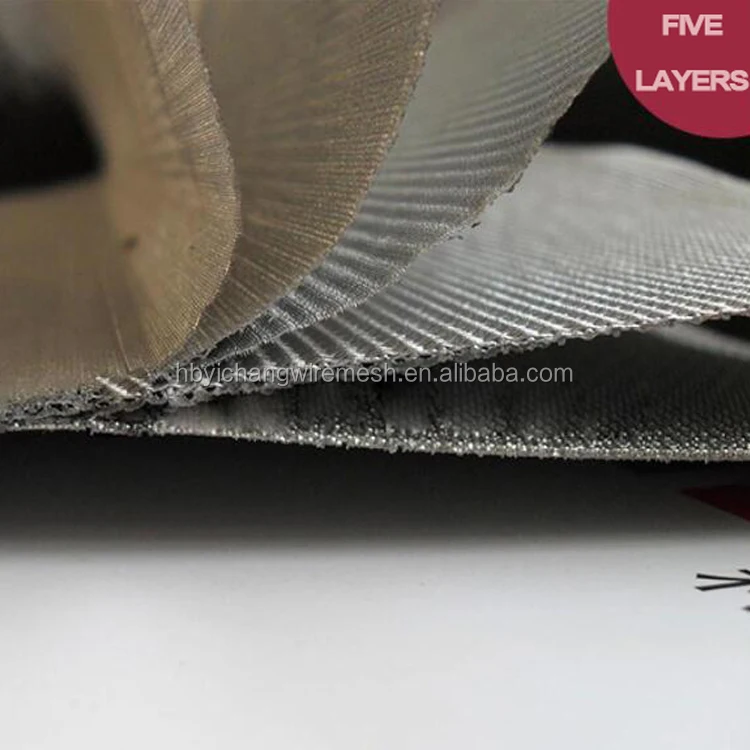

Stainless Steel Sintered Wire Mesh is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Major Characteristics: Excellent strength, no inner support is required for making filter elements; no material; easily repeated cleaning; long lifespan; good anti-corrosion.
Model No.
Nominal Filter Rating
Absolute Filter Rating
Gas Permeability
Bubbling Pressure
sw1
1
6-7
5300-6000
sw2
2
8-9
(1-6)*10-4
4300-5000
sw5
5
11-13
(6-10)*10-4
3000-3700
sw10
10
16-18
(6-10)*10-4
2700-3300
sw15
15
24-26
(1-6)*10-3
2000-2600
sw20
20
28-32
(1-6)*10-3
1800-2300
sw25
25
34-36
(6-10)*10-3
1400-1900
sw30
30
40-45
(6-10)*10-3
1200-1700
sw40
40
50-55
(1-6)*10-2
1000-1500
Sintered stainless steel Mesh Uses:
In chemical products filtering of polyester, oil, sulfur, etc.
In filtering of pure water, air, etc.
Major Technical Data:
Filtering Fineness: 2-60micron.
Work Temperature: -20°C to 600°C.
Max. Pressure Drop: 3.2Mpa.
Max. Size: Width: 500mm; Length: 1000mm.
Layer: 2 to 6 layers.

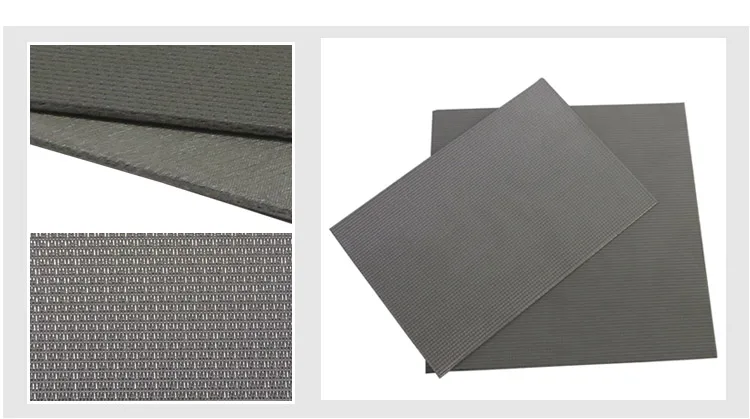

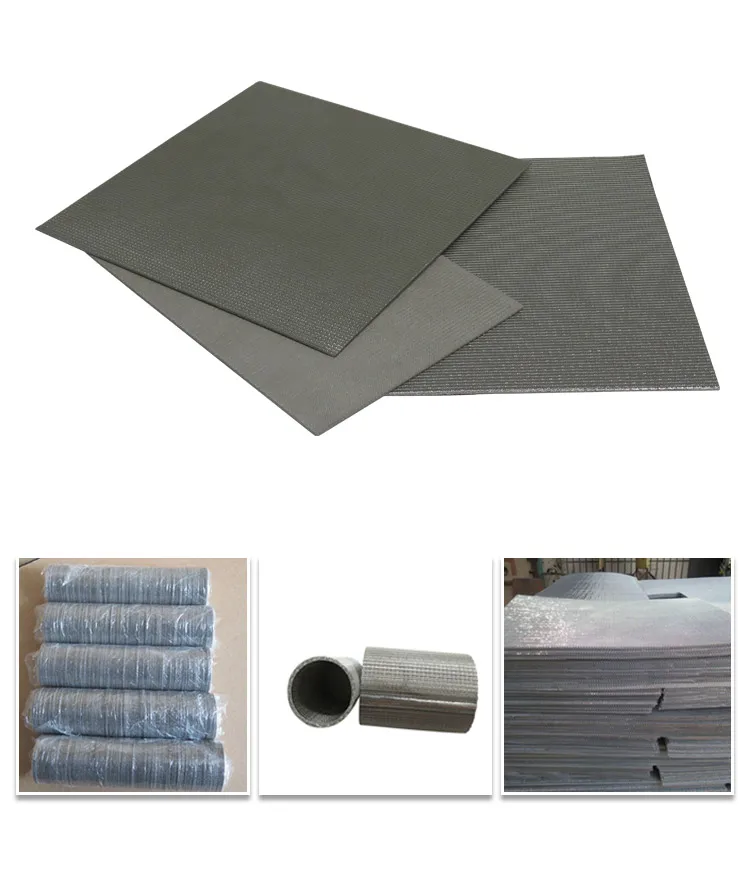

Product images

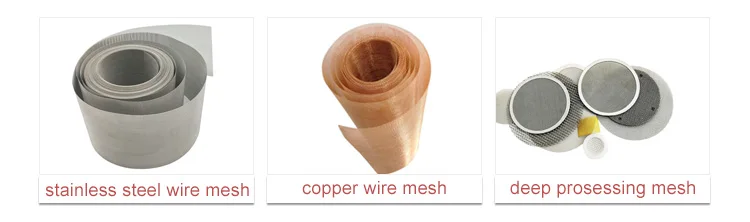

Related Products
