Factory wholesale price Aluminum foil partition HEPA filter for air purification ventilation system
- Category: >>>
- Supplier: Centiz Purification Technology Co. Ltd.
Share on (62325499990):
Product Overview
Description

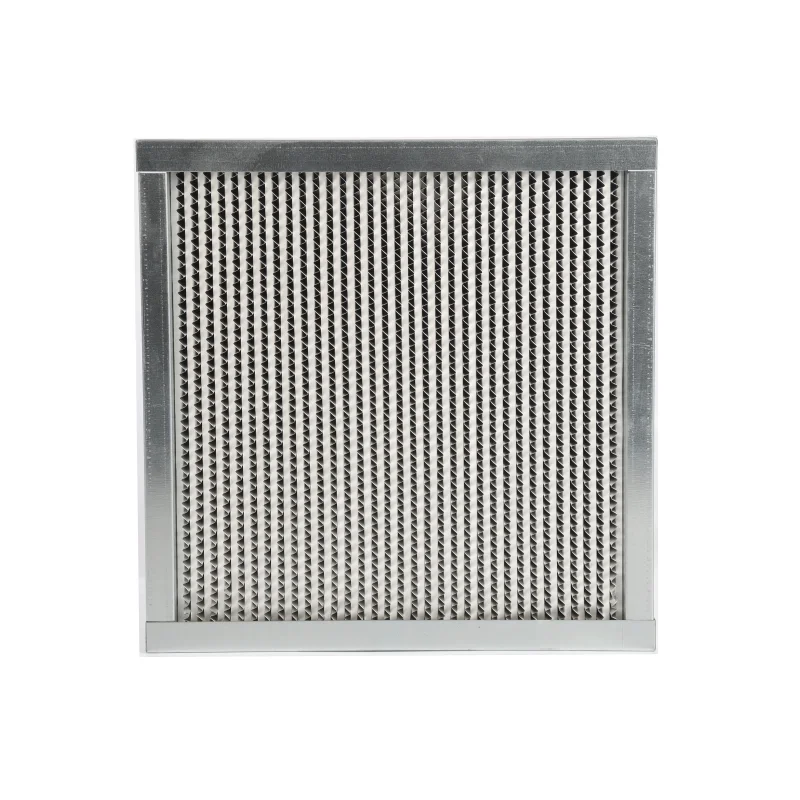

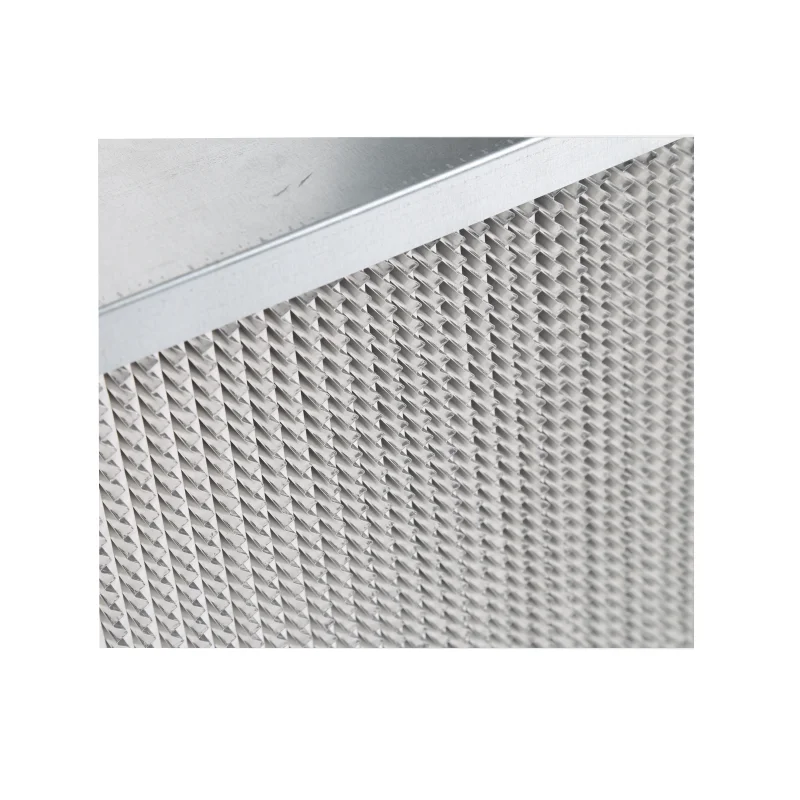

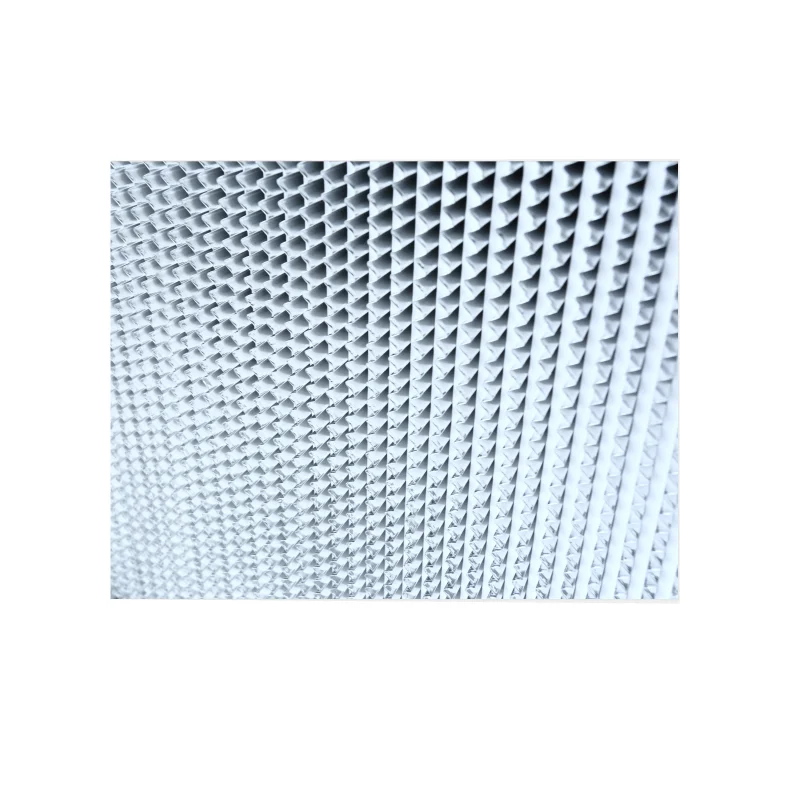

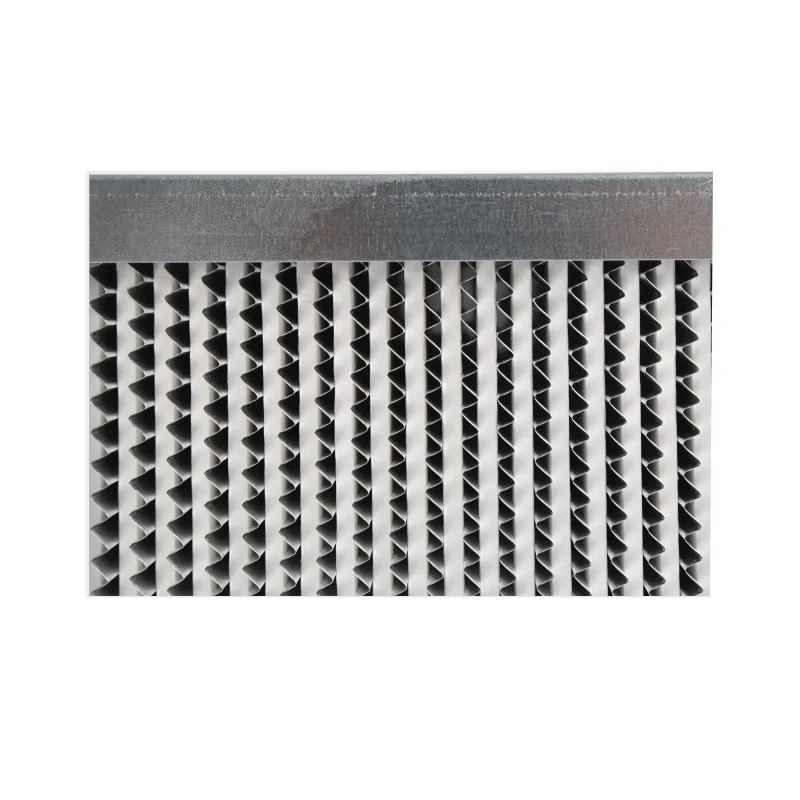

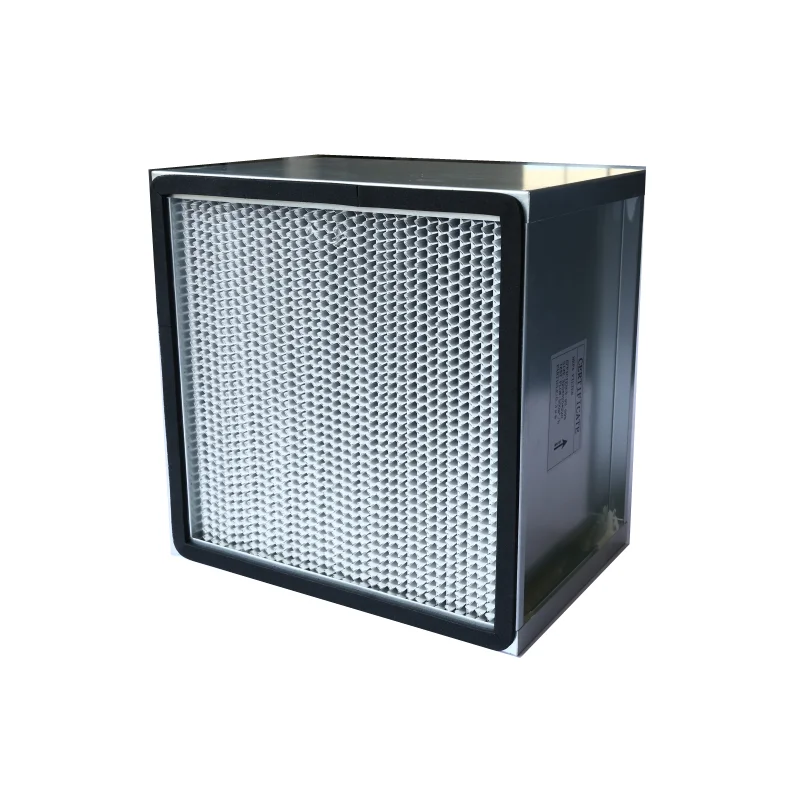

Aluminum foil partition HEPA filter
Product features
Aluminum partition frame can provide flange-less, single flange, double flange, flange thickness 20mm
Use ultra-fine glass fiber filter paper
With partition design, high efficiency, low resistance and large dust holding capacity
Suitable for variable air volume systems
Application of product
Medium effect filter for clean room, commercial and industrial ventilation and air conditioning systems
Ventilation and air conditioning system in high humidity environment
Variable air volume ventilation and air conditioning system
Ventilation and air conditioning system with tight installation space
Ventilation and air conditioning system with high fire protection requirements or high ventilation temperature
Widely used in clean rooms and other areas where air cleanliness is highly required
Product efficiency
High efficiency:99.5 0.3μm(H13), 99.995% 0.3μm(H14) (EN1822)
Material list
Frame - galvanized sheet / aluminum sheet / stainless steel sheet
Optional thickness of frame - 120mm / 150mm / 220mm / 292mm
Filter material - water resistant glass fiber
Reinforcement - aluminum foil / paper
Connection angle - polyurethane
Applicable condition
Max. temperature (°C) 80(180℉)
M-HI product specification:high efficient partition filter-standard air volume
Nominal size | Actual size | Partition | Flange | Rated air volume | Surface air speed | Rated initial resistance | Recommended final resistance | |
inch | (mm) |
|
| (m3/h) | (m/s) | (Pa) | (Pa) | |
W×H×D | W×H×D |
|
|
|
| H13 | H14 | Initial resistance 2-2.5 times |
12×24×3 | 305×610×80 | Aluminum partition | Non-flange | 200 | 0.36 | 249 | 280 | |
24×24×3 | 610×610×80 | Aluminum partition | Non-flange | 420 | 0.36 | 249 | 280 | |
12×24×6 | 305×610×150 | Aluminum partition | Non-flange | 420 | 0.77 | 249 | 280 | |
24×24×6 | 610×610×150 | Aluminum partition | Non-flange | 900 | 0.77 | 249 | 280 | |
12×24×9 | 305×610×220 | Aluminum partition | Non-flange | 650 | 1.20 | 249 | 280 | |
24×24×9 | 610×610×220 | Aluminum partition | Non-flange | 1400 | 1.20 | 249 | 280 | |
12×24×12 | 305×610×292 | Aluminum partition | Non-flange | 860 | 1.60 | 249 | 280 | |
24×24×12 | 610×610×292 | Aluminum partition | Non-flange | 1860 | 1.60 | 249 | 280 | |
Remarks: The tolerance of performance initial resistance is ±10% 2 can provide special size production
Hepa filter for Laminar flow hood
