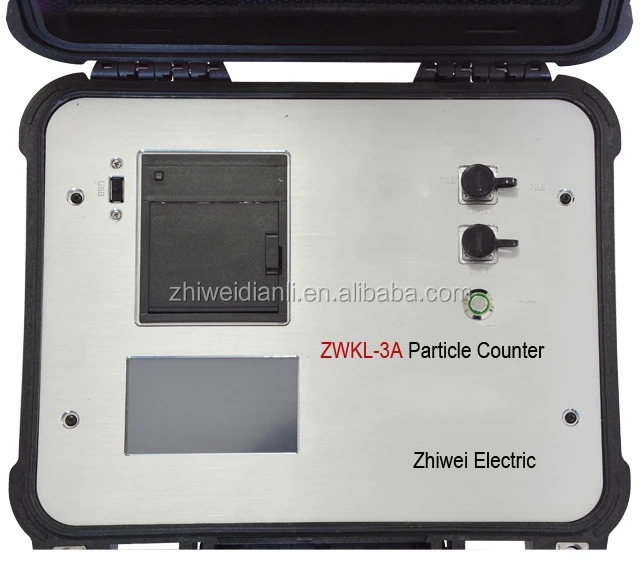

ZWKL 3A Particle counter portable transformer oil particle counter
- Category: >>>
- Supplier: Baoding Zhiwei Electric Power Technology Co. Limited
Share on (62325723032):
Product Overview
Description

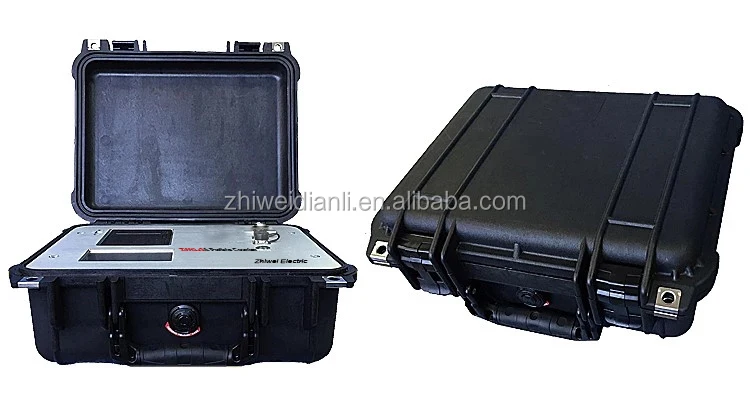

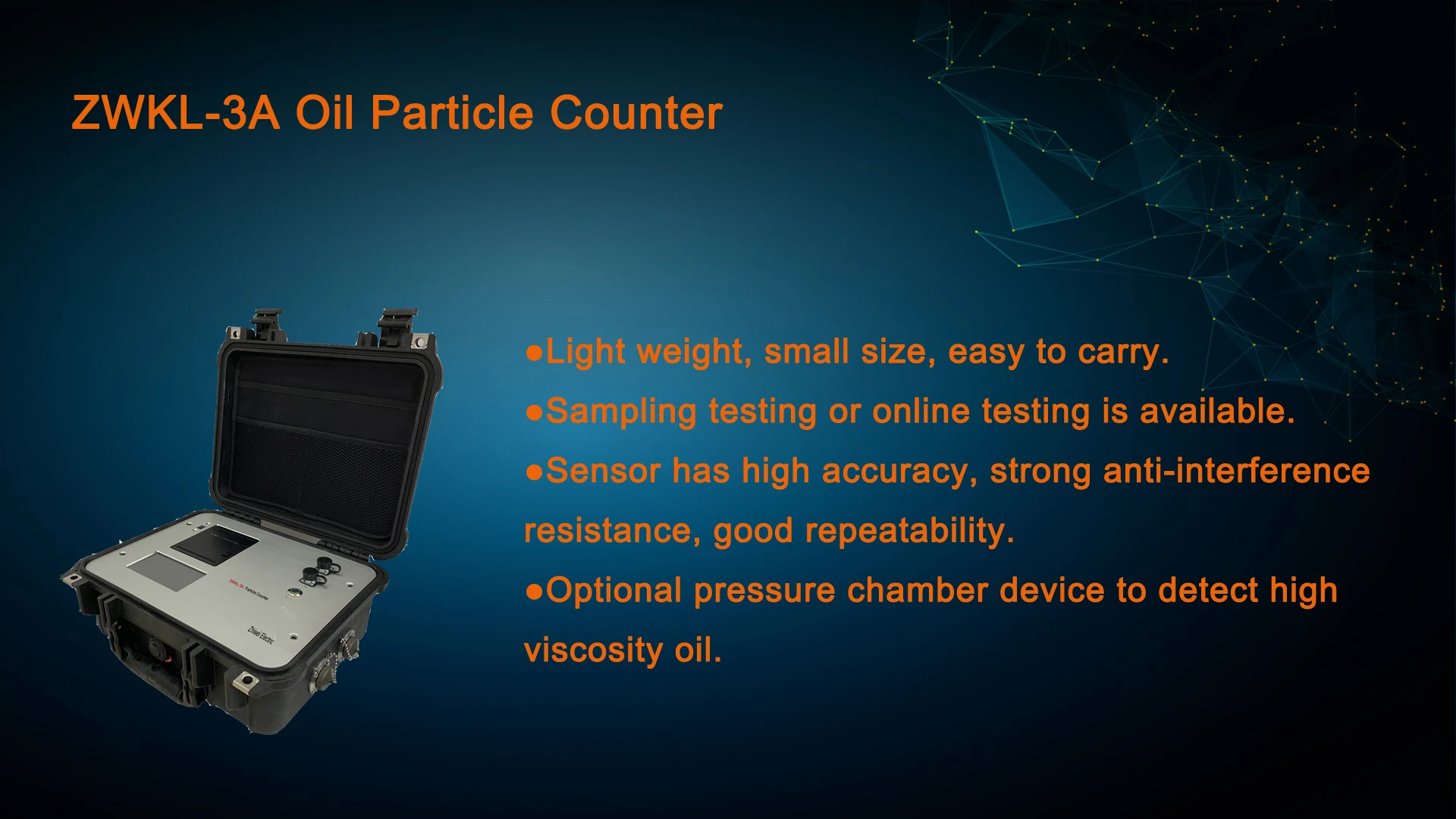

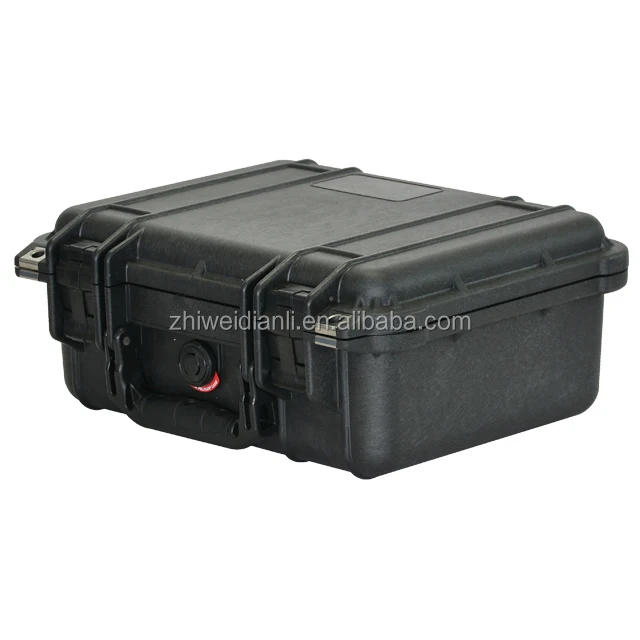

ZWKL-3A Portable oil particle counter liquid particle counter
Product Overview
ZWKL-3A particle counter is developed using the light shading method (also referred as light blockage method ), and is used to detect the size and number of solid particles in liquid. It can be widely applied to aviation, aerospace, electric power,petroleum, chemistry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields. Specifically, it tests pollution level of solid particles in oil fluid such as hyd raulic oil, lubricating oil, transformer oil (insulating oil),steam turbine oil (turbine oil), gear oil, engine oil, aviation kerosene and water-based hydraulic oil and detects insoluble particles in organic liquid and poly mer solution.

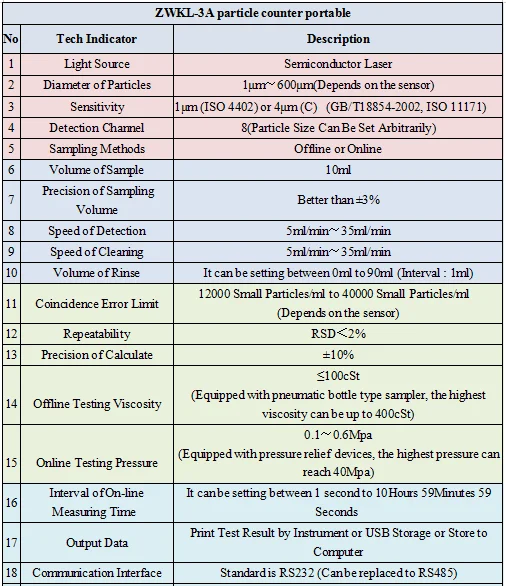

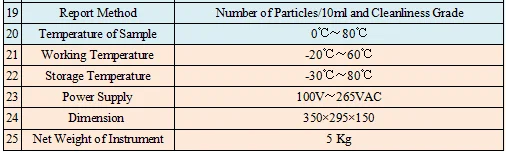

Technical Parameters
Main features
* Adopt the principle of light shading method (light blockage method);
* Ensure high resolution and accuracy with high-precision sensors;
* Constantly control sample injection rate and precisely control the sample volume with precision samp ling system;
* Internally set such standards asNAS1638、ISO4406-1999、GJB420B-2006、GJB420A-1996、ISO4406-1987、AS4059E、JTS-005、ΓOCT17216-01、SAE749D-1963、ISO4406-2017、GB/T14039-02、GJB420B-2015 and AS4059F, and add other standards as users require;
* Provide 8 channels with freely-set particle sizes;
* Provide 3 calibration curves (ACFTD calibration curve, MTD calibration curve and ΓOCT17216 calibration curve), and may calibrate according to standards of ISO4402, GB/T18854-2002 (ISO11171:1999) and GOST standards); may switch easily to reduce the error of conversion;
* Display with color LCD screen and provide touch screen operation;
* Provide mini thermal printer;
* Possess a USB interface, so that all test data can be stored in a USB flash disk;
* Possess a standard serial RS232/485 communication port to connect with external computer and complete the transmission, storage and processing of test data;
* May perform automatic continuous online test and set test intervals freely;
* Possess cleaning function, and may automatically clean the residual liquid in the instrument;

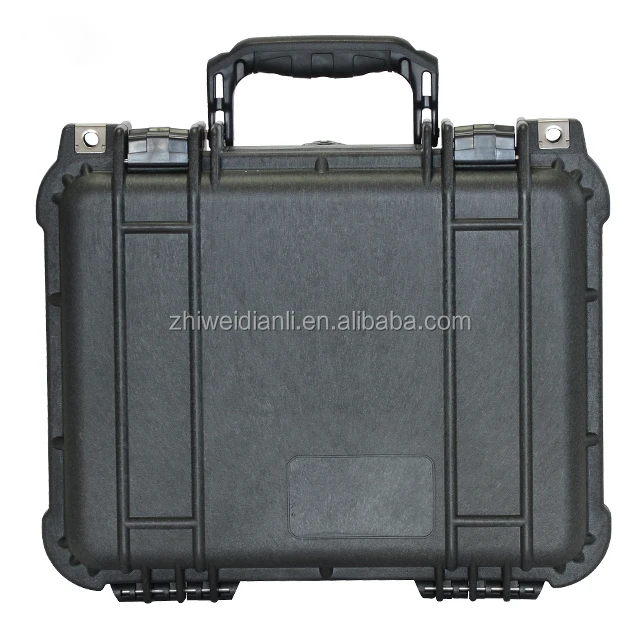

* Adopt imported high-intensity injection shell with compact structure, light weight and high portability;
* Adopt high-precision metal drawing panel - simple, beautiful and durable.
* Ensure high resolution and accuracy with high-precision sensors;
* Constantly control sample injection rate and precisely control the sample volume with precision samp ling system;
* Internally set such standards asNAS1638、ISO4406-1999、GJB420B-2006、GJB420A-1996、ISO4406-1987、AS4059E、JTS-005、ΓOCT17216-01、SAE749D-1963、ISO4406-2017、GB/T14039-02、GJB420B-2015 and AS4059F, and add other standards as users require;
* Provide 8 channels with freely-set particle sizes;
* Provide 3 calibration curves (ACFTD calibration curve, MTD calibration curve and ΓOCT17216 calibration curve), and may calibrate according to standards of ISO4402, GB/T18854-2002 (ISO11171:1999) and GOST standards); may switch easily to reduce the error of conversion;
* Display with color LCD screen and provide touch screen operation;
* Provide mini thermal printer;
* Possess a USB interface, so that all test data can be stored in a USB flash disk;
* Possess a standard serial RS232/485 communication port to connect with external computer and complete the transmission, storage and processing of test data;
* May perform automatic continuous online test and set test intervals freely;
* Possess cleaning function, and may automatically clean the residual liquid in the instrument;
* Adopt imported high-intensity injection shell with compact structure, light weight and high portability;
* Adopt high-precision metal drawing panel - simple, beautiful and durable.

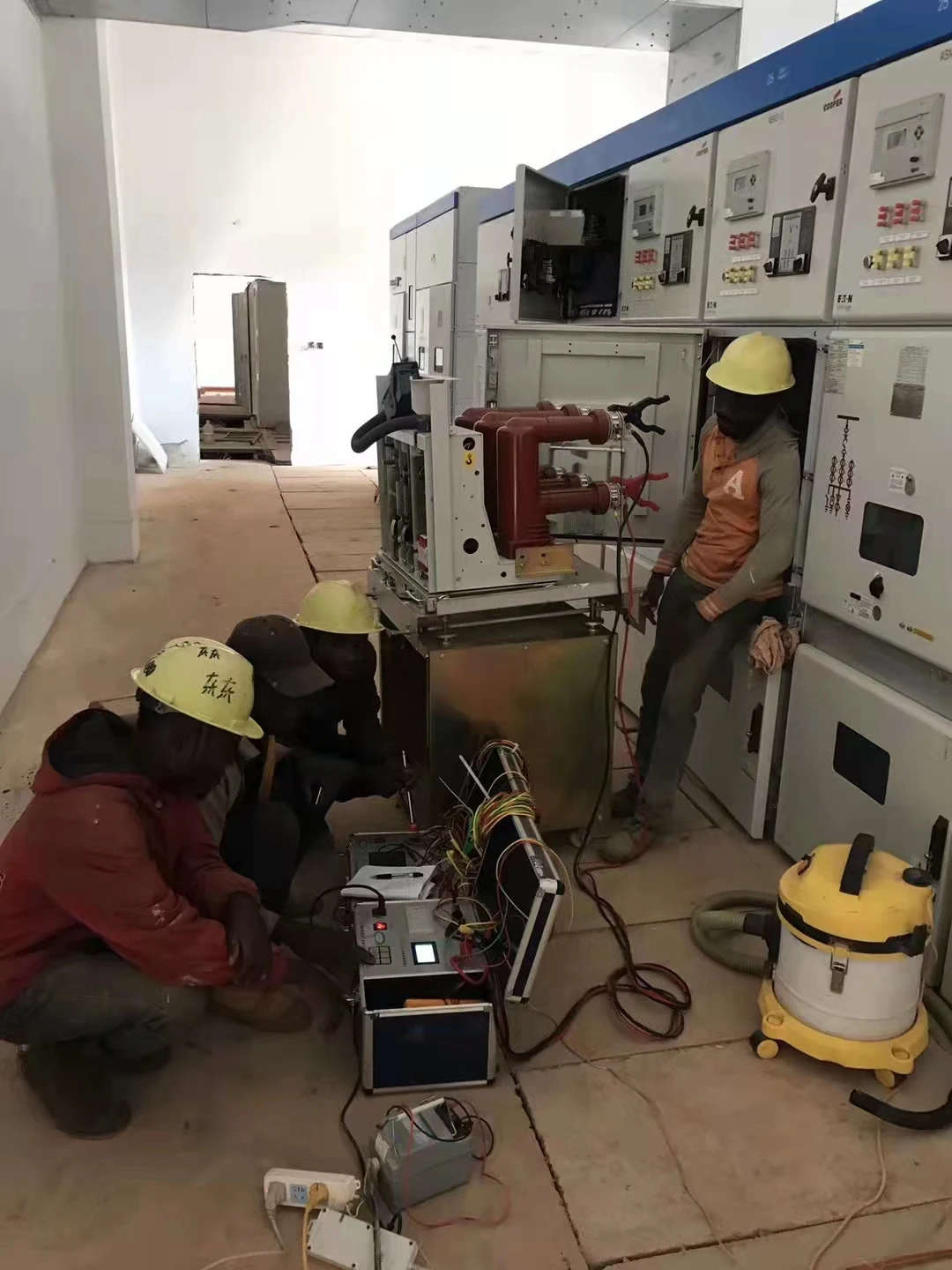

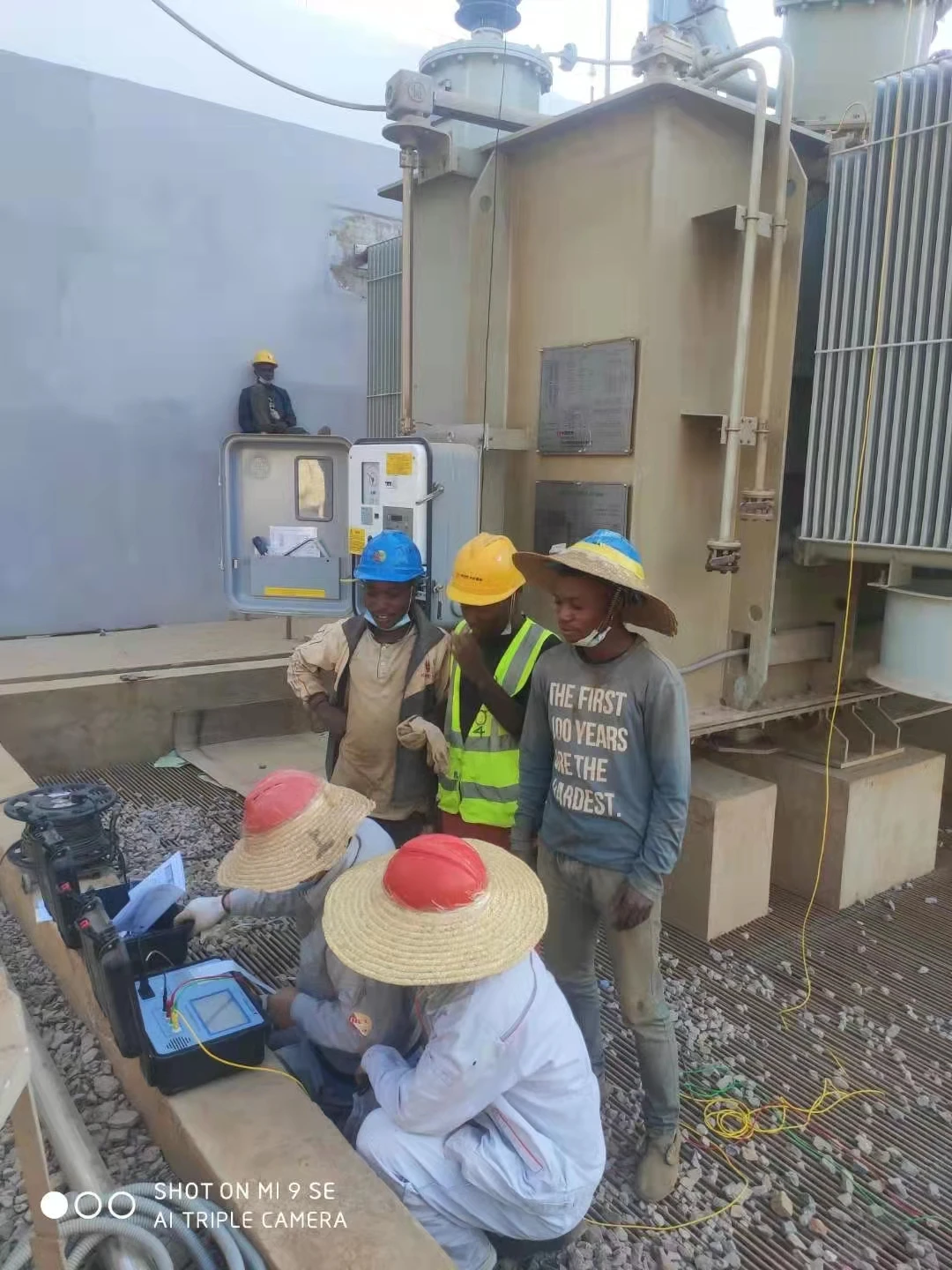

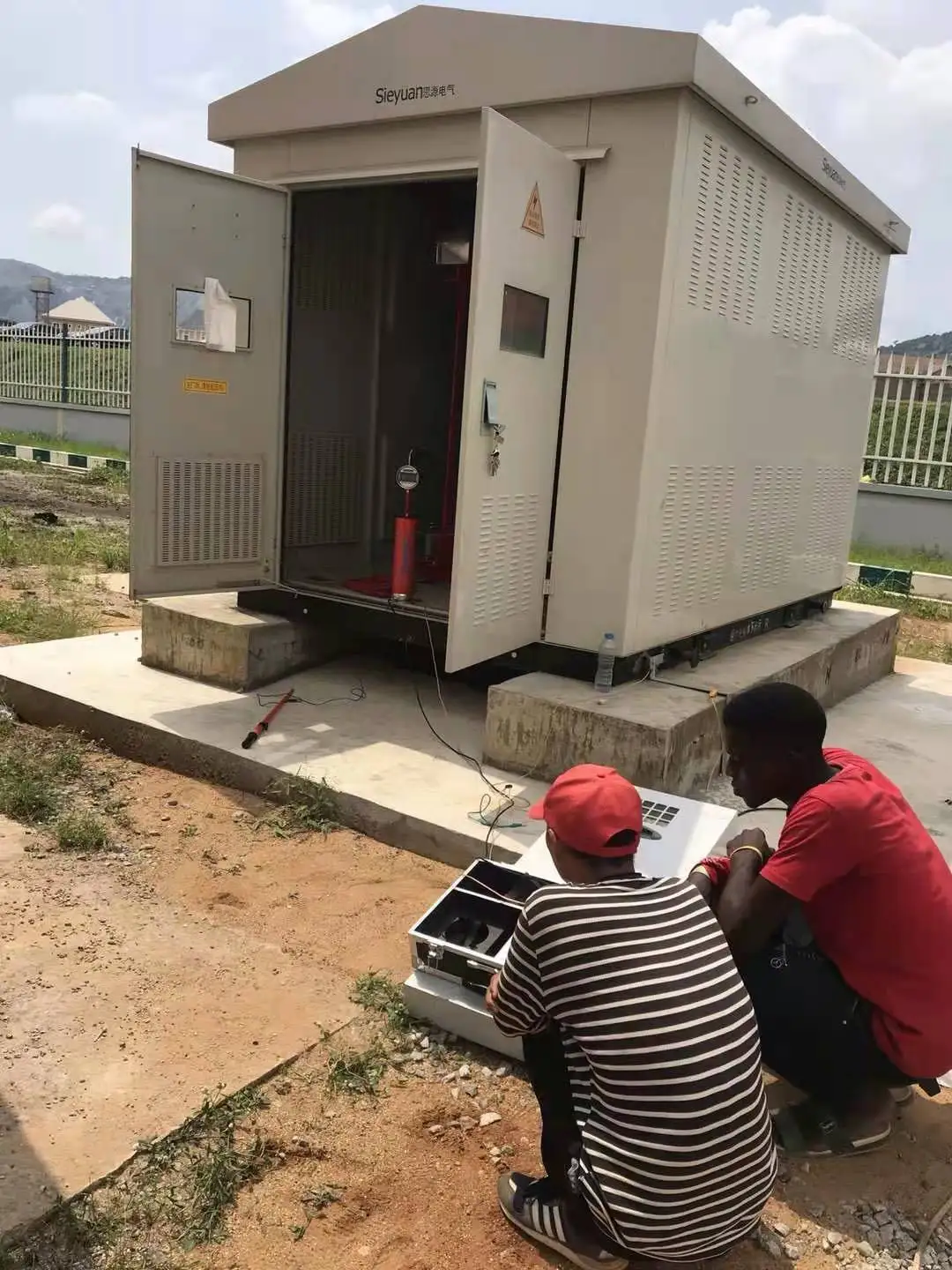

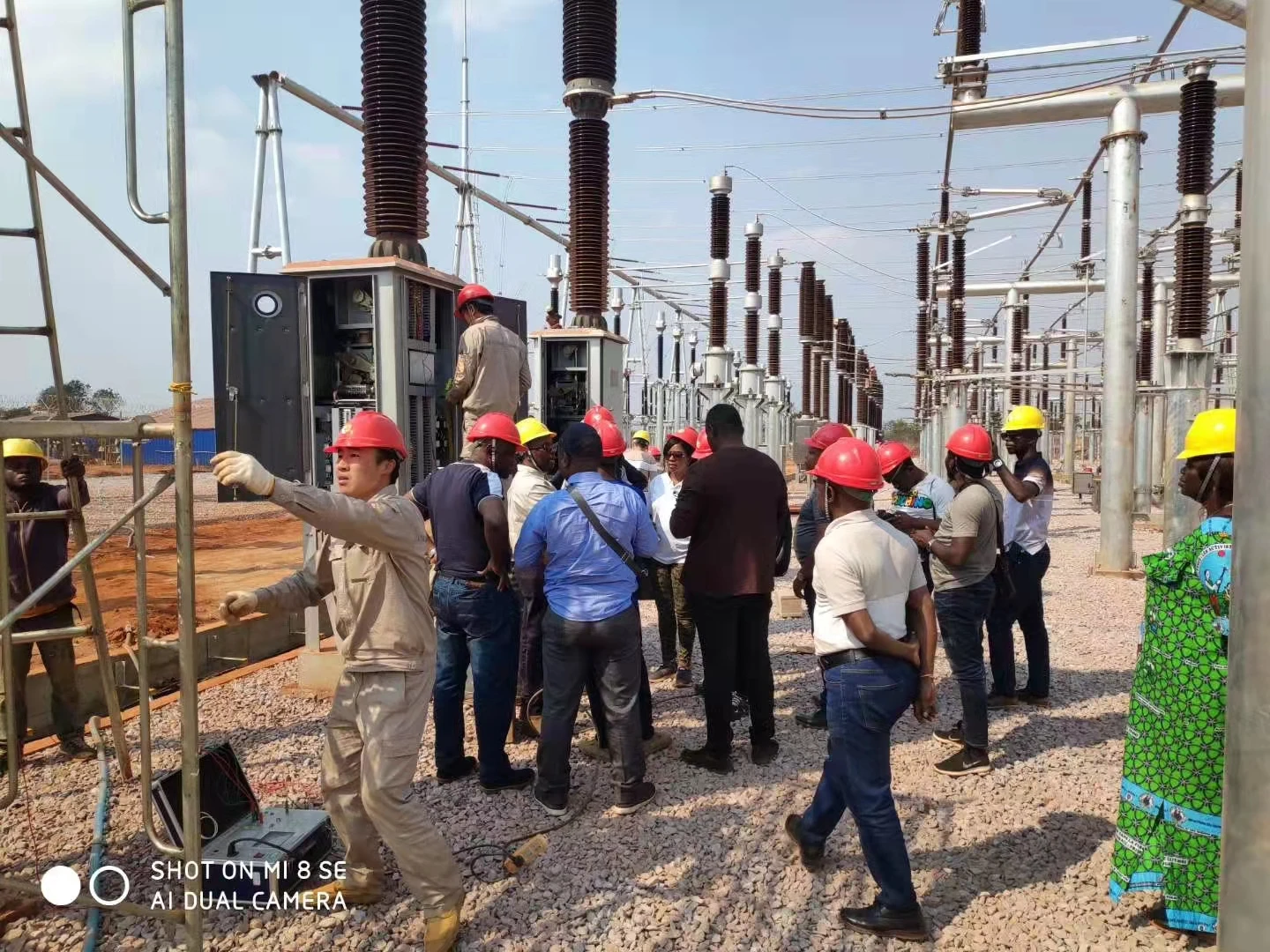

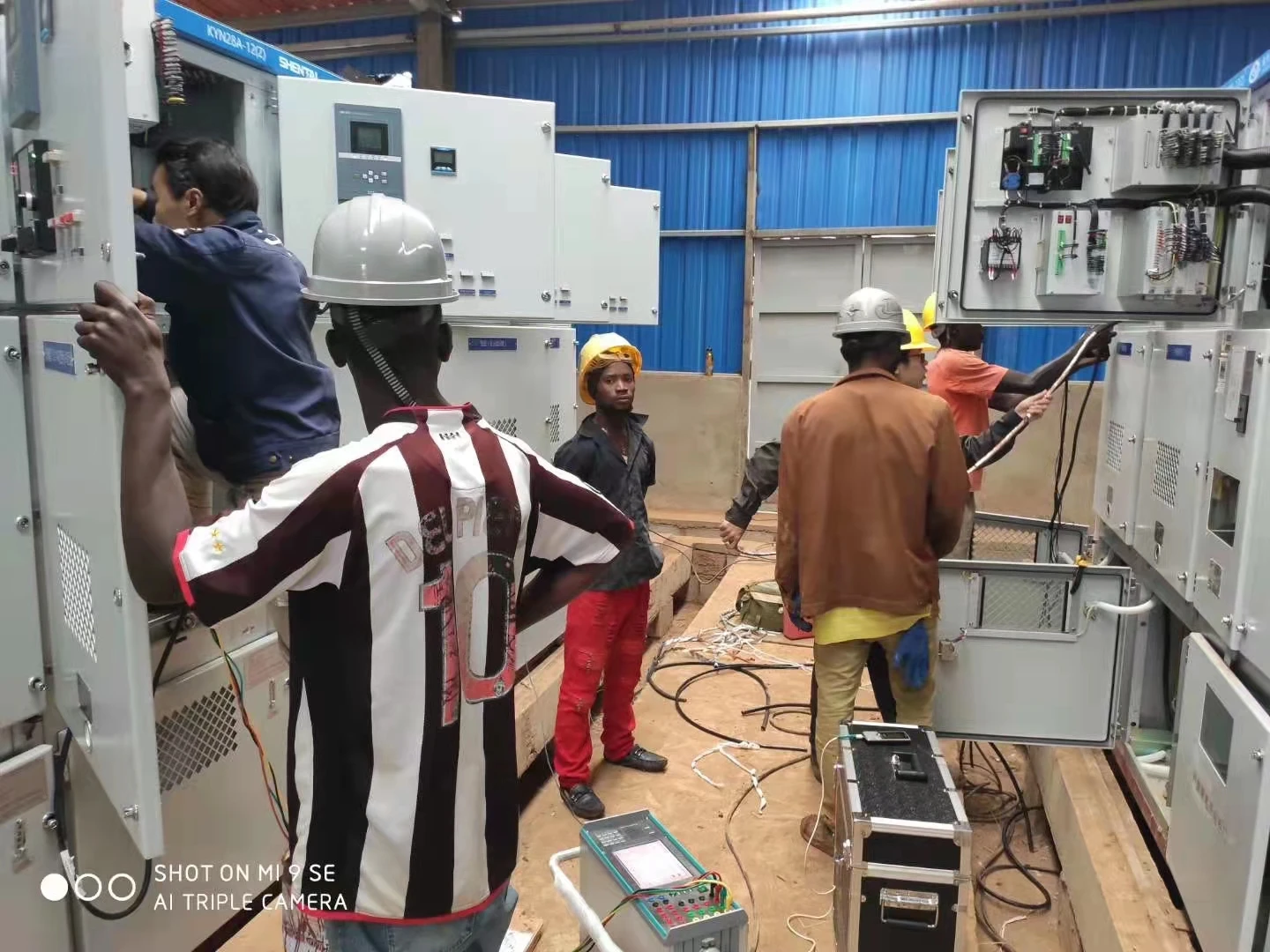

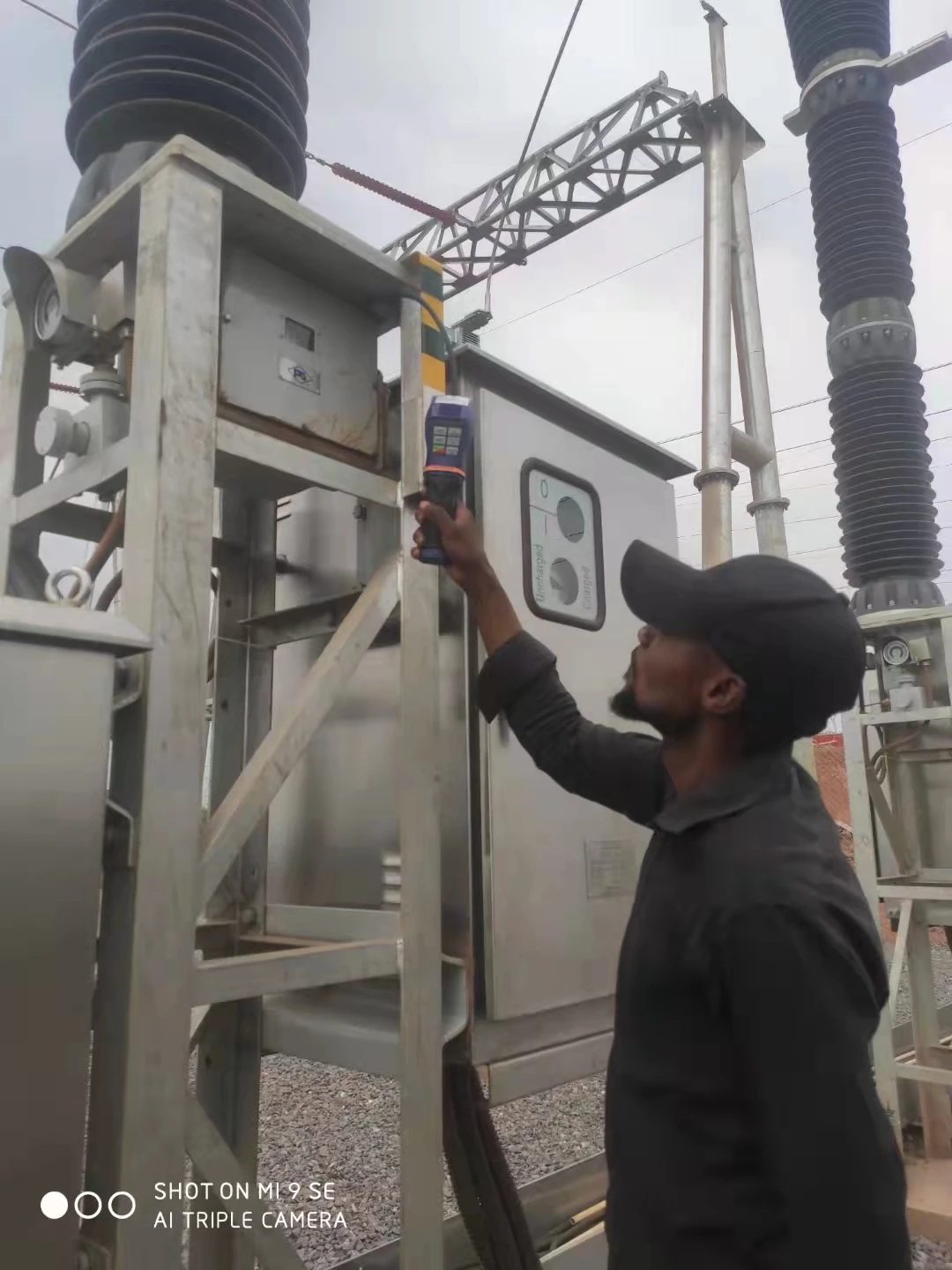

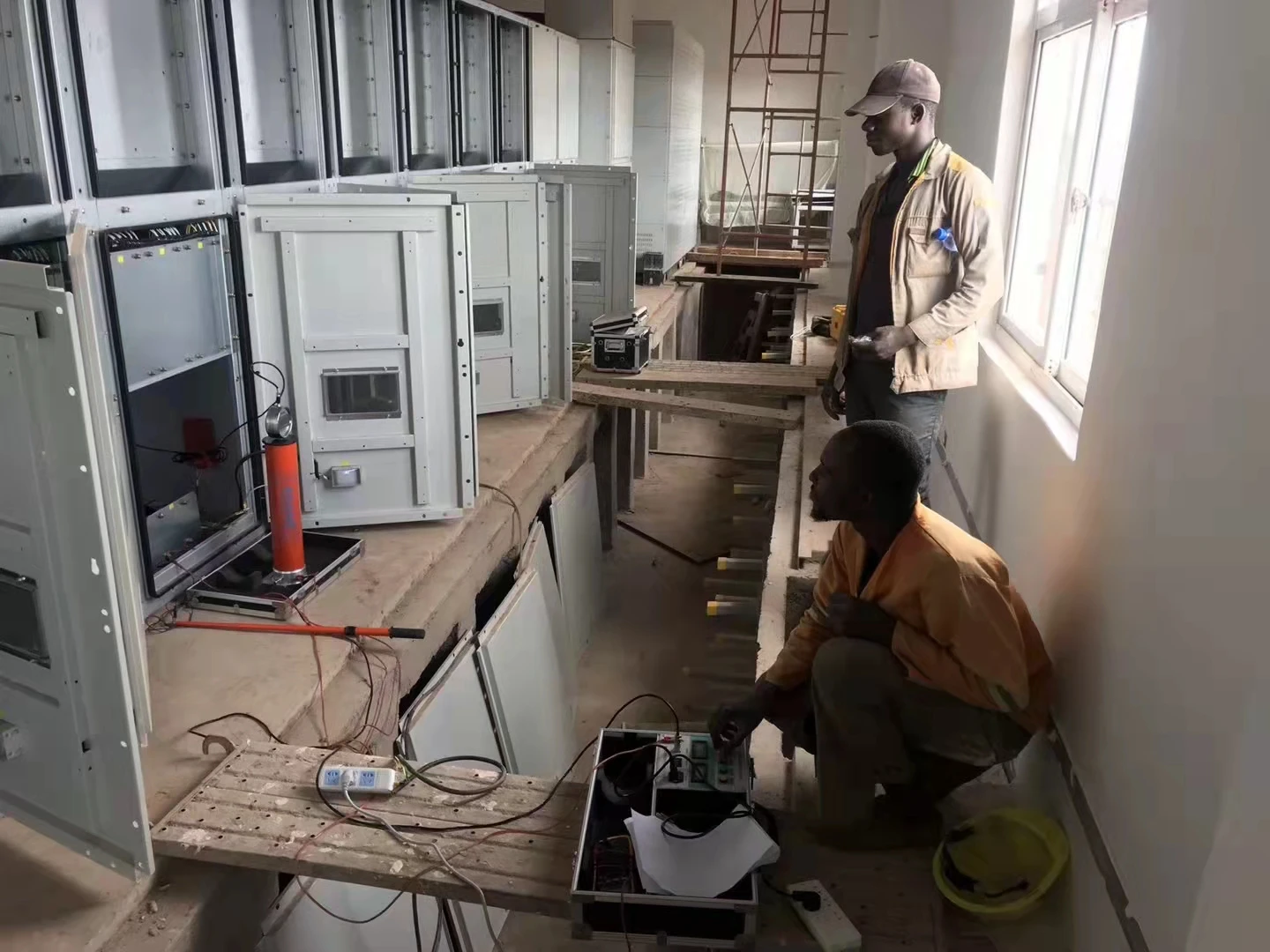

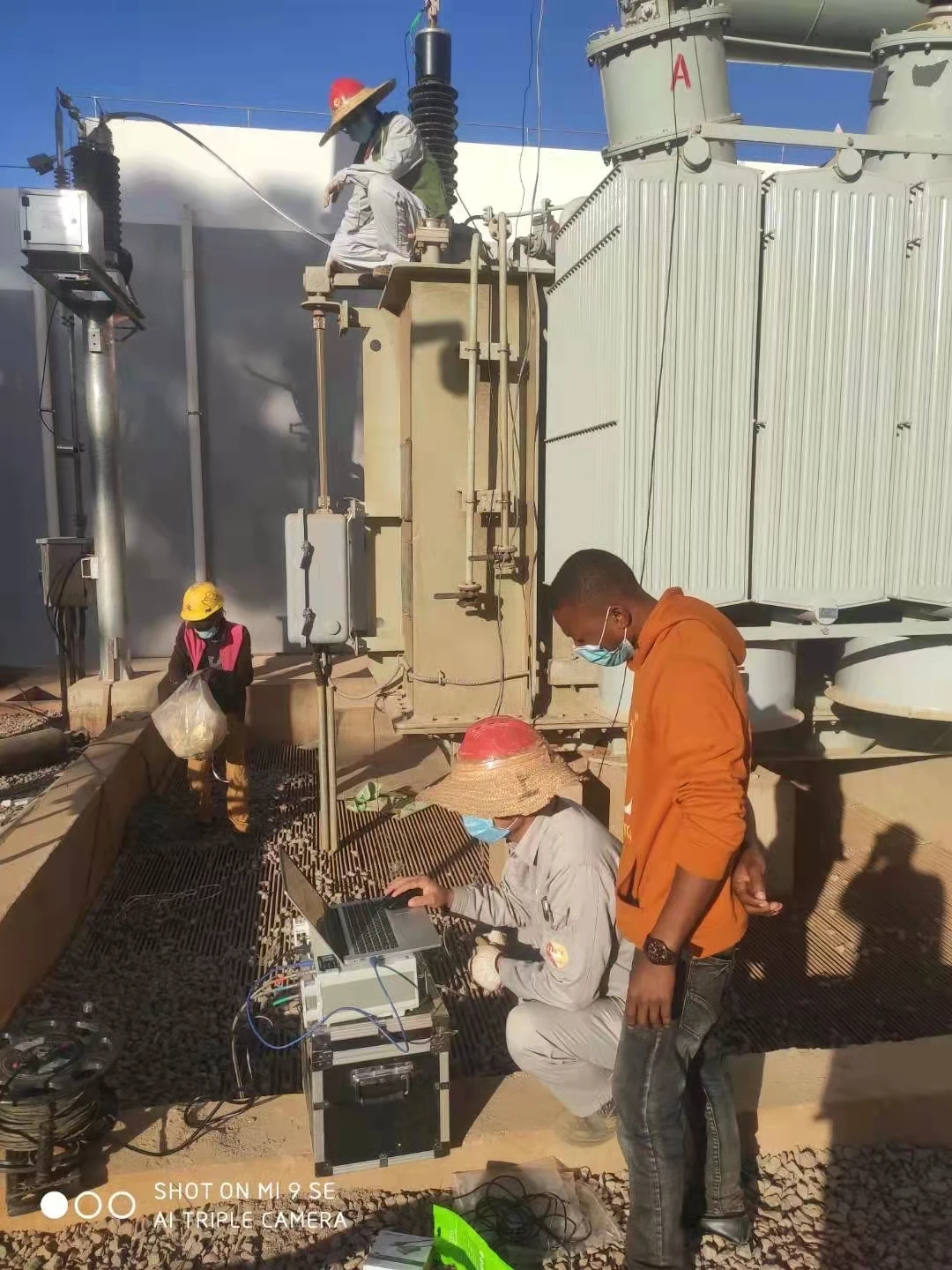

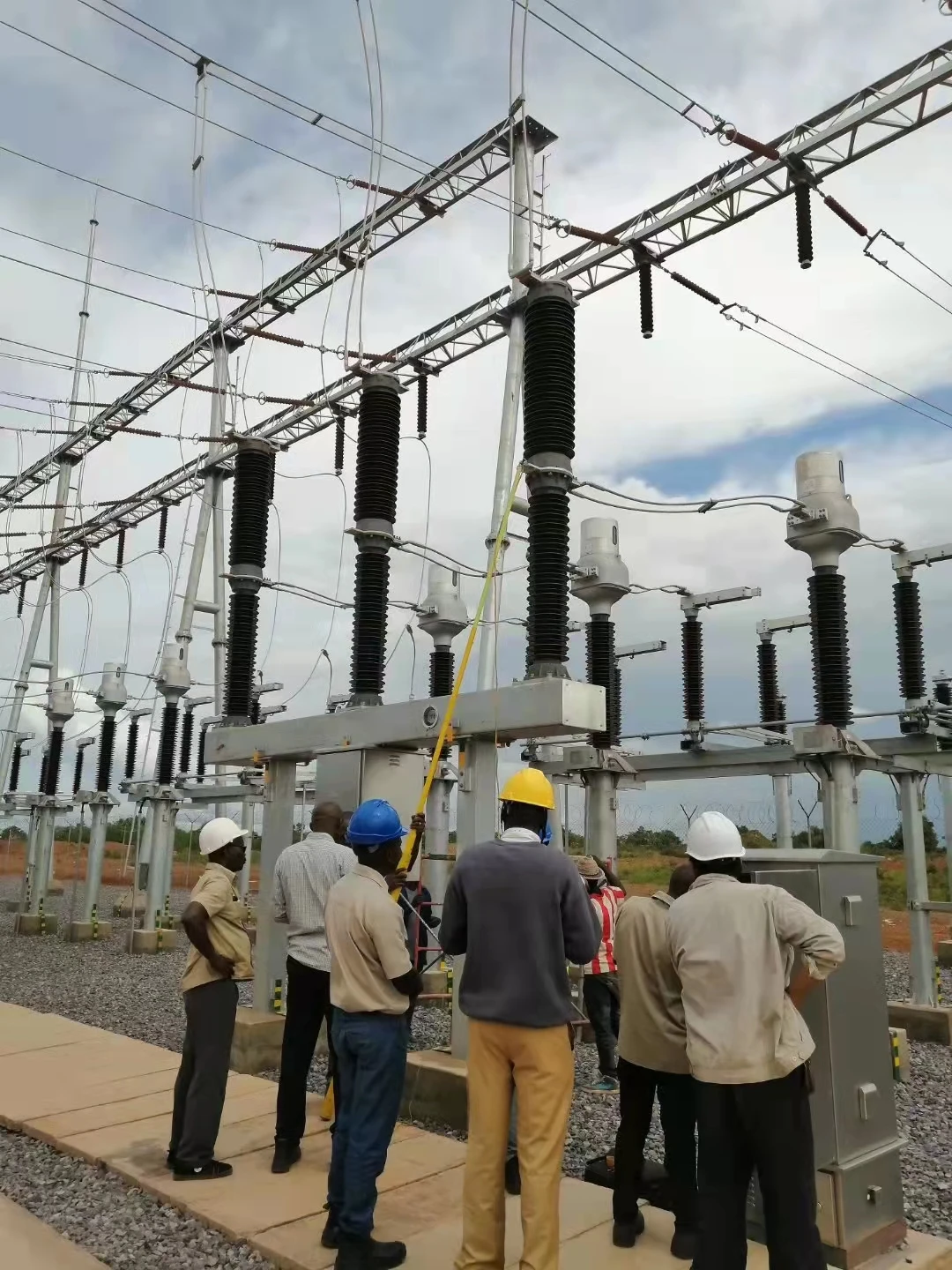

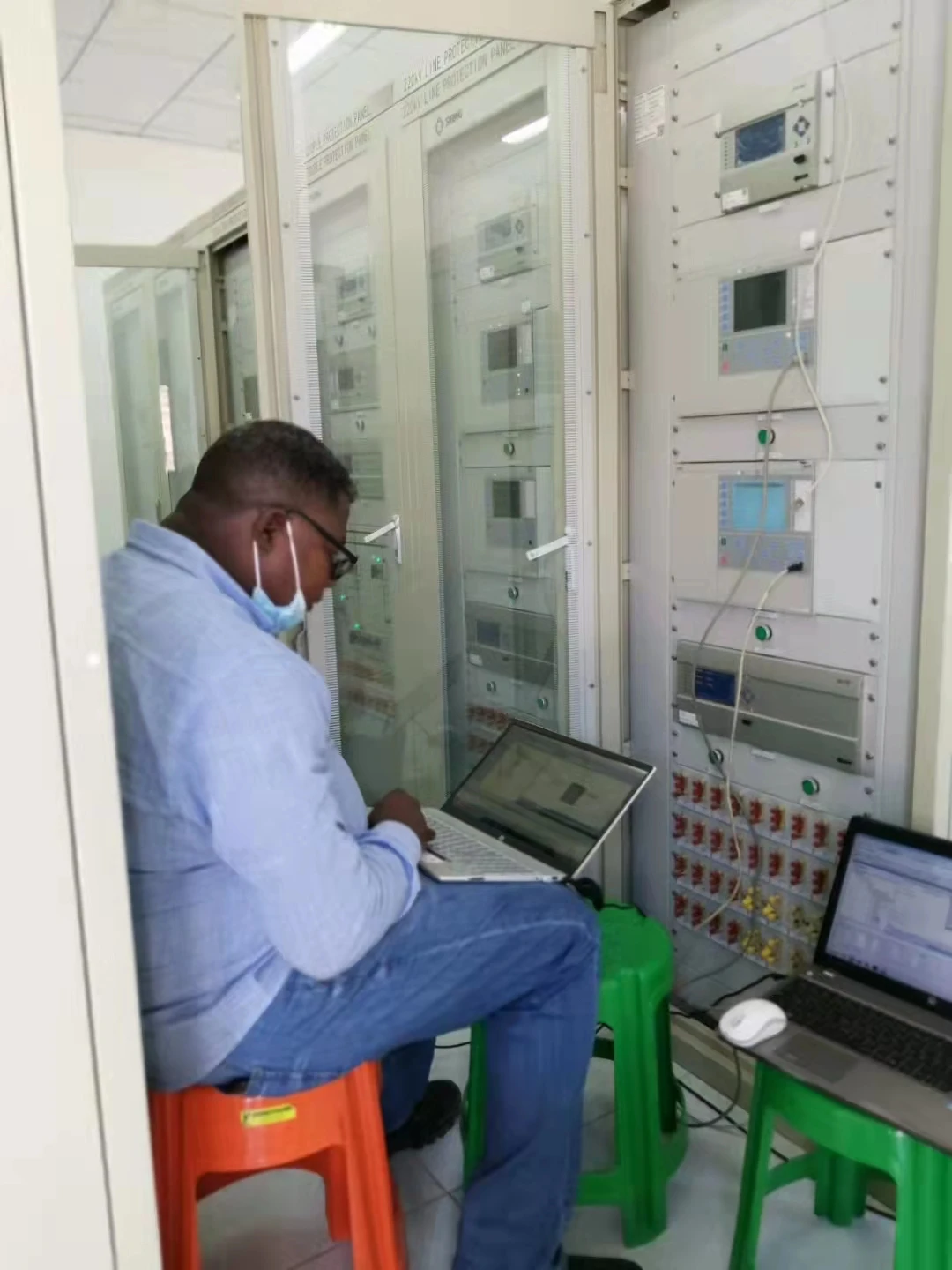

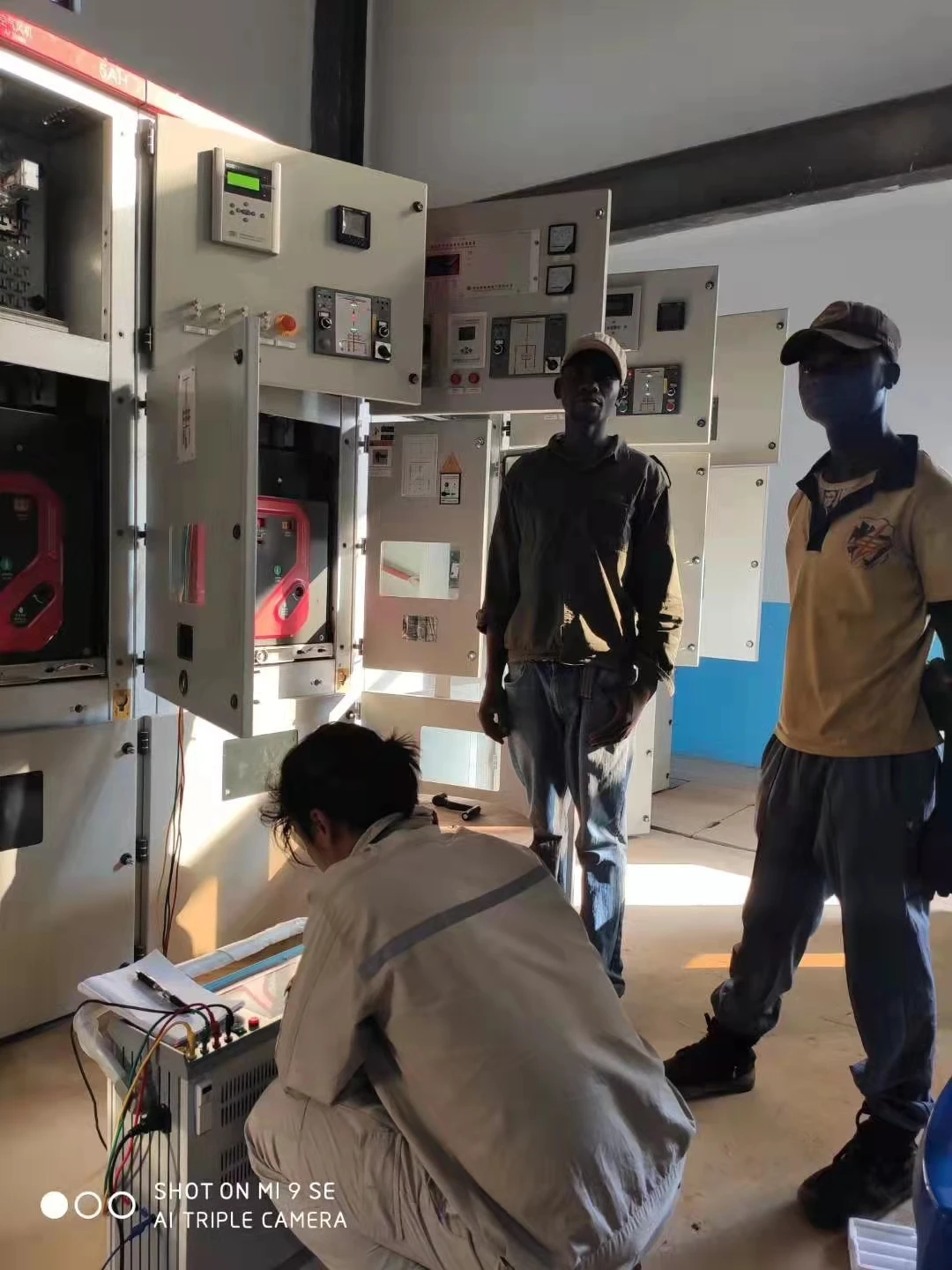

Client Case

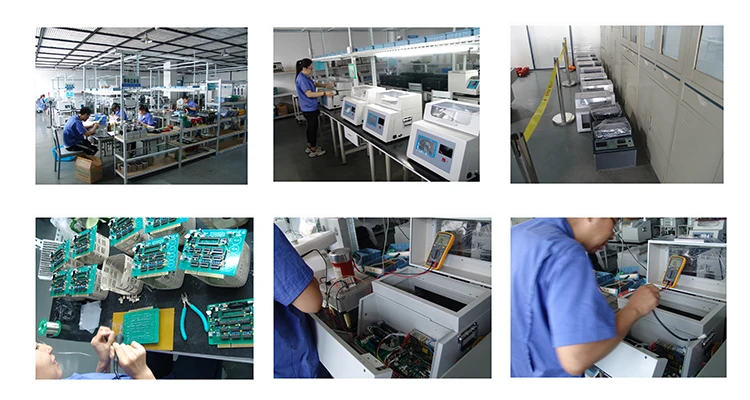

Company Profile

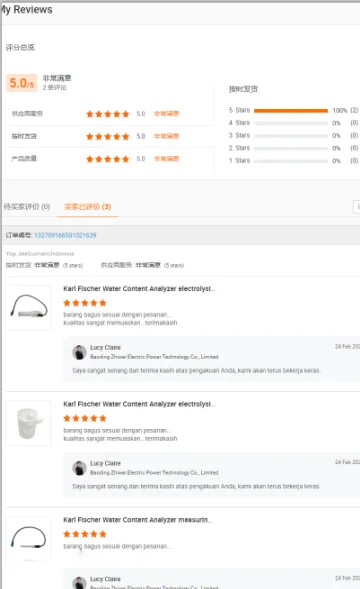

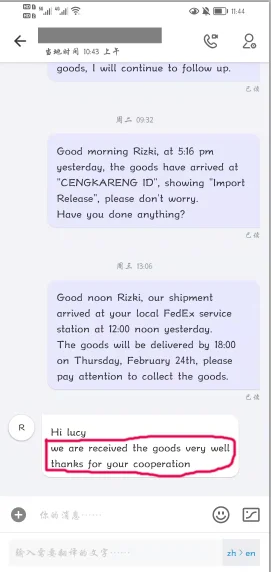

Reviews
