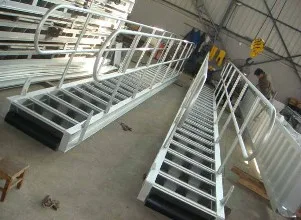

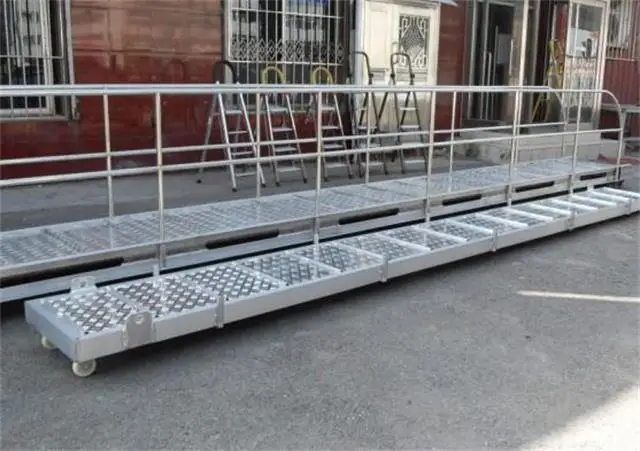

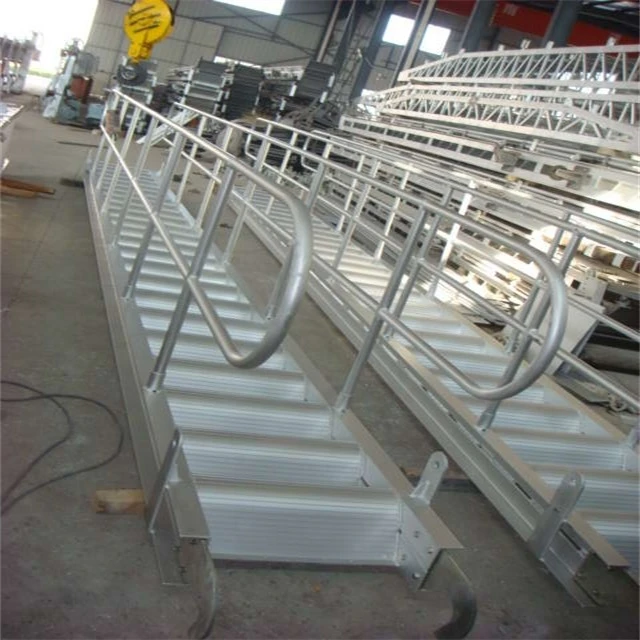

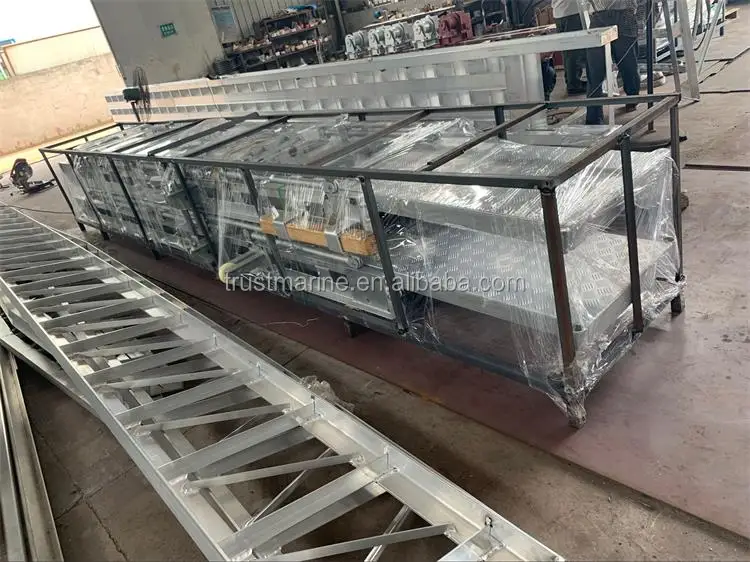

ship long aluminum telescopic wharf gangway ladder with handrail,hand winch

Product Overview

Description

Customized ship aluminum wharf ladder with CCS ABS BV NK



Ladder is the important access facility of a ship. It can be divided into internal ladder and external ladder according to its location. External ladder provides access for passengers and goods between inboard side and outboard side. Common external ladders include accommodation ladder/gangway, boarding rope ladder, boarding gangplank and pilot ladder.



In general, accommodation ladder refers to the ladder applied for boarding, which locates in sides of a ship . It’s stored inboard when not in use and would be inclined along broadside in service. Accommodation ladder is recommended to use in passenger ships as well as other large and medium ships. Generally, each side is supposed to be installed with one set.



Accommodation ladder is comprised of following components:

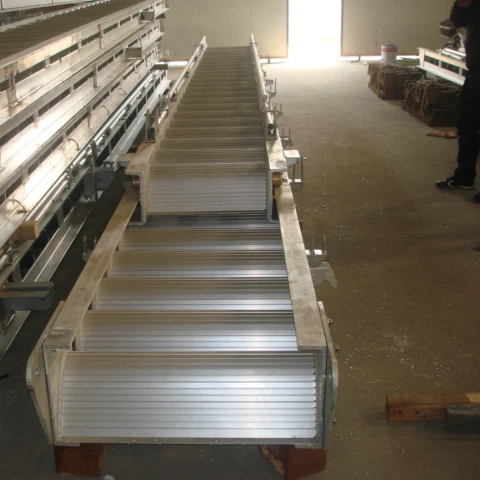

1. section of ladder: made up of ladder frame and steps

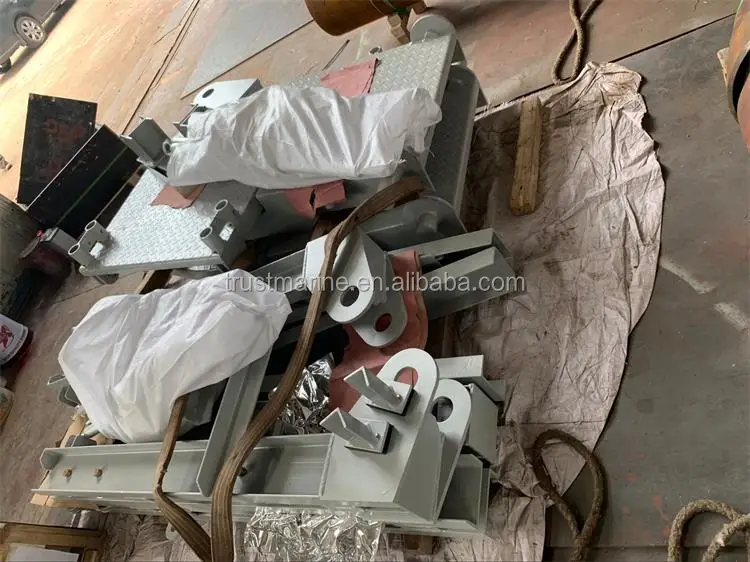

2. upper platform: the platform of accommodation ladder installed at the exit of shipboard

3. lower platform: the platform installed at the bottom of accommodation ladder

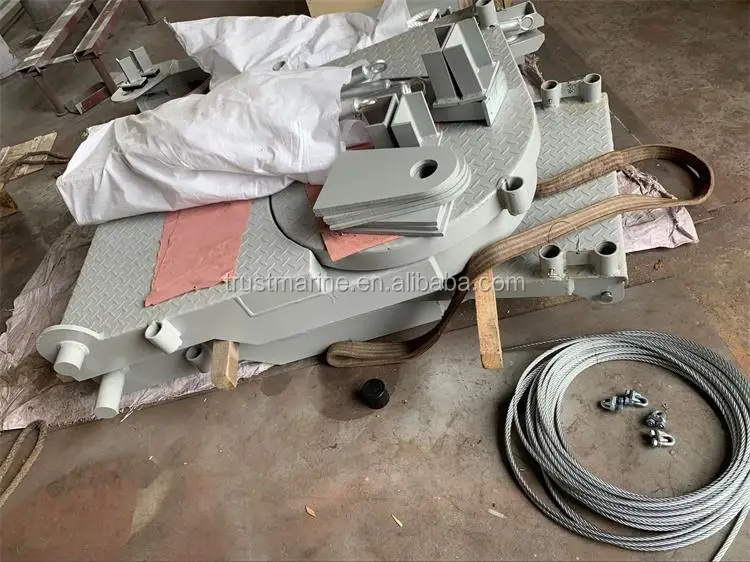

4. ladder reversing gear: device used to turn the accommodation ladder over from operation position to storage position and back.

5. yoke for accommodation ladder: lifting appliance connected with cables holding the ladder frame

6. accommodation ladder winch: dedicated winch for operation and support of accommodation ladder



In addition, accommodation ladder must be provided with a series of associated equipment, including safety net, life buoy, illumination and data plate.



steps	L(mm)	L1(mm)	L2(mm)	L3(mm)	Max Height	Stepping pitch	max using angle
12	5600	3600	design or customer size	850-2000	3620	300(350)	55°(60°)
14	6200	4200			4100
16	6800	4800			4590
18	7400	5400			5080
20	8000	6000			5800
22	8600	6600			6300
24	9200	7200			6800
26	9800	7800			7300
28	10400	8400			7800
30	11000	9000			8300
32	11600	9600			8800
34	12200	10200			9300
36	12800	10800			9800
38	13400	11400			10300
40	14000	12000			10800
42	14600	12600			11300
44	15200	13200			11800
46	15800	13800			12300
48	16400	14400			12800
50	17000	15000			13300
52	17600	15600			13800
54	18200	16200			14300
56	18800	16800			14700
58	19400	17400			15100
