Latexing Machine for Collapsible Aluminum Cosmetic Tubes Line
- Category: >>>
- Supplier: Wuxi Yingrun Machinery Technology Co. Ltd.
Share on (62325756426):
Product Overview
Description
Product Description
PRODUCT APPLICATION

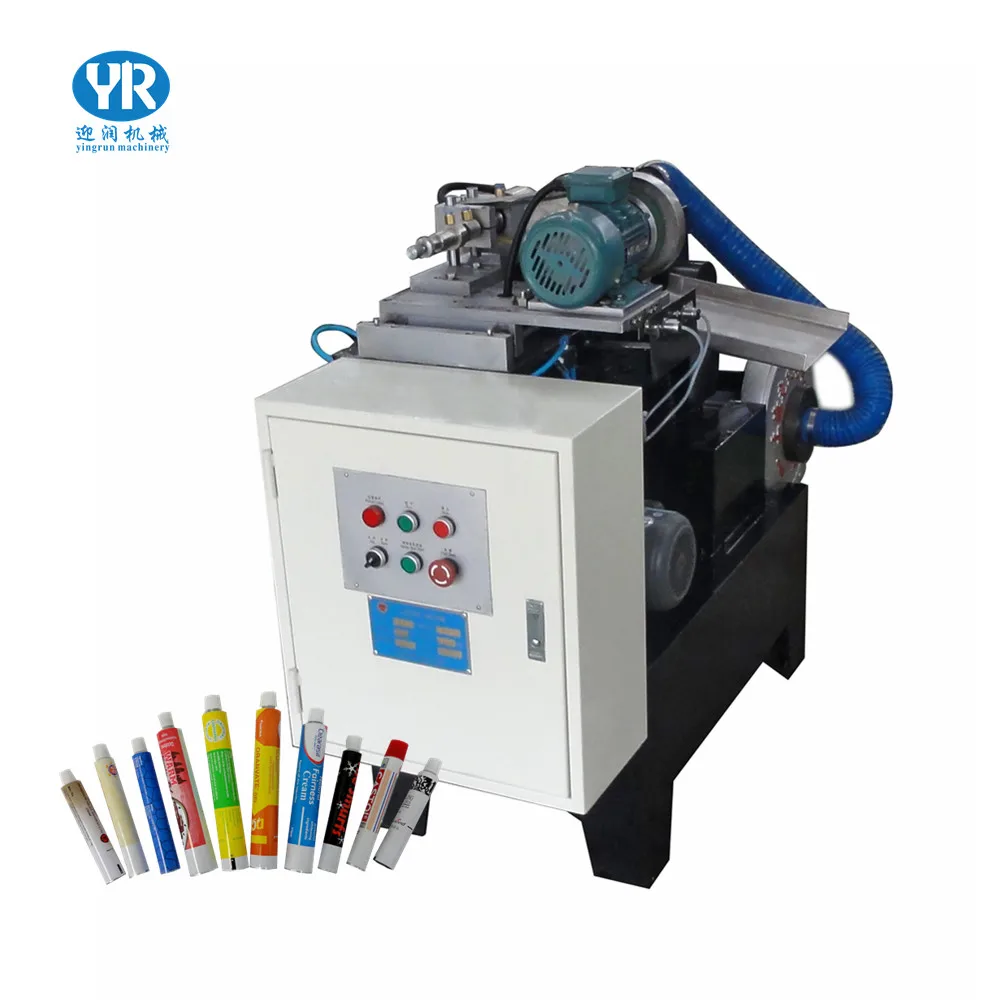

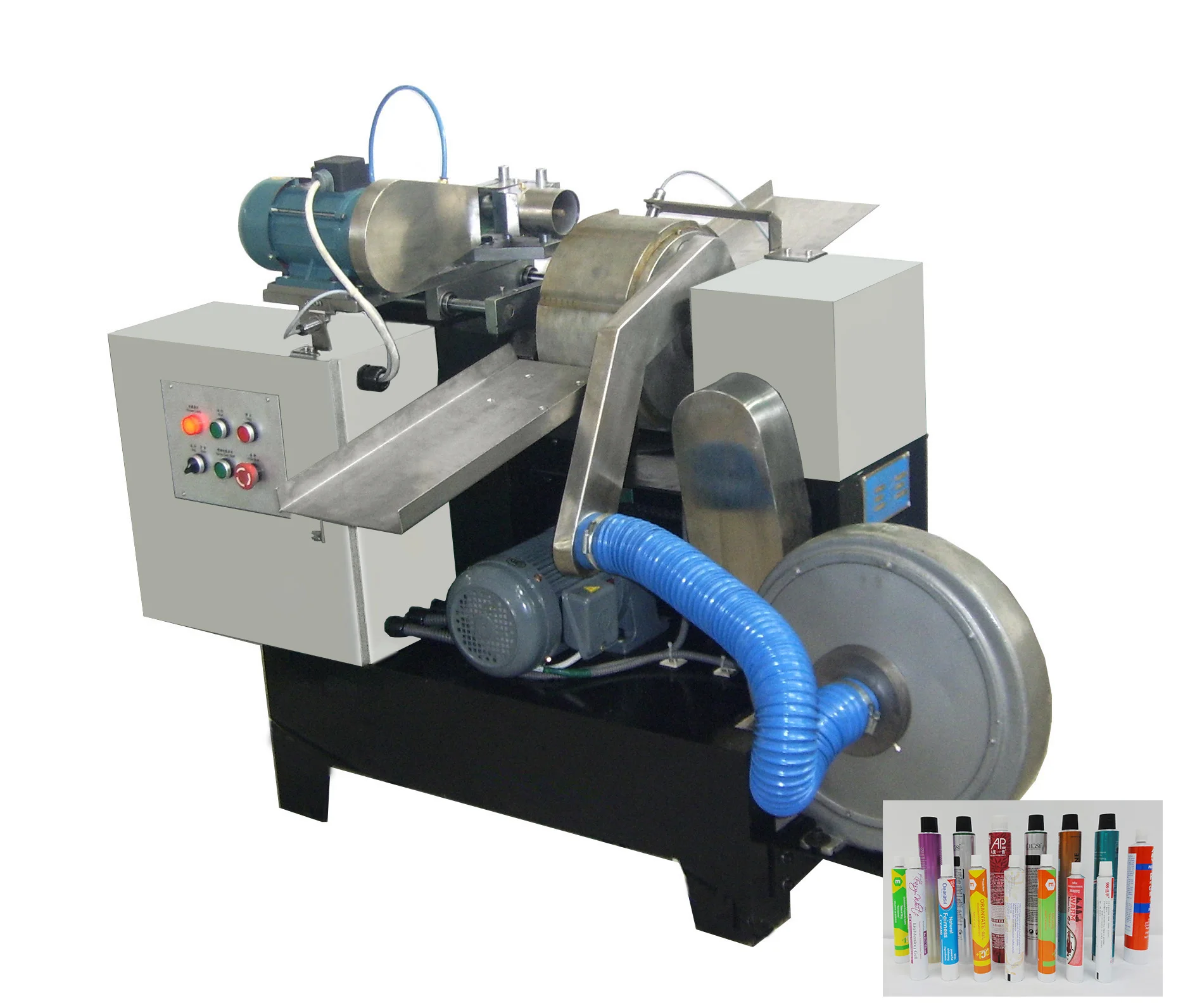

Aluminum tube latexing machine is also called end spraying machine. It is supporting equipment for aluminum collapsible tube production line. The equipment can work alone or form aluminum automatic production line by connecting with other aluminum manufacturing devices.

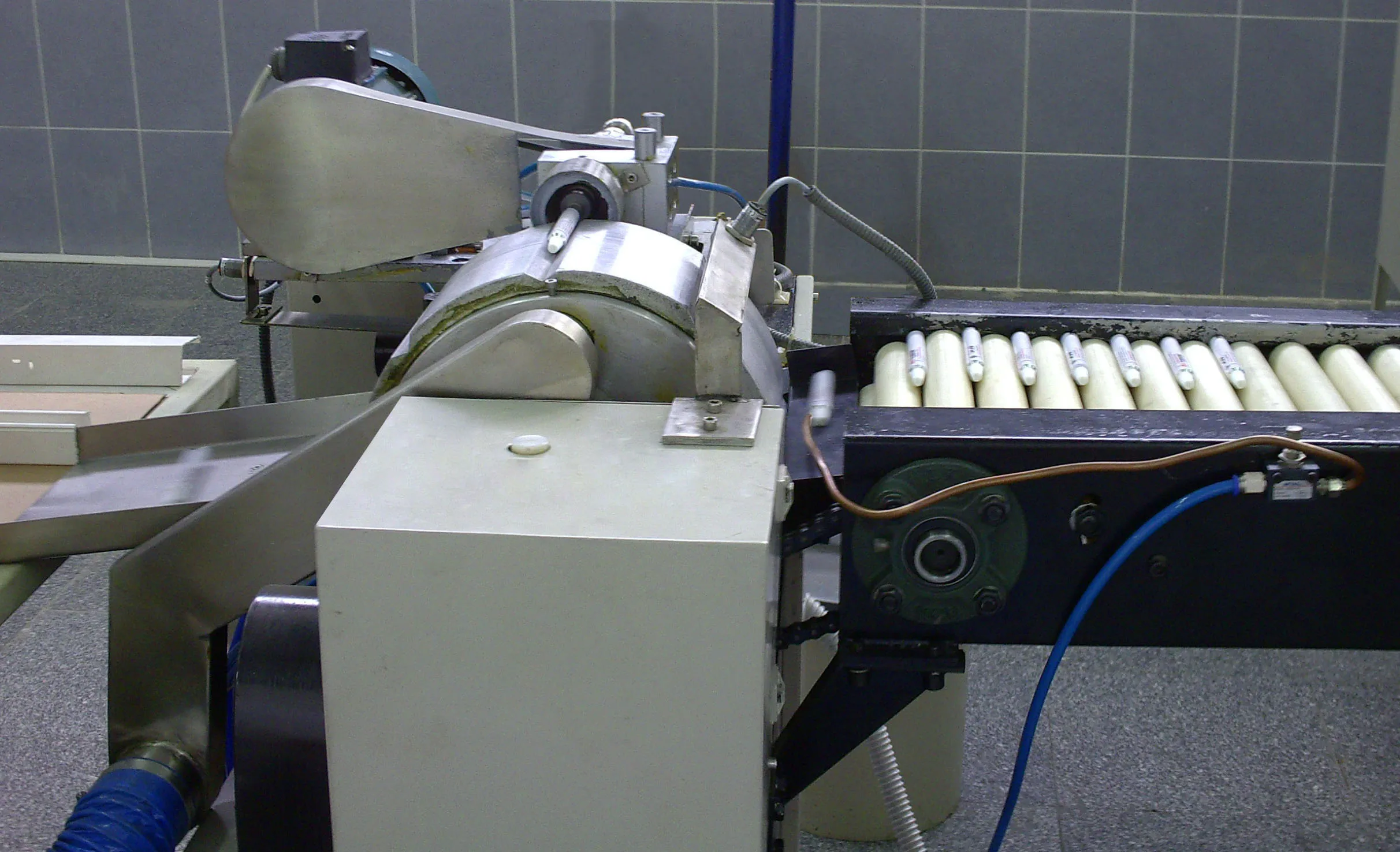

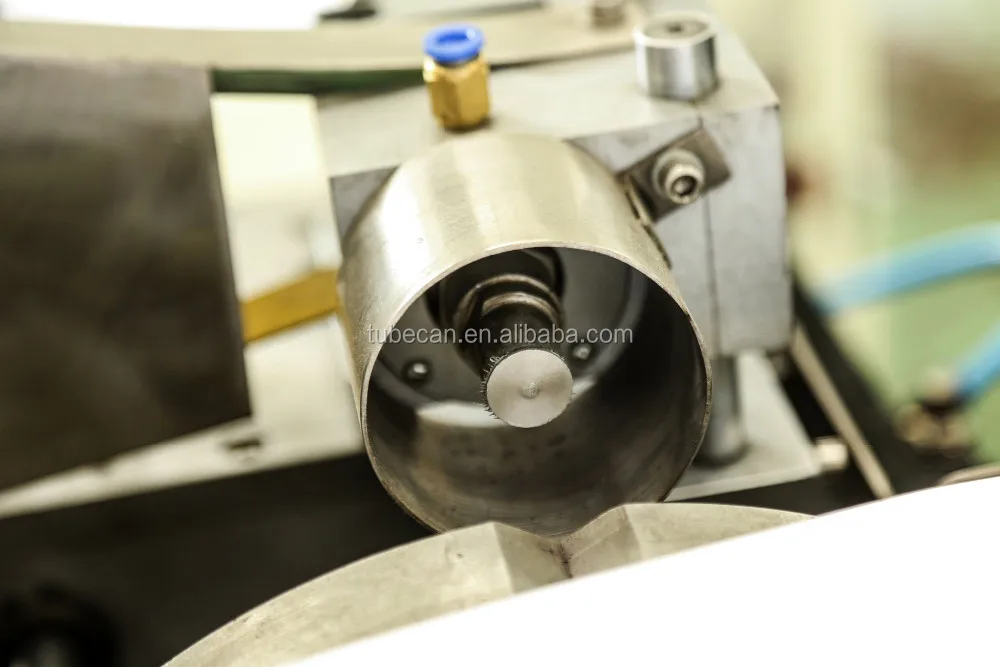

The machine can connect with conveyer chain of capping machines. Capped tubes are sent to latexing station. The end glue sprayer that rotates at high speed stretches into the end of tubes and sprays 5-8mm glue precisely. Then tubes are passed to the packaging conveyer belt.
SPECIFICATIONS FOR LATEXING MACHINE
A. Tube range:
φ13.5mm-φ38mm
B. Tube length:
≤200mm
C. Production speed:
≤60 pcs/min
D. Burning power:
2KW
E. Dimensions:
1200*700*1100mm
F. Weight:
300KG
G. Intake pressure:
4.5kg/cm2
Aluminum tube latexing machine is also called end spraying machine. It is supporting equipment for aluminum collapsible tube production line. The equipment can work alone or form aluminum automatic production line by connecting with other aluminum manufacturing devices.
The machine can connect with conveyer chain of capping machines. Capped tubes are sent to latexing station. The end glue sprayer that rotates at high speed stretches into the end of tubes and sprays 5-8mm glue precisely. Then tubes are passed to the packaging conveyer belt.
SPECIFICATIONS FOR LATEXING MACHINE
A. Tube range:
φ13.5mm-φ38mm
B. Tube length:
≤200mm
C. Production speed:
≤60 pcs/min
D. Burning power:
2KW
E. Dimensions:
1200*700*1100mm
F. Weight:
300KG
G. Intake pressure:
4.5kg/cm2

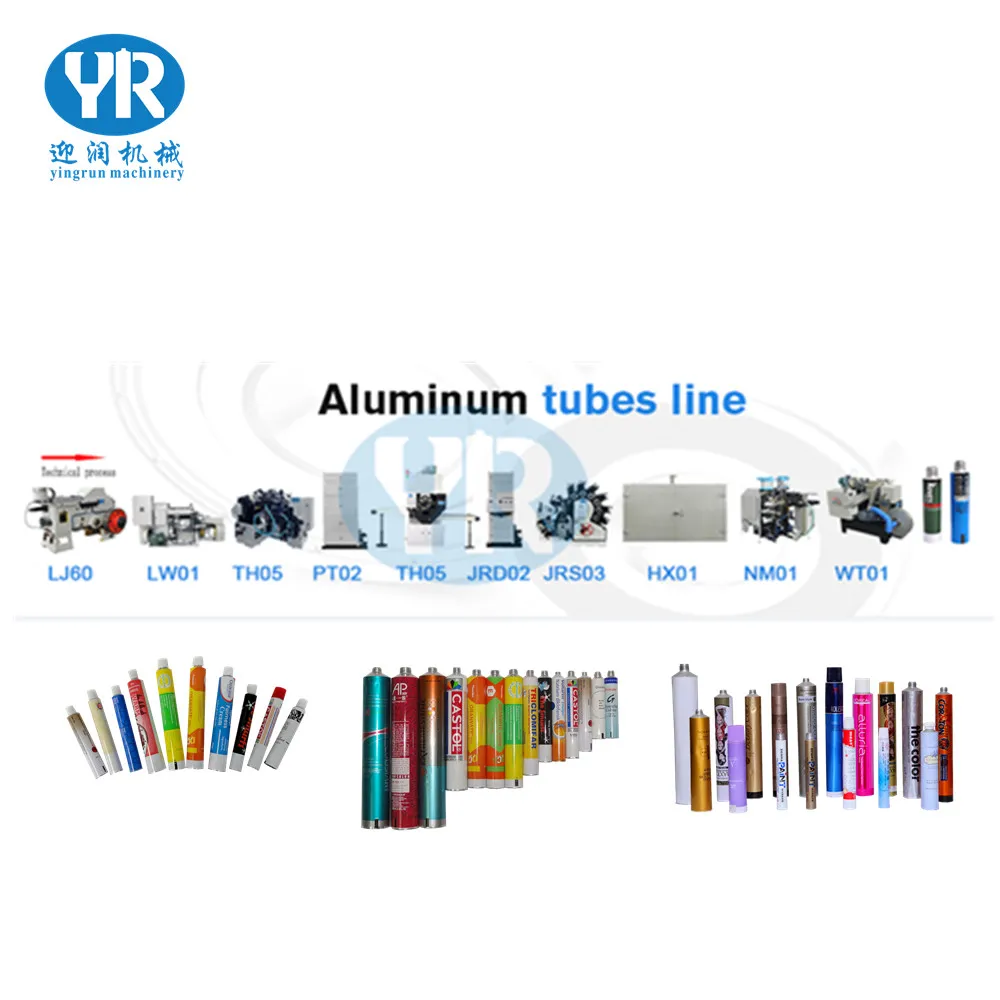

SPECIFICATIONS FOR ALUMINUM TUBE MAKING LINE | ||
Production Speed | ≤60pieces/min | |
Tube Diameter Range | φ11㎜- φ22㎜or φ25㎜-φ35㎜ | |
Motor Power | 108KW or 135KW | |
Dimensions | 24000×3500×4200(㎜) | |
Intake Pressure | 0.55MPa | |
Weight | 20T | |
MAIN FEATURES
The position of latexing can be adjusted freely.
- MAIN FEATURES
PLC controls frequency and speed.
Packing&Shipping
Packaging
Size:
1200(L) *700 (W) *1100 (D) mm
Weight：
300KG
Packaging Details：
Vacuum treatment, wooden-case package
Size:
1200(L) *700 (W) *1100 (D) mm
Weight：
300KG
Packaging Details：
Vacuum treatment, wooden-case package
After Sales Service
ENGINEERS ONSITE GUIDANCE
Experiencend engineers team to the site to provide instructions.
Company Introduction
Wuxi Yingrun Machinery Technology Co., Ltd. Is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
