Diameter 0.01MM 1MM black Heating high purity conductive tungsten wire
- Category: >>>
- Supplier: Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co. Ltd.
Share on (62325792264):
Product Overview
Description

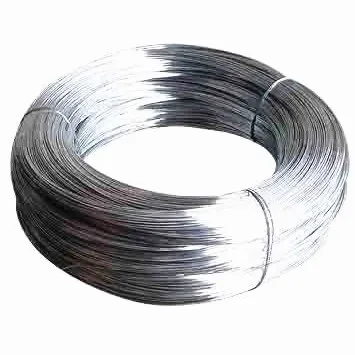

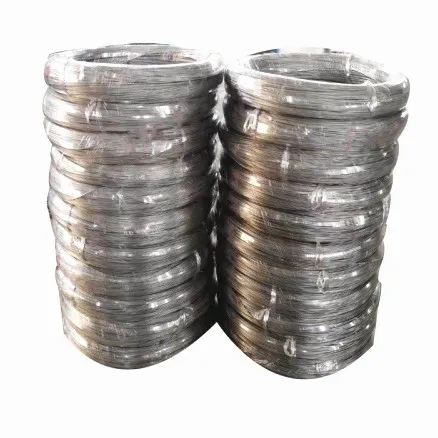

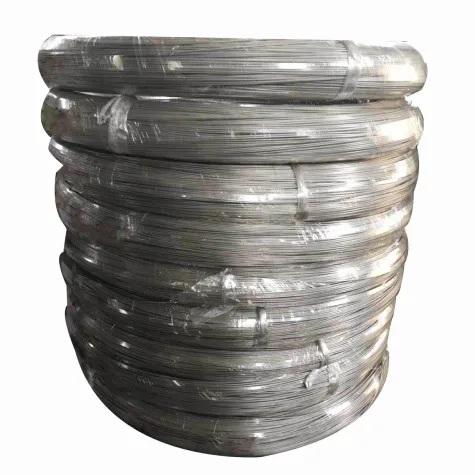

Diameter 0.01MM-1MM black Heating high purity conductive tungsten wire
Mass Characteristics
Symbol: W
Atomic Number: 74
Atomic Weight: 183.85
Density: 19.3 g/cm3
Thermal Properties
Melting Point: 3410°C (+ 20°C)
Boiling Point: 5900°C
Specific Heat: 0.14 kJ/kg x K at 20°C
Latent Heat of Fusion: 209 kJ/kg (estimated)
Thermal Conductivity: 129 W/m x K at 20°C
Evaporation Heat: 444 J/g
Electrical Properties
Electrical Resistivity: 5.5 μΩ/cm at 20°C
Temperature Coefficient of the Electrical Resistivity: 0.00482 Ω/ΩK
Temperature of Superconductivity: 0.016 K
Type: | Tungsten Wire |
Material: | tungsten |
Purity: | 99.95%Min. |
Melting Point: | 3410 |
Surface: | Polished |
Density: | 19.3g/cm3 |
Diameter: | 0.006-2.00mm |
Tungsten color: | Black and White |
Tensile Strength: | 2770 N/mm2 |
Application:
Mainly used for making heating wires, twisted wires for coating films under vacuum, also used as electrical light.
The company produces tungsten wire from 0.006mm to 2.5mm diameter black tungsten wire and white tungsten wire,black tungsten wire and white tungsten wire. The products are used for lighting bulbs, electronic appliances, automotive glass, Air purification and dust removal equipment, vacuum coating equipment, medical products, heating equipment, wire drawing mold products, textiles, weaving, gloves and other products.
Newly developed tungsten wire materials with diameters of 0.02mm, 0.025mm, 0.03mm, 0.035mm, 0.04mm, 0.045mm, 0.05mm, etc., are used for textile, weaving and glove cutting products. Welcome to cooperate with new and old customers.
Tungsten wire diameter specifications can be customized according to customer requirements.
Products show

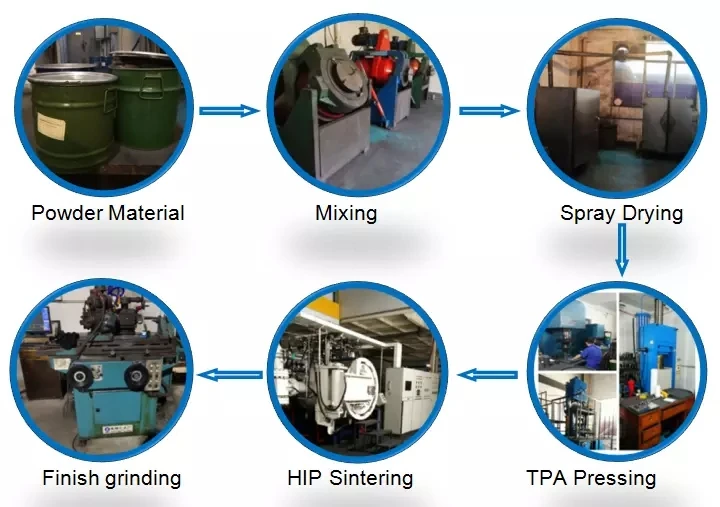

Product process and Equipment
Our factory
Certification
Transport
Contact
Ms Sharon Chen
Tel: 0086-731-28215800
Fax: 0086-731-28215800
Mobile: 0086-13823202651(wechat/whatsapp)
