Item: Automatic 4 Heads SMT Pick and Place Machine
Model: SUNY-TPJ40
Product Advantages:
1. Optimized multi-functional conveyor (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.

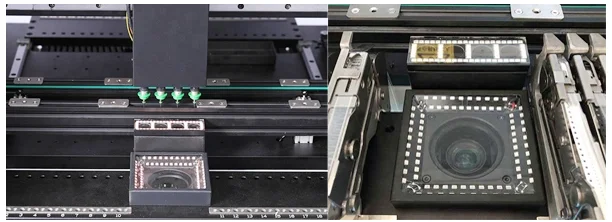

2. High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.
3. Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.

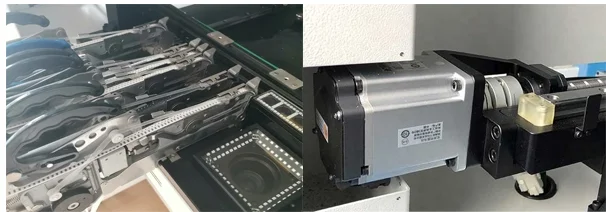

4. Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
Application:
Application Area | Application Industry |
Personal Entrepreneurship | Household Electrical Appliance Industry |
Laboratory Proofing | Automotive Electronics |
Mass Production | Power Drive |
Processing of The third Party | LED Lighting |
R&D Customization | Security Instruments and Meters |
Scientific & Research | Intelligent Control |
Efficient Teaching | Consumer Electronics |
Military Industry | Logistics Network |
Product Parameters:
1 | Feeder No. | 46 (Front 20, rear 26) |
2 | Nozzle Buffering Range | 5.0mm |
3 | Power Supply | 220V, 50Hz |
4 | Compressed Air | 0.5-06Mpa |
5 | Max. Mounting Speed | 8000CPH |
6 | Max. Circuit Board Area | 480x300mm |
7 | Driving Motor | Panasonic servo motor |
8 | XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail |
9 | Recognition Method | 4 heads recognize synchronously |
10 | Z Axis Max. Movement Range | 20mm |
11 | Mounting Heads | 4 (No need to change Nozzle) |
12 | Positioning Accuracy | 0.01mm |
13 | Average Power | 600W |
14 | Dimensions | 1095x1165x1400mm |
15 | Average Mounting Speed | 6000CPH (Visual) |
16 | XY Max. Movement Range | 556x680mm |
17 | Motion Drive System | Panasonic High speed DPSdriver |
18 | X/Y Running Mode | Imported TBI high-precision ball screw + imported TBI heavy-duty linear guide |
19 | Placement Mode | Manual, semi-automatic, fully-automatic |
20 | Rail Guide Adjusting Method | Manual + Automatic |
21 | Belt Type Feeder | 8/12/16/24/32mm feeders, stick feeder |
22 | Visual Display | 15" industrial control display ratio 4:3, resolution 1024x768 |
23 | Nozzle Vacuum Source | High-speed on-off vacuum generator with vacuum damage |
24 | Operating System | Support Windows XP, Win7 operating system |
25 | Alarm when open the cover | Reducing speed or out of service |
26 | Component Angle | 0~360, synchronized rotation in motion |
27 | Board Input Method | Automatically connect loader and position PCB transmission |
28 | Programming Mode | Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
29 | Recognition Camera No. | 1 Mark recognition camera, 4 high speed recognition camera, 1 high-precision recognition camera |
30 | Applicable Mounting Range: | Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc. |
