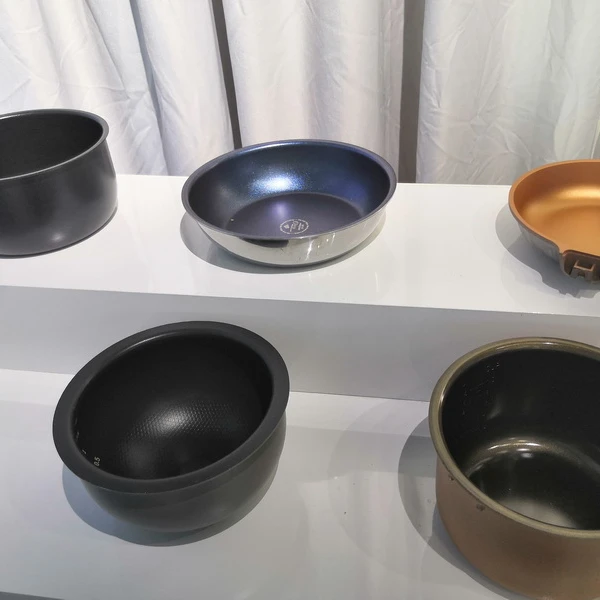

High quality and low price Water Based 1 3 Layers Spray Paint nonstick coatings for Pans
- Category: Other Paint & Coating >>>
- Supplier: Henan Creation Intelligent Technology Co. Ltd.
Share on (62325878986):
Product Overview
Description
Product Description
WATER-BASED NONSTICK COATINGS
Water-based nonstick coatings which is not composed of high-performance polymer and PTFE resin. The coating is durable, has good non-stick properties, high hardness and excellent temperature resistance, and is not affected by water, steam, grease, and has excellent adhesion and flexibility. Therefore, the coating is an ideal product for baking appliances and small household appliances.
Non-tacky (water and oil proof, mold release, antifouling)
The surface of fluorine materials, whether food or drink, or even organisms, is difficult to adhere to
The polarity of -CF2- in the fluorine material structure is small, making it a non-polar material. Fluorine materials have a low surface energy and a small interaction force between substances in contact with the surface, so water, oil and stains are not easily adhered.
In addition, it is difficult for microorganisms and the like to adhere to the surface of the fluorine material, and even if it adheres, it cannot survive by absorbing and digesting the fluorine material.
In addition, it is difficult for microorganisms and the like to adhere to the surface of the fluorine material, and even if it adheres, it cannot survive by absorbing and digesting the fluorine material.
Nonstick product (water and oil resistance, mold release, antifouling)
Nonstick coatings have excellent properties. It imparts characteristics such as mold release, heat resistance, chemical resistance, corrosion resistance, low friction, and weather resistance.
The types of coatings are as follows according to various uses and substrates.
Different types of coatings have different characteristics and their retained properties are also variable.
classification | solvent | main application | processing temperature | feature |
Non-stick Coatings | Water type | Appliances, kitchen, auto parts | 180～380℃ | Excellent adhesion to the substrate, imparts abrasion resistance to the substrate; excellent adhesion and smoothness |
Coating Performance
Color | Viscosity(25℃) | Proportion | Retention Period |
Black.Cinderfella.Grey | 30-60 Second (800-1500cps) | About 1.2 | Six months |
Painting Process
Base material | Aluminum, aluminum alloy, iron, stainless steel, etc |
Base material processing | Sand blasting or phosphating treatment |
Decorate method | Electrostatic spraying, air automatic spraying, manual spraying |
The coating viscosity | Directly spray |
Diluent | Pure water, generally without dilution |
temperature of solidification | 280℃-380℃，10-15Minutes |
coating thickness | 15-25 micrometer |
The layer properties
adhesive force | 100mm/100mm |
Pencil-hardness | Mitsubishi Japanese |
spray resistance | 5% salt test 35 degrees 24 hours |
solvent resistance | Ethanol>=100 times, no friction at the bottom |
heat resistance | 300℃ Long-term use temperature 260 ° C Short-term use temperature 300 ° C |
lustrousness | 10-25° C |
Water-based single-layer nonstick coatings
Better sustained non-stick than oily silicone and PES coatings
Has good corrosion resistance (stretched aluminum on boiling water test 180H no abnormality).
Long-term use temperature 260 ° C short-term use temperature 300 ° C
Long-term use temperature 260 ° C short-term use temperature 300 ° C
Product Performance
Test Item | test condition | Test Result |
adhesion | grids | 100% |
hardness | Mitsubishi pencil, 1KG | >=2H |
No viscosity | 170 degrees, 5 pancake tests | Good non-viscosity |
Boiling brine | 10% salt water boiled 24H | No foam, no paint |
Wear resistance | 0.5% detergent, 3M7447B scouring pad, weight 4.5KG, 250 times face | >=1500 |
Salt spray resistance | Continuous spraying of 5% Nacl for 48 hours | No foam, no paint |
Water-based double-layer nonstick coatings
The high temperature resistant water-based non-stick coating is composed of polytetraethylene and high-temperature compact. It has excellent non-stickiness and low friction coefficient, high hardness, good adhesion, strong wear resistance and strong and durable coating. It is affected by water, steam, grease and other cooking materials.
Performance Characteristics
Scratch resistance: in the environment of 230 ° C -260 ° C compared with the traditional water double, has a good hot scratch resistance, simulate the customer's normal use, it is not easy to scratch the surface of the coating.
excellent cracking film thickness, which can reach 25um without cracking (transfer and double water cracking film thickness between 10um and 151m), and let the non-sticky qualitative leap.
High wear resistance: 0.5% detergent, 3M7447B scouring pad load 4. 5KG, 250 times face change 24000 times bottom.
Paint Properties
Color | Viscosity(25℃) | Storage Life | Proportion |
Black flash silver, blue flash silver, gold yellow, etc. | Primer>=15s(300-60cs ) Topcoat : >= 12s(200-400cps) | Original room temperature 5 ° C -25 ° C, save for 5 months Requirements: regular activation, prevent agglomeration or sedimentation | Primer: about 1.2 Topcoat: about 1.2 |
Painting Process
Base material processing | Degreasing and sandblasting roughness: 2.5-4 microns |
Painting method | Electrostatic spraying, automatic air spraying or manual spraying |
The coating viscosity | Direct spraying |
diluter | water, generally no dilution |
temperature of solidification | Topcoat:380-410℃ 10-15minute |
coating thickness | Base oil: 15-20 microns Face oil: 10-15 microns |
Waterborne three-layer super corrosion-resistant nonstick coatings
The water-based three-layer super-corrosion-resistant nonstick coatings is composed of ptfe and high temperature resistant polymer. It has excellent non-stickiness and low friction coefficient, high hardness, good adhesion, strong resistance, and durable coating. . Not affected by water, steam, grease and other cooking materials. A three-layer interior coating designed specifically for iron or aluminum cookware products that require high corrosion resistance.
More Products
The emerald water-based double layer nonstick coatings
It has good scratch resistance (230 degrees -260 environment).
The water-based single-layer anti-iron shovel nonstick coatings
Water-based single-layer anti-iron shovel fluorine coating is a non-stick wear-resistant coating optimized and upgraded based on the special functional materials.
It is made of high-performance polymer and PTFE resin. The coating is sturdy and durable, has good non-stickiness, high hardness and excellent resistance to temperature and temperature, and is not affected by water, steam, grease, and has excellent adhesion and
flexibility
flexibility
The hot plate water-based single-layer fluorine coating
Heat resistance, High hardness, Surface sandblasting, The heating plate water-based single-layer fluorine coating is composed of high-performance polymer and PTFE resin. The coating is durable, has good non-stick properties,
high hardness and excellent temperature resistance, and is not affected by water, steam, grease, and has excellent adhesion and
flexibility.
flexibility.
The waterborne silicone coating
Water-based over-coated silicone is formulated from water-based high-temperature resistant resin. Its coating is durable, with outstanding hardness, rich luster, excellent high temperature resistance, and strong resistance to water, acid and alkali, steam and grease. And other cooking materials, and has excellent adhesion and flexibility, widely used in air fryer, oven, baking tray, grill, iron, and other surface decoration, functional protection.
The three layers of granite do not account for fluorine coating
it has simple operation and high resistanceEasy-to-water three-layer granite coating is designed for high-end household appliances and kitchen utensils. It is a water-based non-stick coating with a faux-like appearance. Excellent corrosion resistance, non-stick properties and wear resistance can greatly improve the service life of the coating. Applicable to E wok, rice, etc. Primer can be customized according to user requirements gray, red, blue and other colors, point paint black and white point ratio can also be customized.

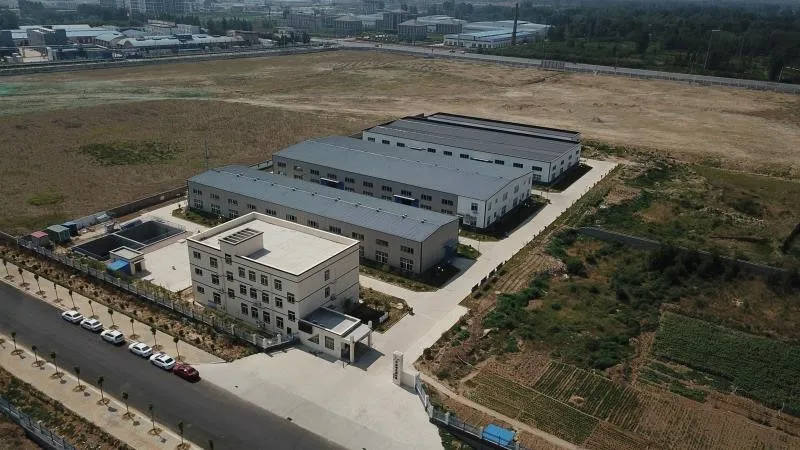

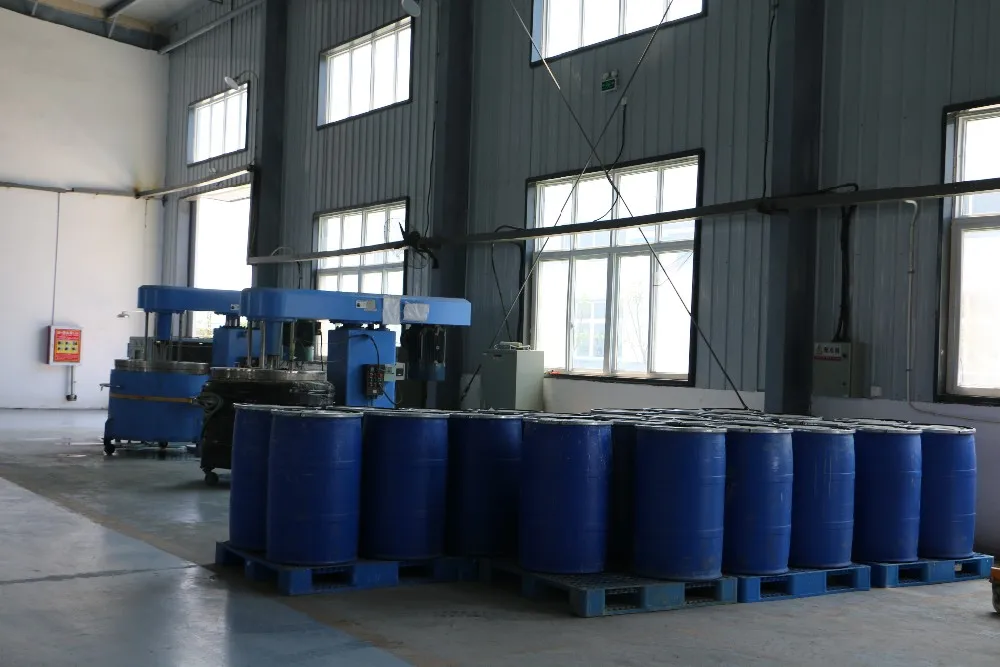

Our company

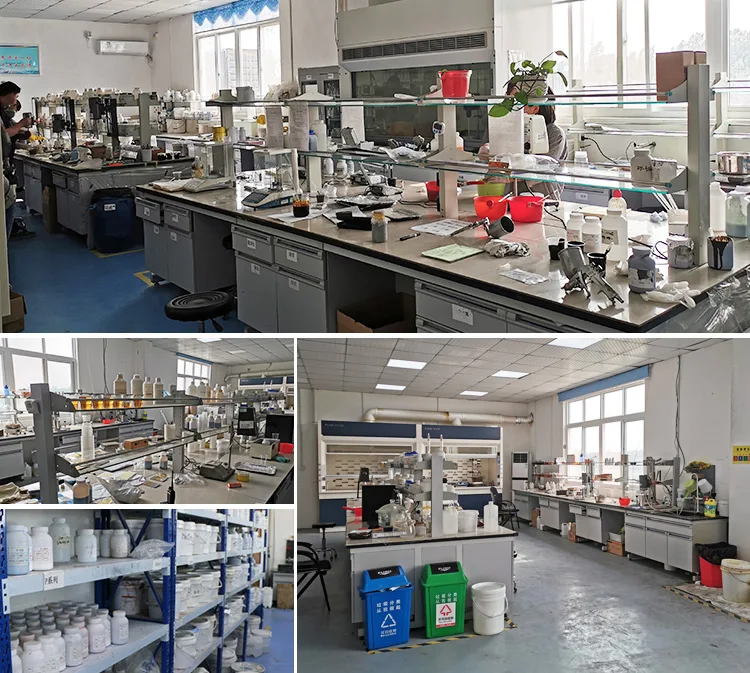

THE COMPANY HAS ESTABLISHED TWO R&D CENTERS IN SHENZHEN AND KAIFENG, WITH MORE THAN 30 R&D PERSONNEL, INCLUDING 4 DOCTORS AND 15
MASTERS.
MASTERS.

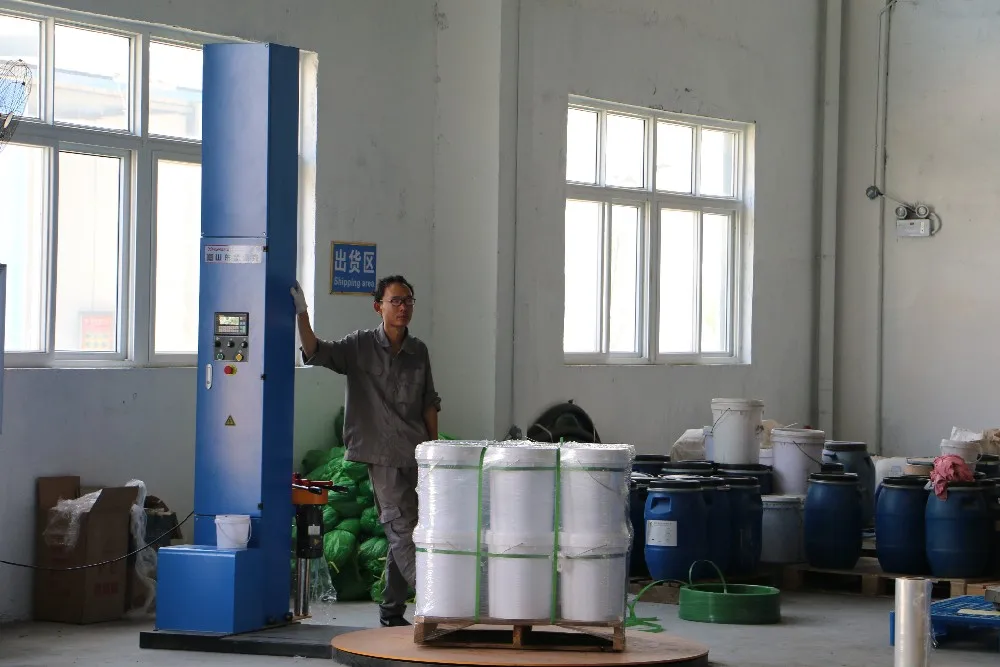

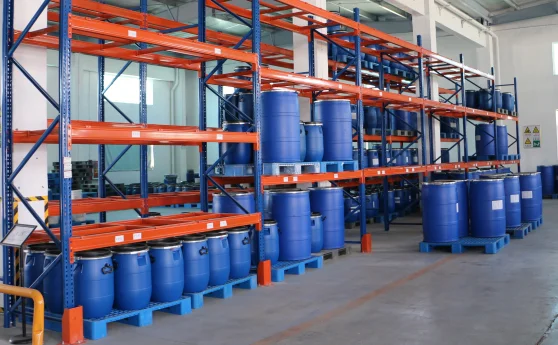

Packing&Delivery
