Simplex 9 / 125 Single Mode LSZH FC APC FC APC Fiber Optic FC Patch Cord

Product Overview

Description

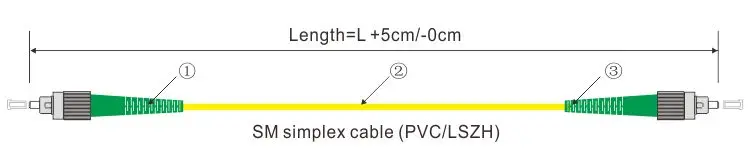

Simplex 9 / 125 Single Mode LSZH FC APC - FC APC Fiber Optic FC Patch Cord

Connector A : FC/APC 2.0mm Simplex connector ,Green housing,green boot.
Cable: 1.7mm Simplex Cable, Yellow color ; (Fiber SM 9/125 G652D )
Connector B : FC/APC 2.0mm Simplex connector ,Green housing,green boot.
**Length= 1Meter (+5cm/-0cm)



Parameter
1, Single mode fibers (9/125 SM G652D)
2, Test wavelength: 1310/1550nm
3, Insertion Loss (Max): -0.3dB
4, Return Loss (RL): APC>60
5, Durability: <0.1dB typical change,1000 repeatability







1, Low insertion and back reflection loss;
2, Good exchangeability;
3, Good durability;
4, High temperature stability;
5, Standard: TelcordiaGR-326-CORE.

6, The patchcord comply to CE requirement











Remark: Each patchcord shall be tested by fiber end face and Insertion Loss&Return Loss to make sure each patchcord meet the Standard: TelcordiaGR-326-CORE. Meanwhile, each patch cord can be tracked from the production,packing and shipping.!

You can be worry free to co work with us WIRENET!

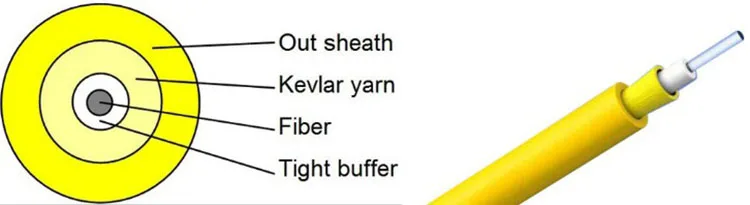

Cable specification:





Cable color: Yellow



Cable Parameters:

Fiber Count	Cable Dimensions	Weight (kg/km)	Tension		Min. Bend Radius		Range of Temperature
			Long Term	Short Term	Dynamic	Static
1	1.7	6.8	80	150	20D	10D	-20 to +60





Test Report:

Logo can be customized

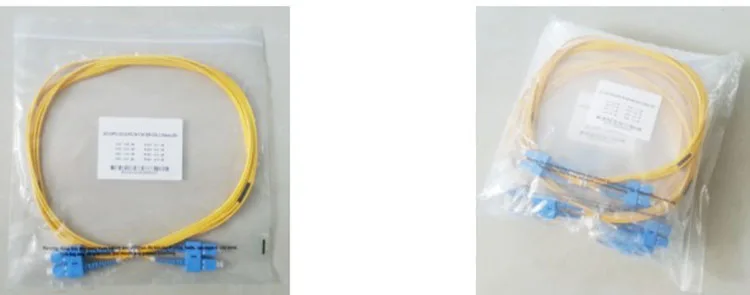

Detailed package as below



Ordering Information
Cable Diameter: 2.0mm,3.0mm
Connector: LC/SC/FC/ST/E2000/MTRJ/SMA
Polishing way: APC/UPC
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3,OM4
Sheath Material: PVC, LSZH
Length: XX Meter
