iec 60320 c8 2 pin pcb mount 110v male plug inlet ac power socket
- Category: >>>
- Supplier: Dongguan Dewo Electronics Technology Co. Ltd.
Share on (62326152319):
Product Overview
Description
Product Description
iec 60320 c8 2 pin pcb mount 110v male plug inlet ac power socket
Application:
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc

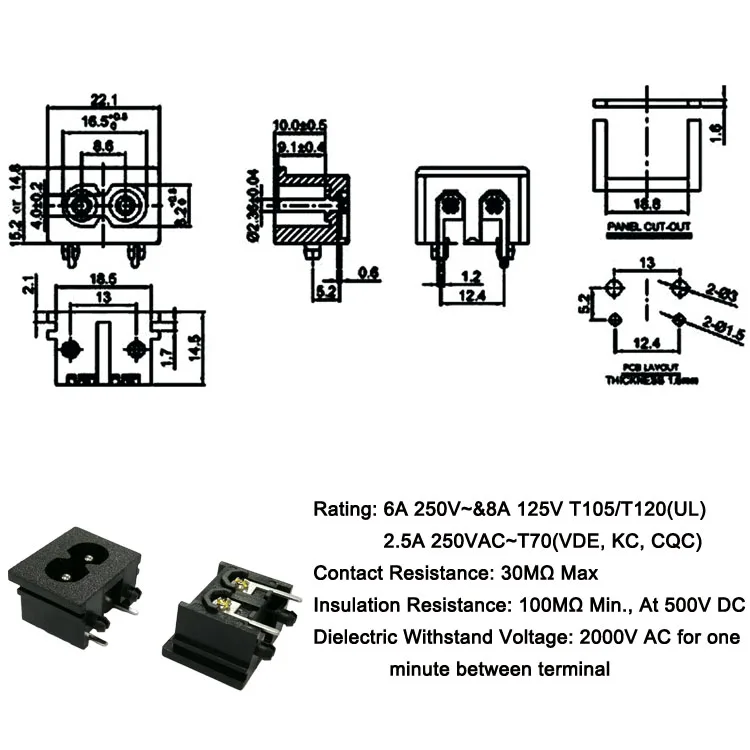

| Rating | 6A 250V~& 8A 125V~T105/T120(UL) 2.5A 250V ~T70(VDE,KC,CCC) |
| contact resistance | 30m Ωmax |
| Insulation resistance | 100M Ω Min.,At 500V DC |
| Dielectric Withstand Voltage | 2000V AC for one minute between terminals |
| Housing | PC UL94V-0 |
| PIN & TERMINALS | COPPER ALLOY,TIN PLATED |

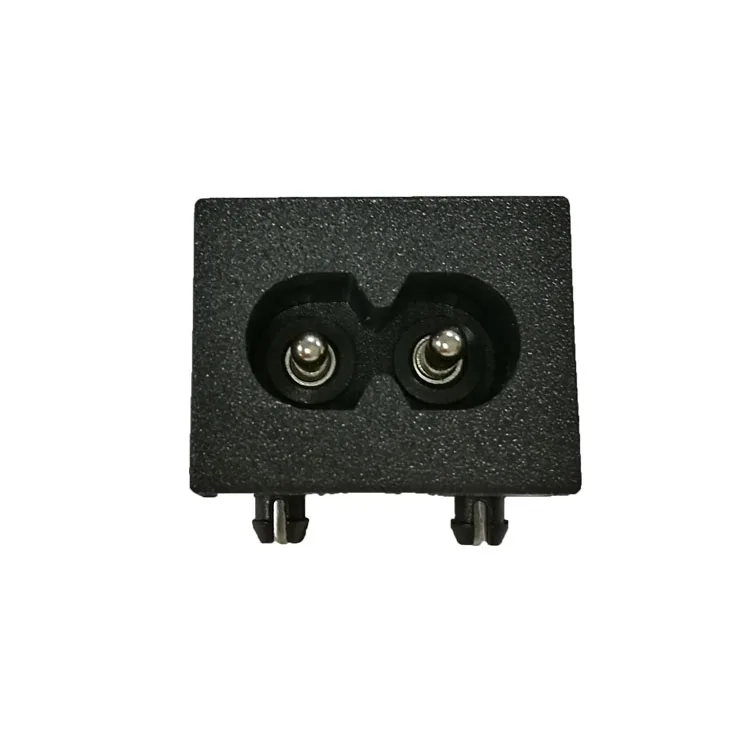

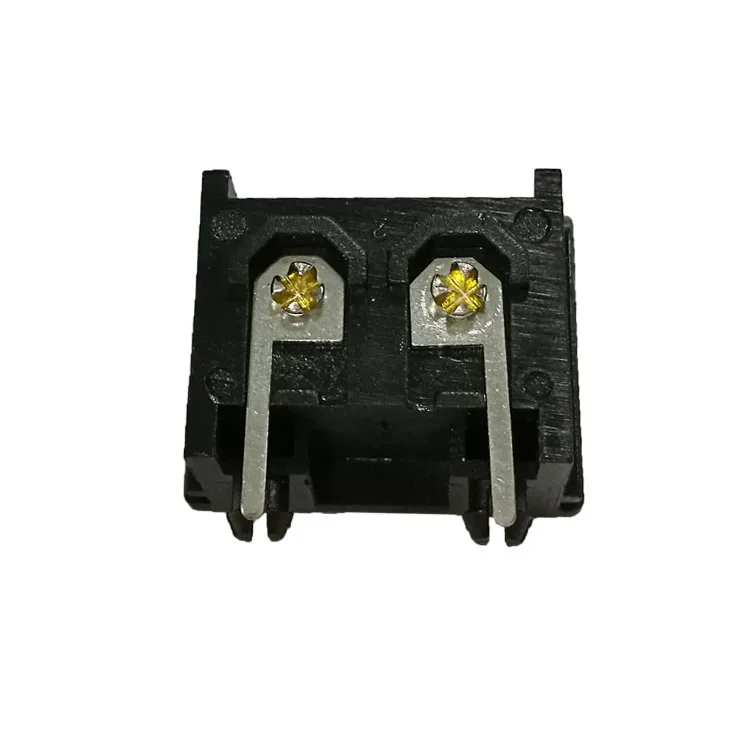

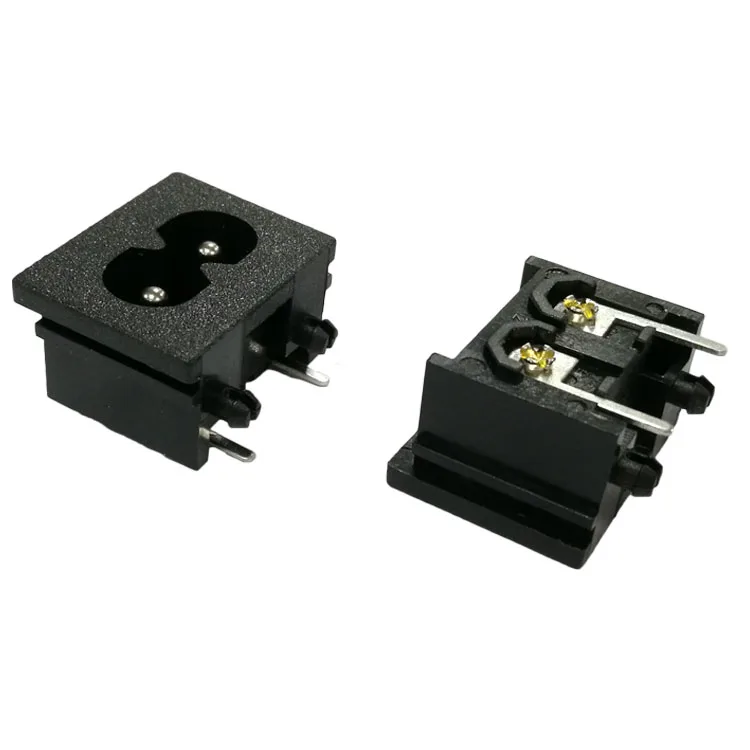

Product Pictures
